Aluminium structures and suspension equipment

Truss and rigging

Choose a profile. Connect the elements.
Plan a structure for your space.

Compare systems

FT or HT?
The difference is in the wall.

Both systems have a 290 × 290 mm cross-section and 50 mm main tubes. FT uses a 2 mm wall; HT uses 3 mm.

FT

2 mm wall

2 mmMain tube wall

Main tubes: Ø 50 × 2 mm
Braces: Ø 20 × 2 mm
Structure cross-section: 290 × 290 mm

Explore FT

HT

Reinforced 3 mm wall

3 mmMain tube wall

Main tubes: Ø 50 × 3 mm
Braces: Ø 20 × 2 mm
Structure cross-section: 290 × 290 mm

Explore HT

HT has a 50% thicker main tube wall. This is not a percentage increase in load capacity. Permitted loads must be checked against the chart for the system, span and load arrangement.

Tube cross-sections are shown at the same scale.

Systems
and available versions

Compare cross-sections, tubes and available lengths. Capacity is checked for the specific span and load arrangement.

290 mm profile.
50 × 2 mm tubes.

Square truss with 50 × 2 mm main tubes for straight spans, corners, T-junctions, bases and circular configurations. Available in natural aluminium and black finish.

Cross-section: 290 mm
Main tubes: 50 × 2 mm
Braces: 20 × 2 mm
Alloy: EN AW 6080 T6

Straight section lengths

0,50 m1,00 m1,50 m2,00 m3,00 m

Request a quote for FT

A shape that fits
your space

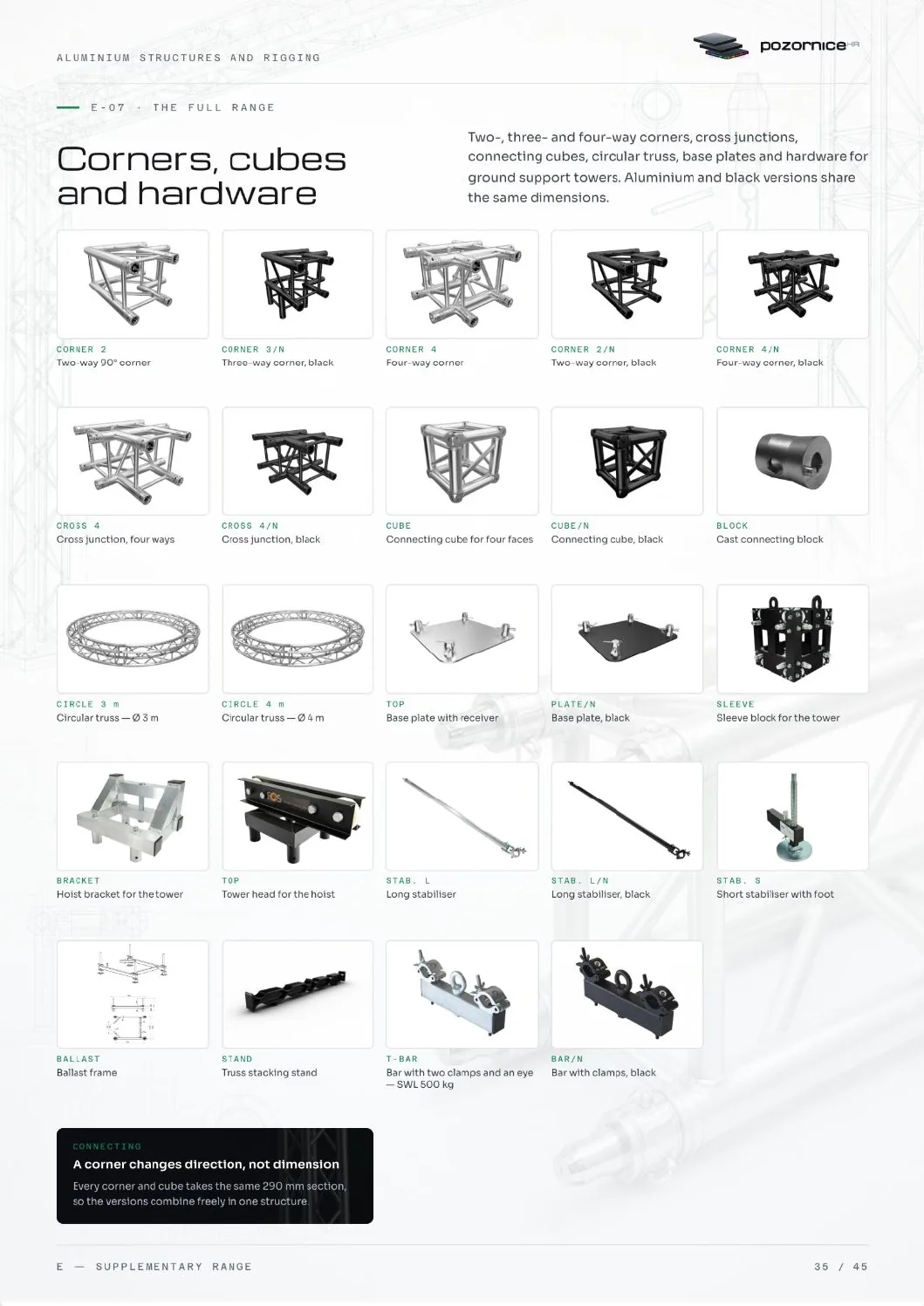

Straight sections, corners and circular segments. Bases and connectors are selected for the system.

Straight sections

For spans between supports.

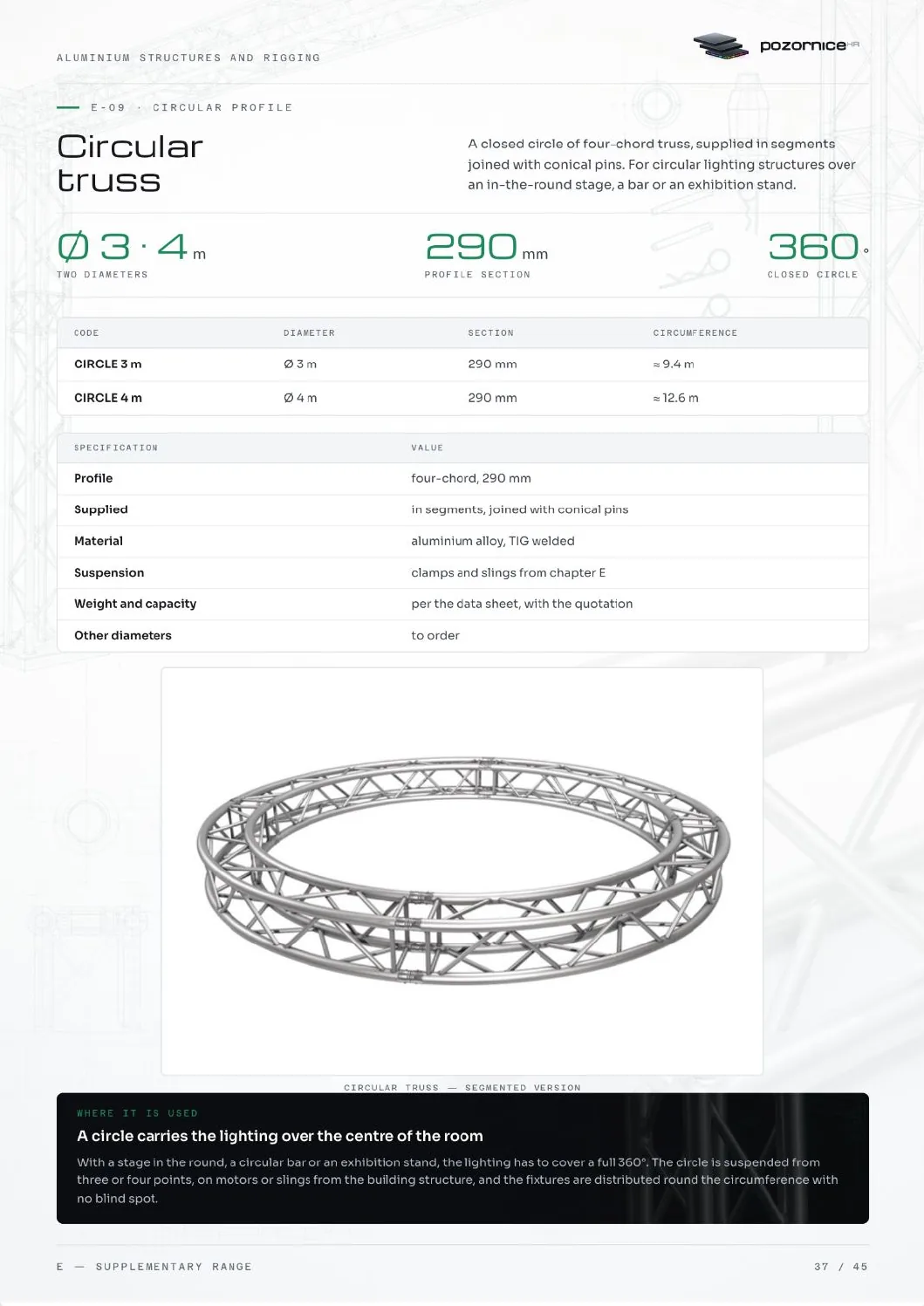

Circular sections

For circular forms and suspension around a centre point.

90° corners

For portals and rectangular frames.

Ladder truss

TPN290 · 290 mm profile height.

Base plates

Support matched to the structure and ground.

Suspension accessories

Nuts, snap hooks and shackles for the selected connection.

Photographs show individual versions. Check connection compatibility and finish for the selected system.

Truss lighting columns

Three heights.
The same setup method.

Freestanding MHT columns with base and top plates.

FT-MHT 100

1,00 m

Maximum load 25 kg

Request a quote

FT-MHT 150

1,50 m

Maximum load 25 kg

Request a quote

FT-MHT 200

2,00 m

Maximum load 25 kg

Request a quote

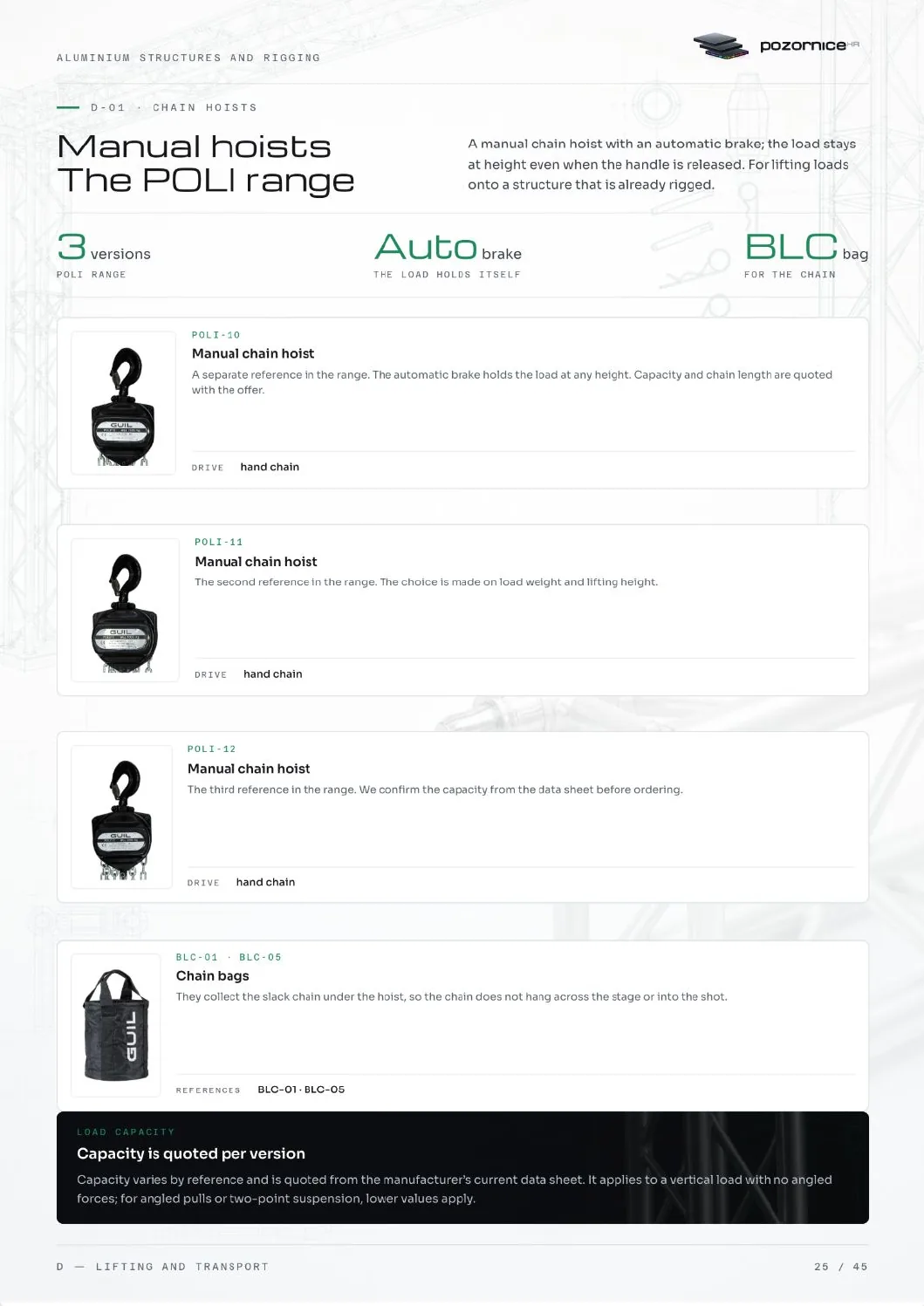

Lifting.
Control. Transport.

Compare chain hoists and control equipment. Match your choice to the load weight and suspension plan.

Electric chain hoist

KYRA 1000 D8+

Rated load: 1.000 kg
Chain: 24 m
Lifting speed: 4 m/min

Confirm the version for your project

Details
that connect the system

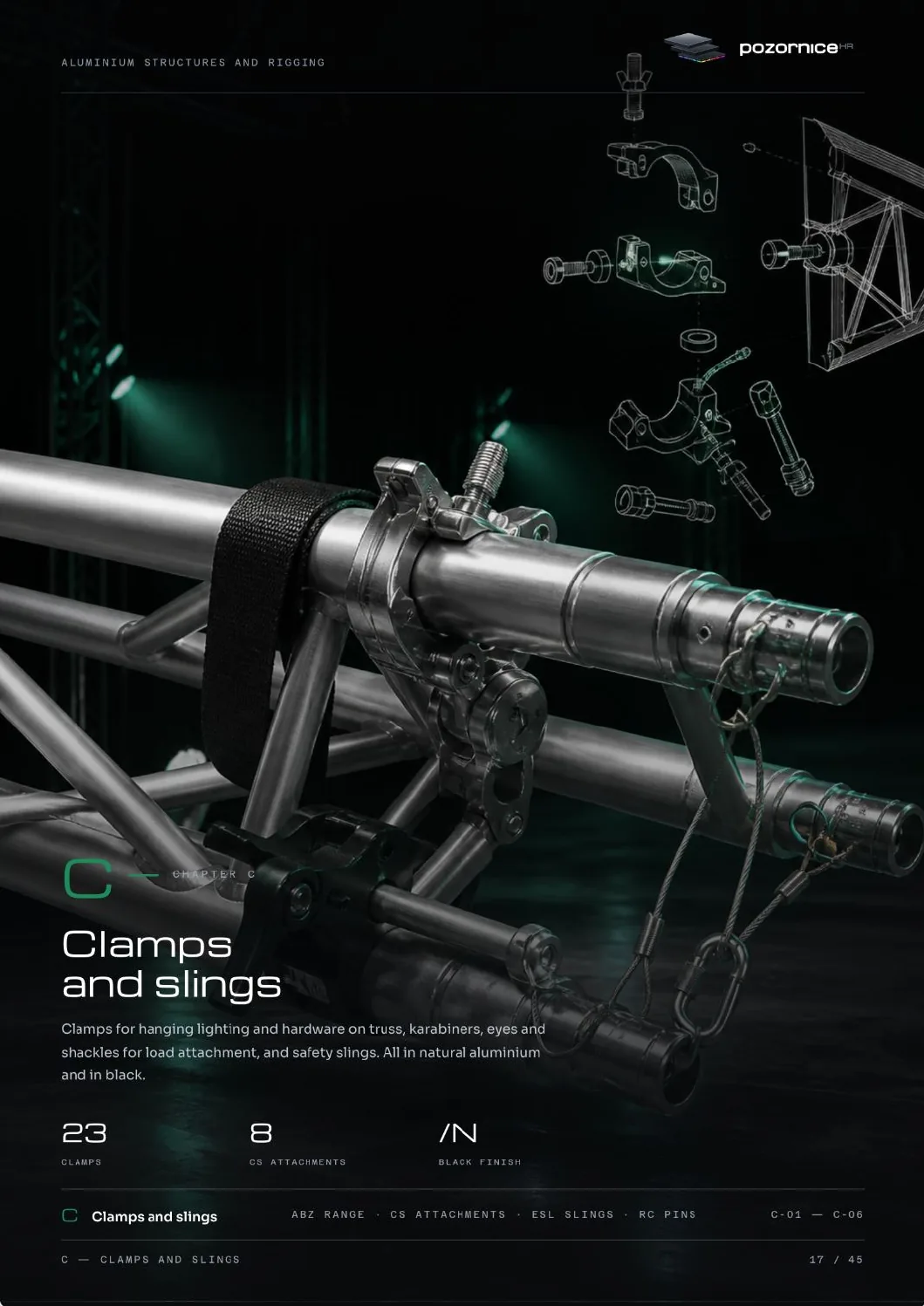

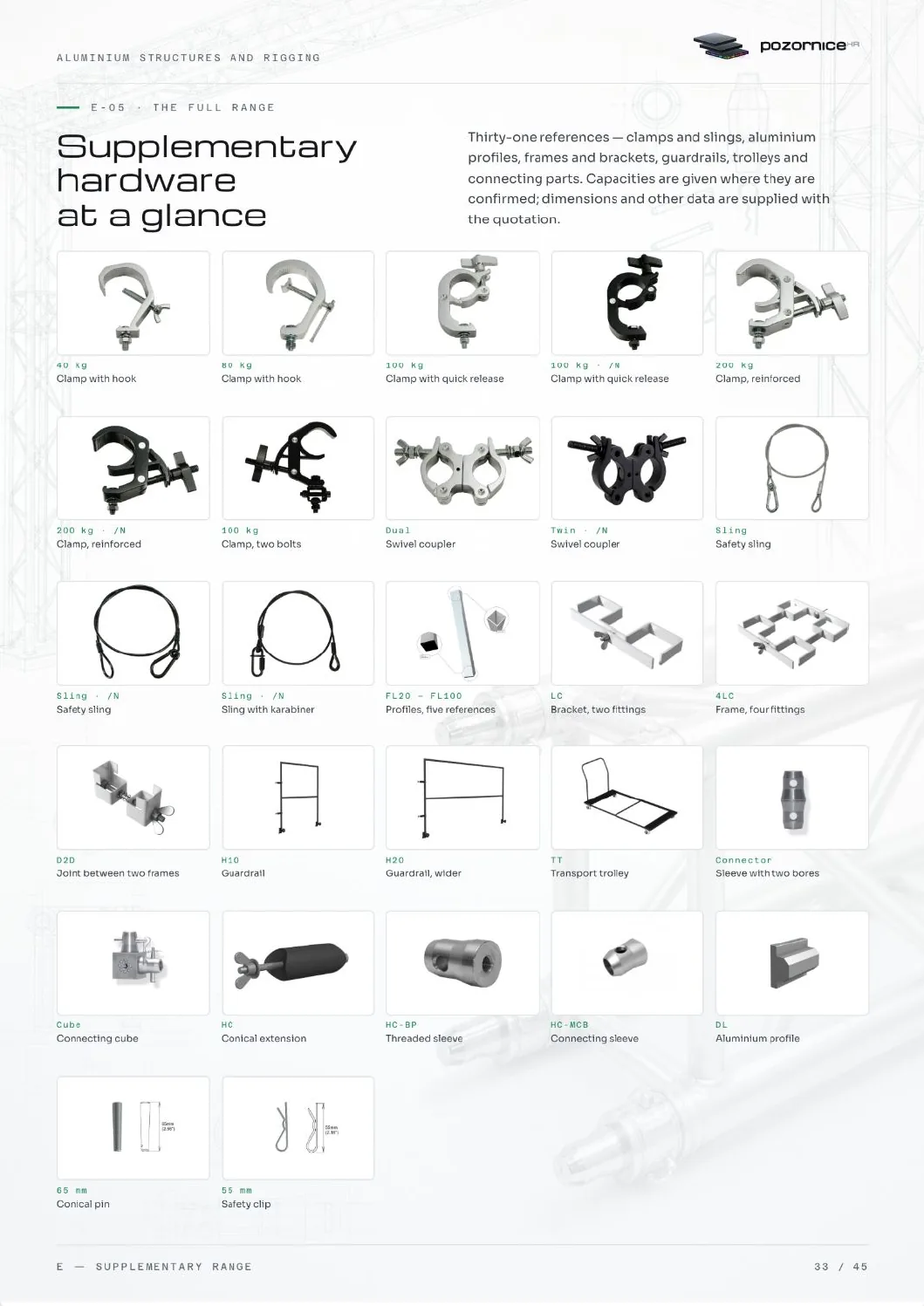

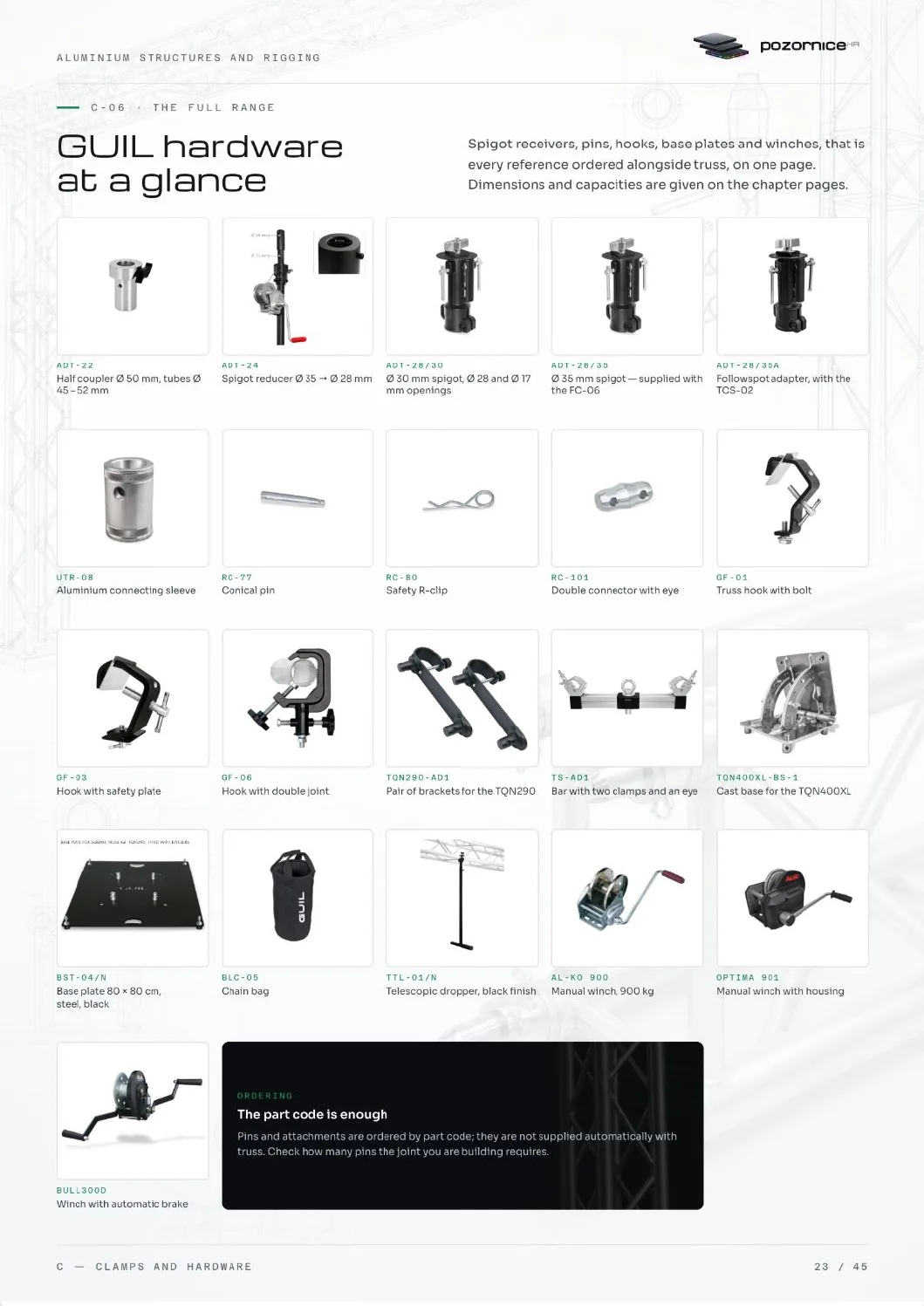

Clamps, slings, hooks and mounts. Search all 61 products by code or application.

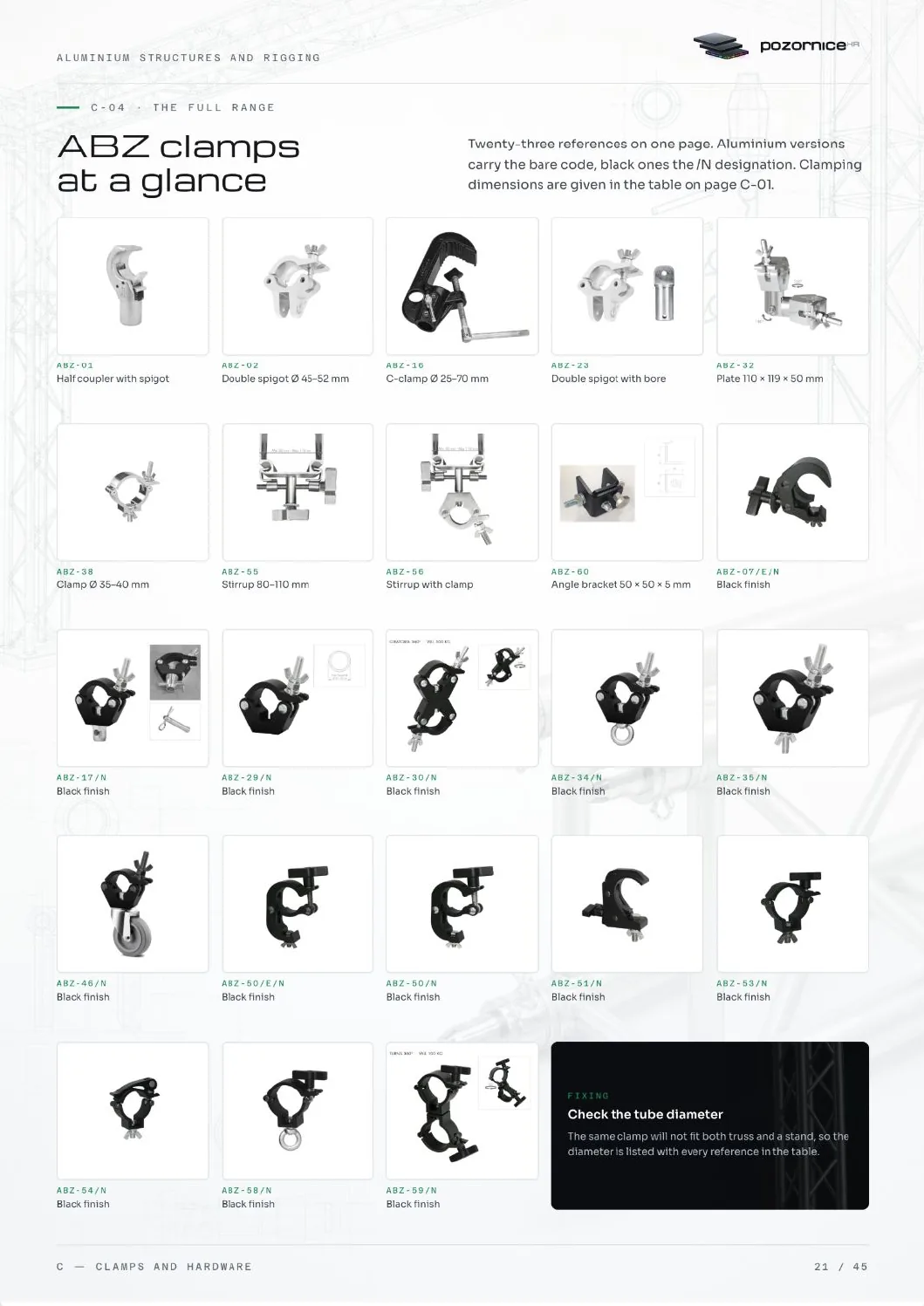

ABZ-01

Quick-release clamp

Ø 50–51 mm

ABZ-02

Stabilising clamp

Ø 45–52 mm

ABZ-07/E-N

Quick-release clamp

Ø 38–51 mm

ABZ-16

Theatre clamp

For round and square tubes

ABZ-17/N

Clamp with conical adapter

Ø 45–52 mm

ABZ-23

Clamp with articulated adapter

Ø 45–52 mm

ABZ-29/N

Poluspojnica

Ø 45–52 mm

ABZ-30/N

Double swivel clamp

Ø 45–52 mm

ABZ-32

Joint with two clamps

Articulated joint

ABZ-34/N

Suspension clamp

Ø 45–52 mm

ABZ-35/N

Poluspojnica

Ø 45–52 mm

ABZ-37

Clamp with adapter

Tube Ø 45–52 mm · adapter Ø 50 mm

ABZ-38

Poluspojnica

Ø 35–40 mm

ABZ-46/N

Clamp with wheel

Ø 45–52 mm

ABZ-50/E-N

Self-closing clamp

Ø 46–52 mm

ABZ-50/N

Self-closing clamp

Ø 46–52 mm

ABZ-51/N

Mini quick-release clamp

Ø 48–51 mm

ABZ-53/N

Poluspojnica

Ø 48–51 mm

ABZ-54/N

Poluspojnica

Ø 50 mm

ABZ-55

Tent beam mount

For suspending lighting and speakers

ABZ-56

Beam attachment with clamp

For tubes and truss in tents

ABZ-58/N

Suspension clamp

Ø 48–51 mm

ABZ-59/N

Double swivel clamp

Ø 48–51 mm

ABZ-60

Clamp joint

WLL 75 kg

ADT-100

Tent mounting adapter

Maximum 60 kg with adapter

GF-01

Steel hook with protective plate

WLL 75 kg

GF-03

Steel hook with protective plate

WLL 200 kg

GF-06

Theatre hook

For round and square tubes

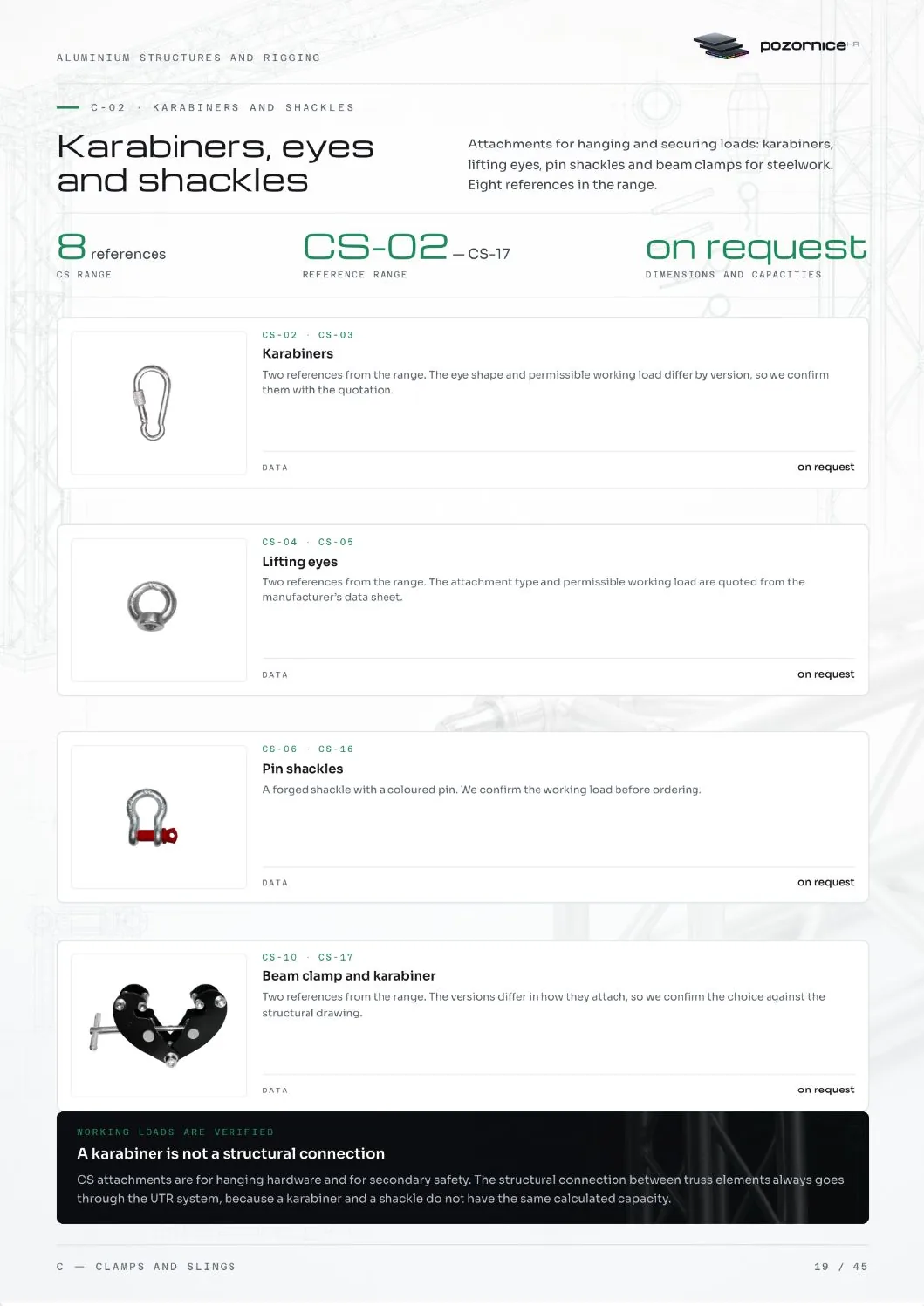

CS-02

Screw-lock carabiner

WLL 150 kg

CS-03

Screw-lock carabiner

WLL 220 kg

CS-04

M10 eye nut

WLL 230 kg

CS-05

M12 eye nut

WLL 340 kg

CS-06

Shackle

WLL 2,000 kg

CS-10

Beam clamp

WLL 2,000 kg

CS-16

Bow shackle with safety pin

WLL 2,000 kg

CS-17

Screw-lock carabiner

WLL 1,000 kg

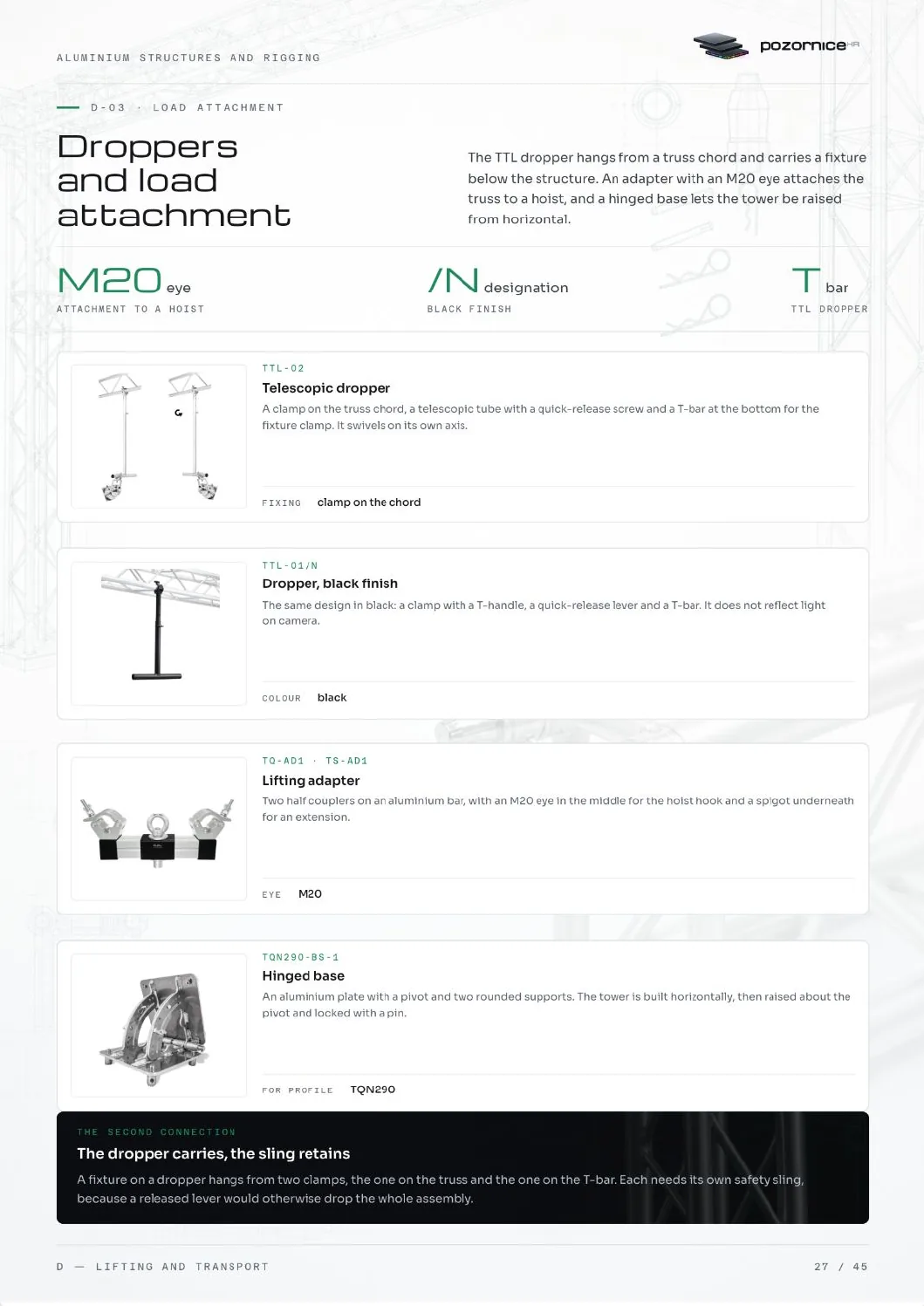

TTL-01/N

Telescopic lighting support

63.7–93.7 cm · 4 positions

TTL-02

Telescopic lighting support

115–195 cm · 9 positions

TTL-02/N

Telescopic lighting support

115–195 cm · black finish

ESL-04

Endless textile sling

2,000 mm · WLL 1,000 kg

ESL-17

Stainless steel safety cable

500 mm · Ø 2 mm

ESL-18

Stainless steel safety cable

1,000 mm · Ø 3 mm · WLL 60 kg

ESL-21

Steel safety sling

2.000 mm · Ø 8 mm · WLL 700 kg

RC-77

Tapered steel pin

For connecting truss sections

RC-80

R-clip

Connecting pin retainer

RC-99

Threaded conical pin

M8 · with nut

RC-101

Aluminium double cone

For connecting truss sections

UTR-06

Base plate connector

Truss system

UTR-07

Corner block connector

DDO/TQN290 · DDO/TQN400XL

UTR-08

Female truss adapter

Square truss

UTR-10

Connection kit for square truss

TQN290 · TQN400XL

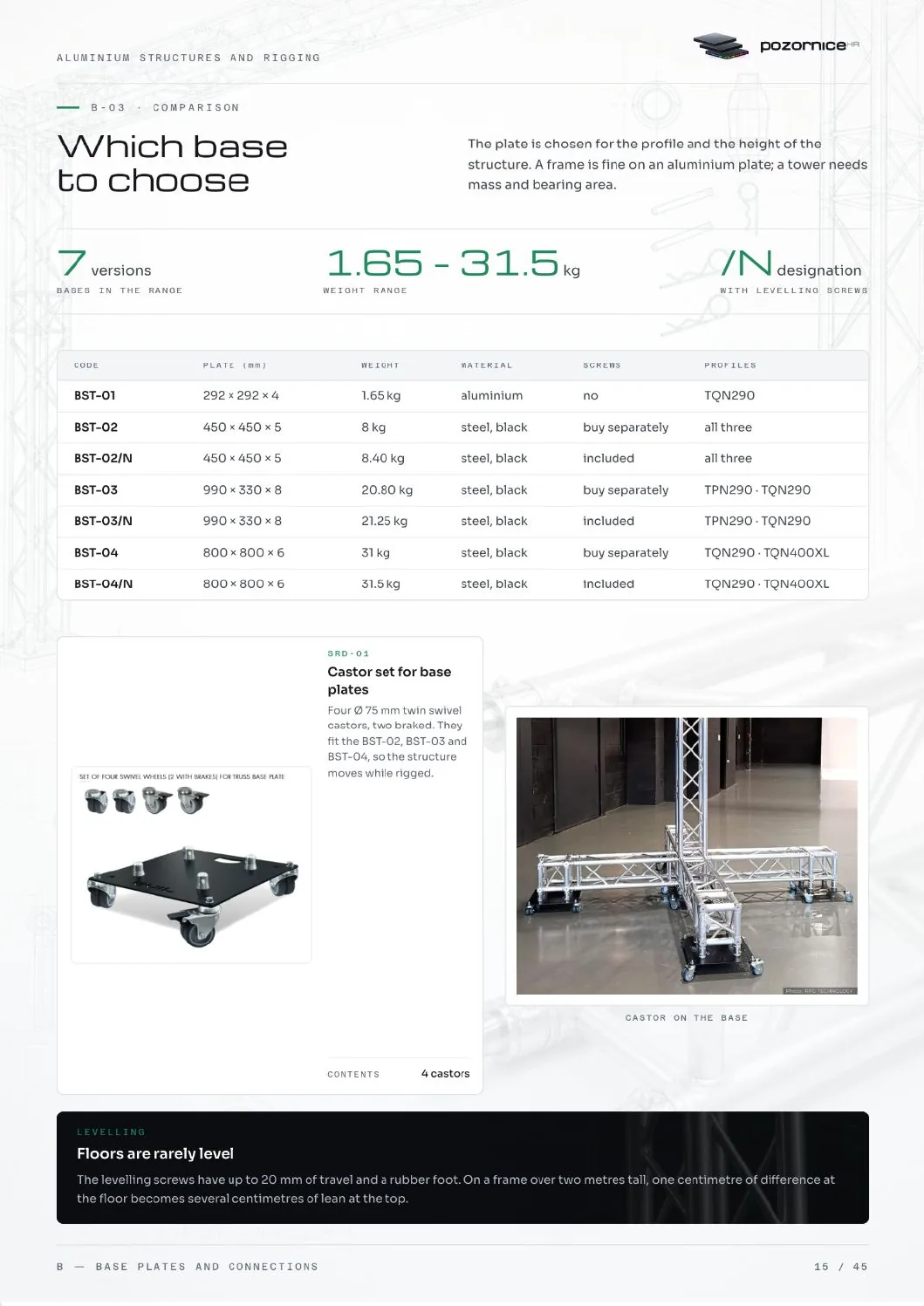

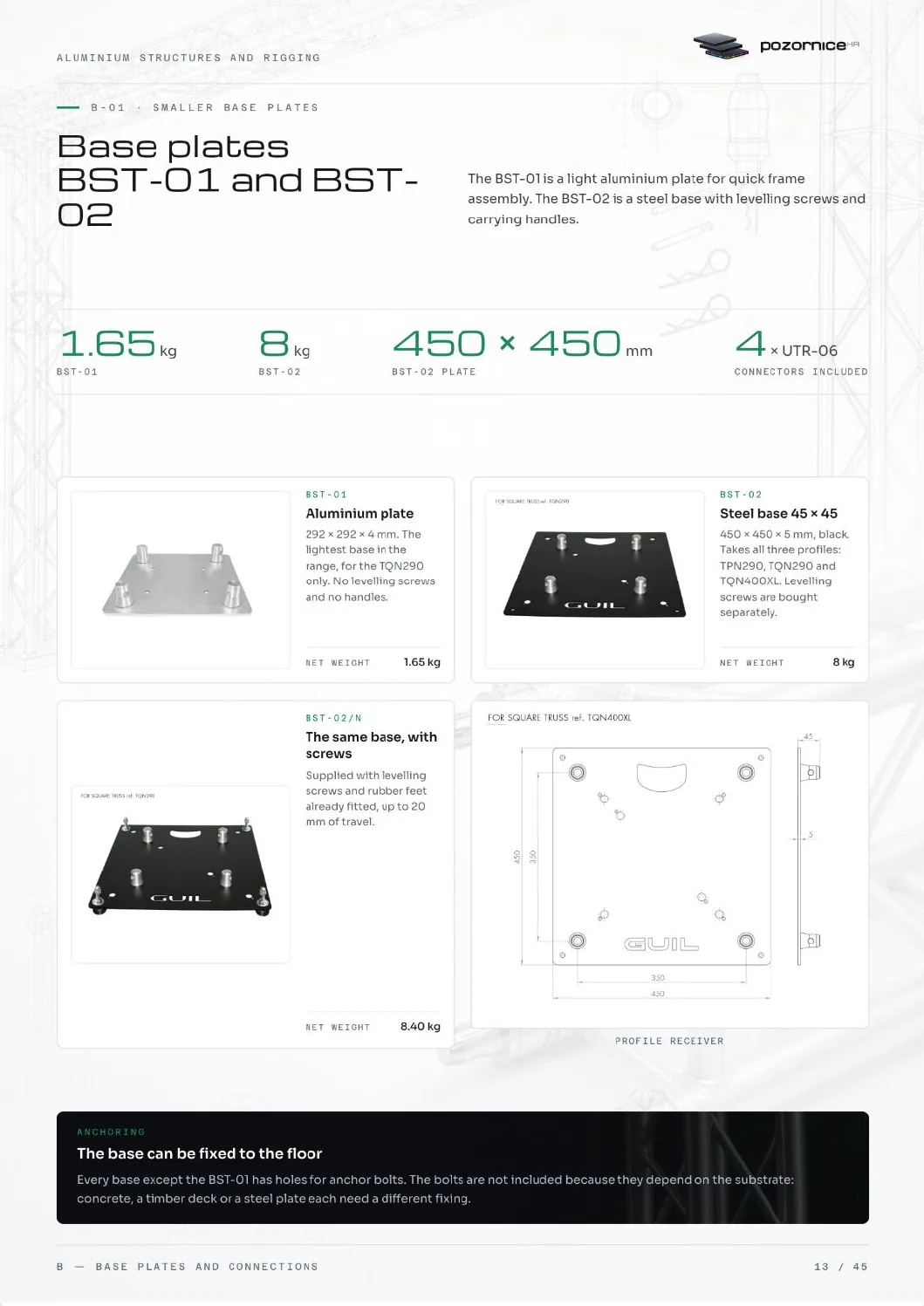

BST-02

Base plate

450 × 450 × 5 mm

BST-03

Steel base plate

990 × 330 × 8 mm

BST-04

Base plate

800 × 800 × 6 mm

SRD-01

Set of four swivel wheels

For a base plate · two with brakes

TQ-AD1

Truss lifting attachment

Truss width 20–30 cm

TQN290-AD1

Adapter for a vertical truss connection

TQN290 · 90° connection

TS-AD1

Truss lifting attachment

Truss width 20–52 cm

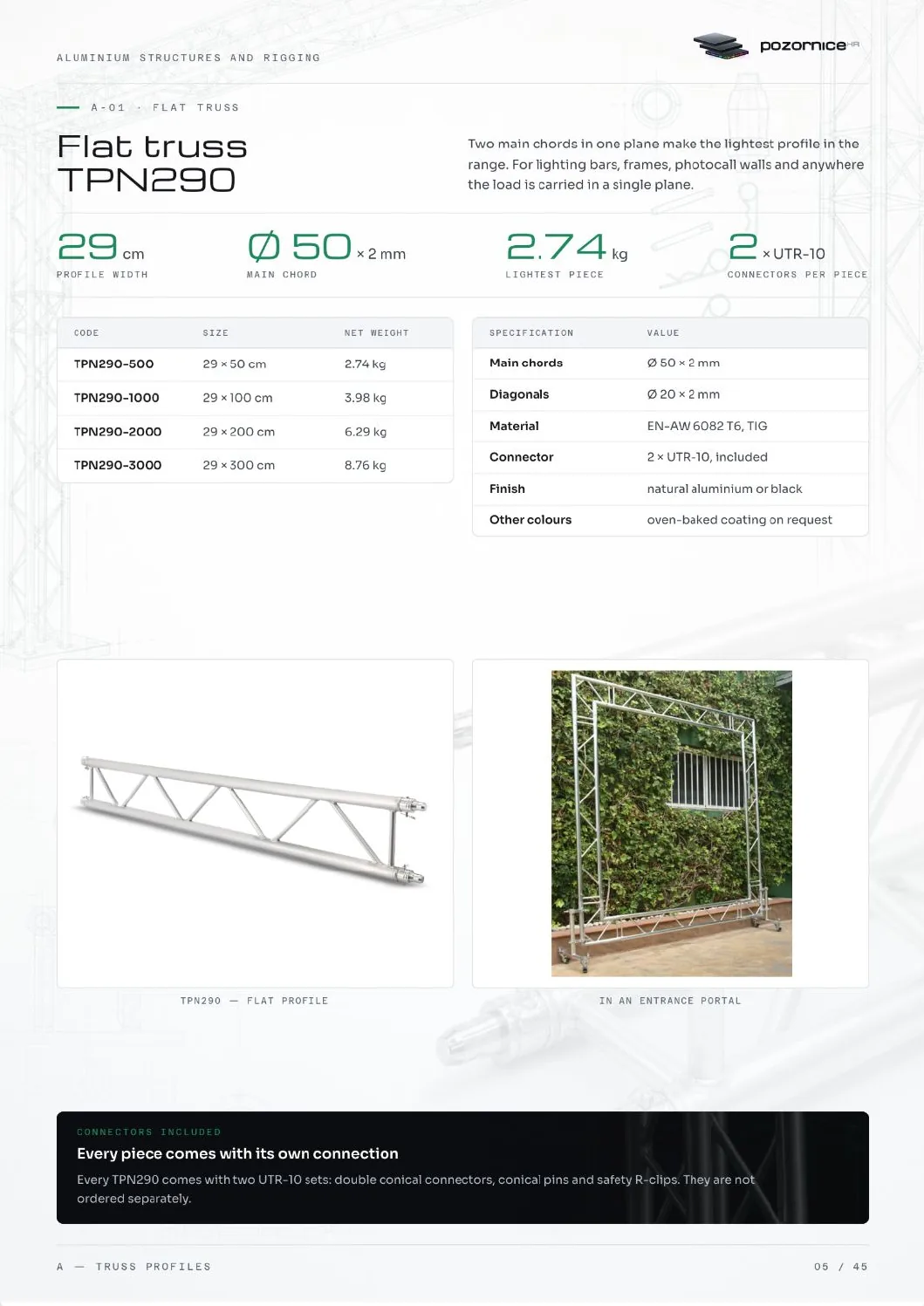

TPN290

Parallel truss 290

Profile height 290 mm

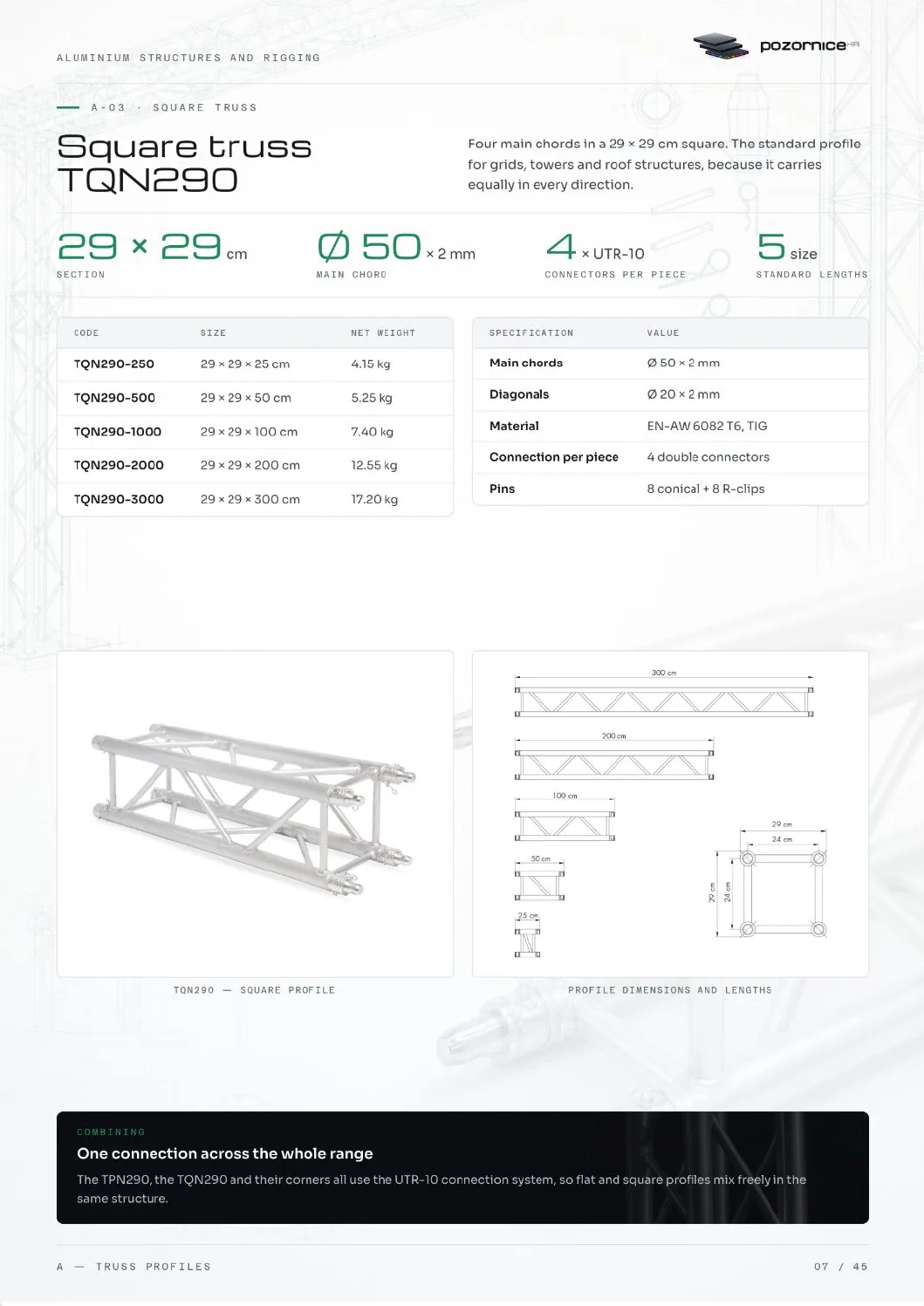

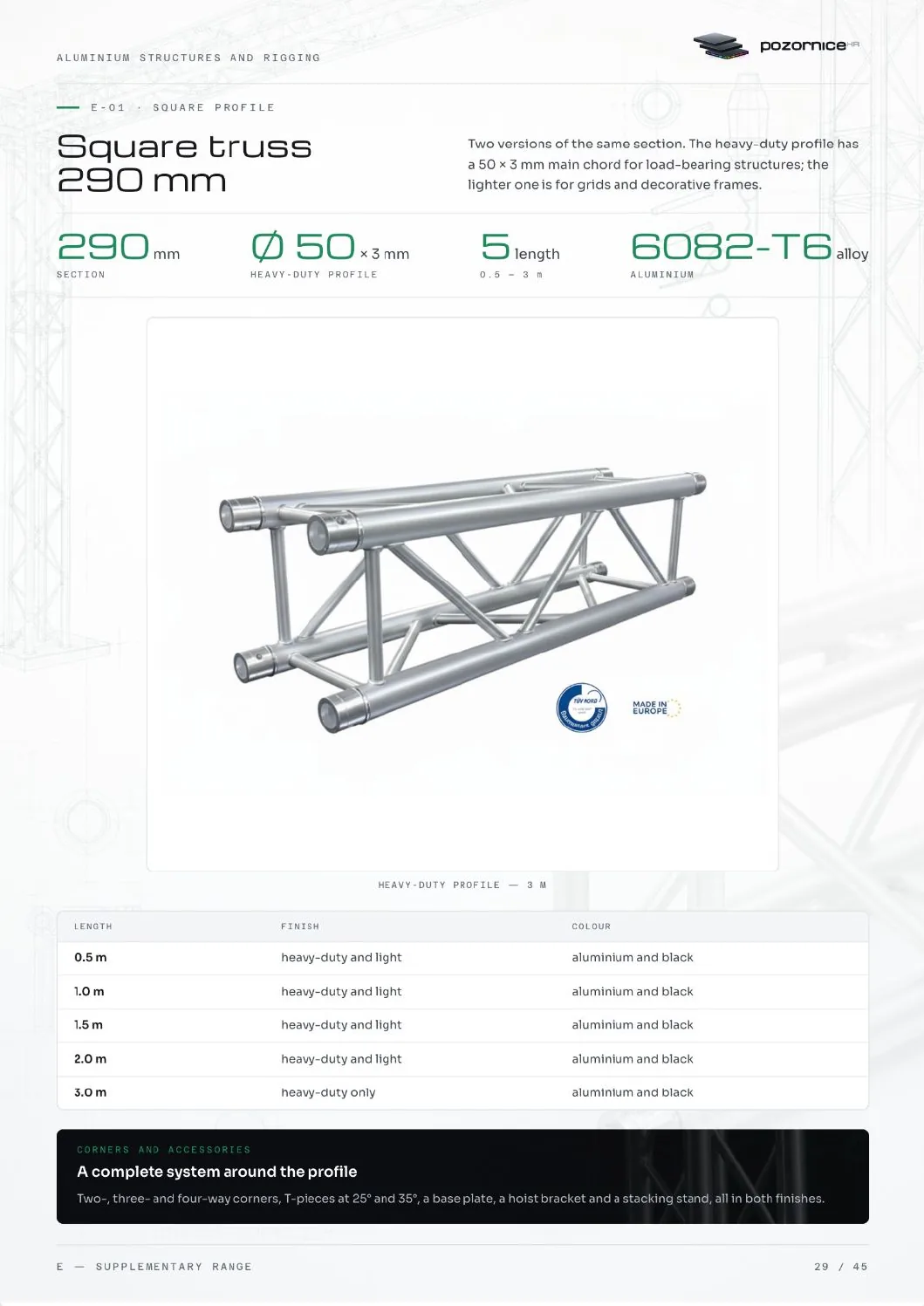

TQN290

290 square truss

290 mm

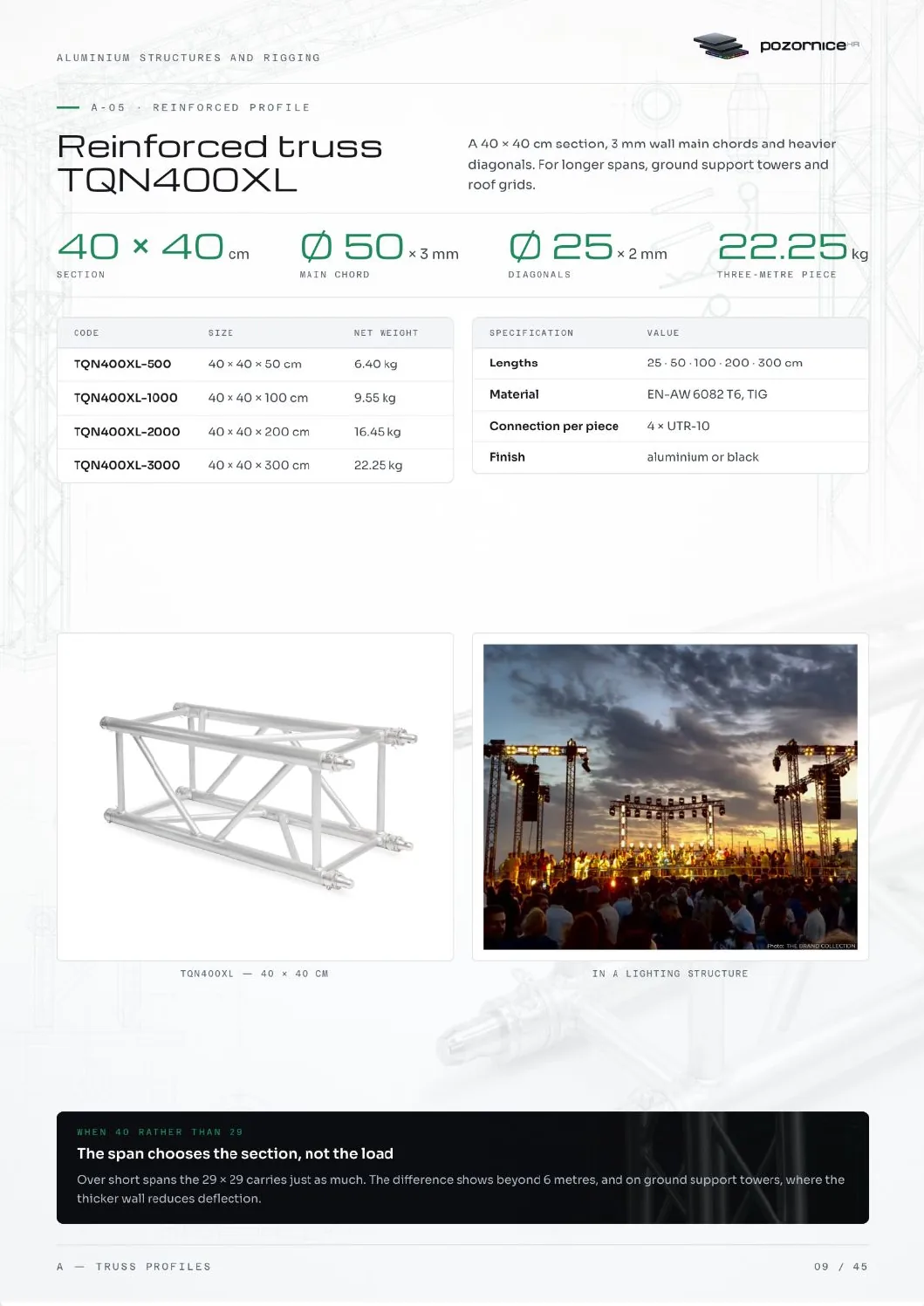

TQN400XL

400 square truss

400 mm

Selection starts
with real data

Span and supports

Send the layout, structure height and support positions. Length alone does not determine the permitted load.

Load and position

Include equipment weights, positions and the number of suspension points. Include accessories and every additional component.

System verification

Load charts, manufacturer documentation and conditions of use form the basis of the final specification.

Send a drawing and equipment list

Truss configurator

Develop your
structure

Arrange the elements, review the layout and prepare an enquiry. Match the final selection to your project conditions.

Open the configurator

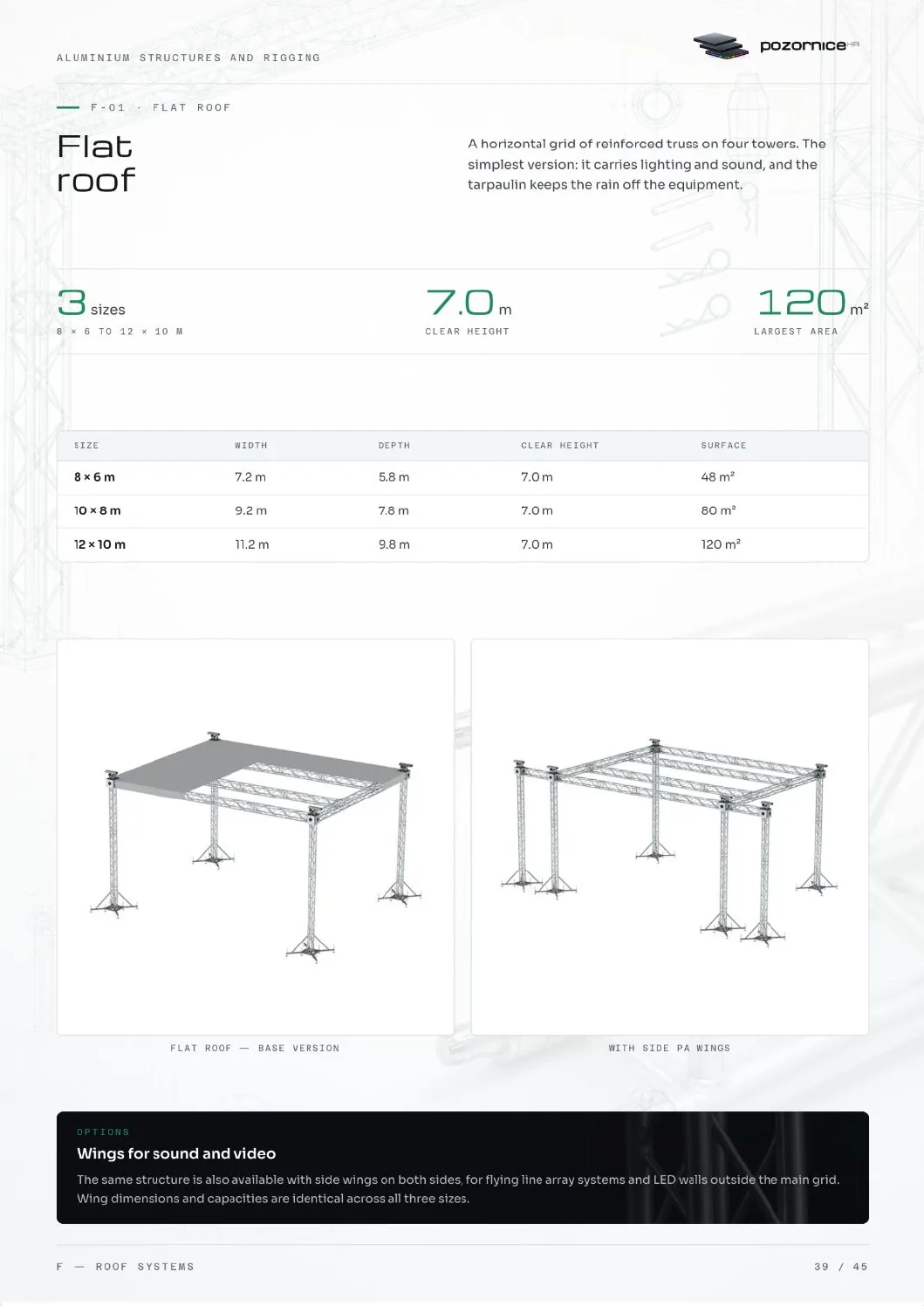

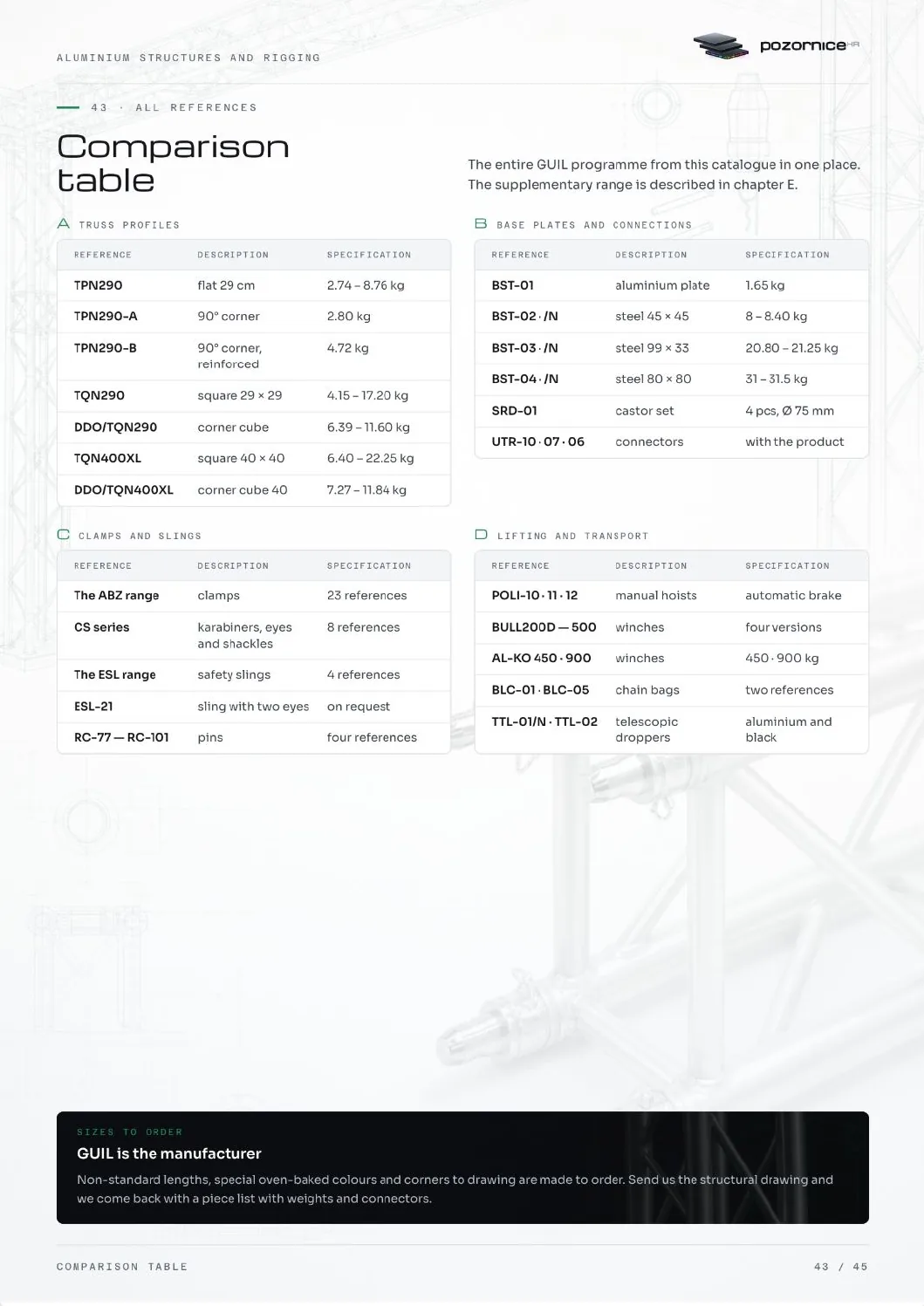

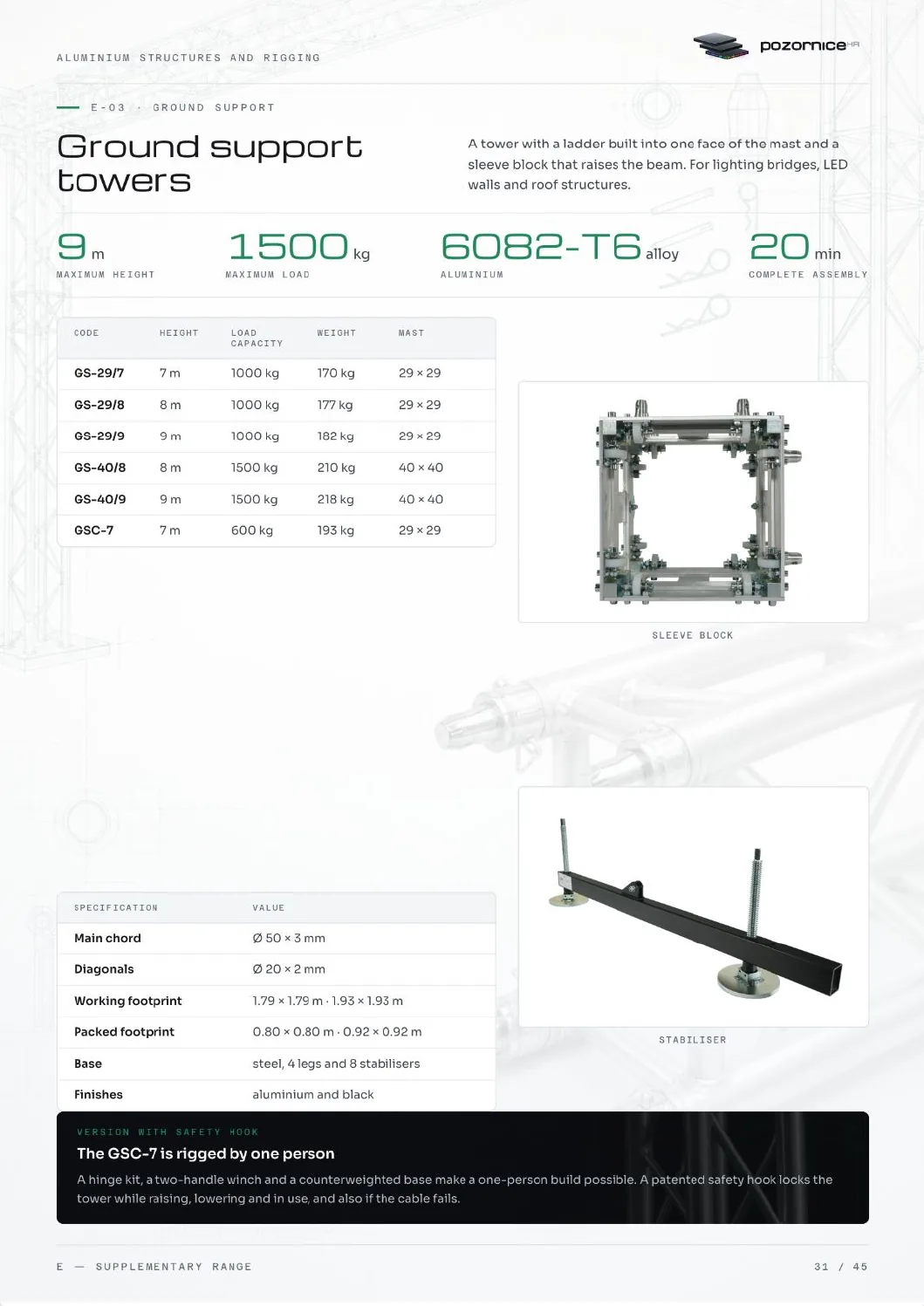

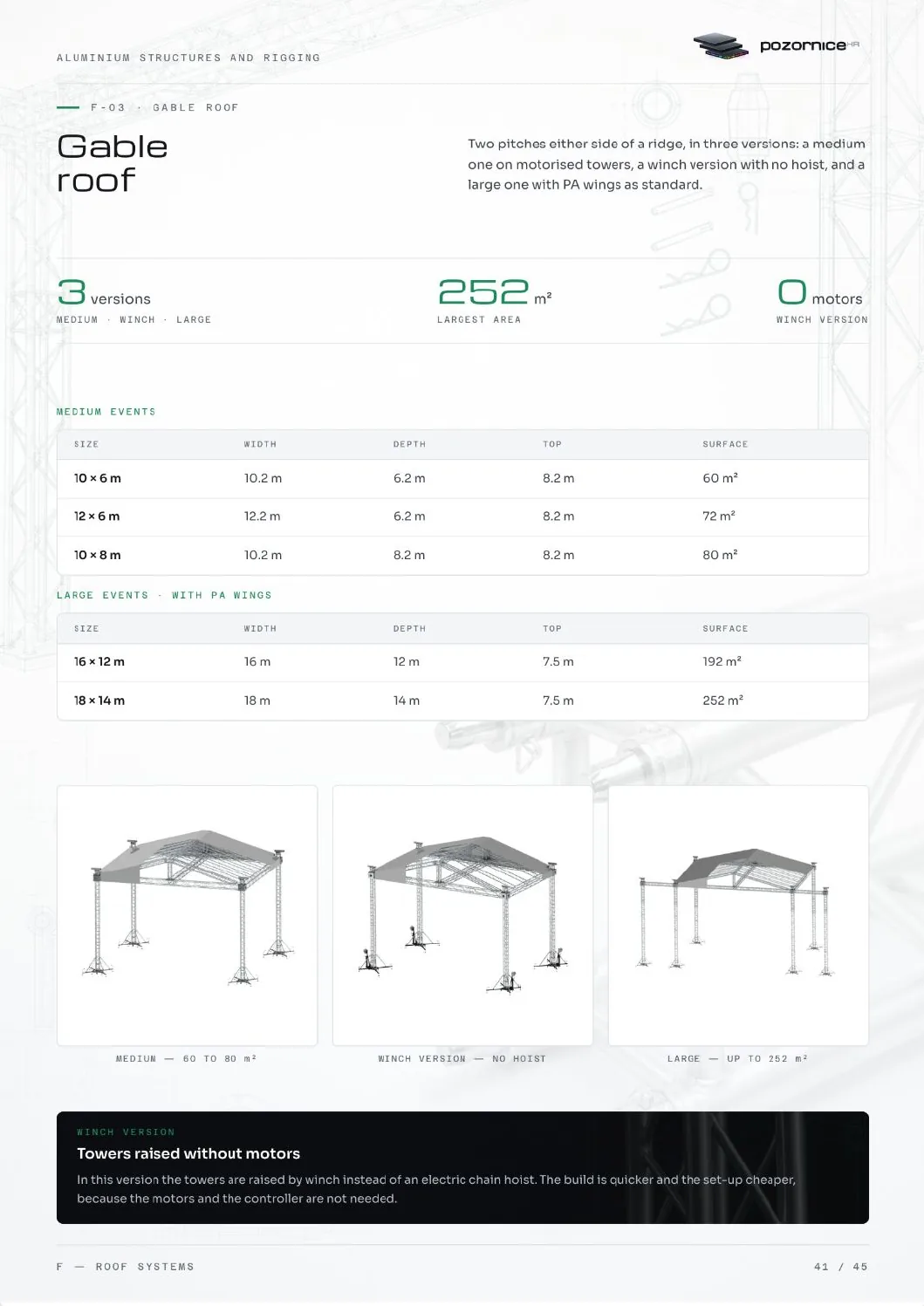

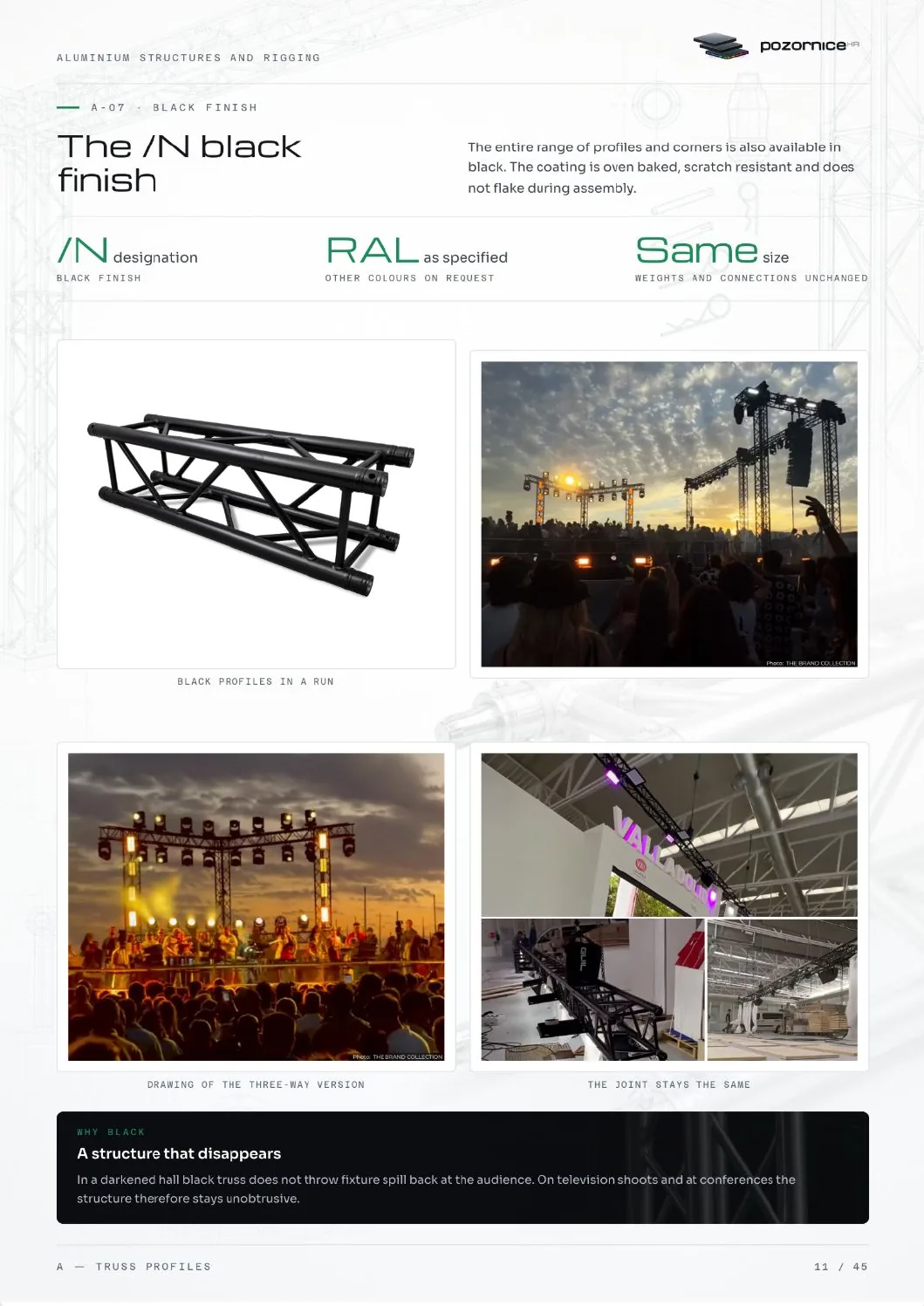

Page of 45

Equipment catalogue
