Custom laser systems

Eight series of professional RGB lasers. Optics, output, housing and control engineered for your venue and production.

Explore the series↓Configurator↗

LumiLas System construction

08series

29models

4–200+W RGB

From club installations to stadium productions

LumiLas / Range

Find your platform

Eight series with distinct optics and applications. Choose a platform, then explore individual models and customisation options.

4–8 WINDOOR

3 models in the series

Compact creative precision

A fast, clean platform for clubs, studios, bars, mobile DJ productions and smaller venues.

Explore models↗

Models / two perspectives

Every model in detail

A cinematic showcase alongside a clear housing view. Compare optics, dimensions and protection, then choose a starting point for your system.

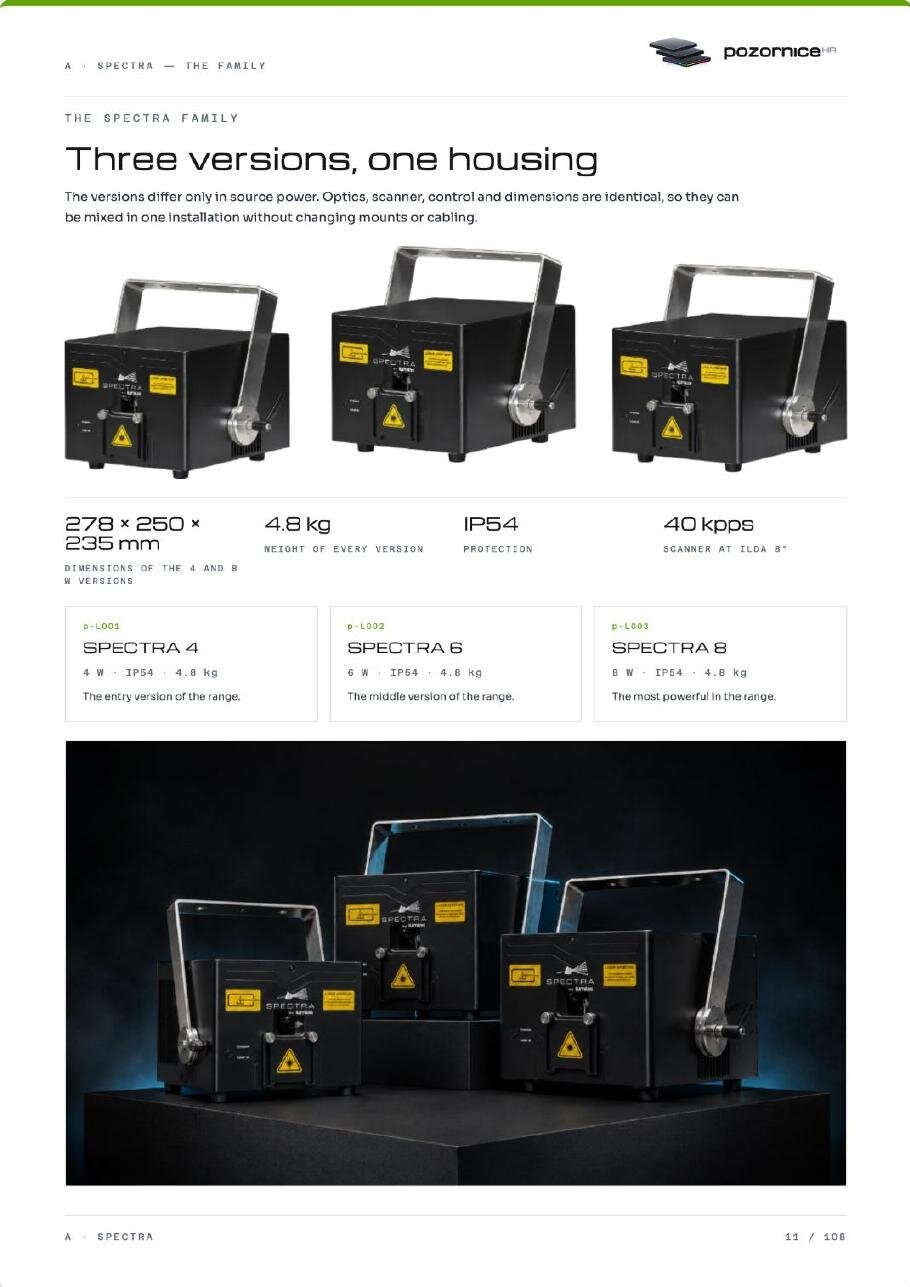

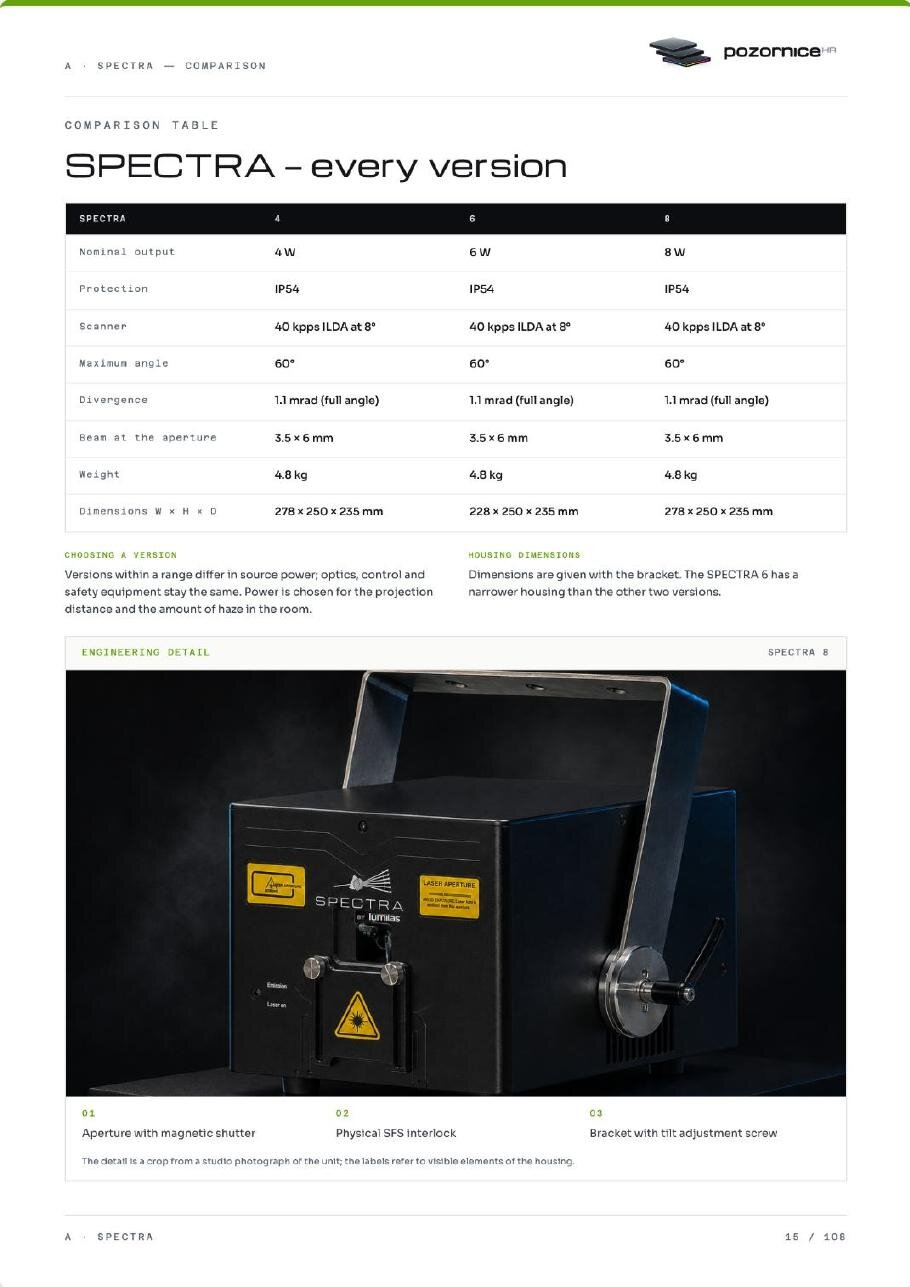

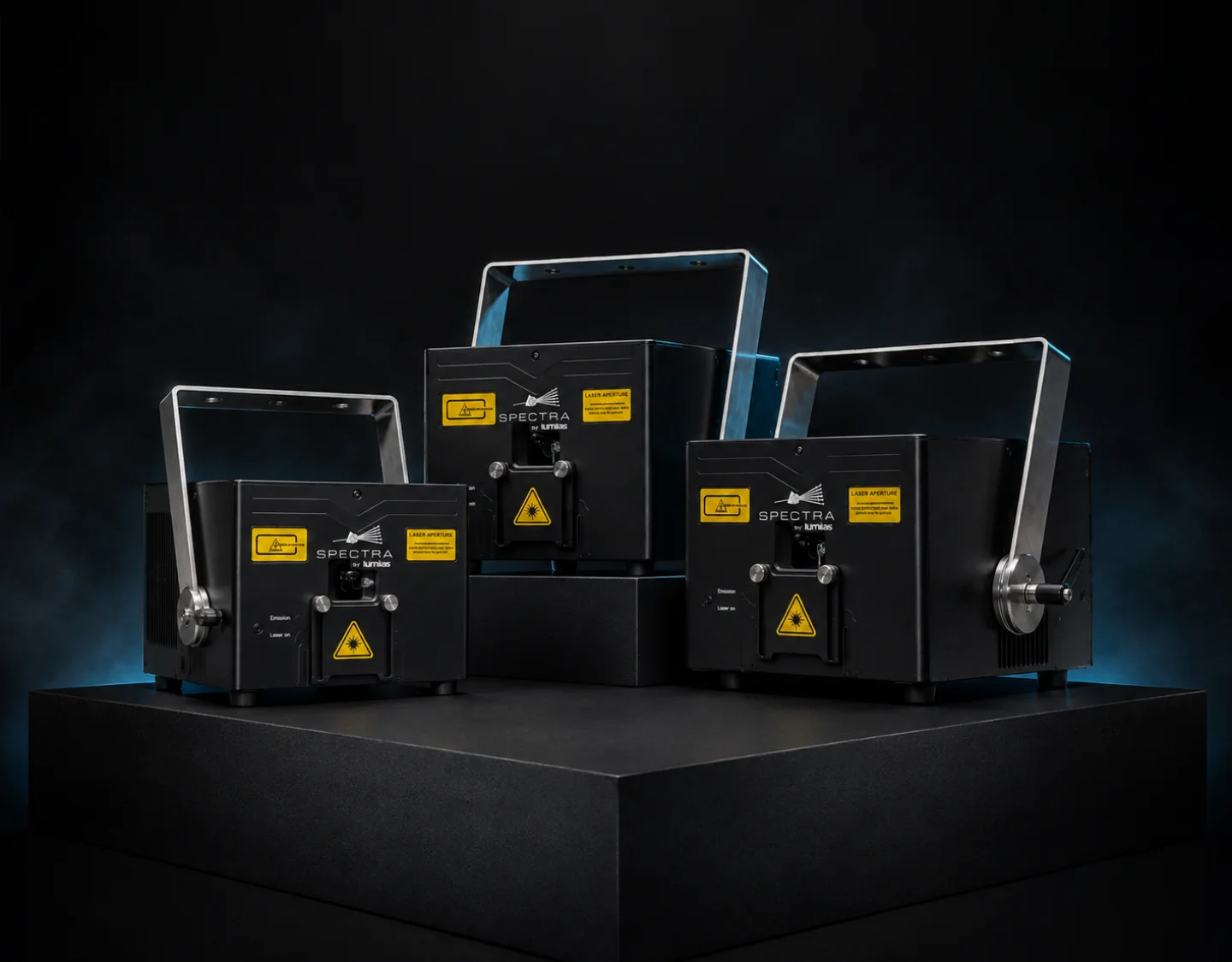

SPECTRA · 3 models

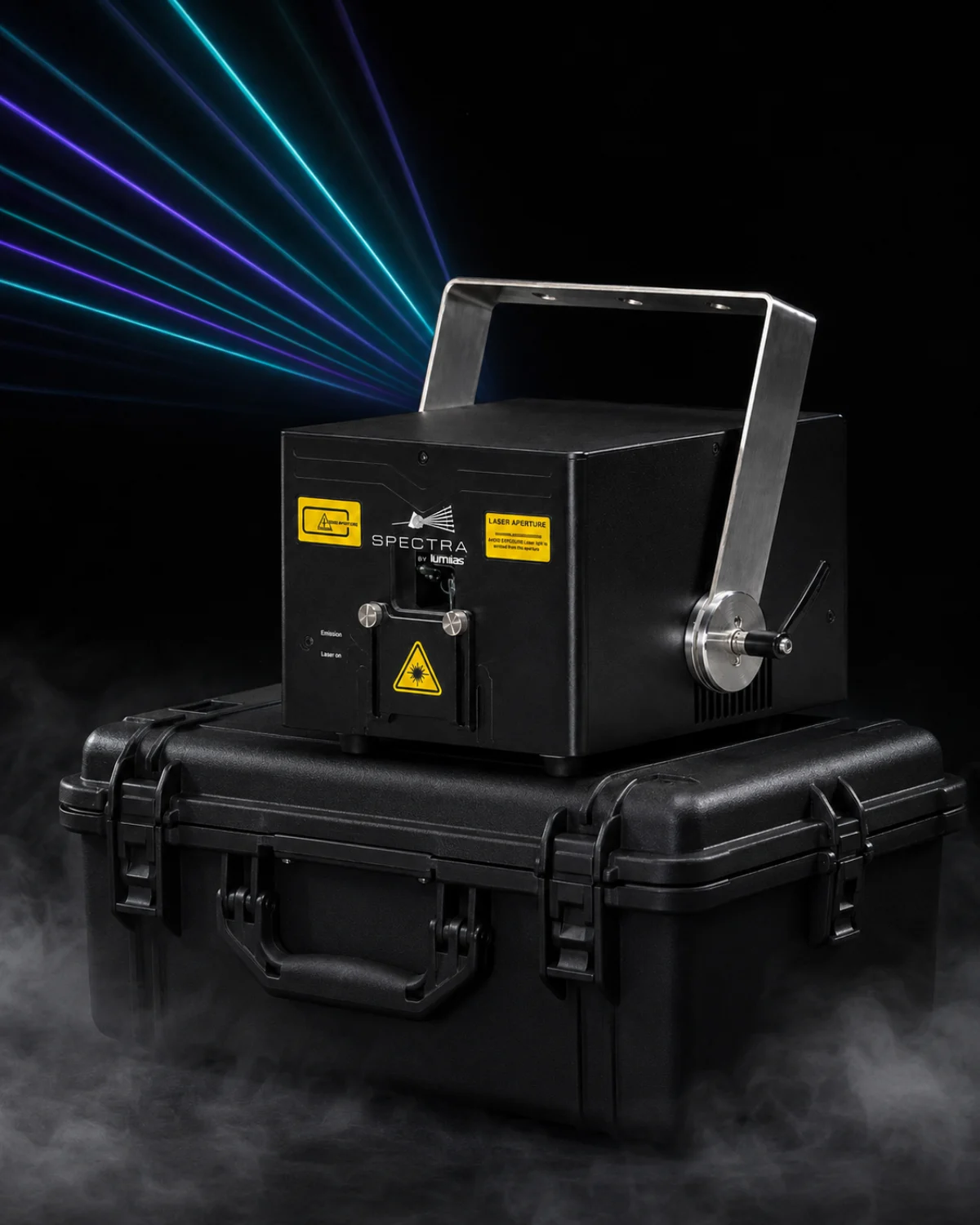

SPECTRA 4 / housing on a transport case with background laser scenography — Cinematic showcase

SPECTRA 4 / complete housing — Housing & construction

Scanning: 40 kpps @ 8°
Scan angle: 60°
Divergence: 1,1 mrad
Beam at aperture: 3,5 × 6 mm
Protection: IP54
Weight: 4,8 kg
Dimensions W × H × D: 278 × 250 × 235 mm

Configure this model↗

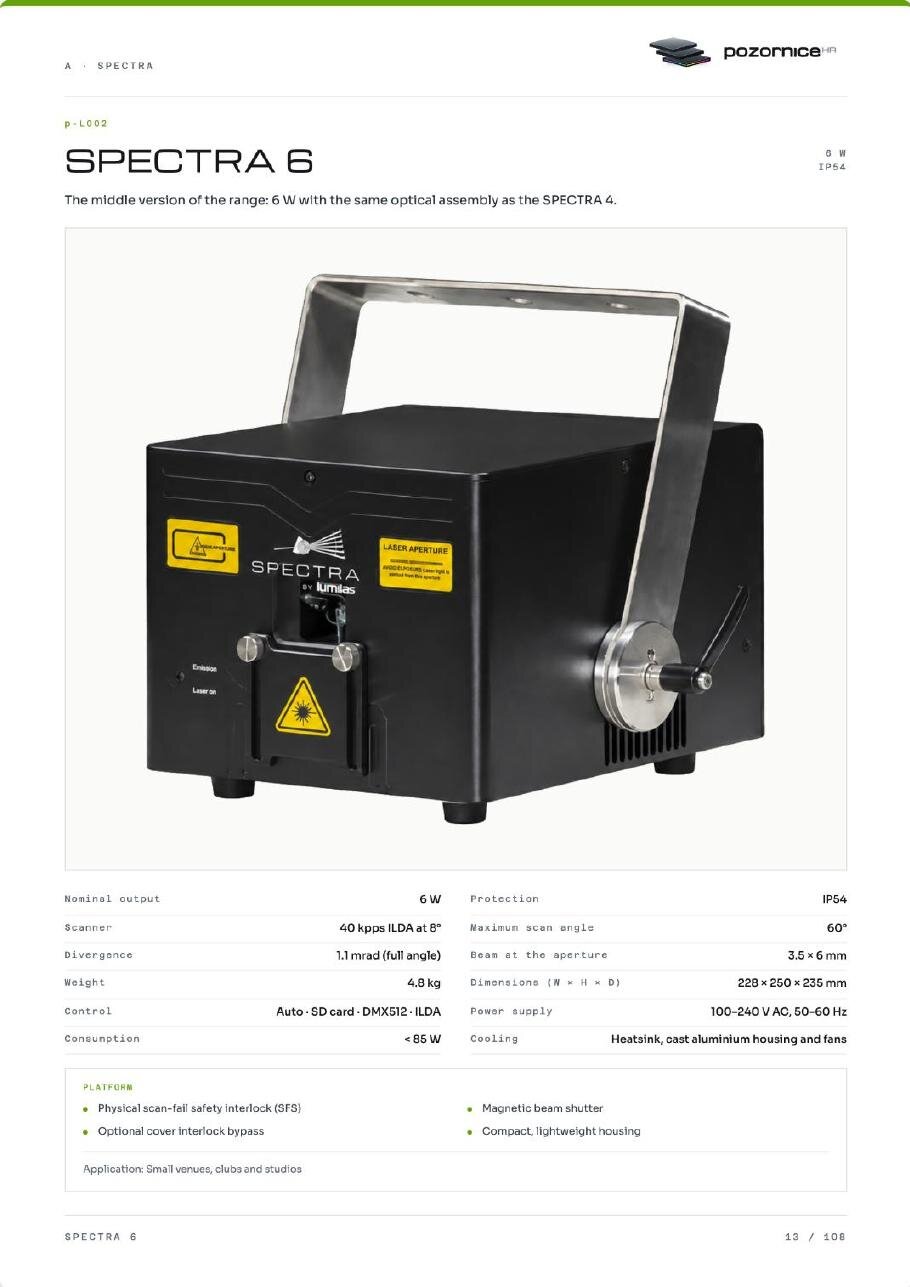

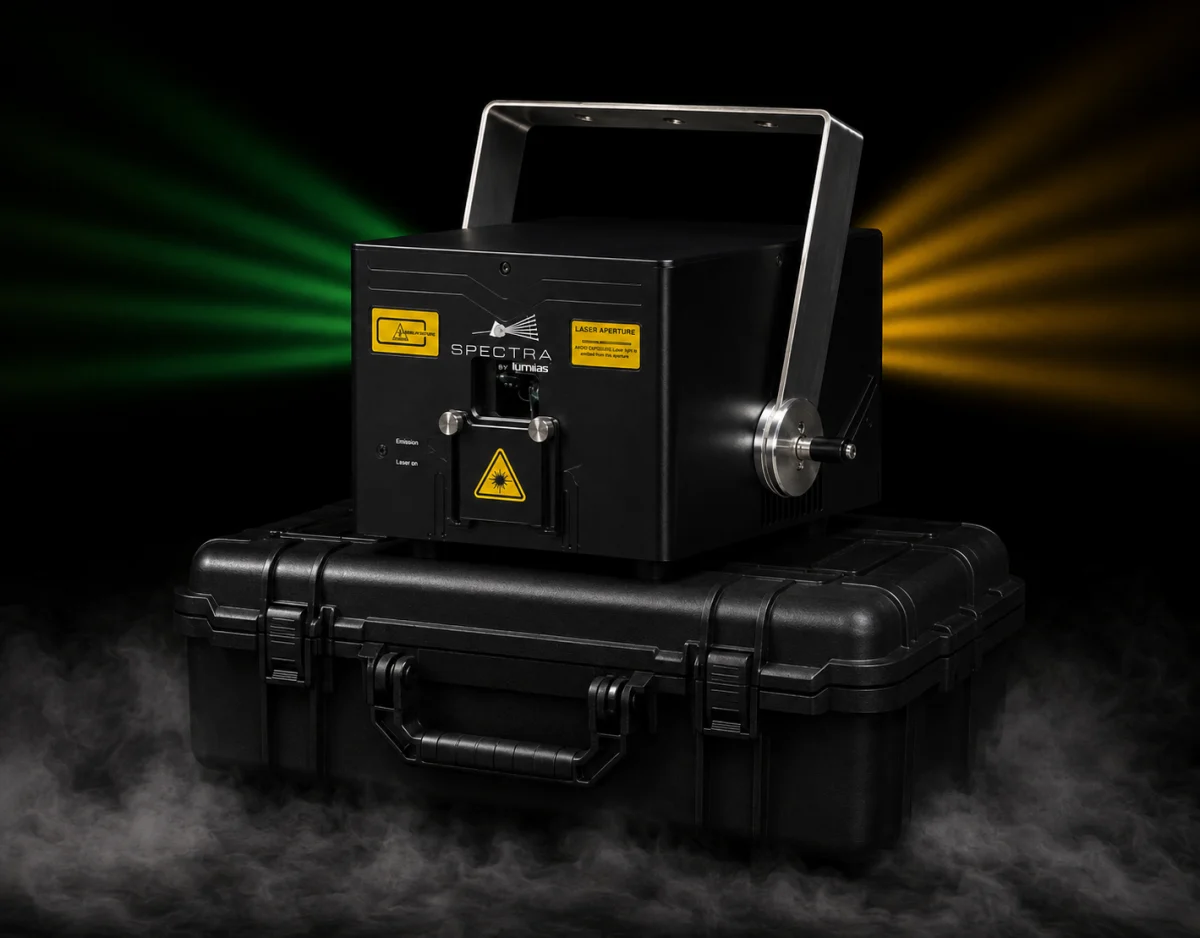

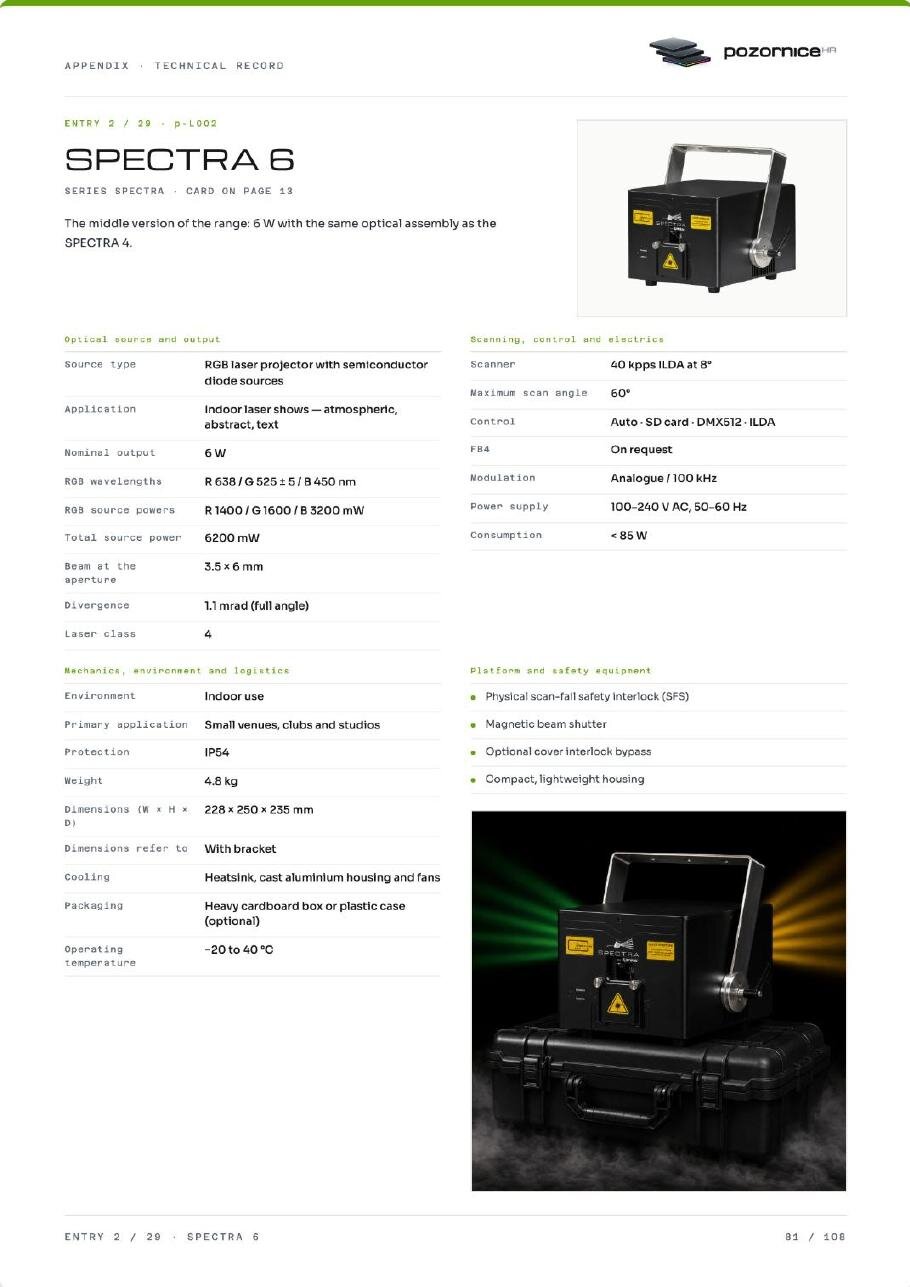

SPECTRA 6 / housing on a transport case with background laser scenography — Cinematic showcase

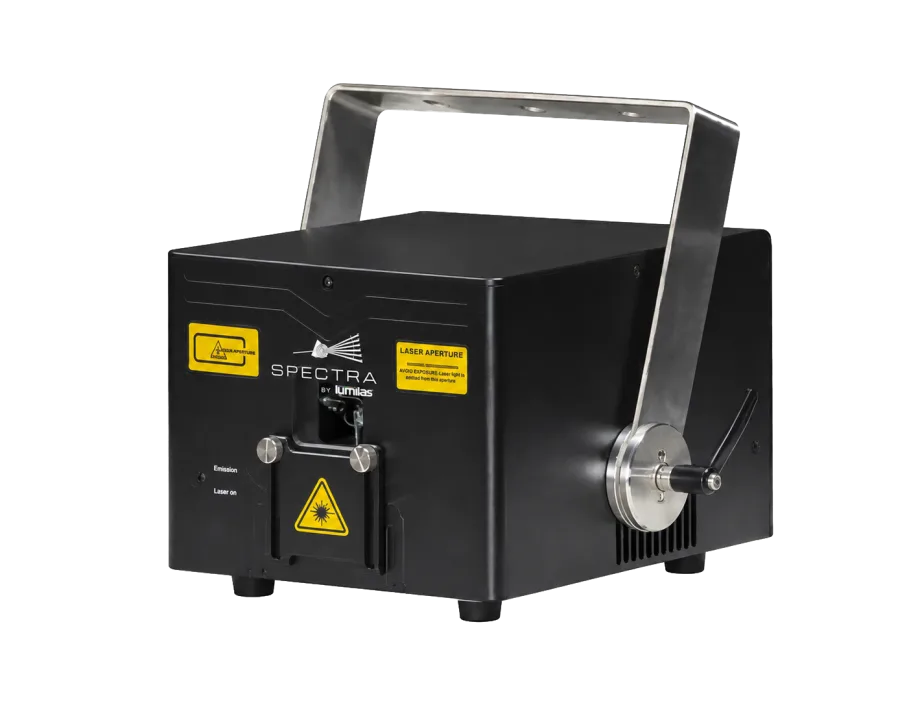

SPECTRA 6 / complete housing — Housing & construction

Scanning: 40 kpps @ 8°
Scan angle: 60°
Divergence: 1,1 mrad
Beam at aperture: 3,5 × 6 mm
Protection: IP54
Weight: 4,8 kg
Dimensions W × H × D: 228 × 250 × 235 mm

Configure this model↗

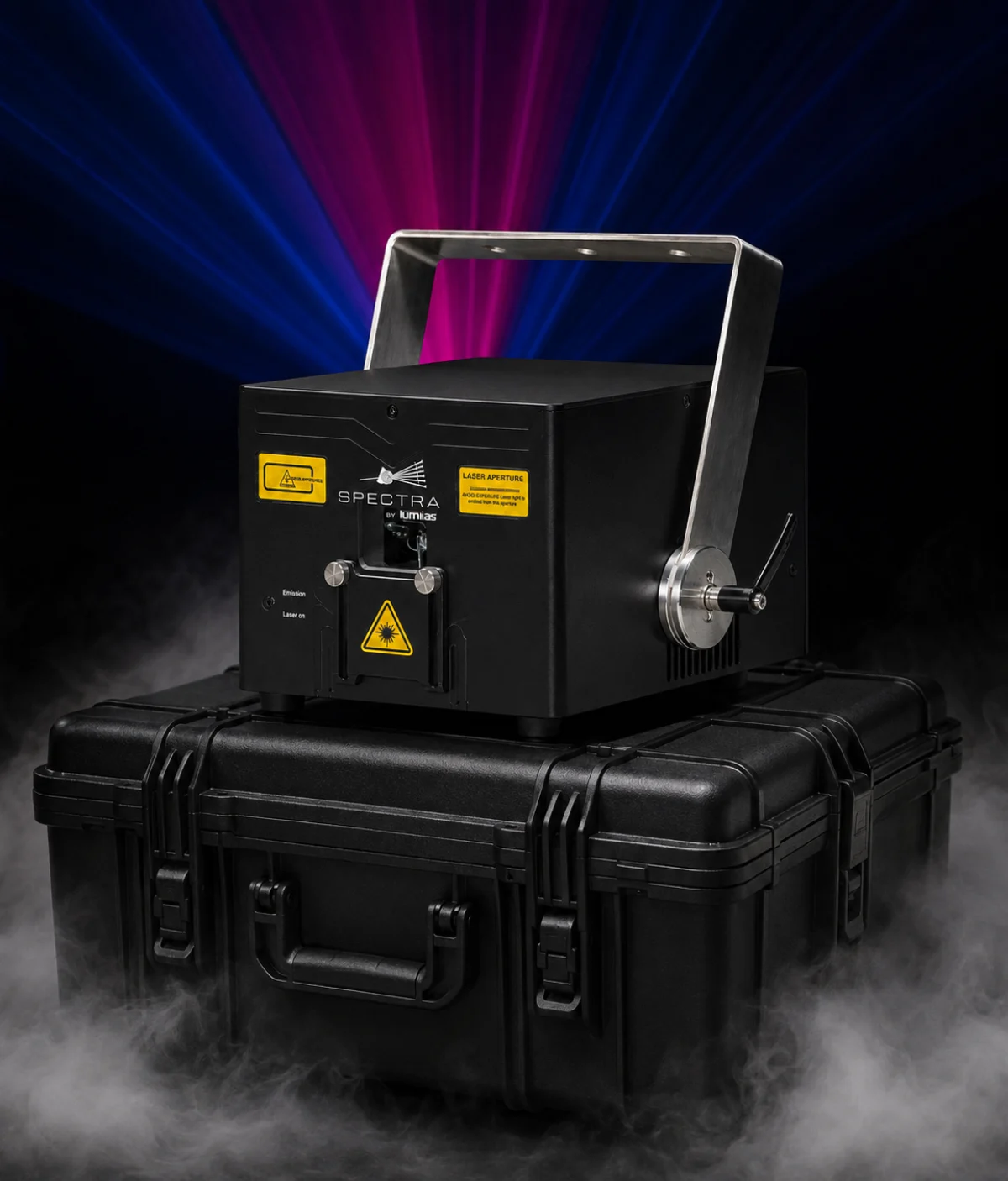

SPECTRA 8 / housing on a transport case with background laser scenography — Cinematic showcase

SPECTRA 8 / complete housing — Housing & construction

Scanning: 40 kpps @ 8°
Scan angle: 60°
Divergence: 1,1 mrad
Beam at aperture: 3,5 × 6 mm
Protection: IP54
Weight: 4,8 kg
Dimensions W × H × D: 278 × 250 × 235 mm

Configure this model↗

Showcase renders feature background laser scenography, not measured projector output. Technical configuration, availability and final specifications are confirmed in the quotation against the project and manufacturer documentation.

03 / Engineering

System engineering

Every system starts with venue geometry, visual intent, projection distance, operating mode and safety zones.

Project inputs

Venue, audience, distance, ambient light, content and operating mode.

Optical specification

Series, output, wavelengths, divergence, scanner and projection angle.

Integration

Control, networking, mounts, IP protection, flight case and system synchronisation.

Safety & commissioning

Zones, measurements, fail-safe, documentation, programming and operator training.

04 / Applications

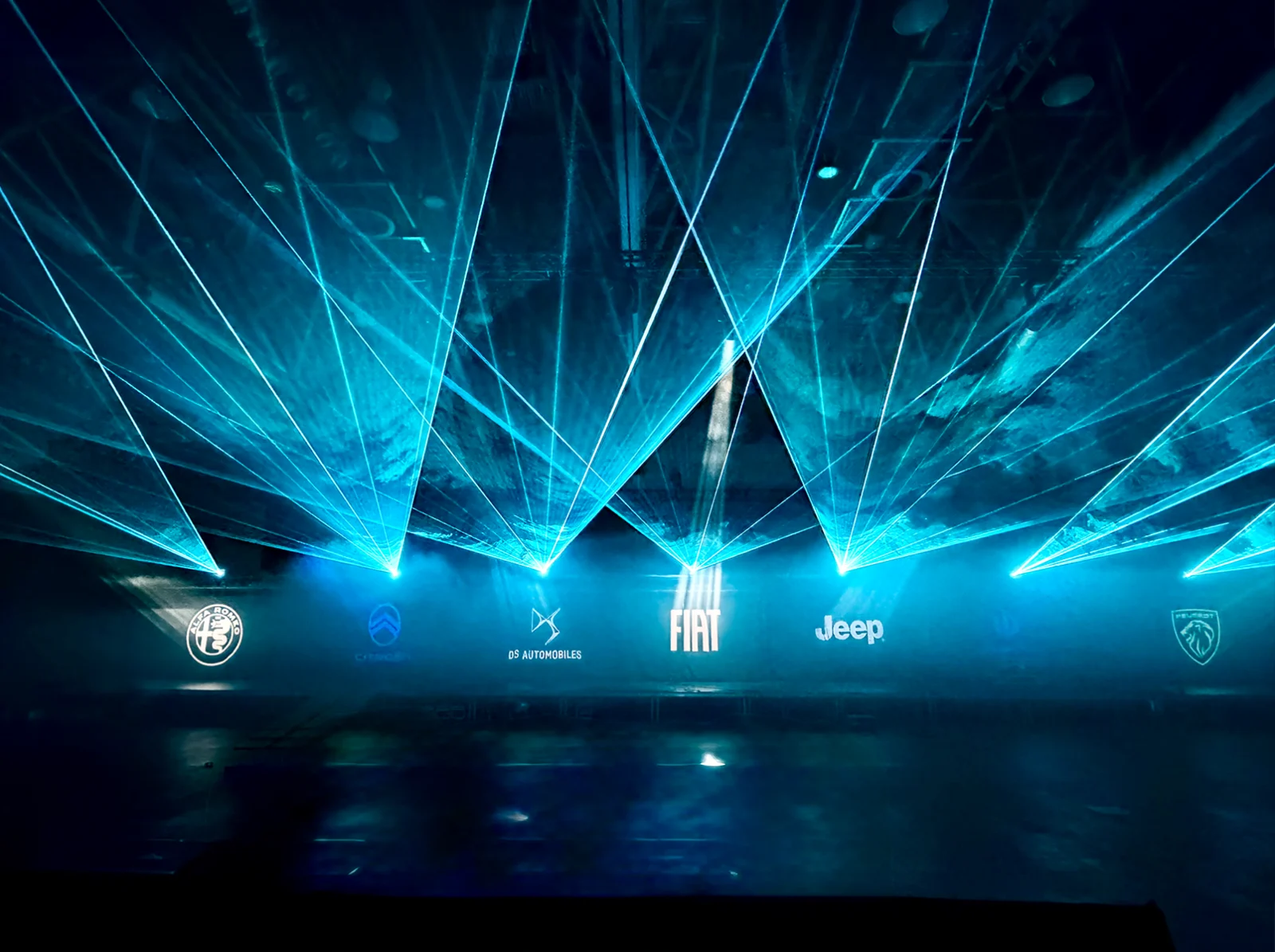

Laser system applications

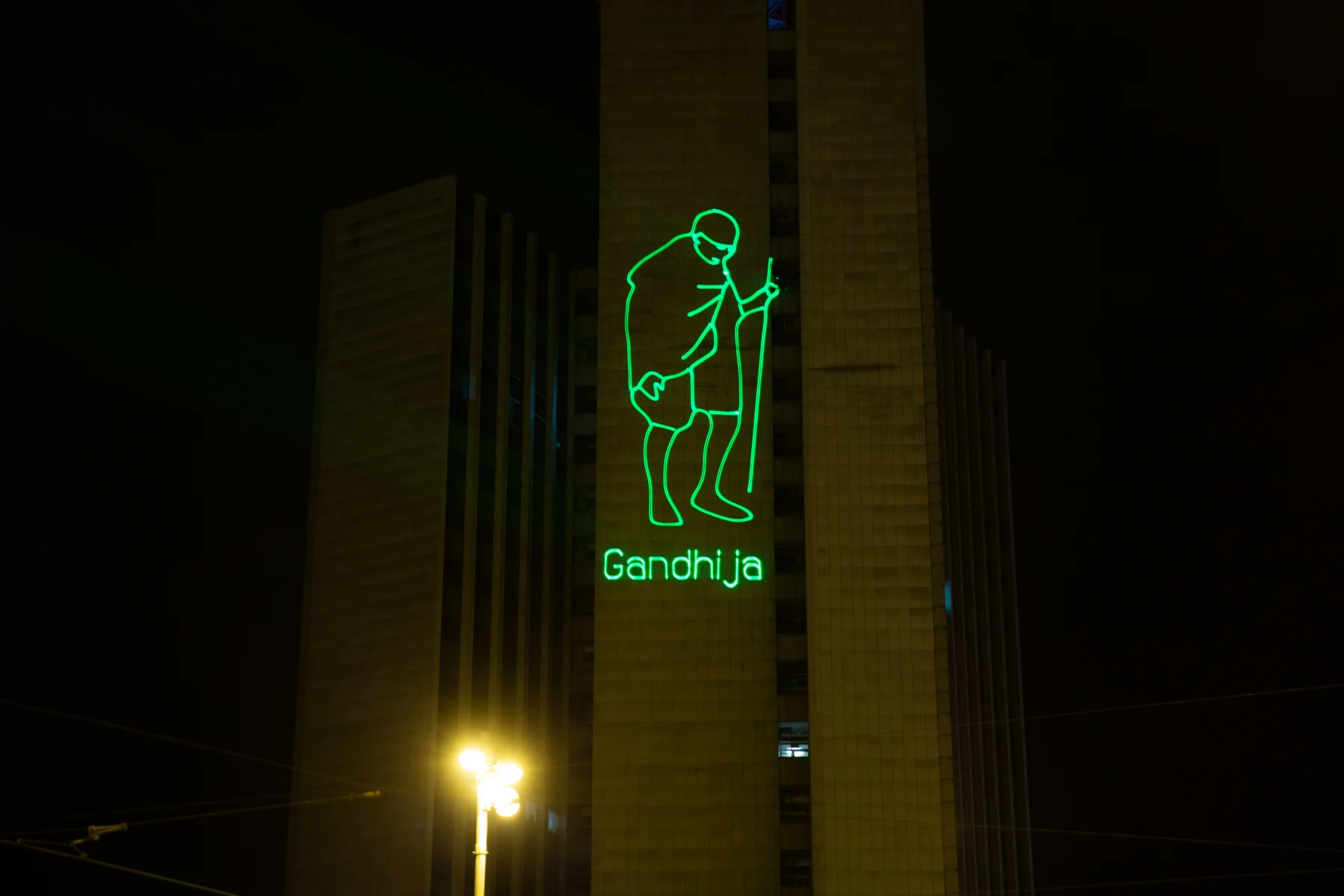

From a precise logo to a beam that defines the horizon. Content, optics and control are engineered together.

01 / 06

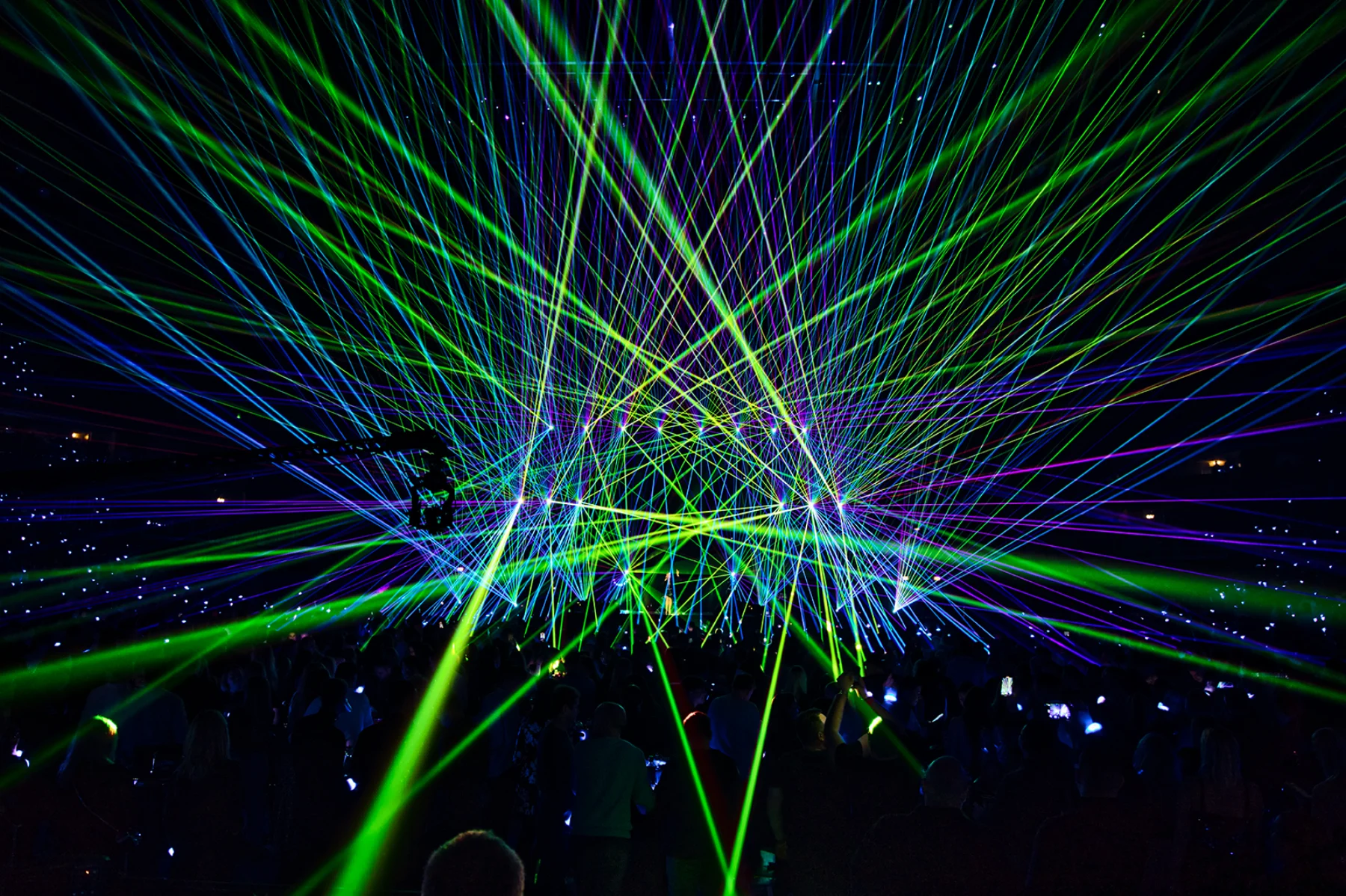

Concerts & festivals

Beams that remain legible through a complete lighting show, with touring housings, rapid setup, ILDA synchronisation and long-range optics.

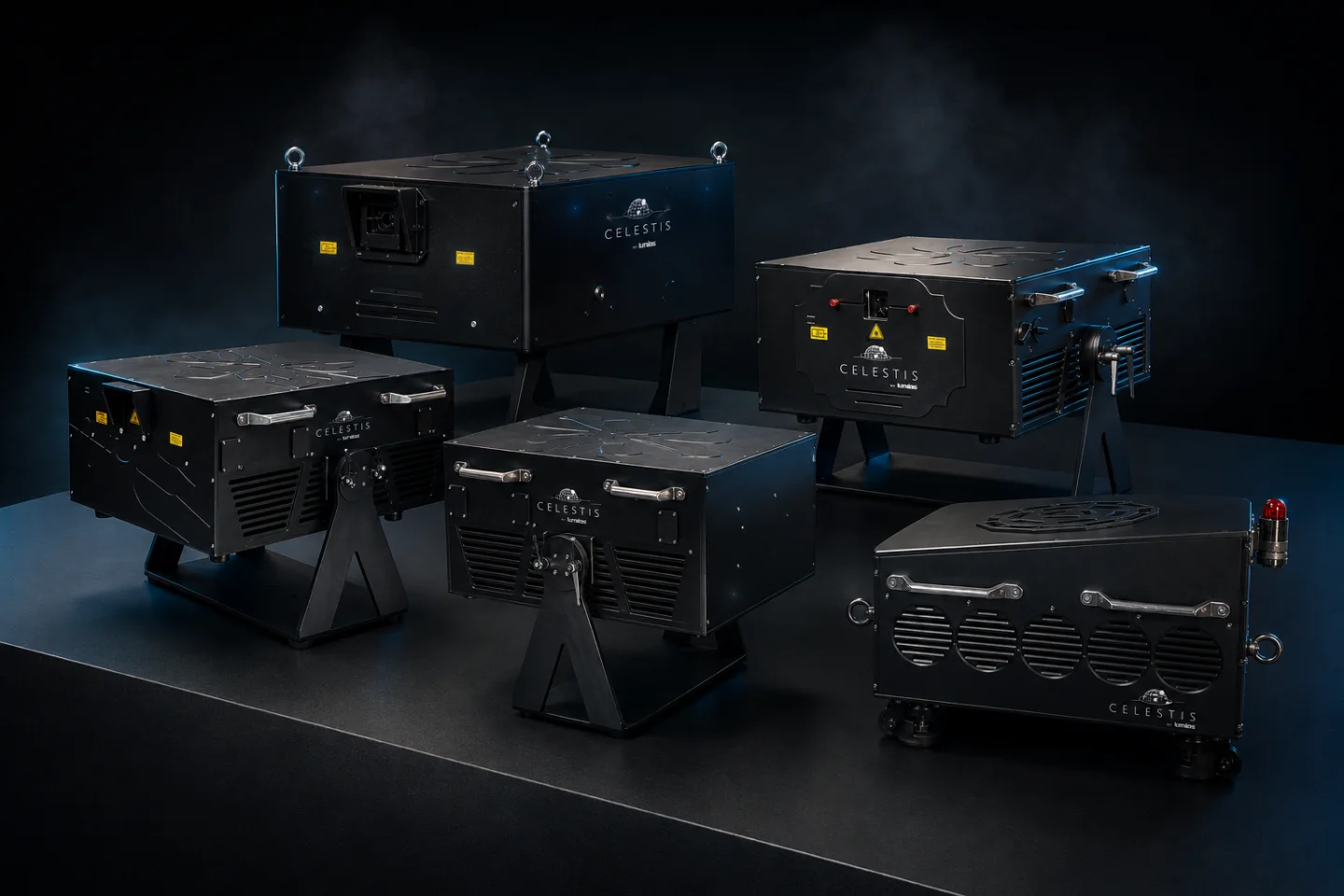

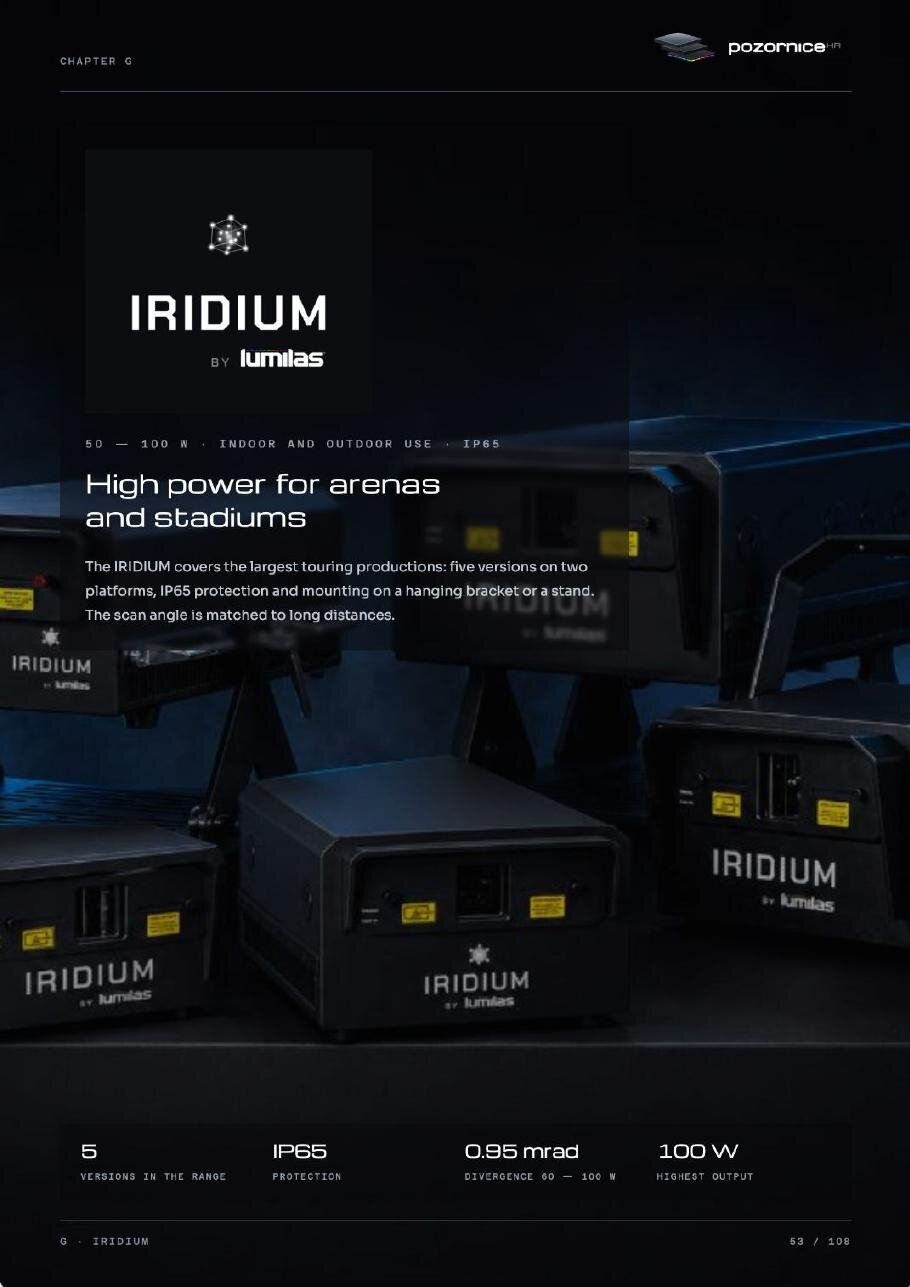

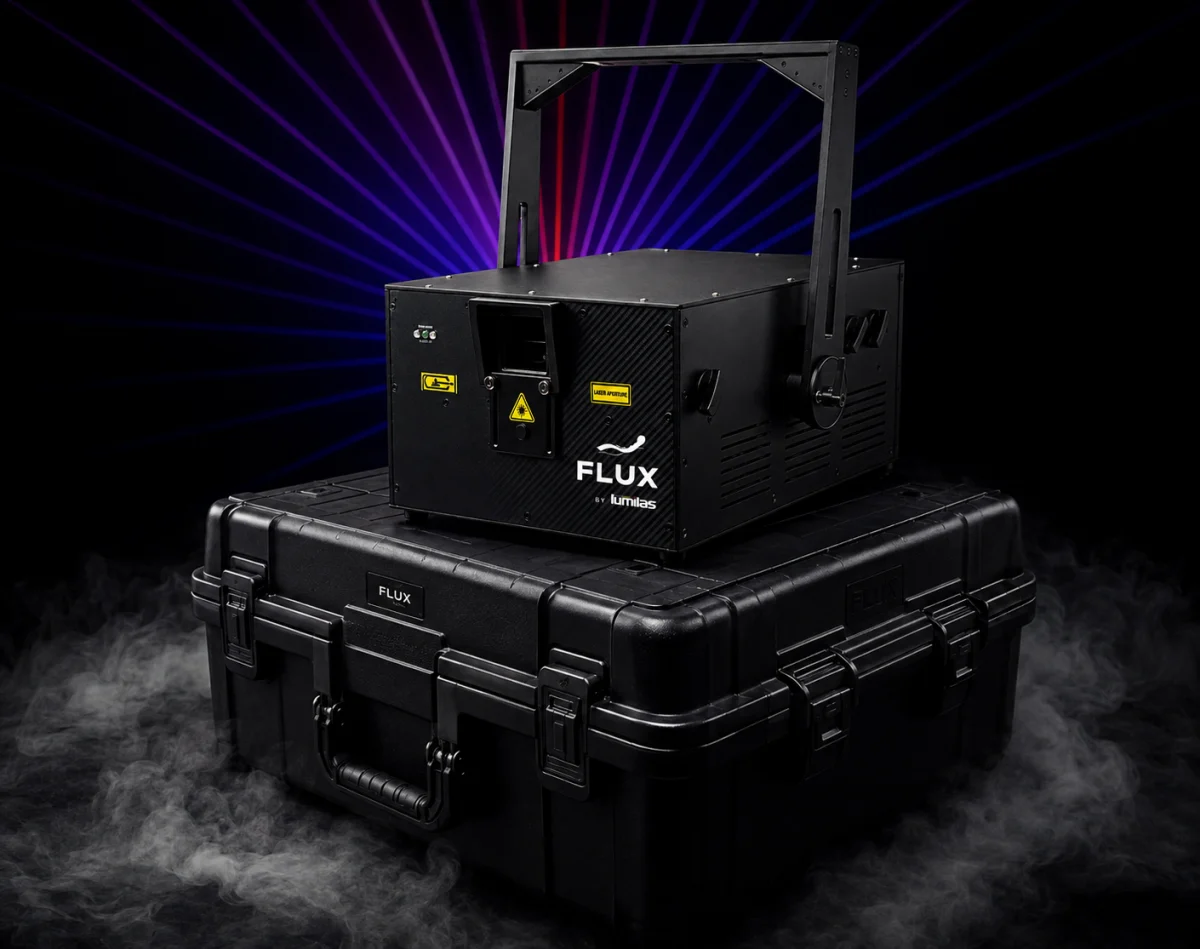

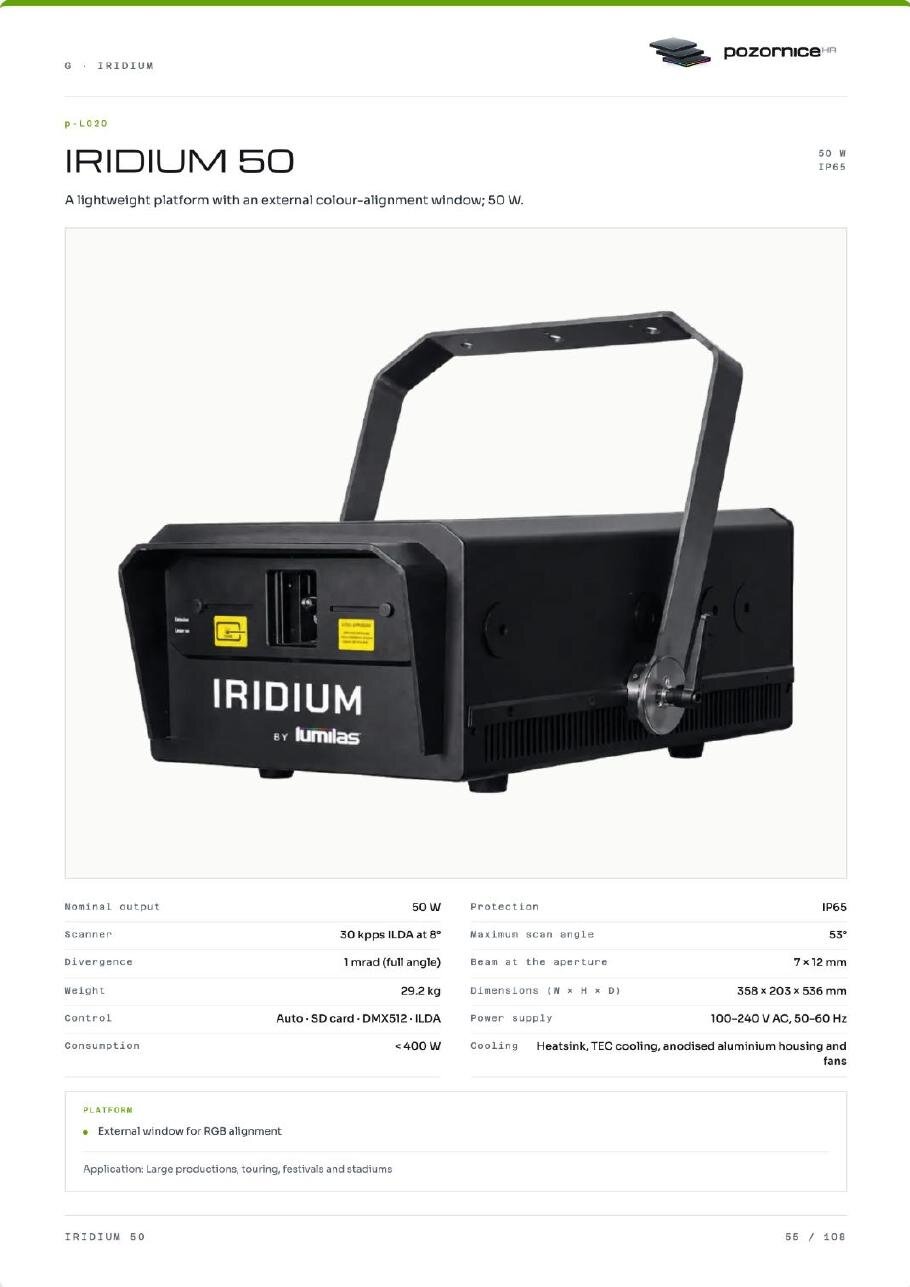

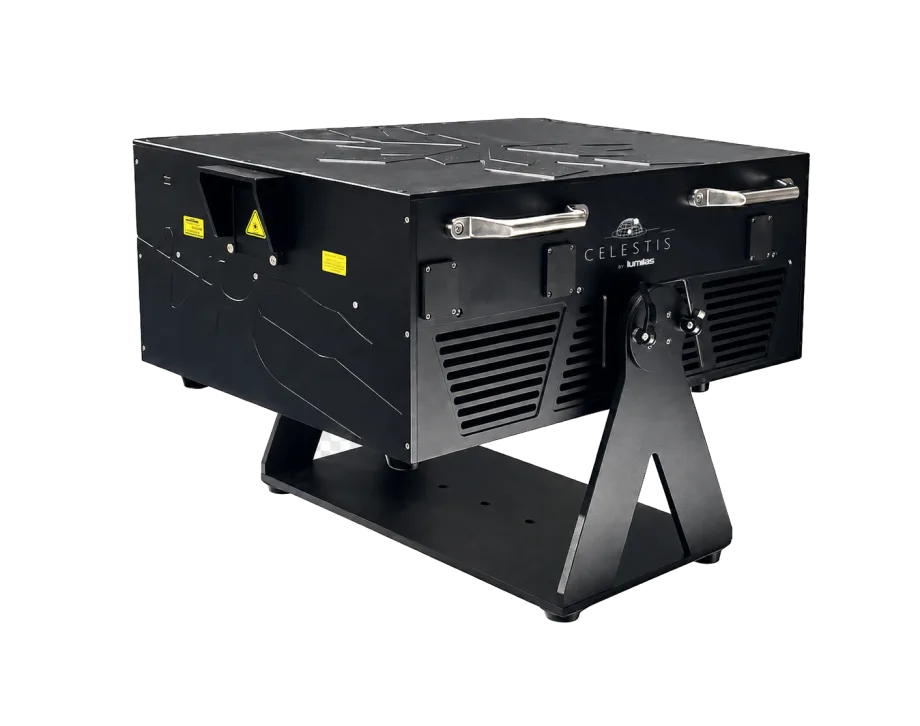

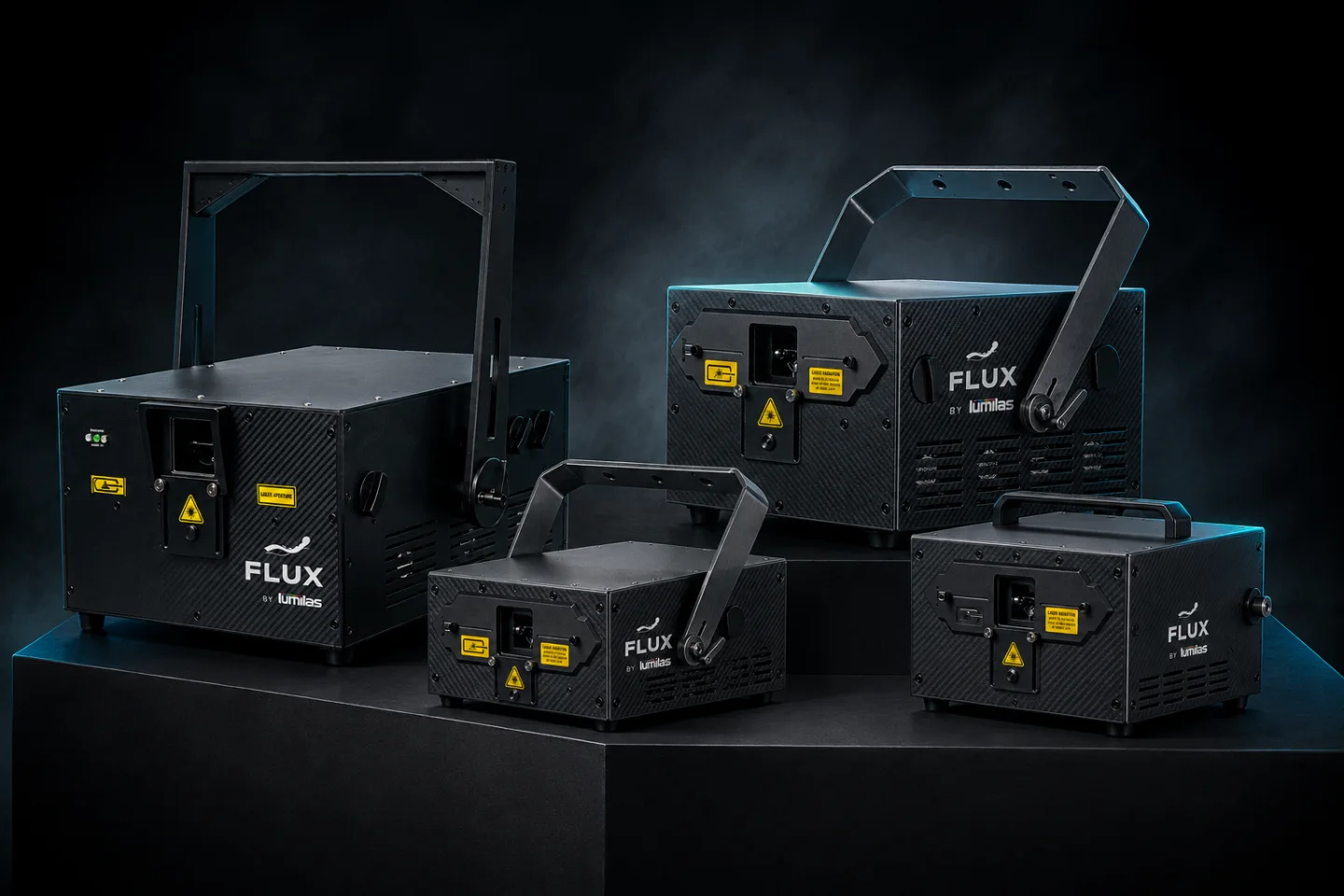

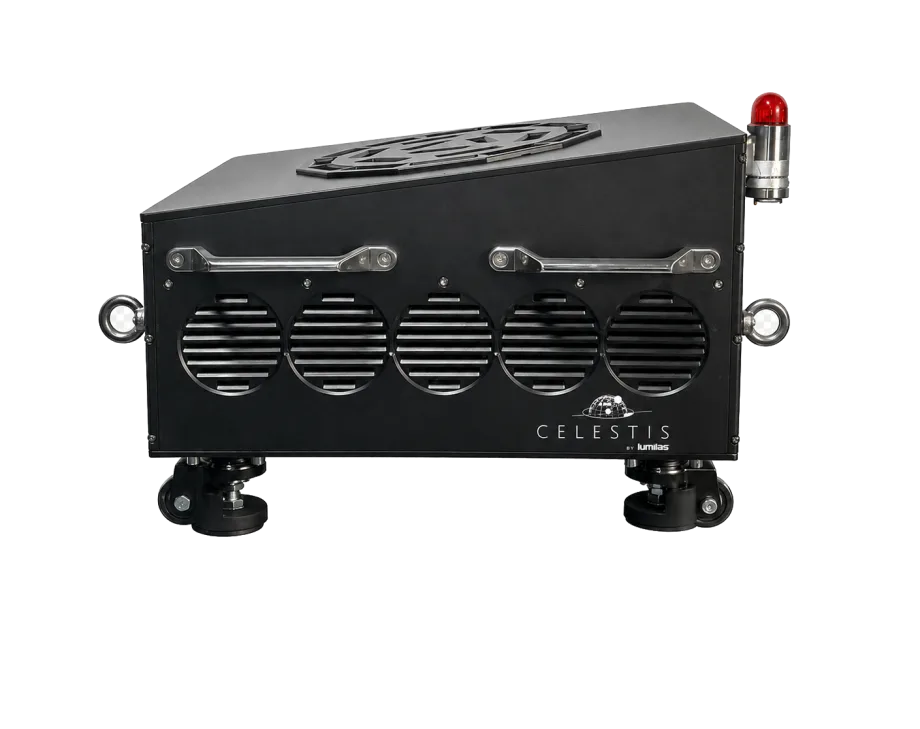

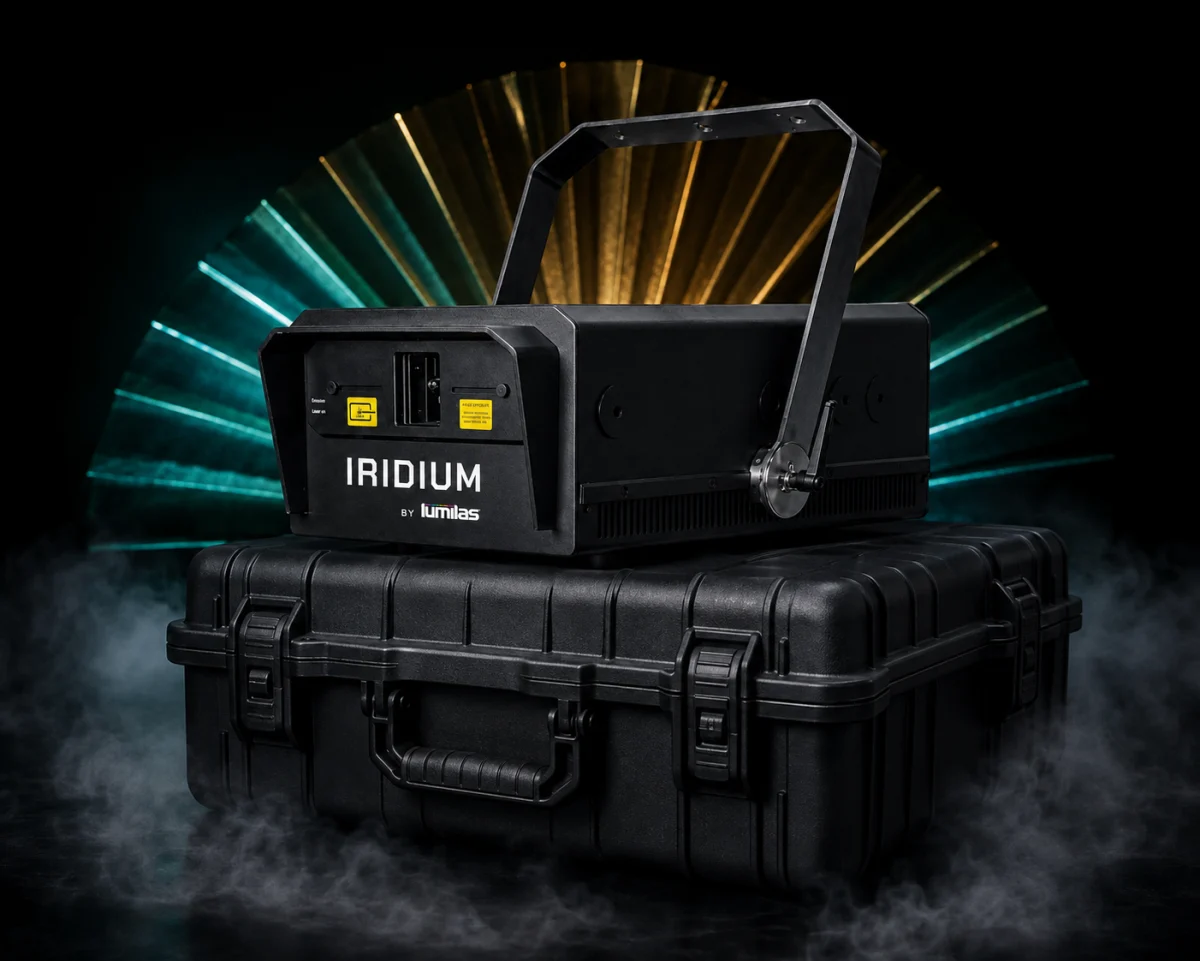

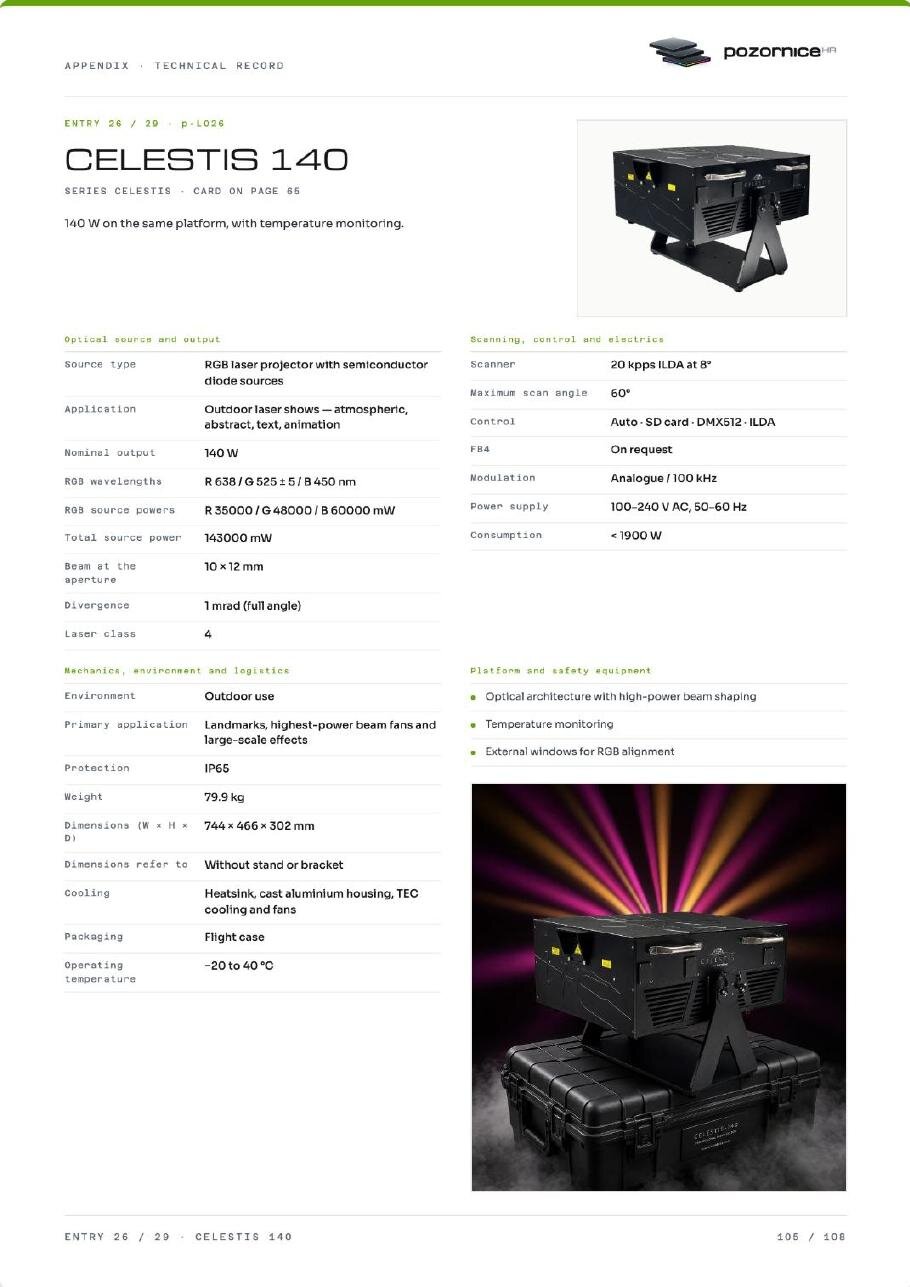

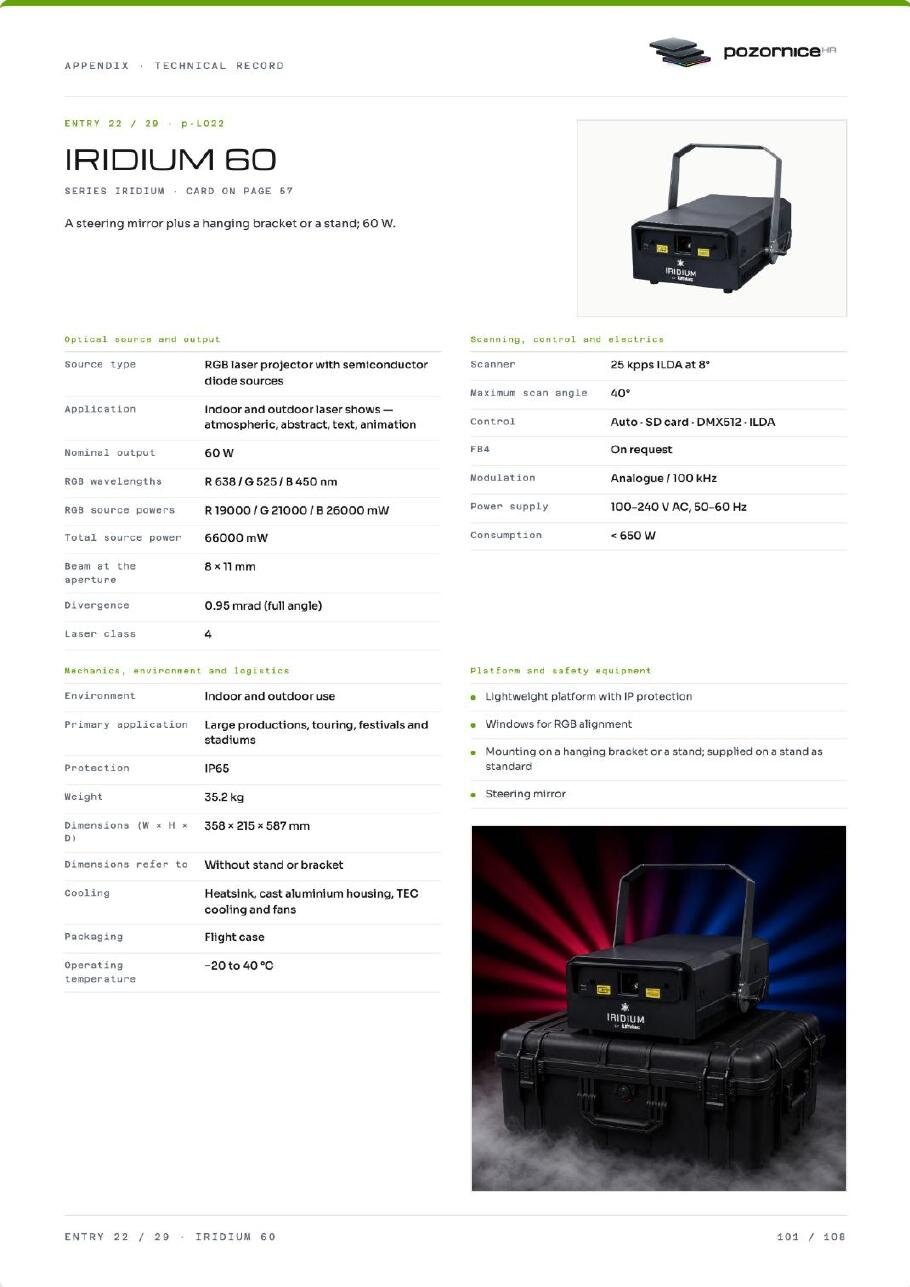

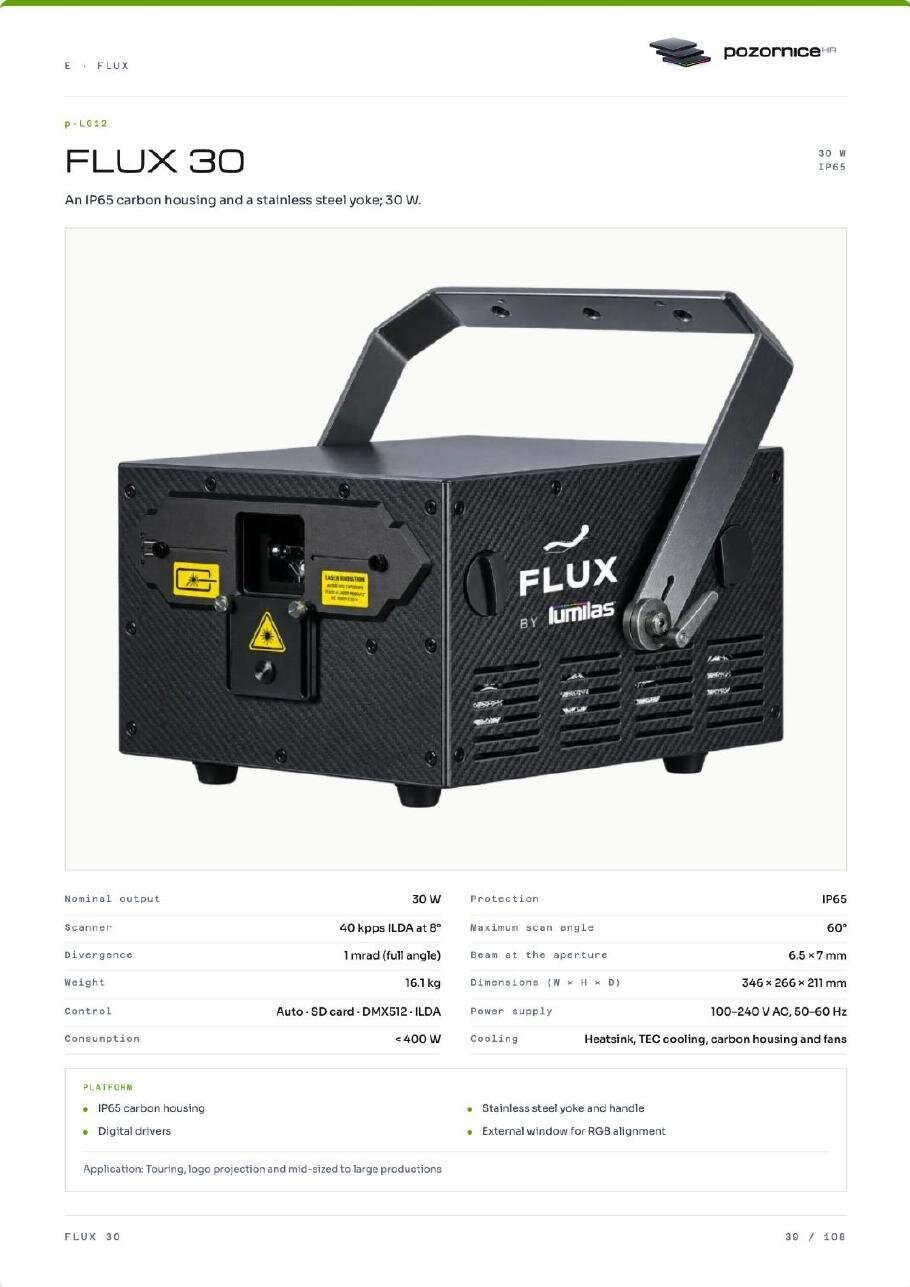

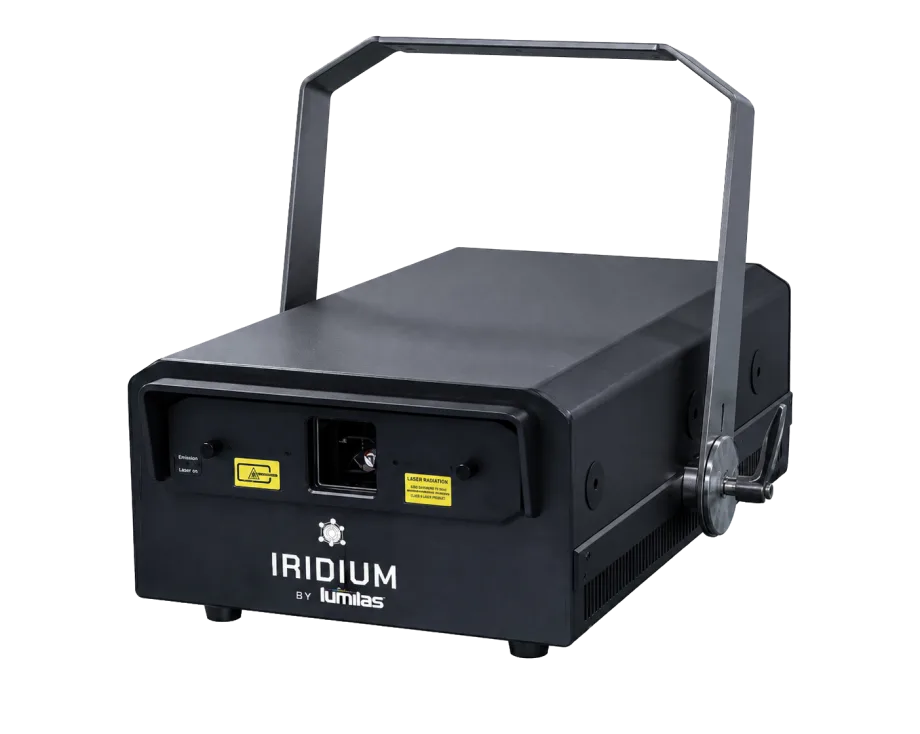

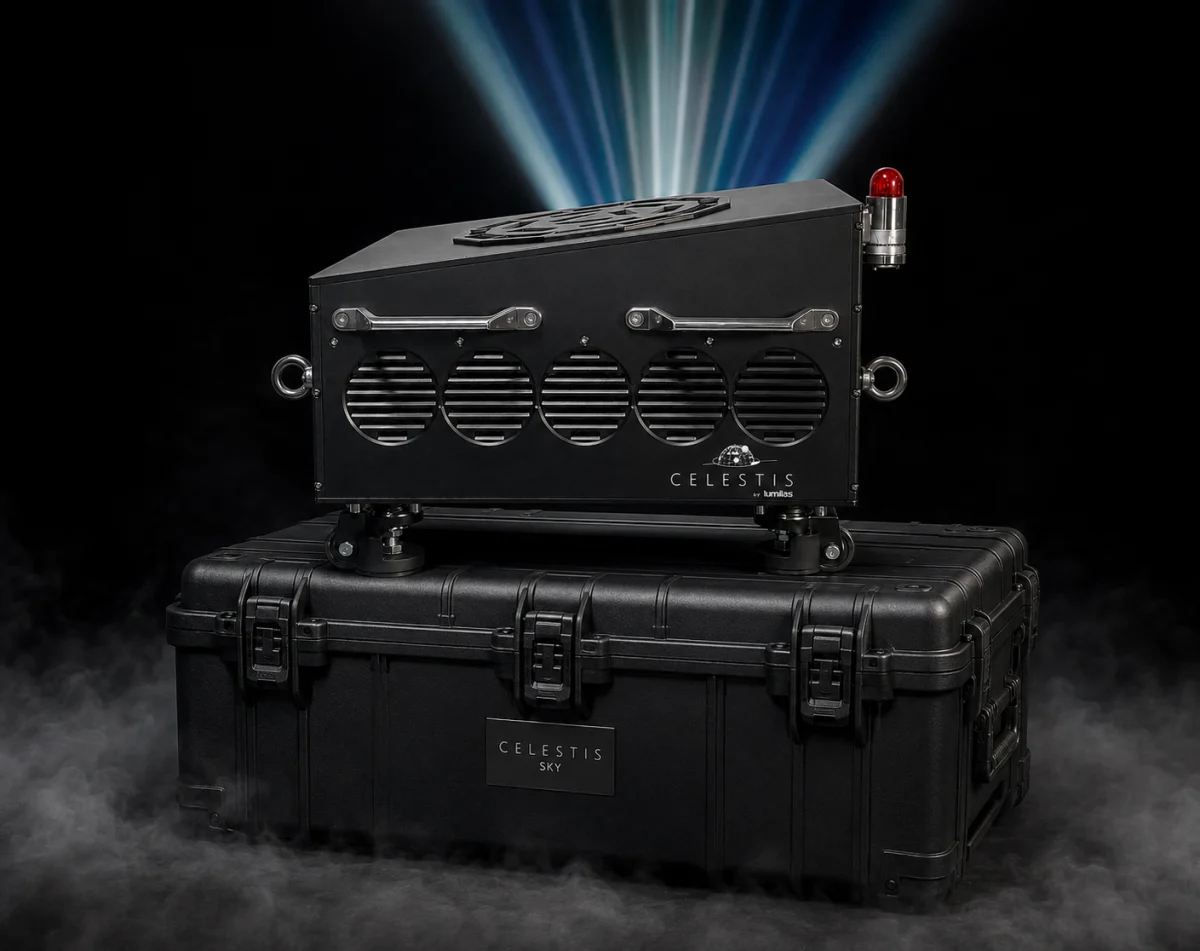

FLUX · IRIDIUM · CELESTIS

05 / Control & content

One connected show

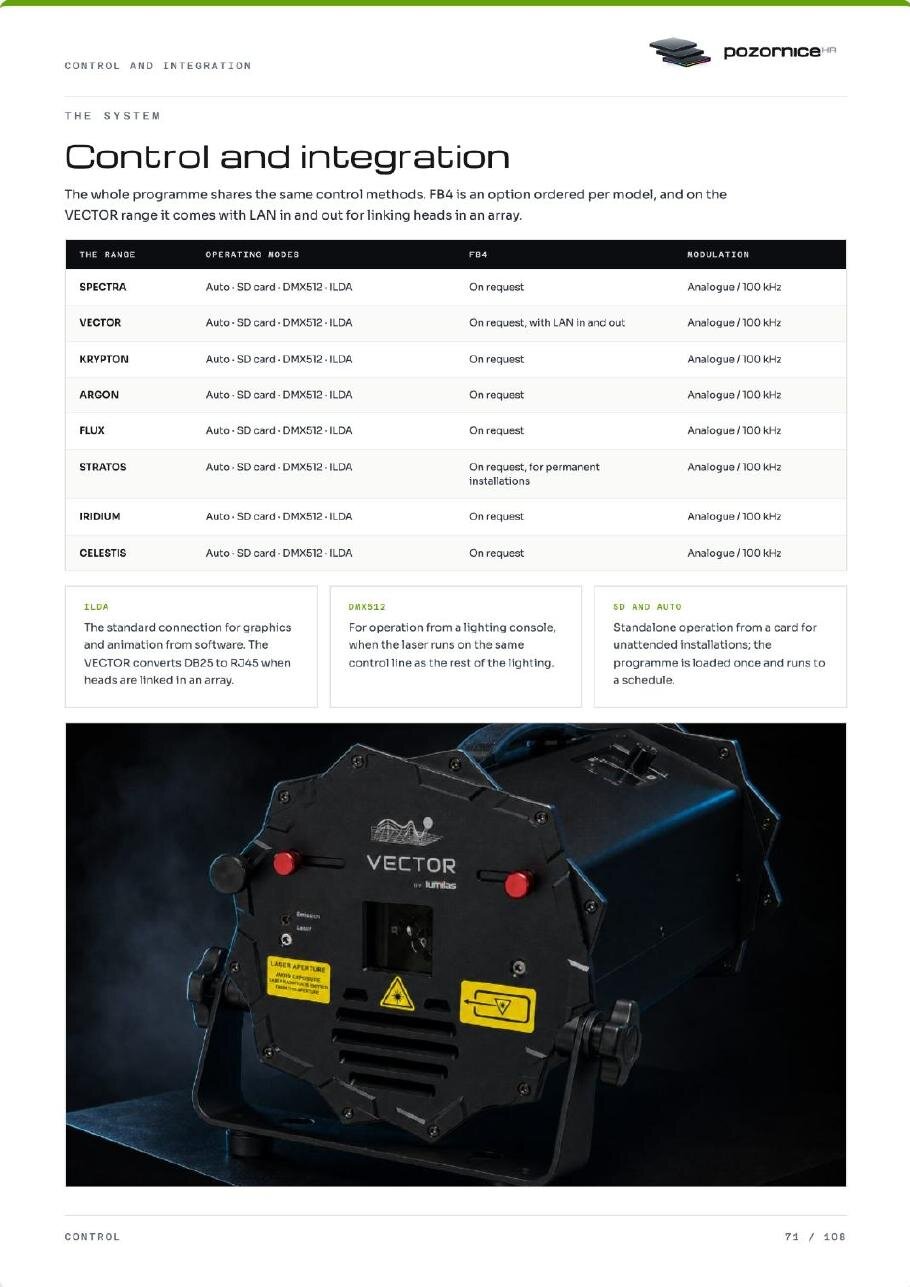

CAT5/6, DMX, Art-Net, ILDA, SD playback and OLED control connect a live console, media server or standalone schedule. Cue lists, libraries and music synchronisation are prepared for the show.

ILDADMX512ART-NETSDCAT5/6FB4 OPTION

Pangolin software & control↗

01Console / serverlive or timeline

ILDA · DMX · ART-NET

02.APROJECTOR 01RGB / FB4

02.BPROJECTOR 02RGB / FB4

02.CPROJECTOR nRGB / FB4

ALTSD / AUTOstandalone scene

06 / HRN EN 60825-1

Safety from the first drawing

Professional show lasers with visible beams generally belong to the highest class. Safety is therefore part of the project brief, not an accessory.

Engineered zones

We define beam paths, distances, physical exclusions and audience boundaries. Audience scanning is permitted only within demonstrated safe conditions.

Measurement & fail-safe

We verify irradiance, scanner operation, the safety key, emission indicator and automatic shutdown on failure.

Operator & documentation

Delivery includes project records, instructions, cue preparation, supervision and training for the person responsible for operation.

CLASS 4

A direct, reflected or focused beam can injure eyes and skin and ignite material. The system must not be operated without an appropriate safety concept and professional supervision.

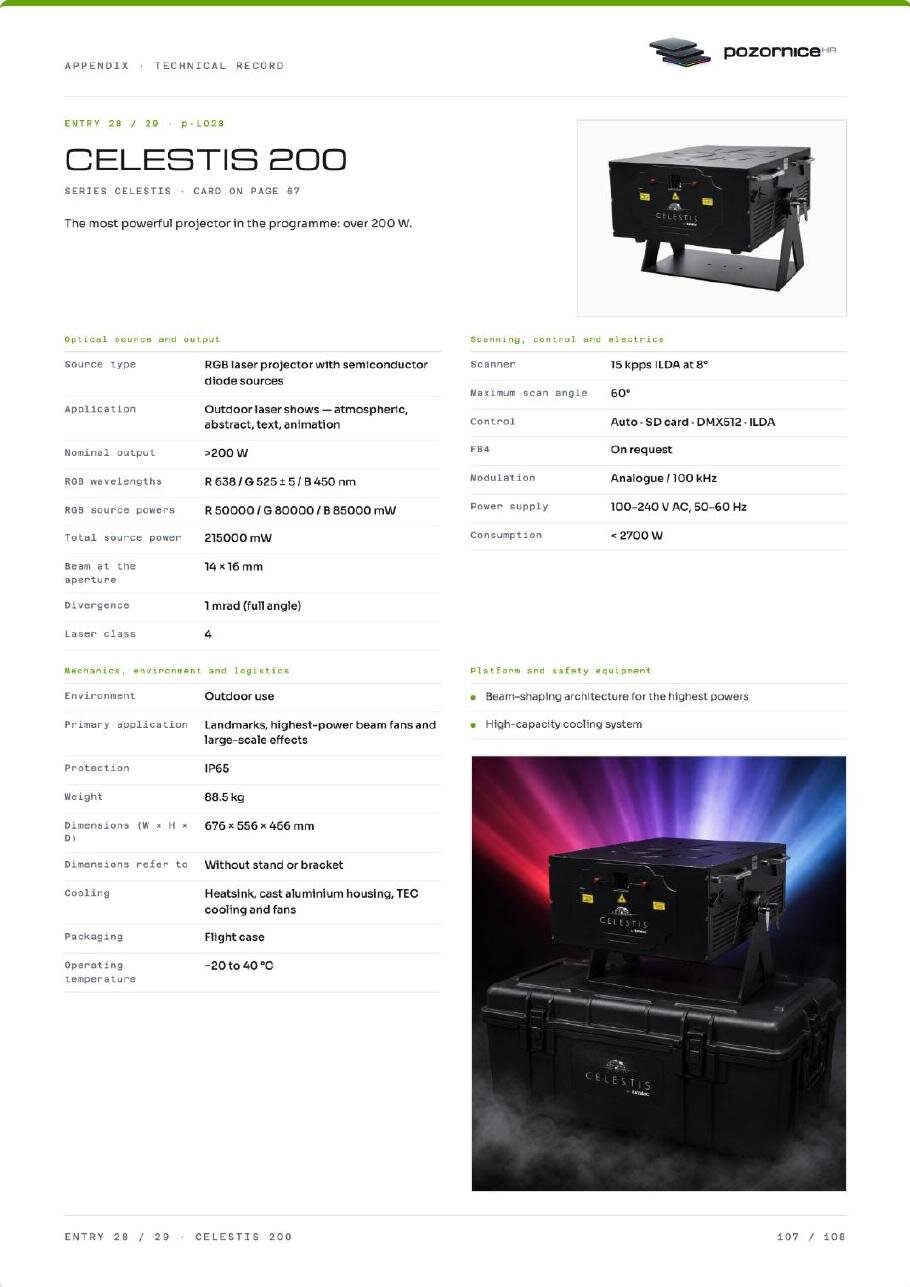

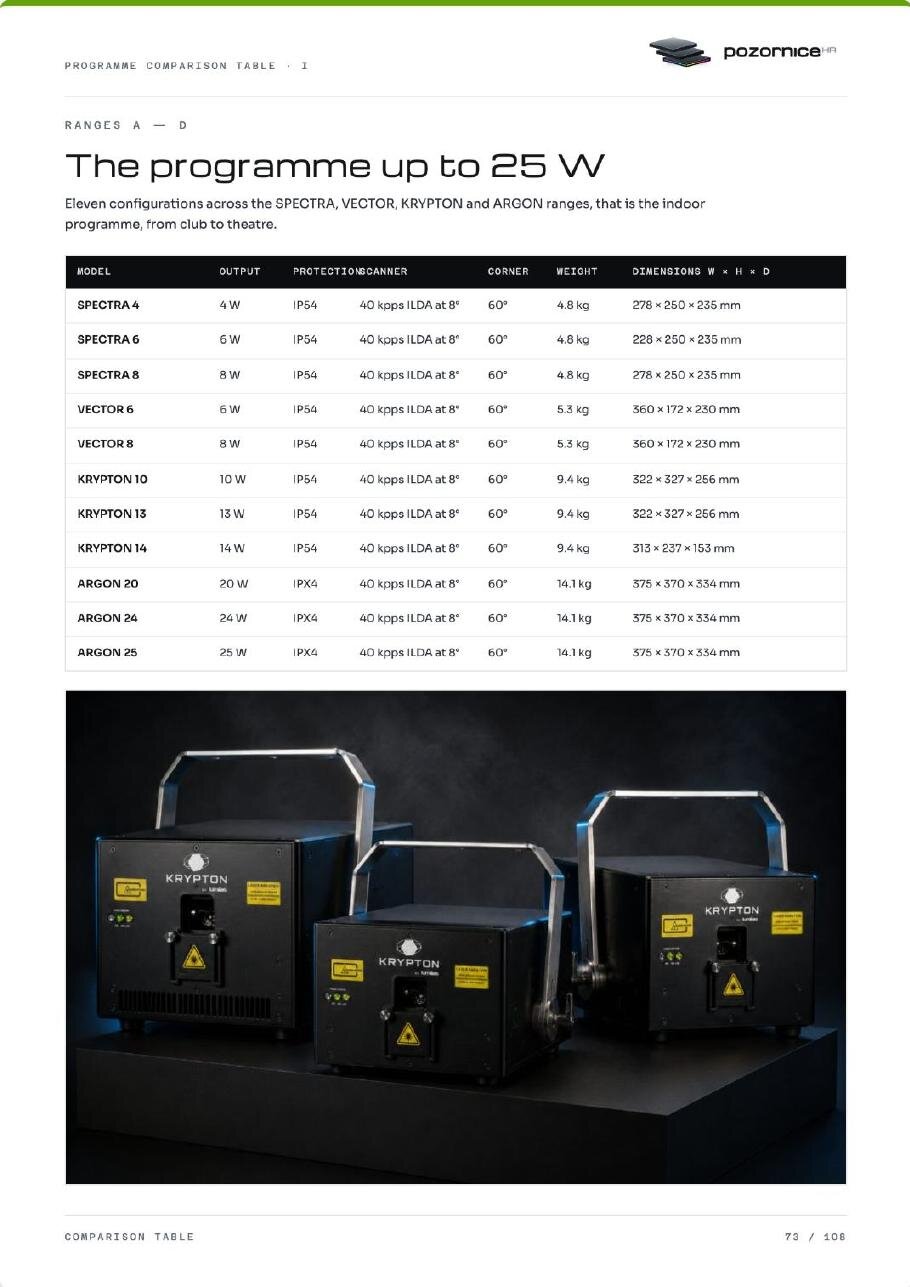

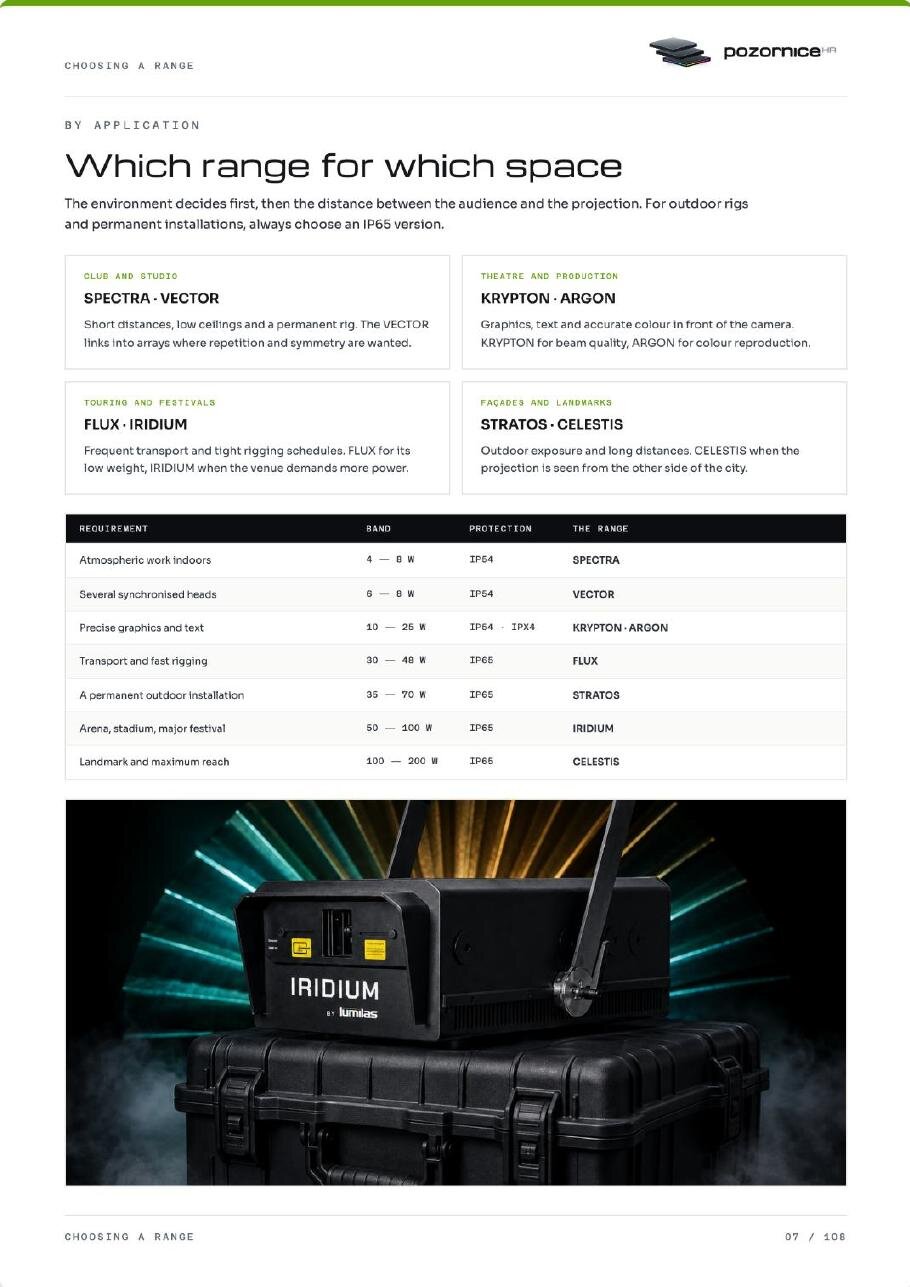

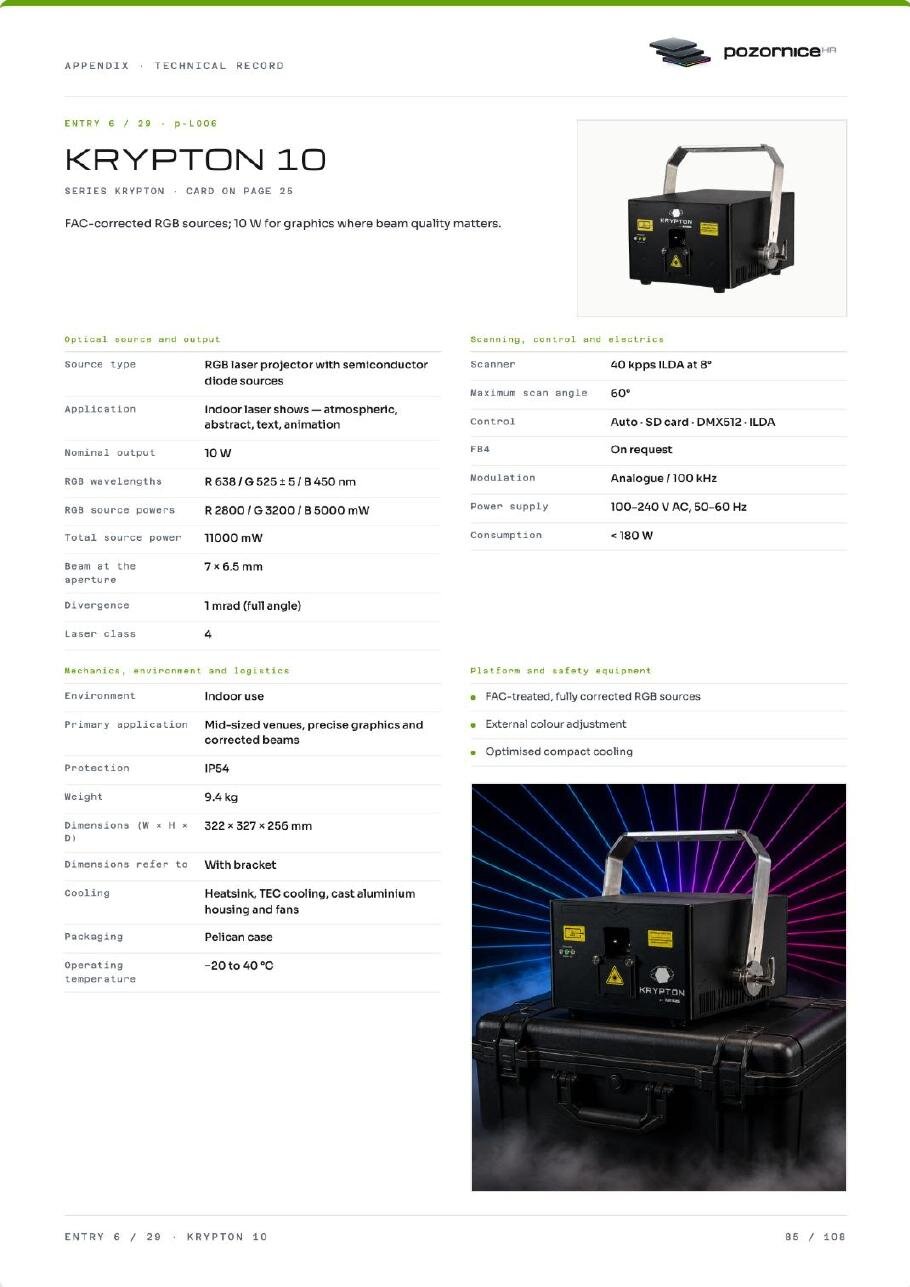

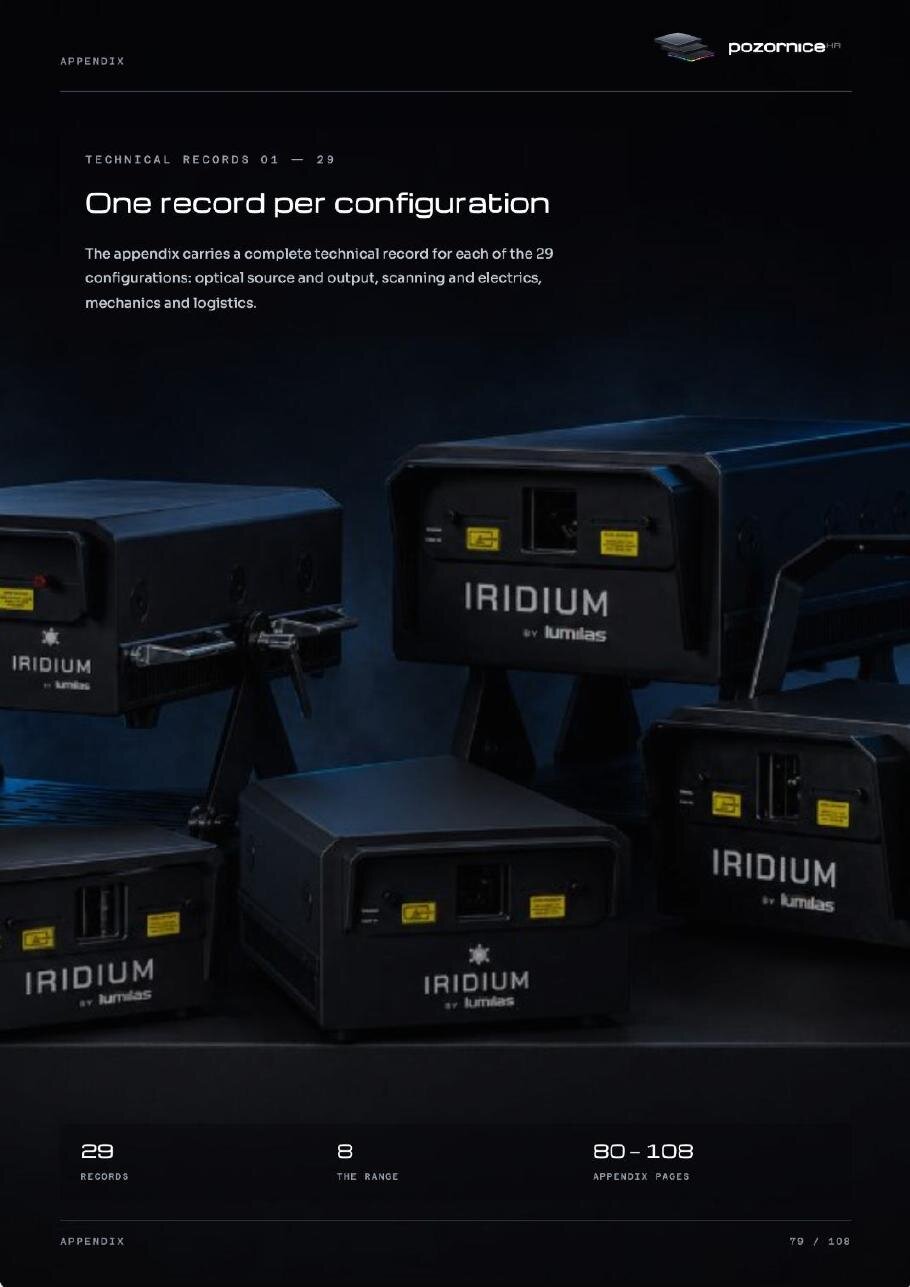

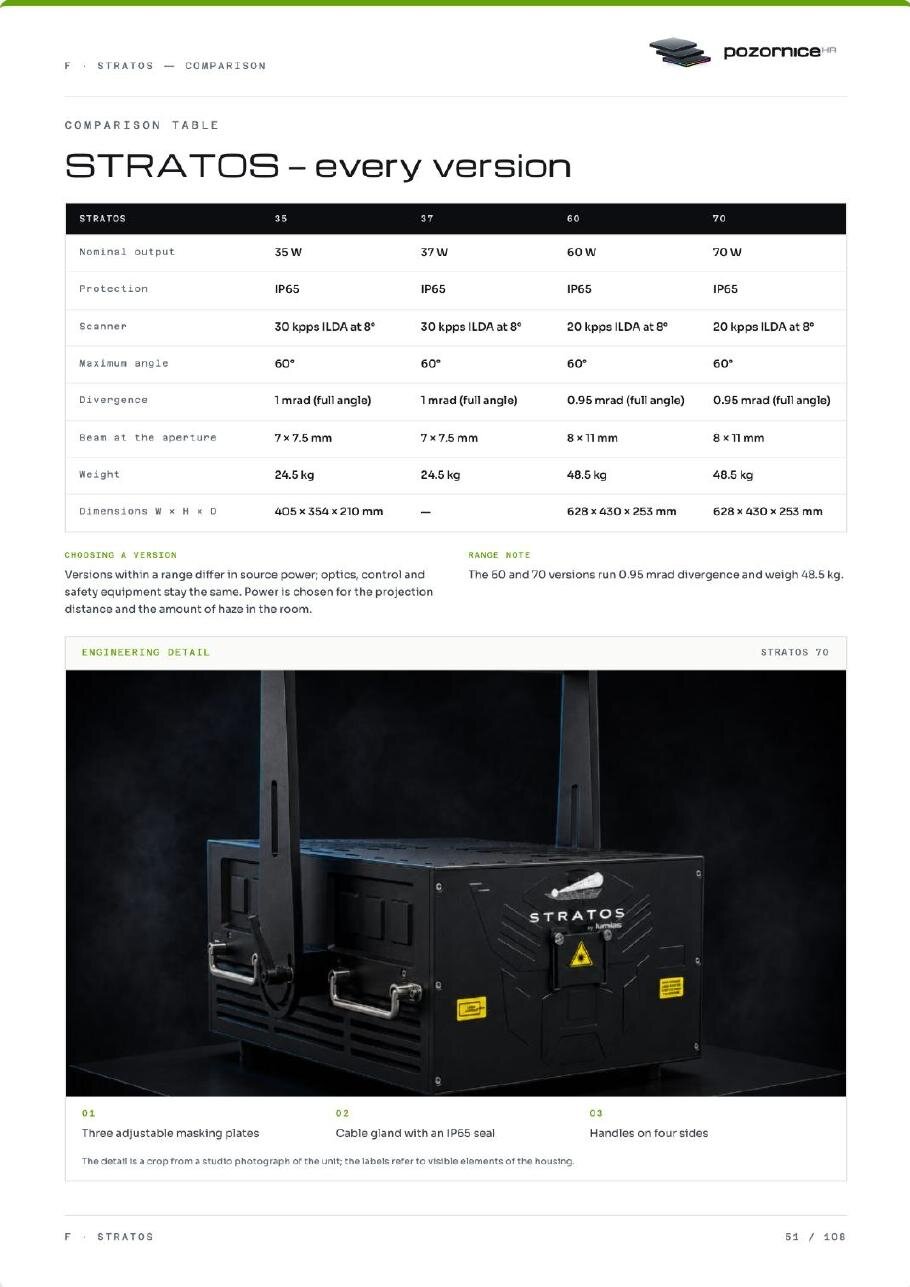

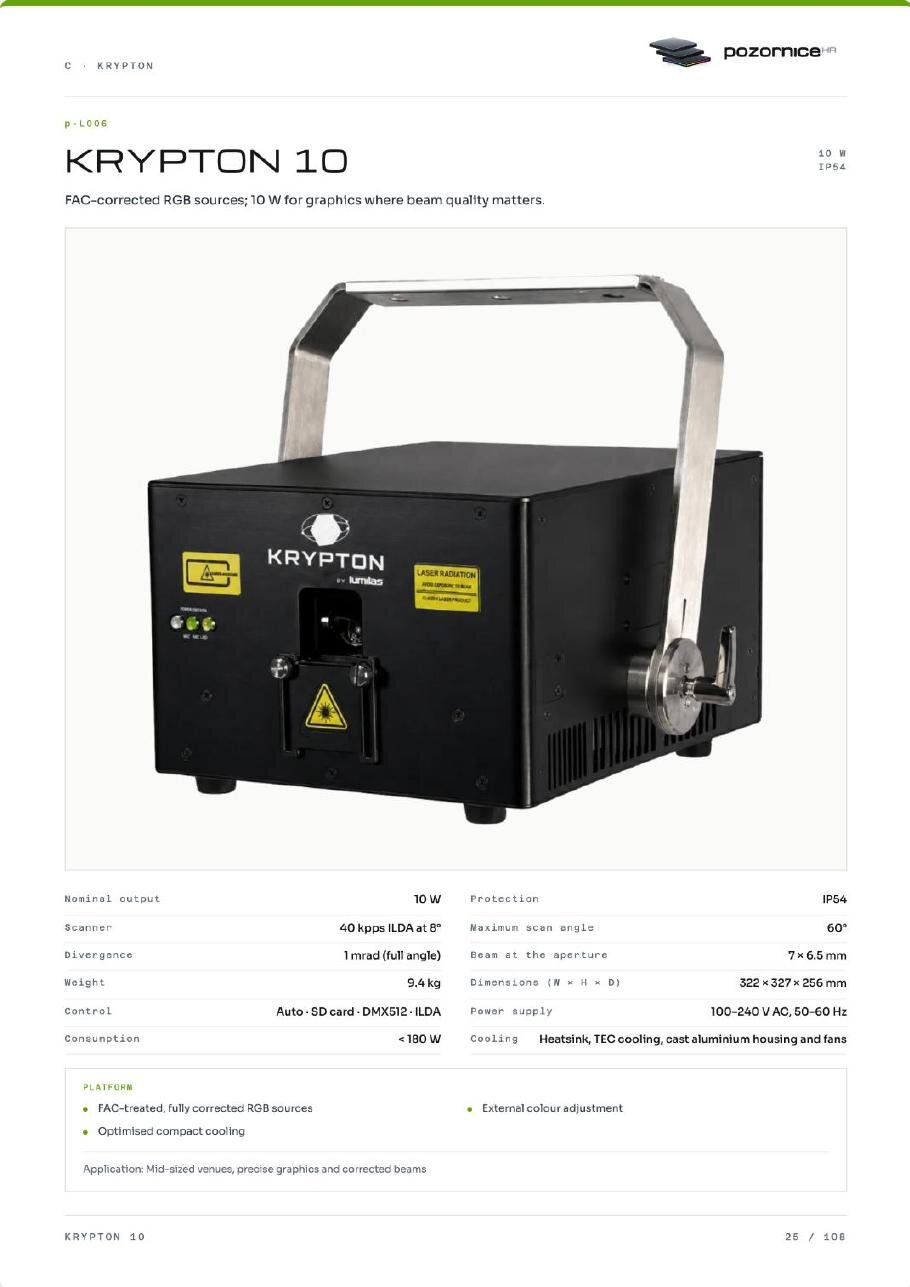

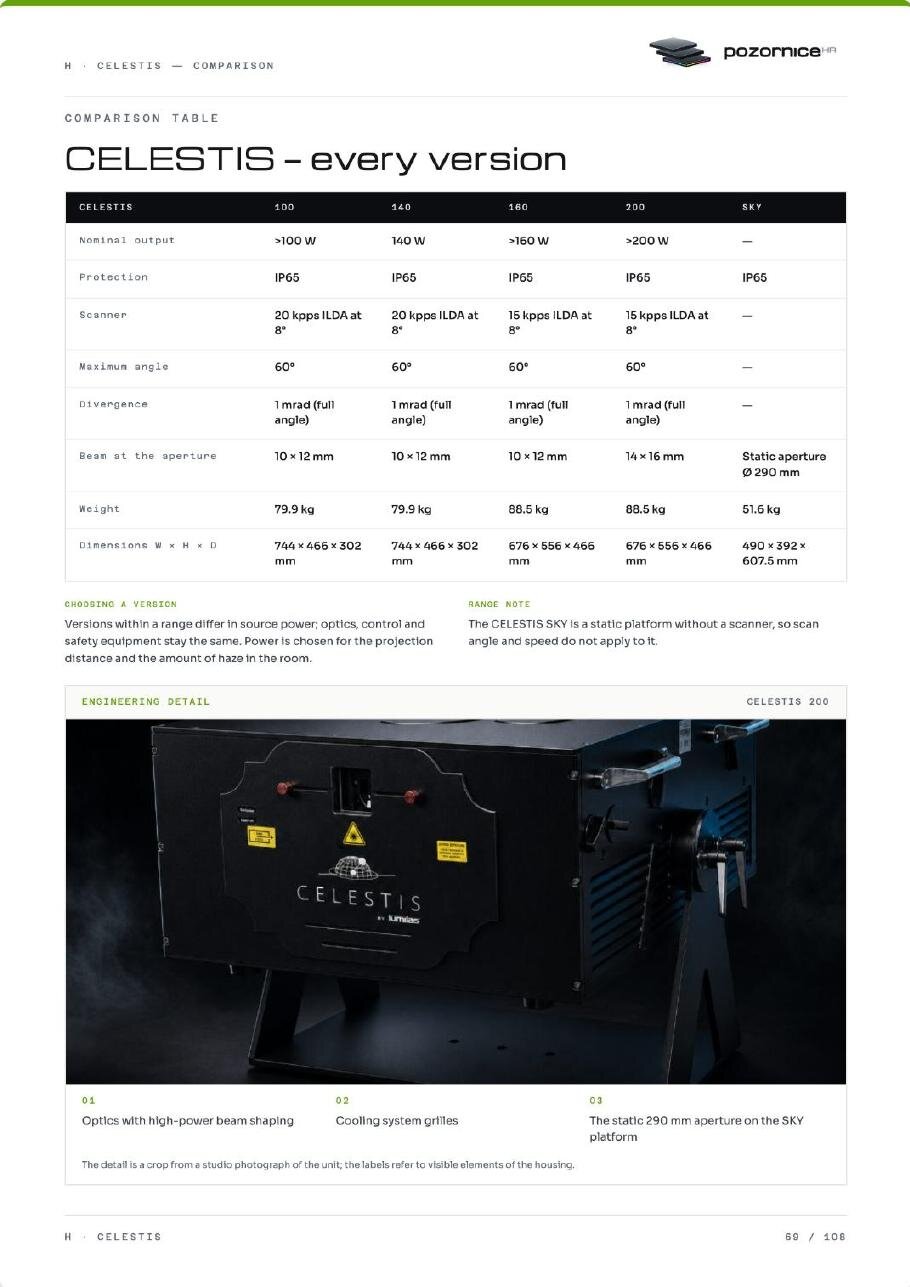

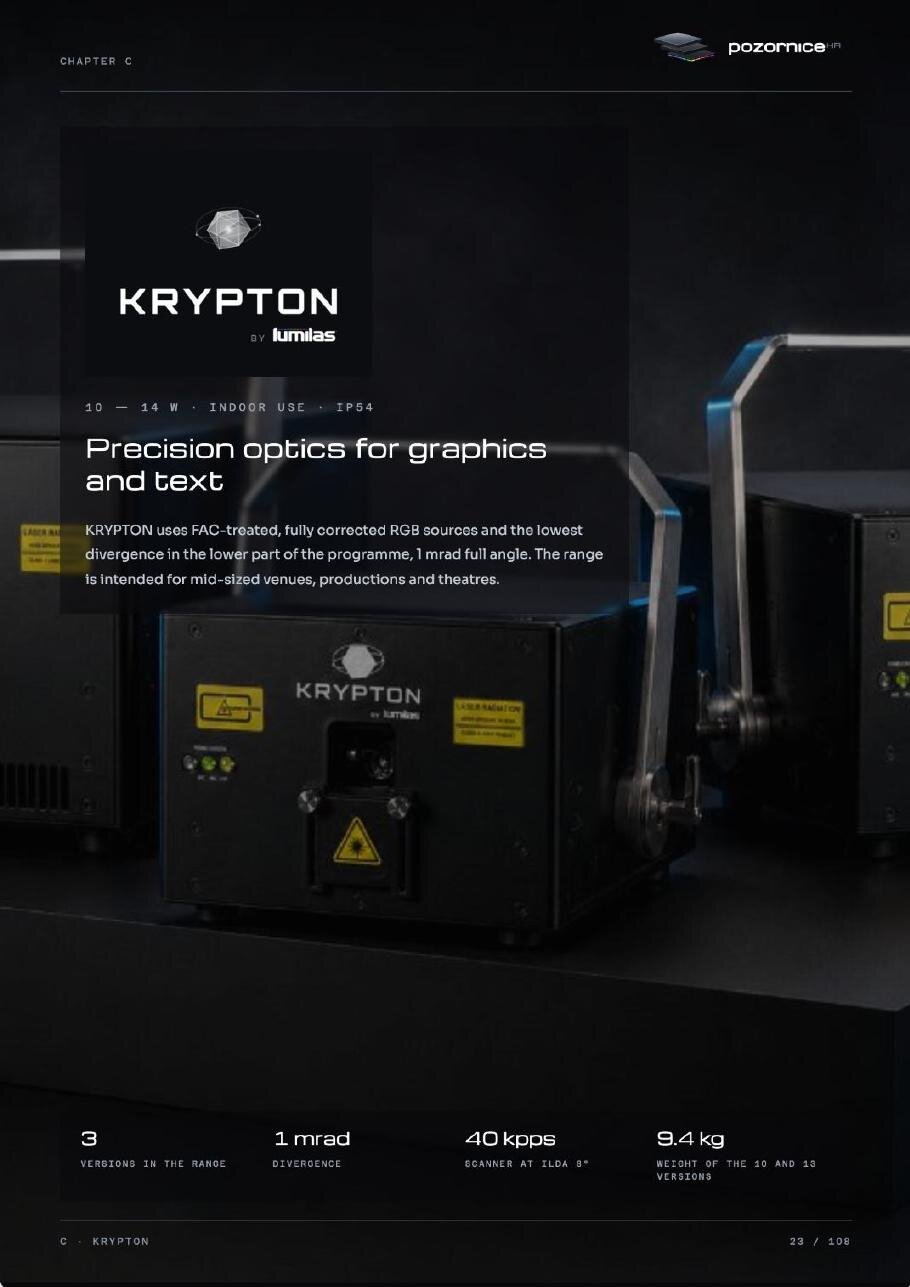

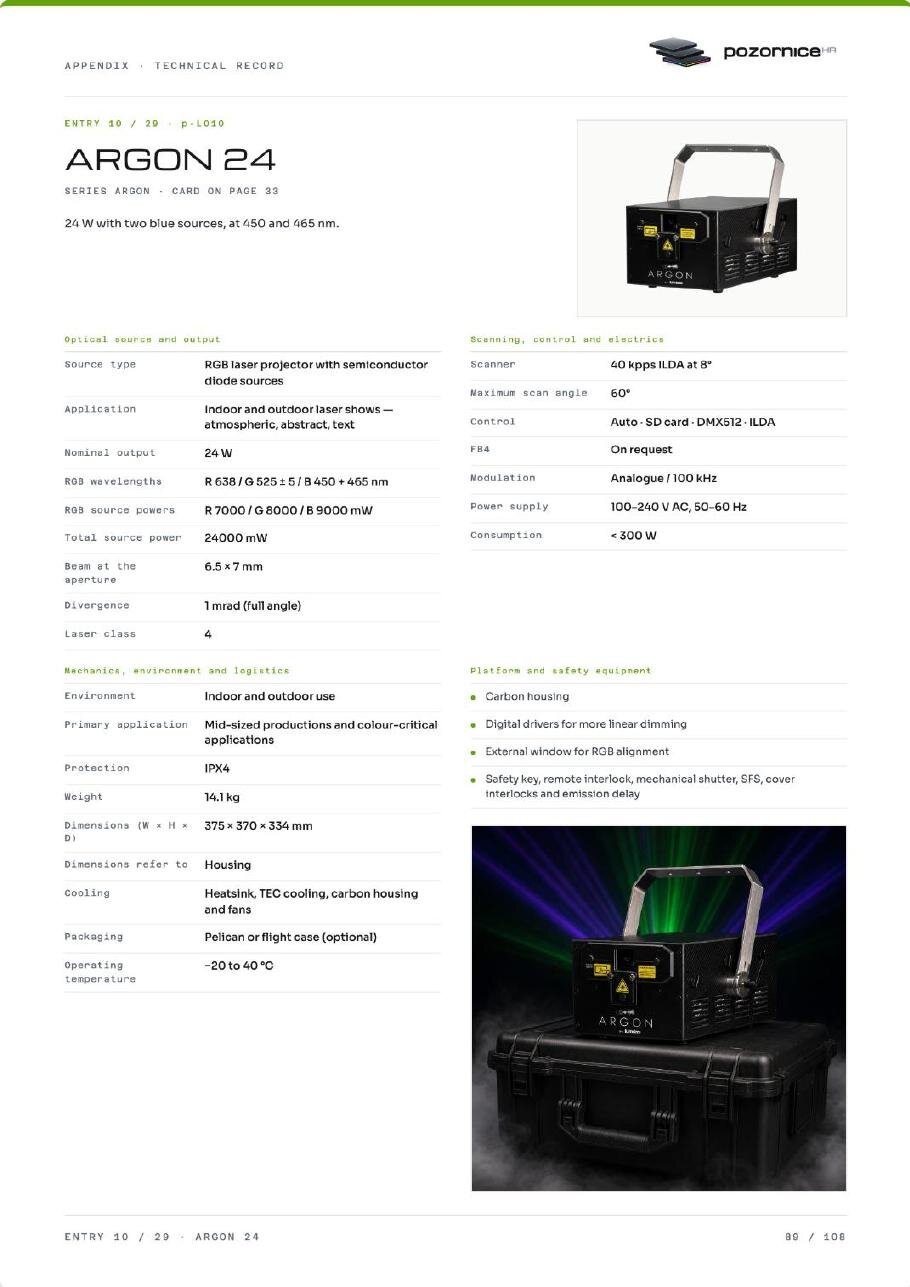

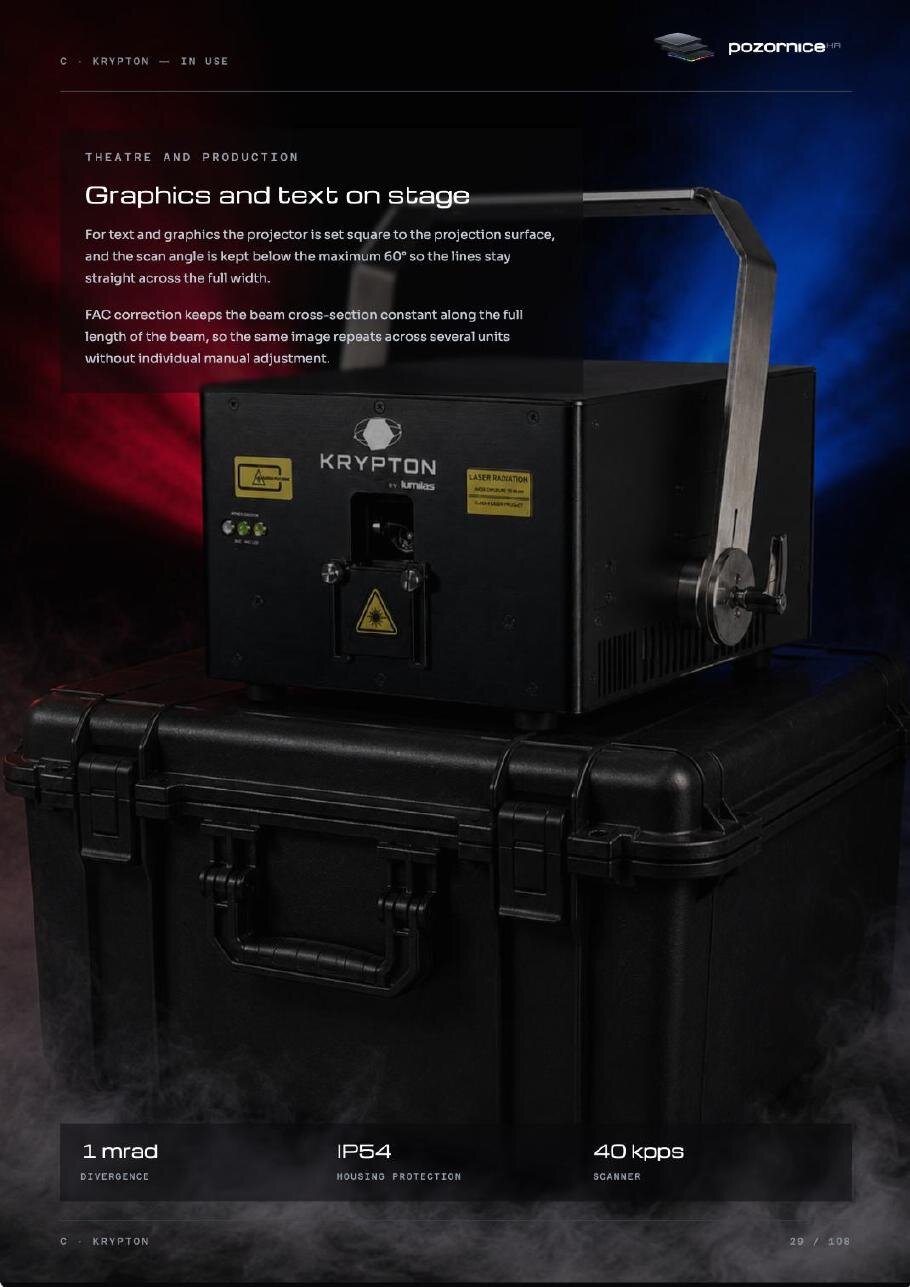

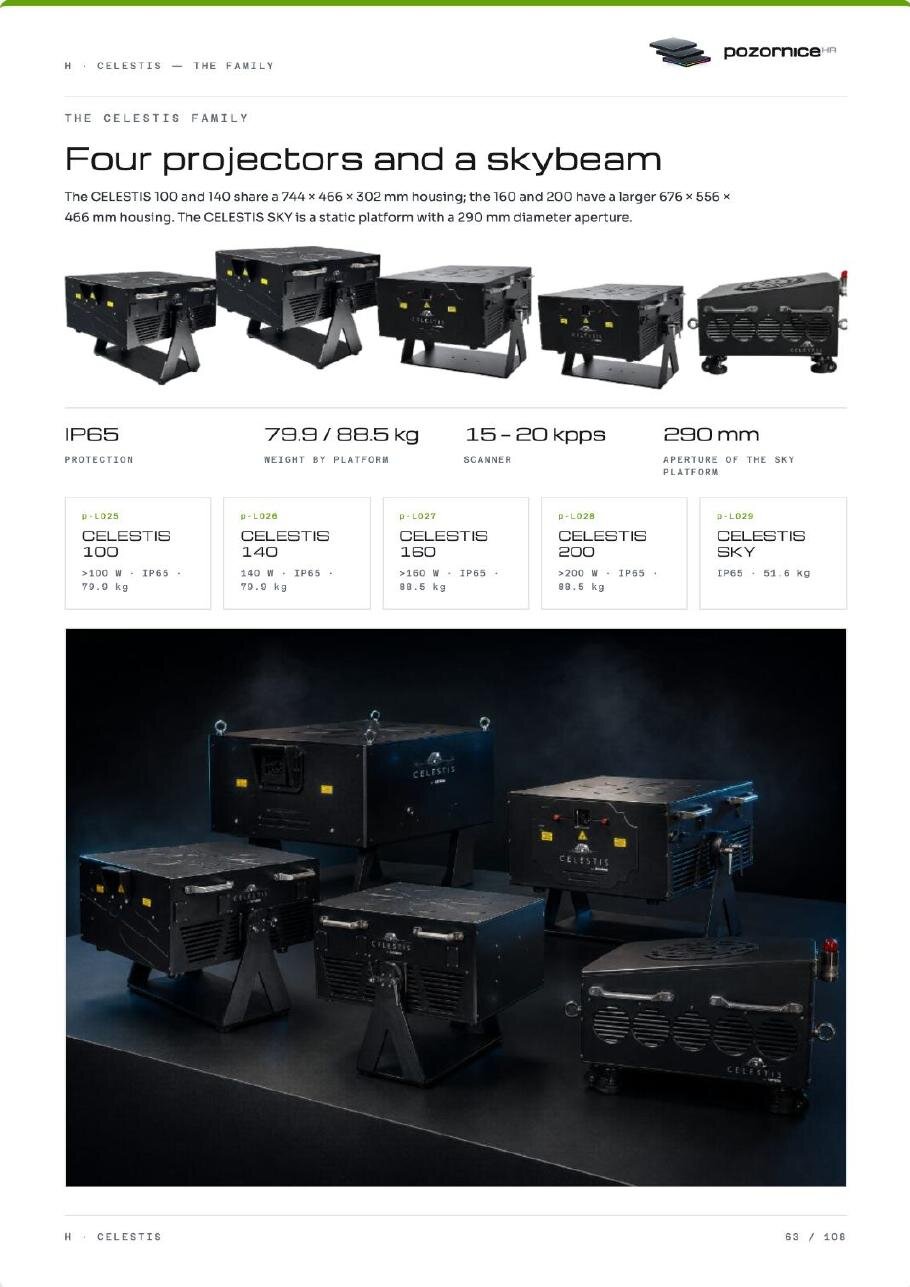

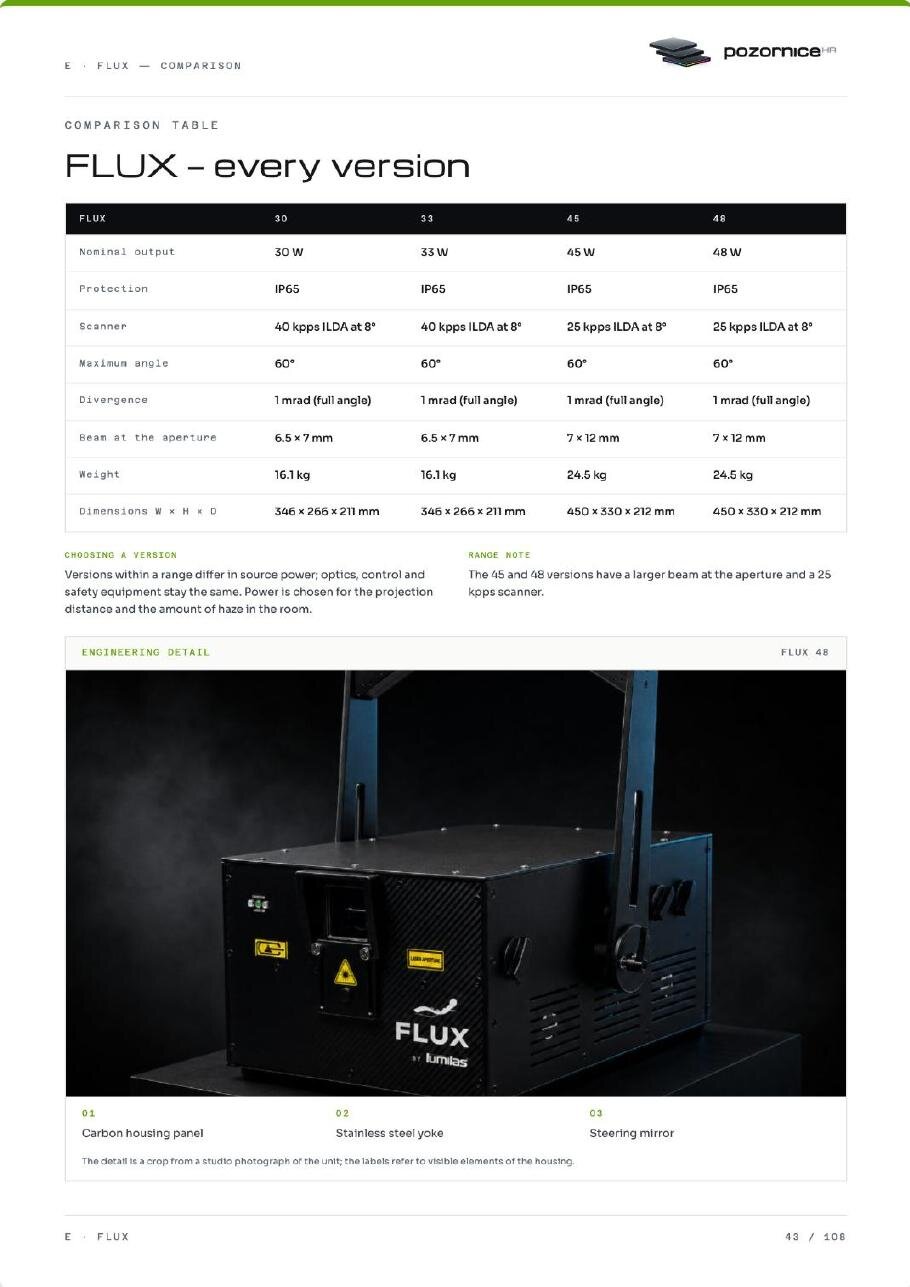

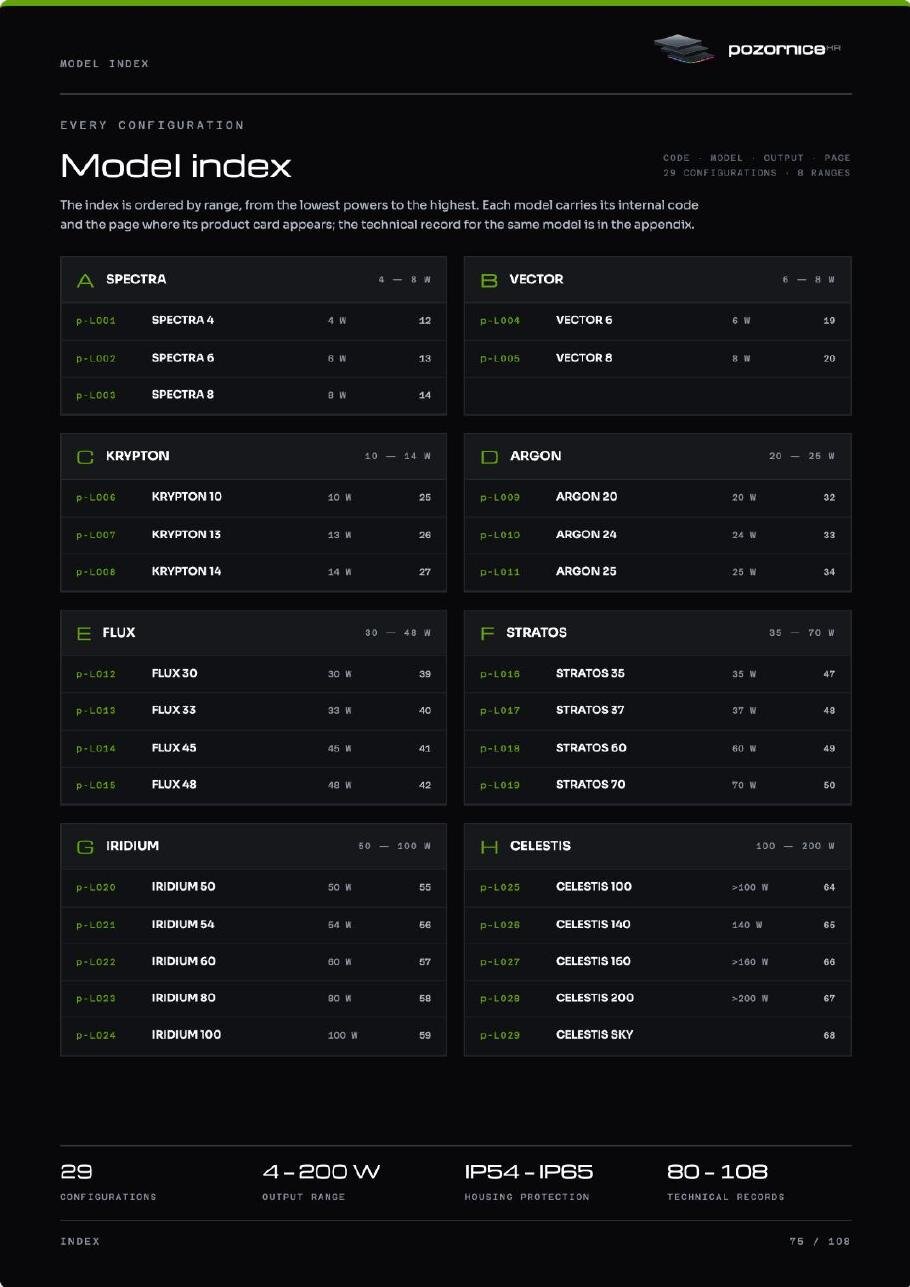

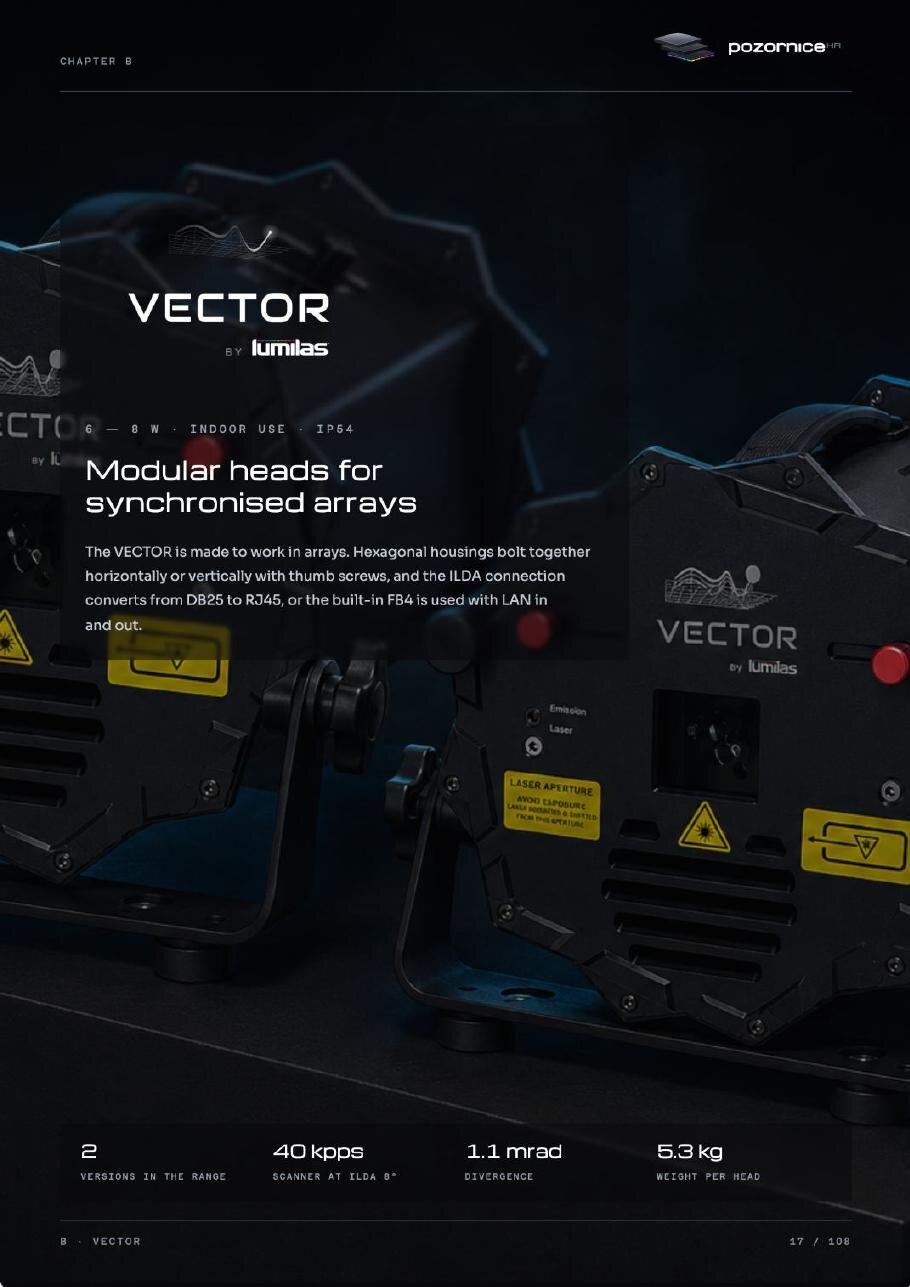

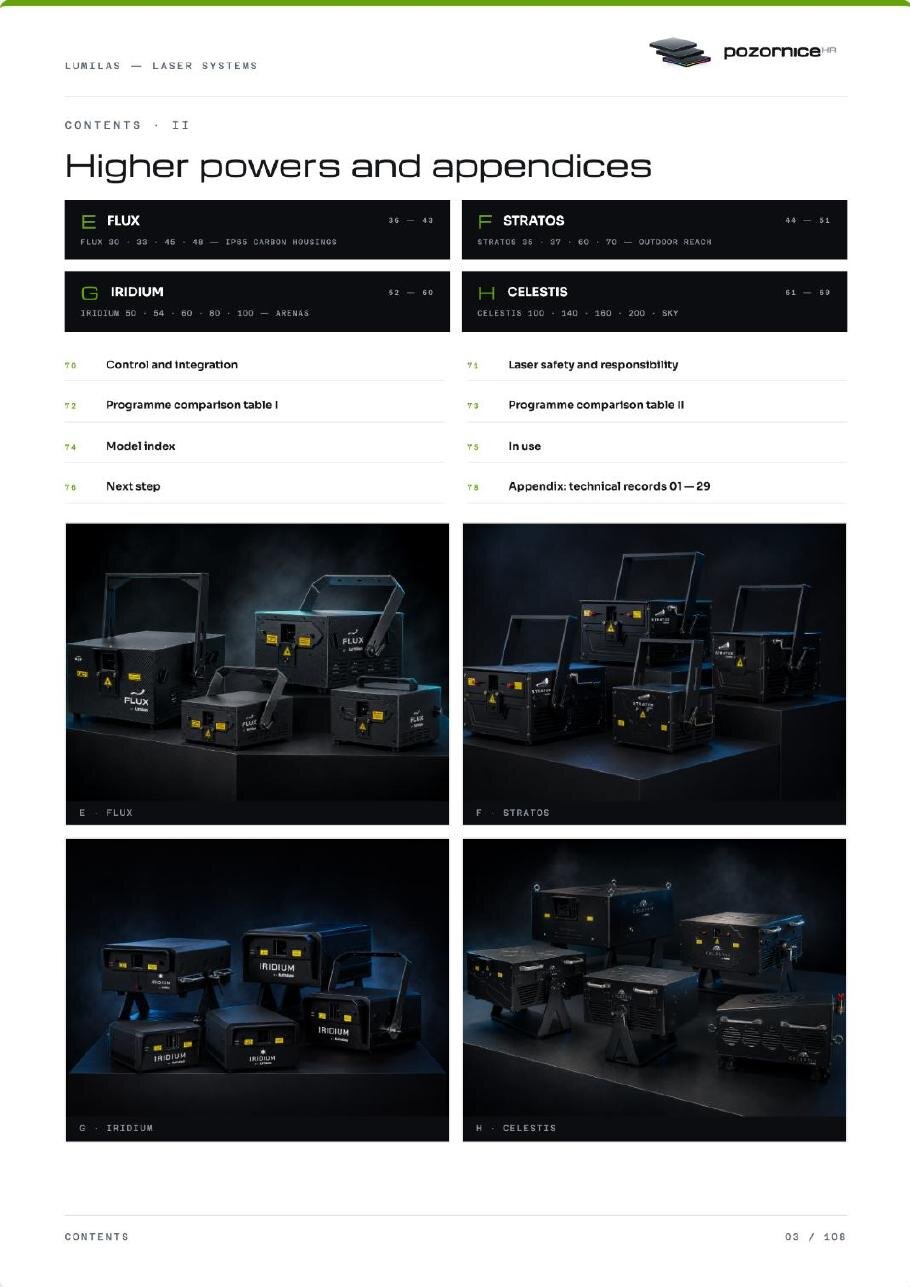

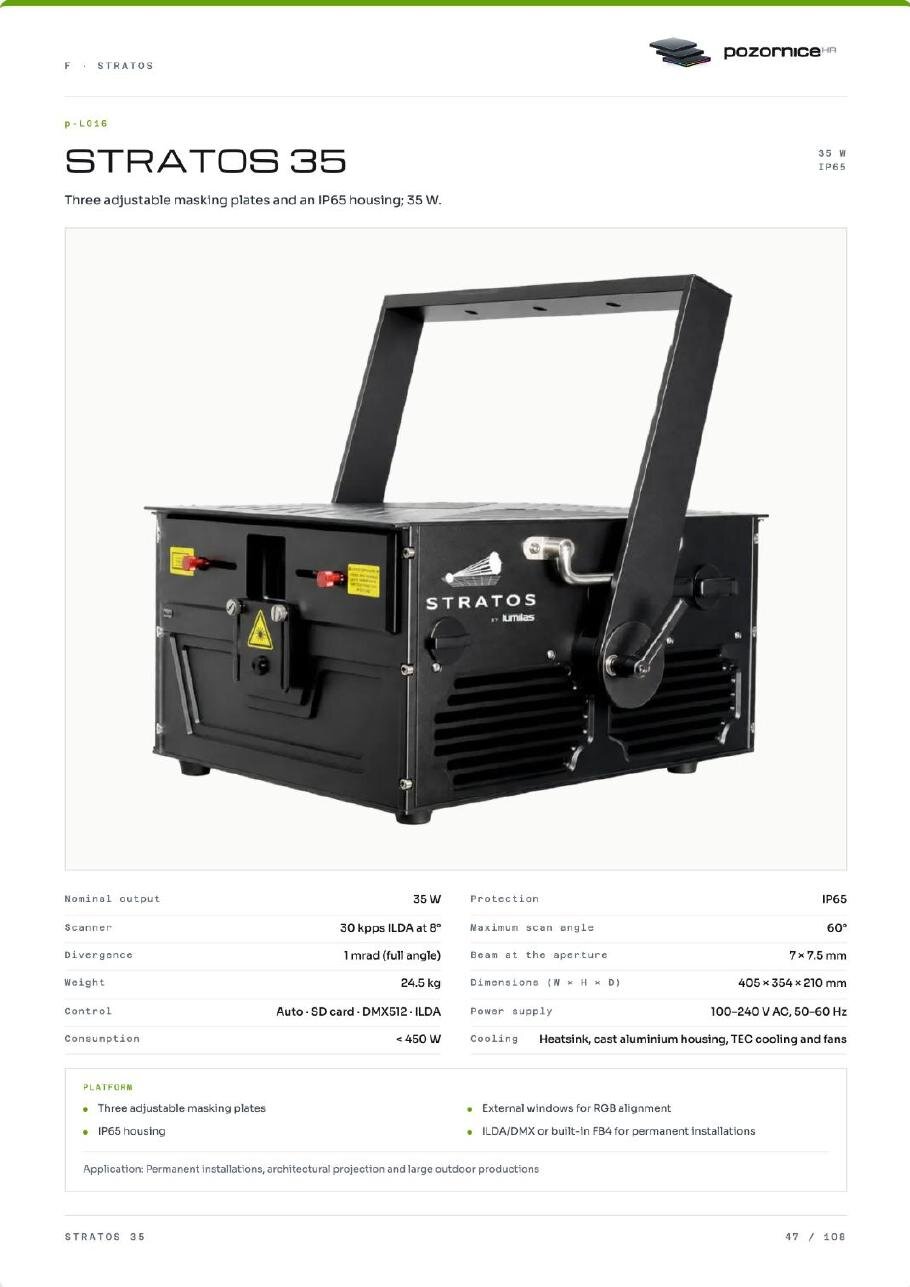

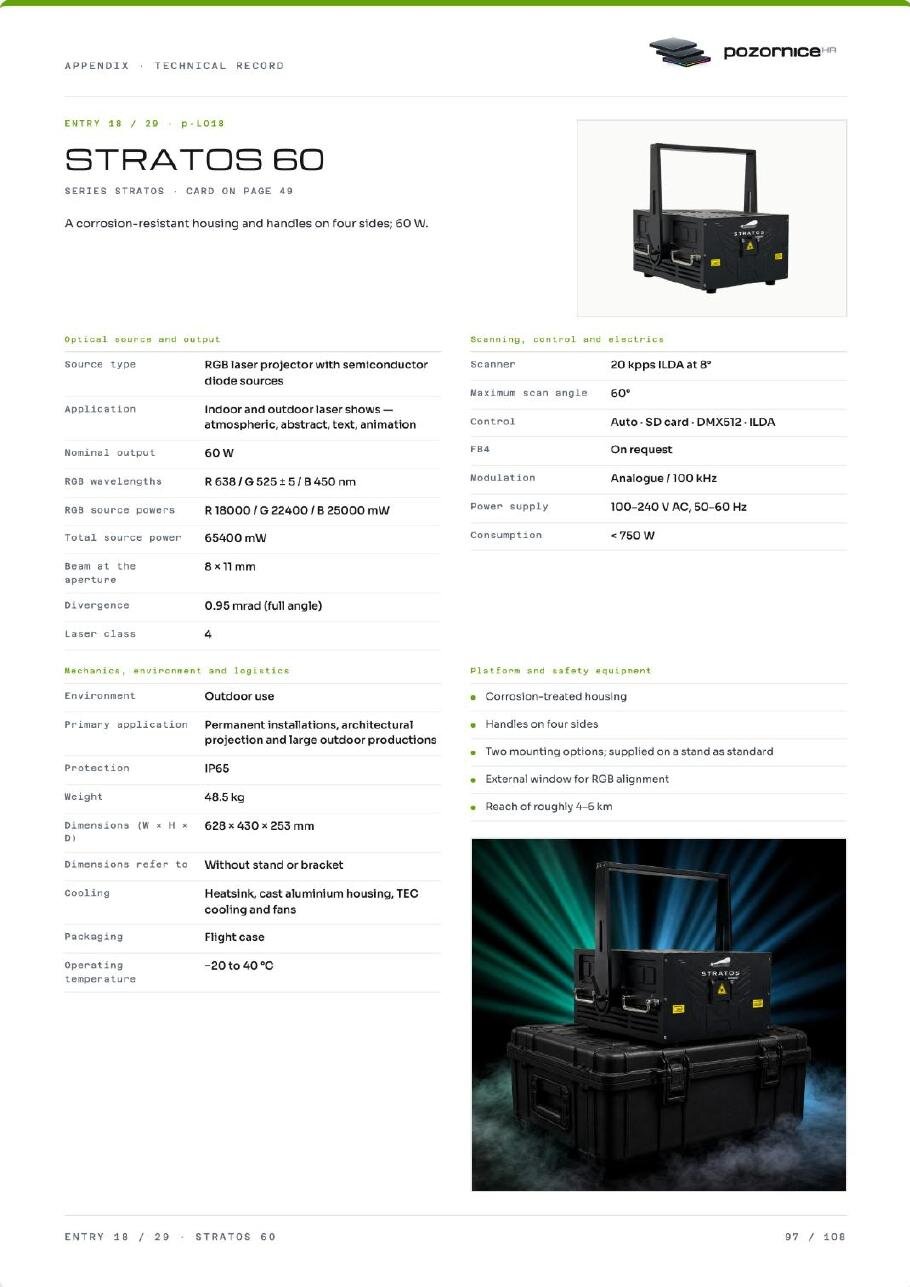

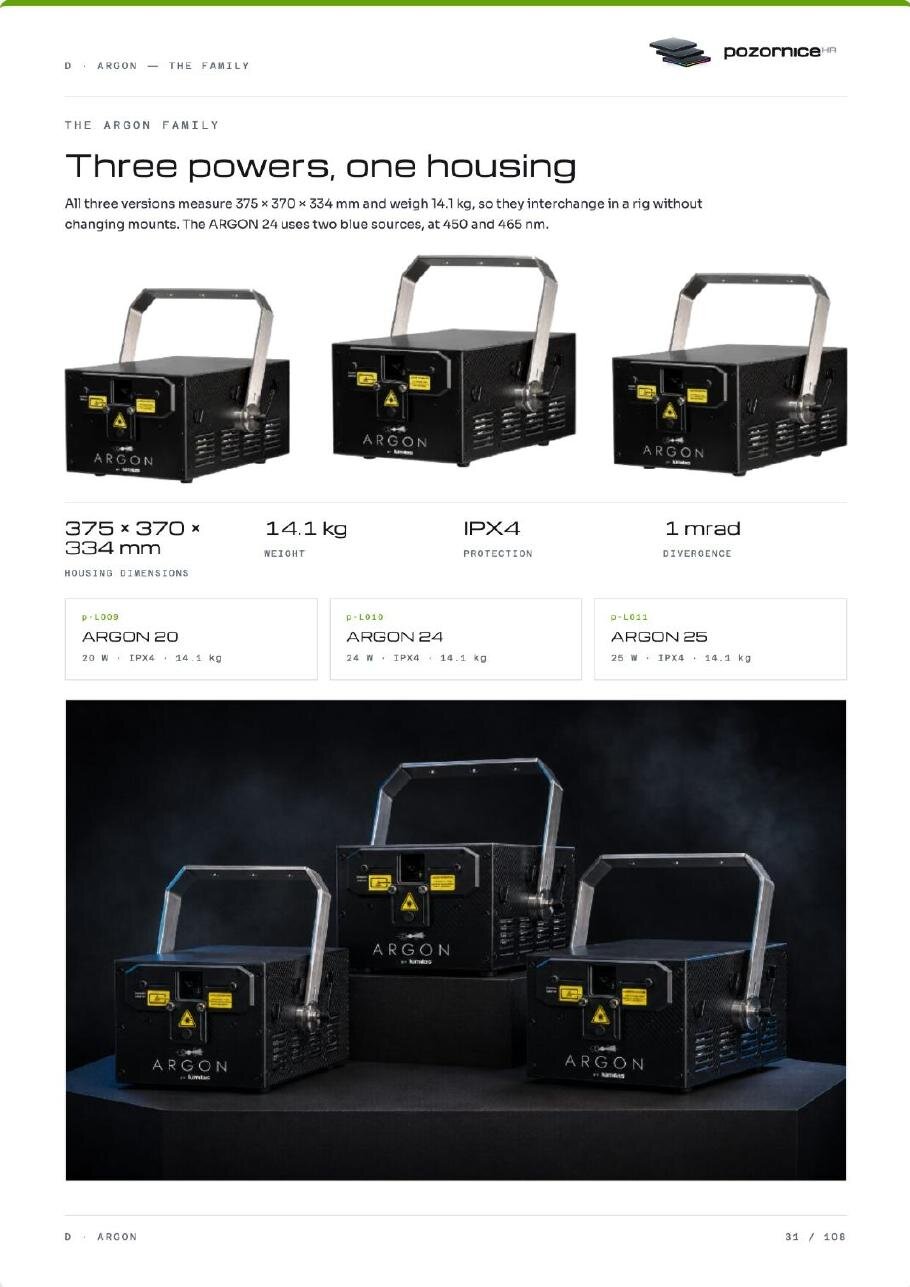

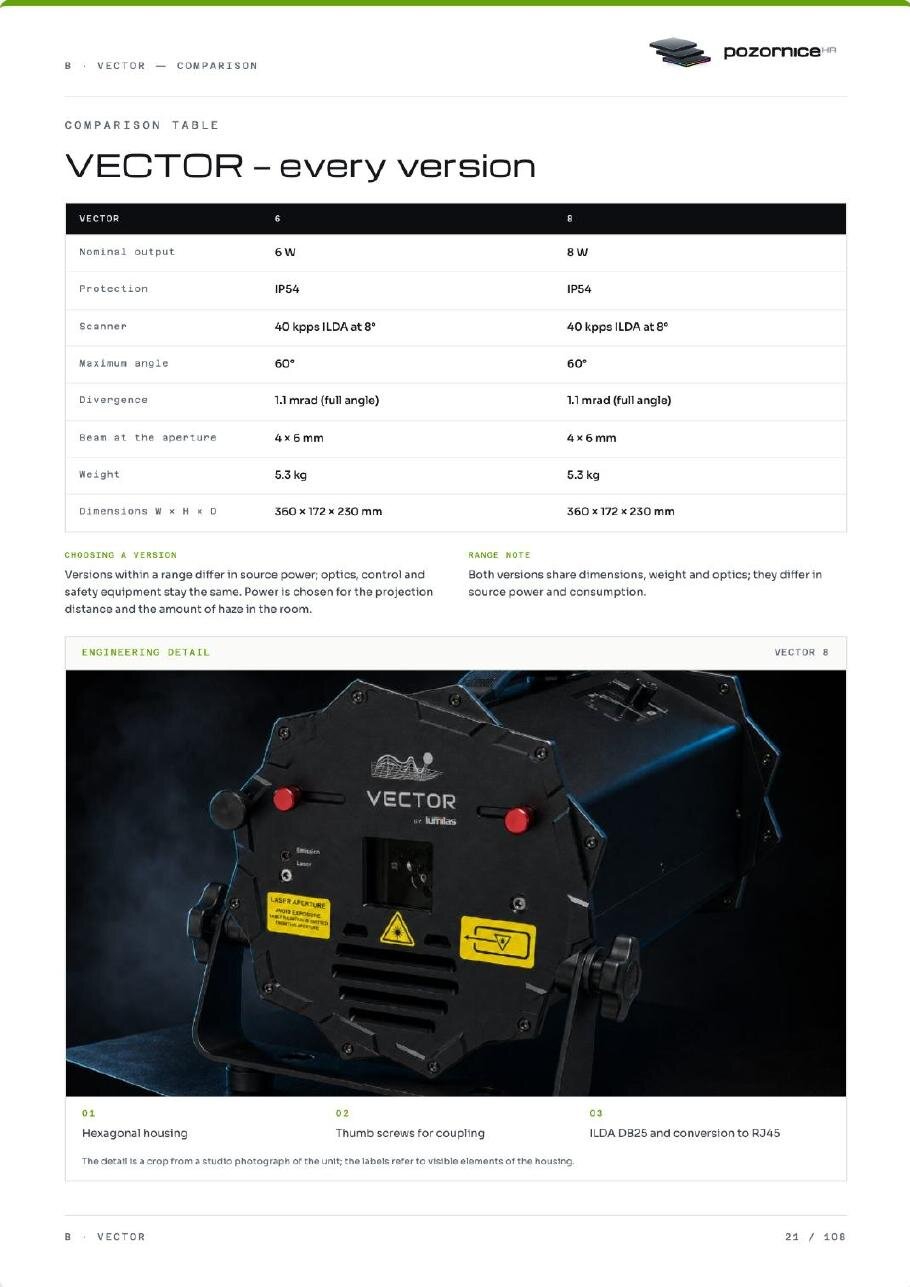

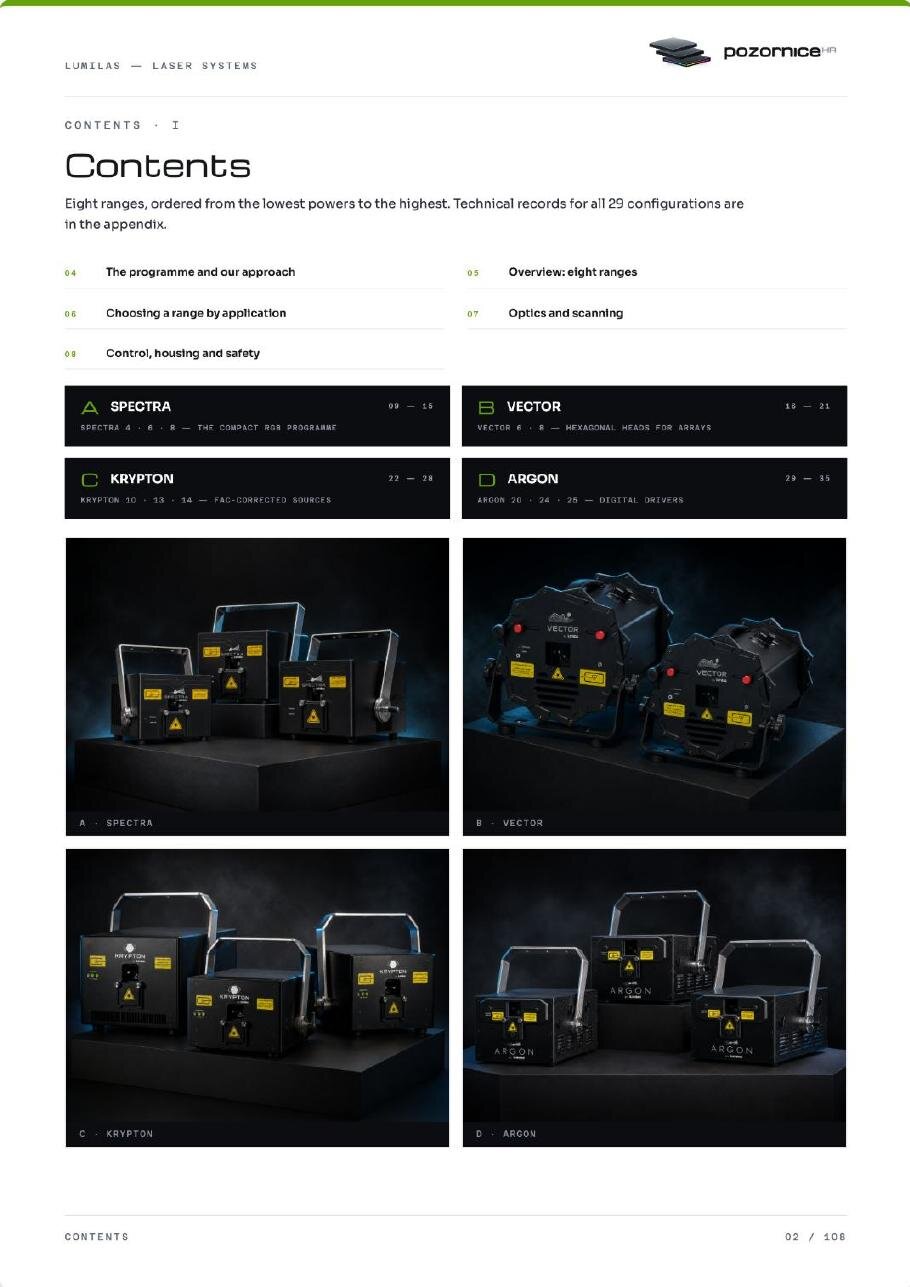

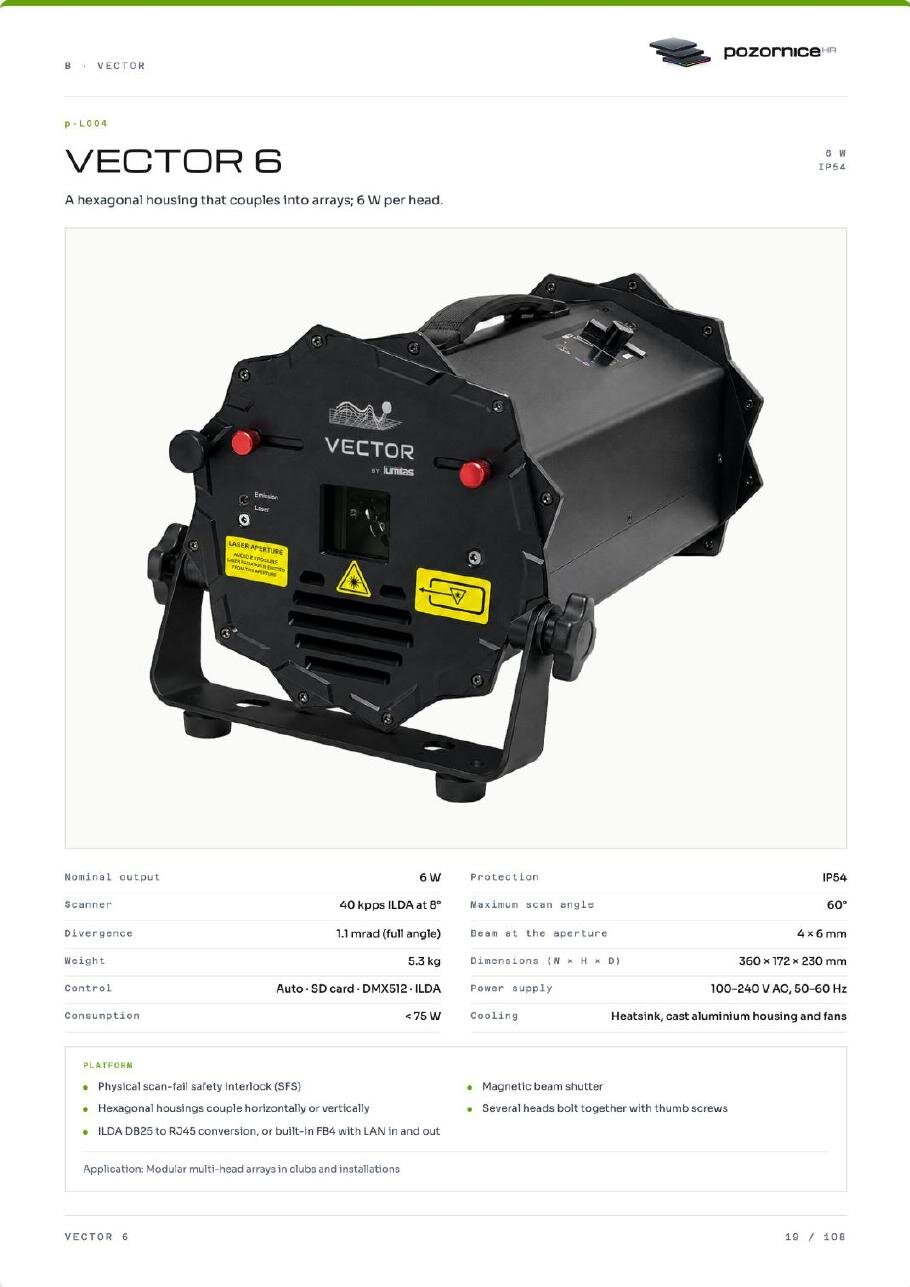

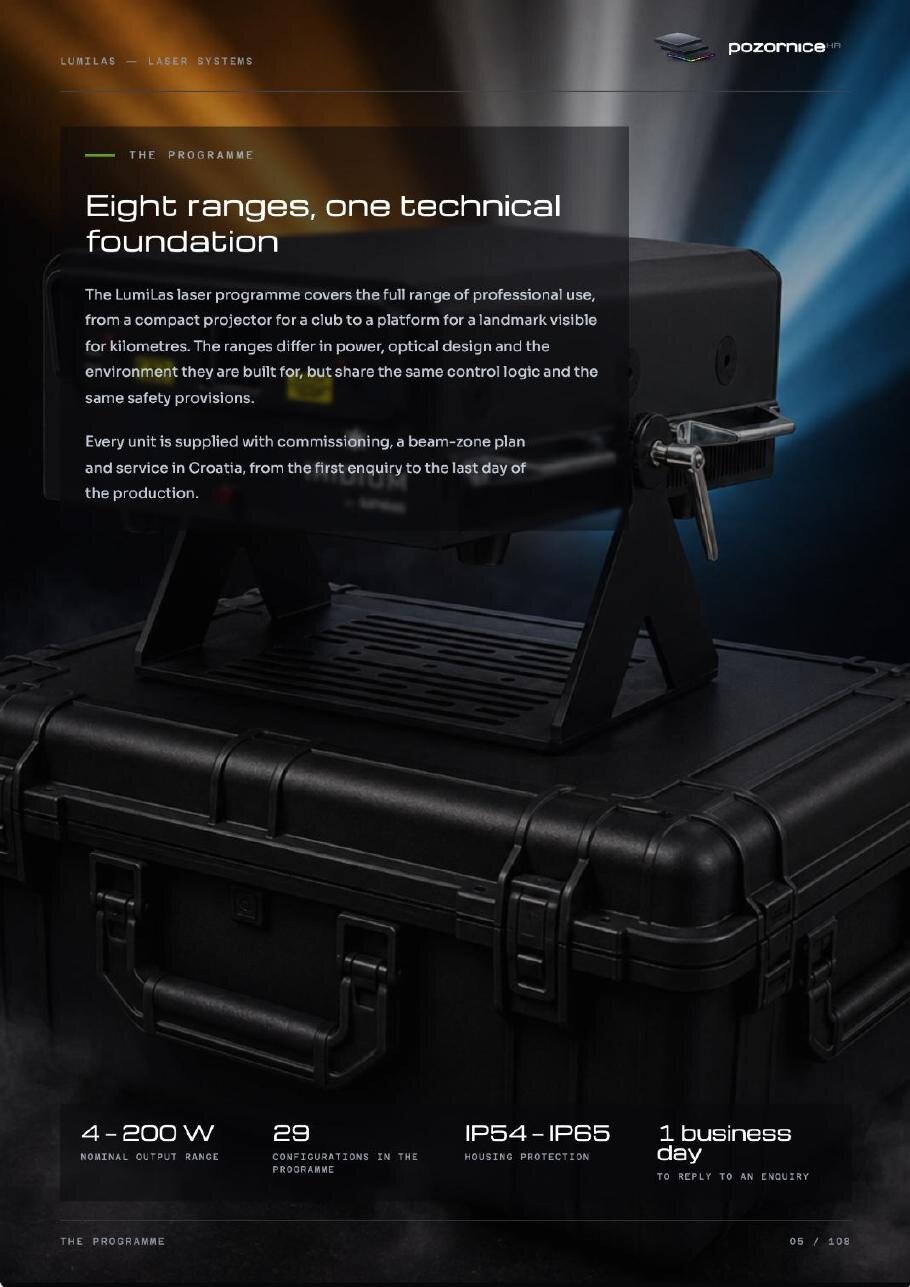

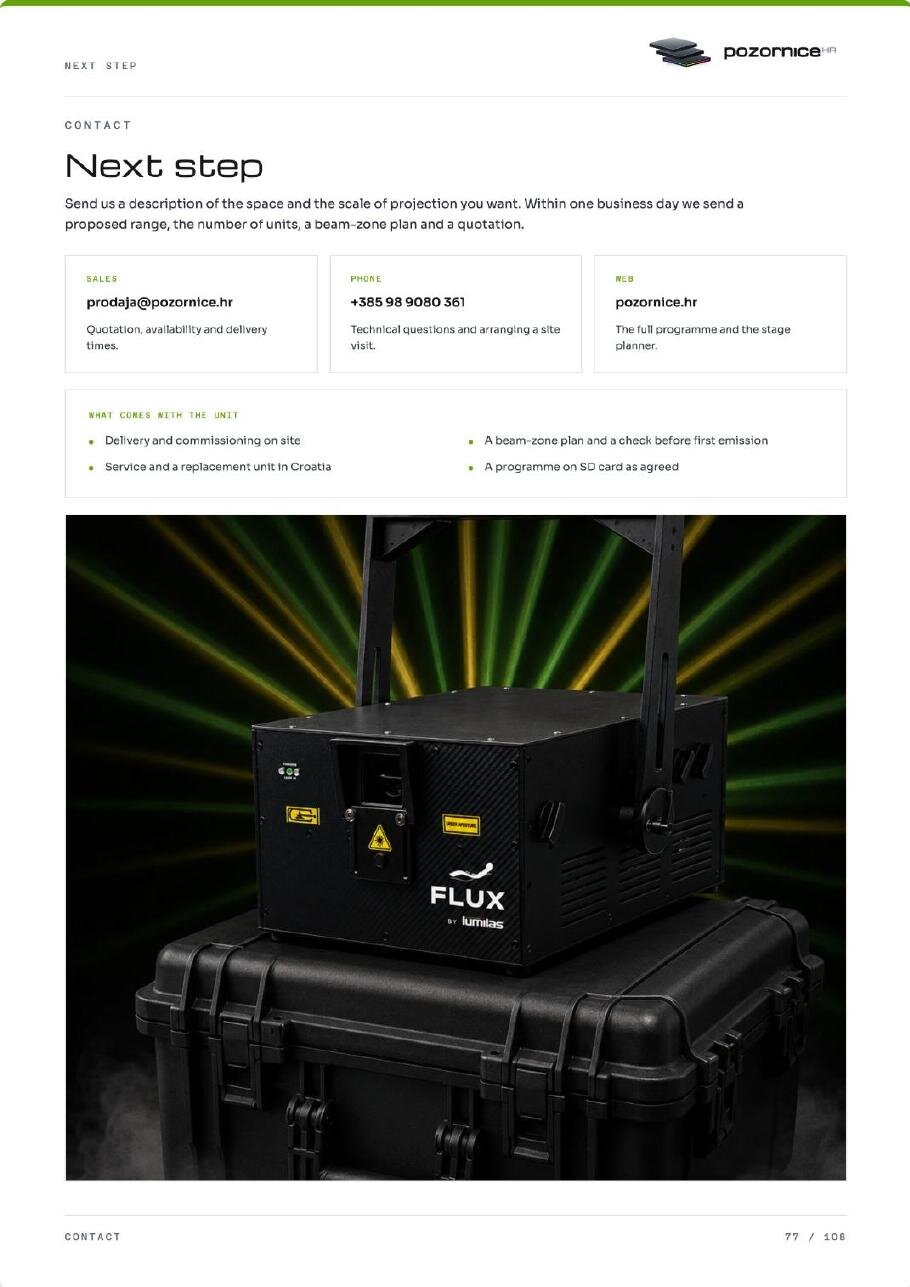

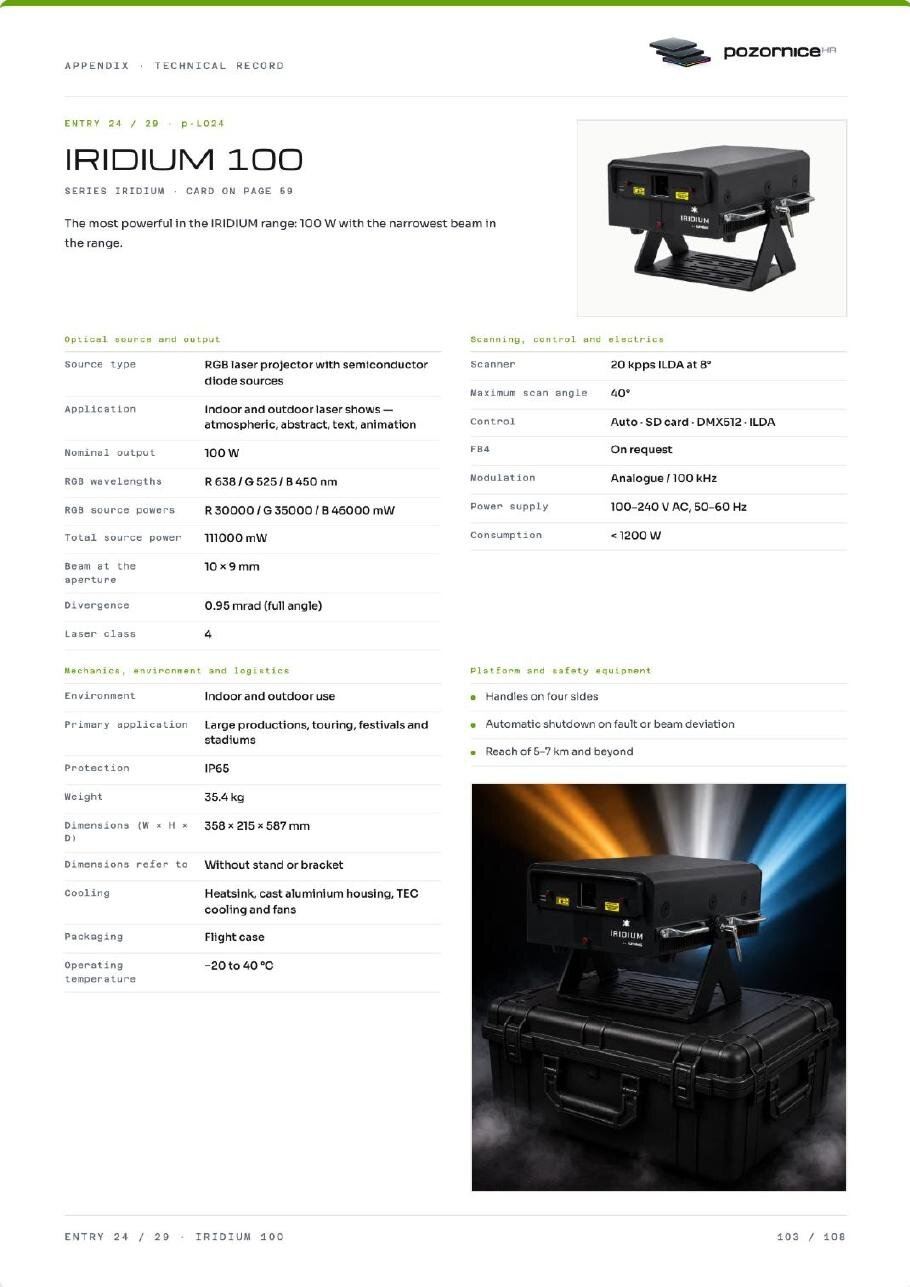

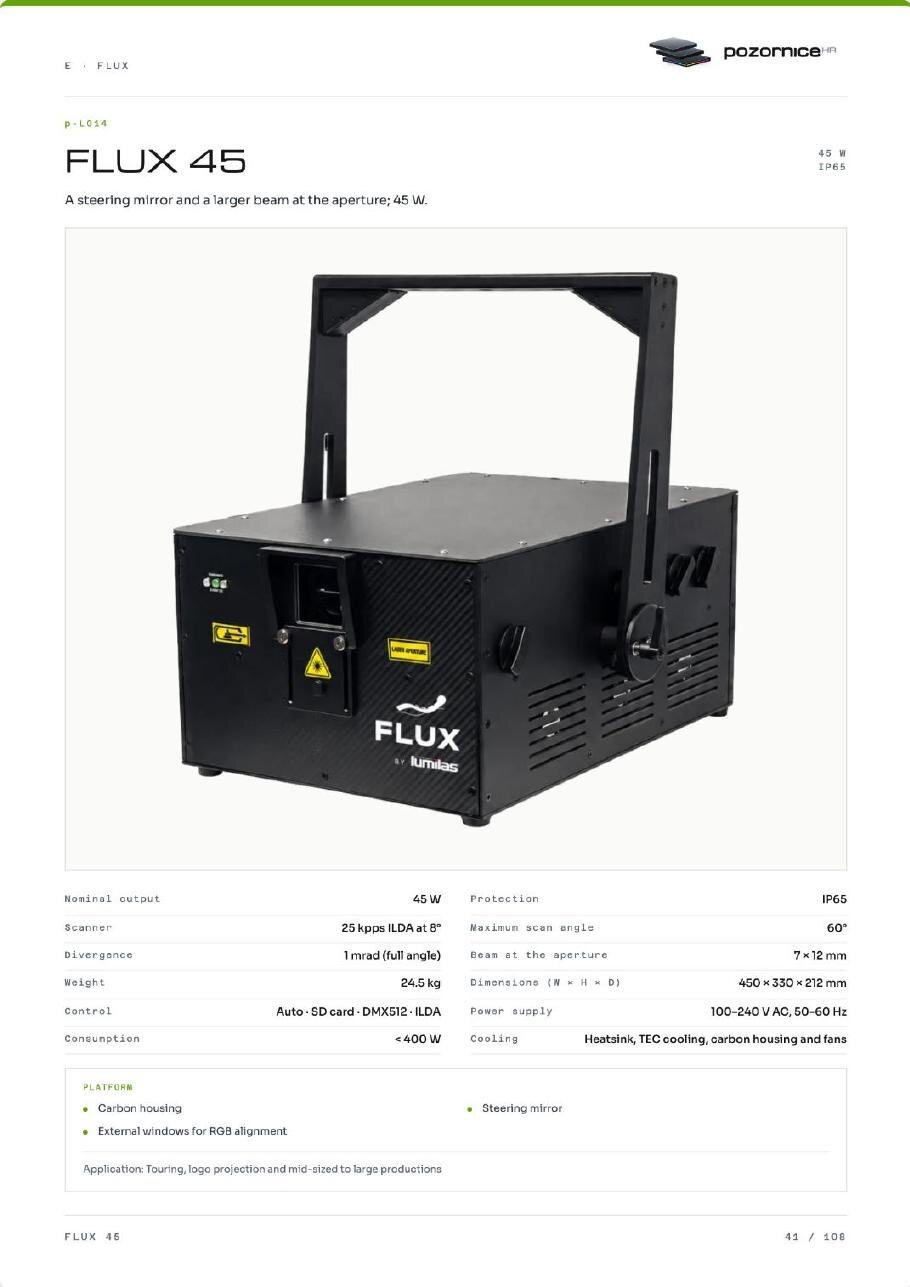

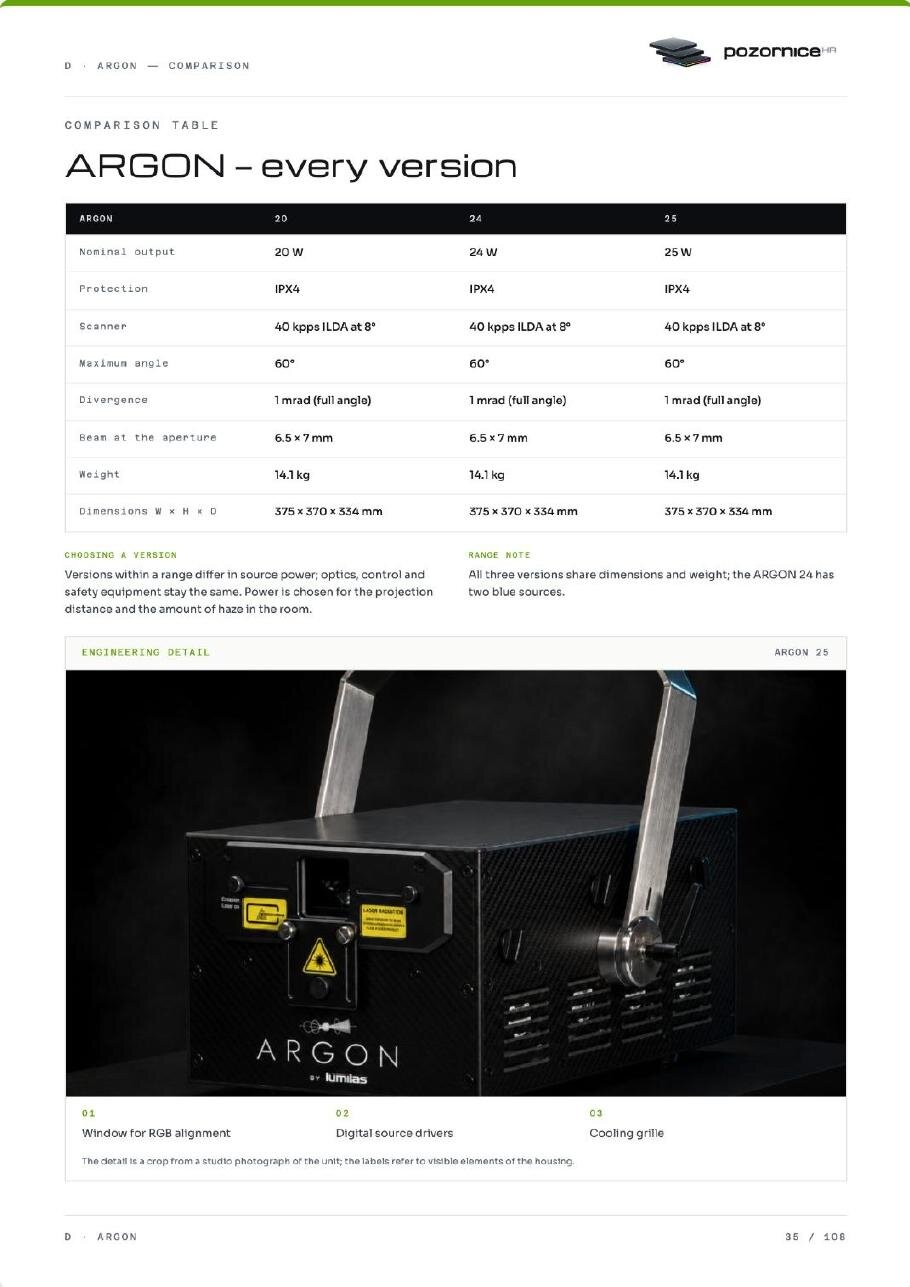

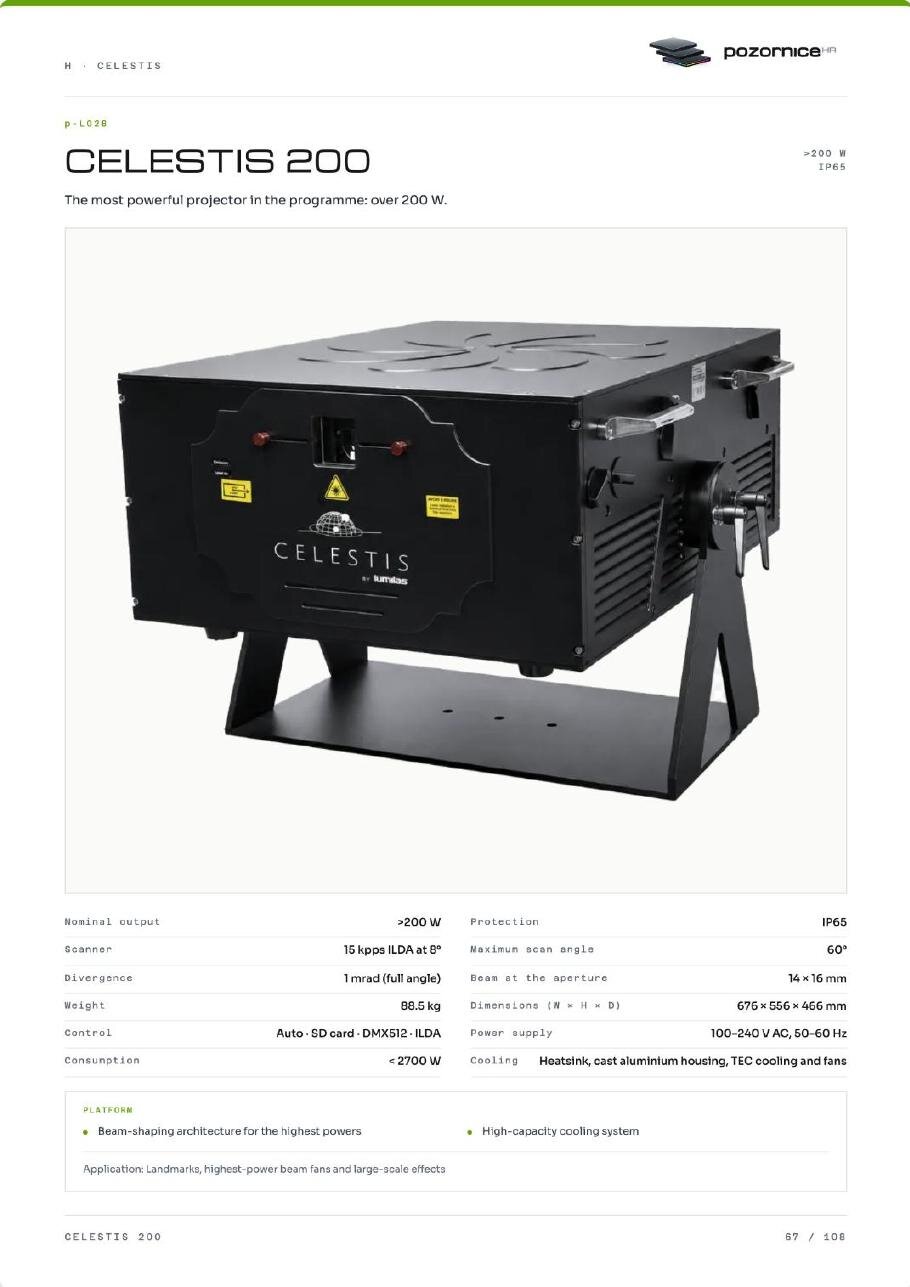

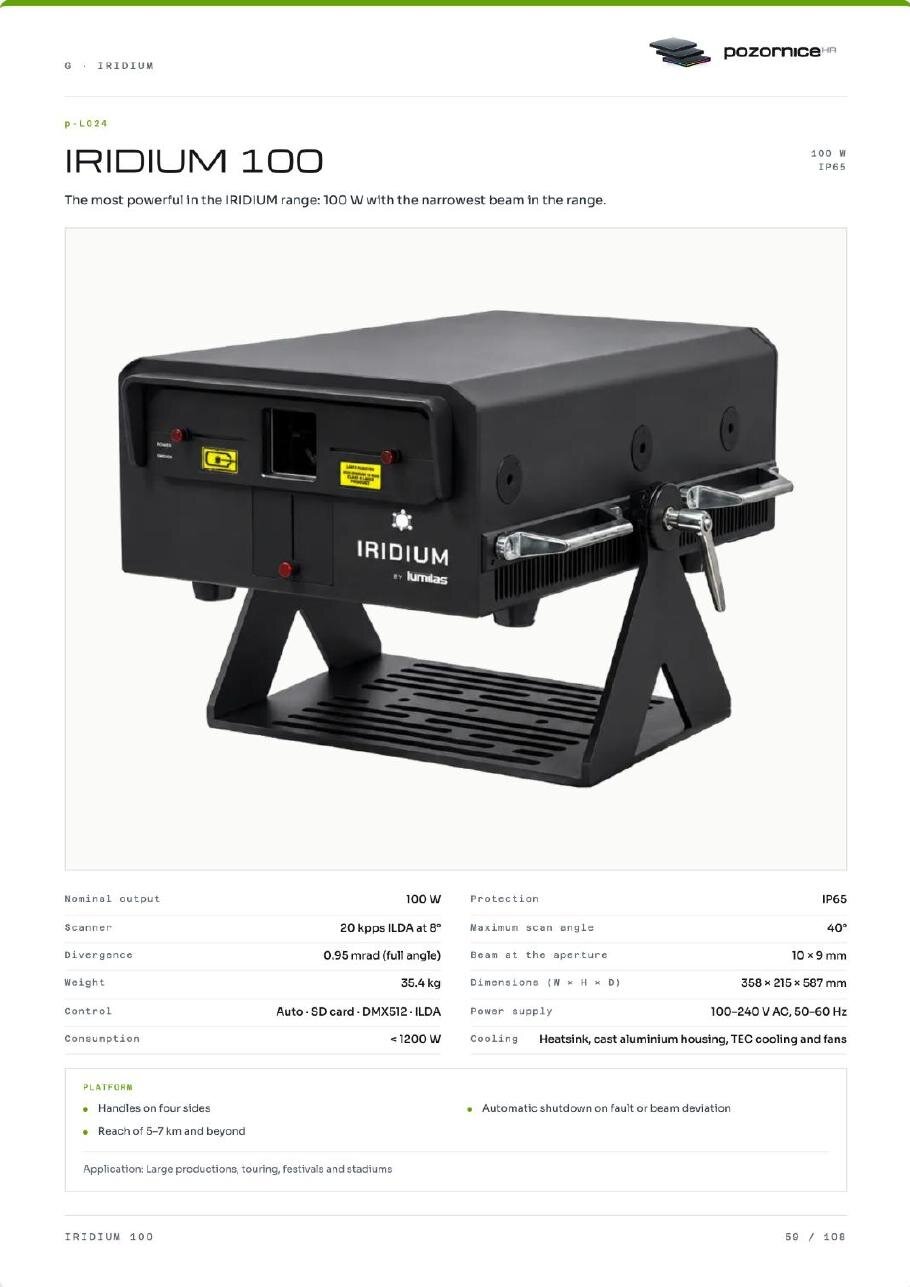

108 pages

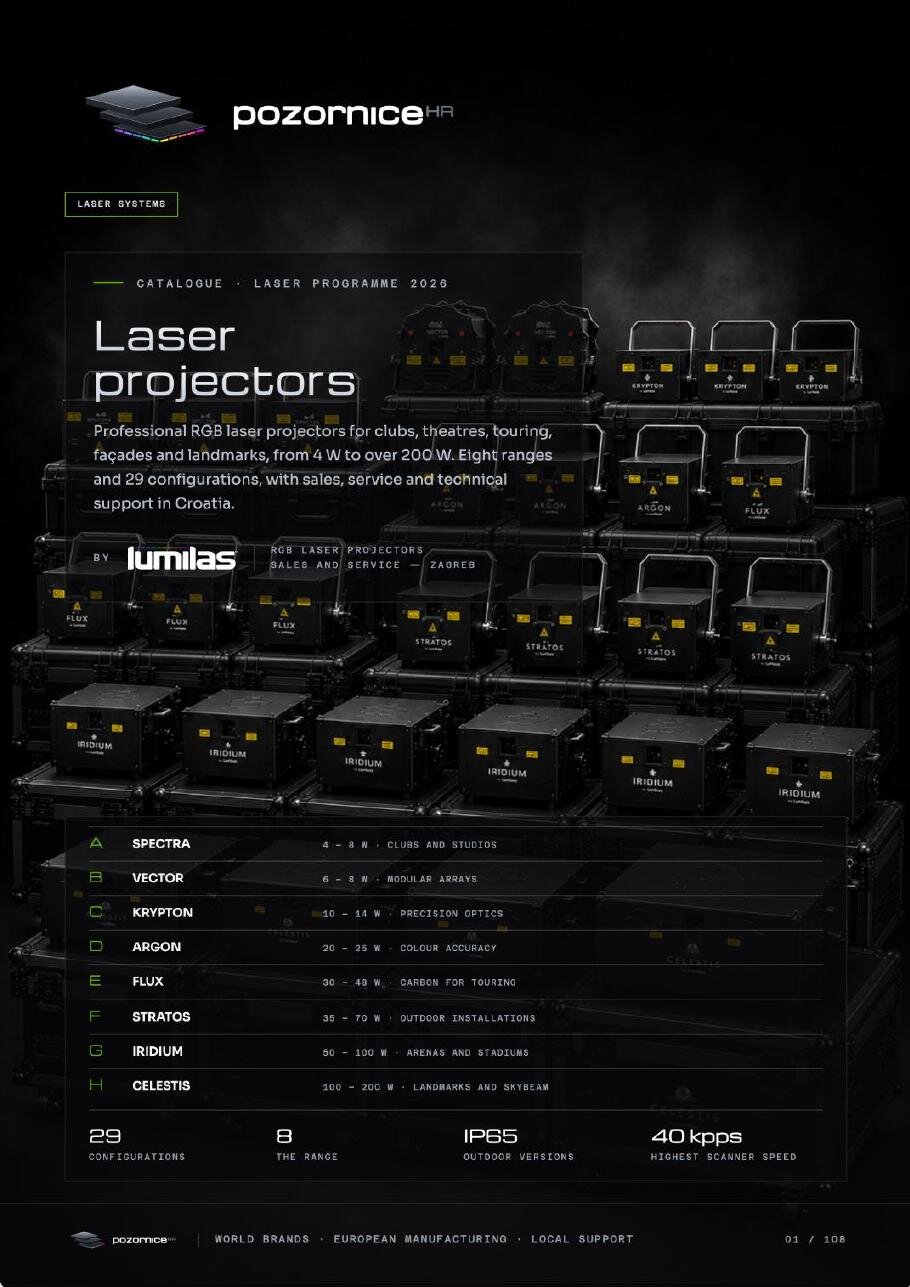

LumiLas laser systems physical catalogue

Catalogue

LumiLas laser systems

Professional RGB laser projectors for clubs, theatres, touring, façades and landmarks — eight series and 29 configurations from 4 W to more than 200 W.

Format: A4 · PDF
Scope: 108 pages
Language: HR edition

The PDF is delivered by email. Submitted details are used only for catalogue distribution records.

08 / Bespoke project

Configure your system

Define the application, compare actual models and build a project brief. We develop the optics, integration and final specification around your venue.

Your configuration

Venue & content

Application

Environment

Content type

SPECTRA 4

01 ×

Models to compare

An indicative shortlist, not a completed technical design. LumiLas confirms the final output, optics, specification and safety concept for the site conditions.

US laser-system development since 1986.

Explore the complete Pangolin range

Laser control · software and hardware

Pangolin Laser Systems

Pangolin connects laser content creation, show programming and projector control. As the authorised distributor for Croatia, LumiLas provides equipment selection, sales, integration and technical support throughout the system lifecycle.

Since: 1986.
Origin: USA
Support in Croatia: LumiLas

Supporting your project

Laser softwareControl hardwareFB4Show programmingIntegration & training
