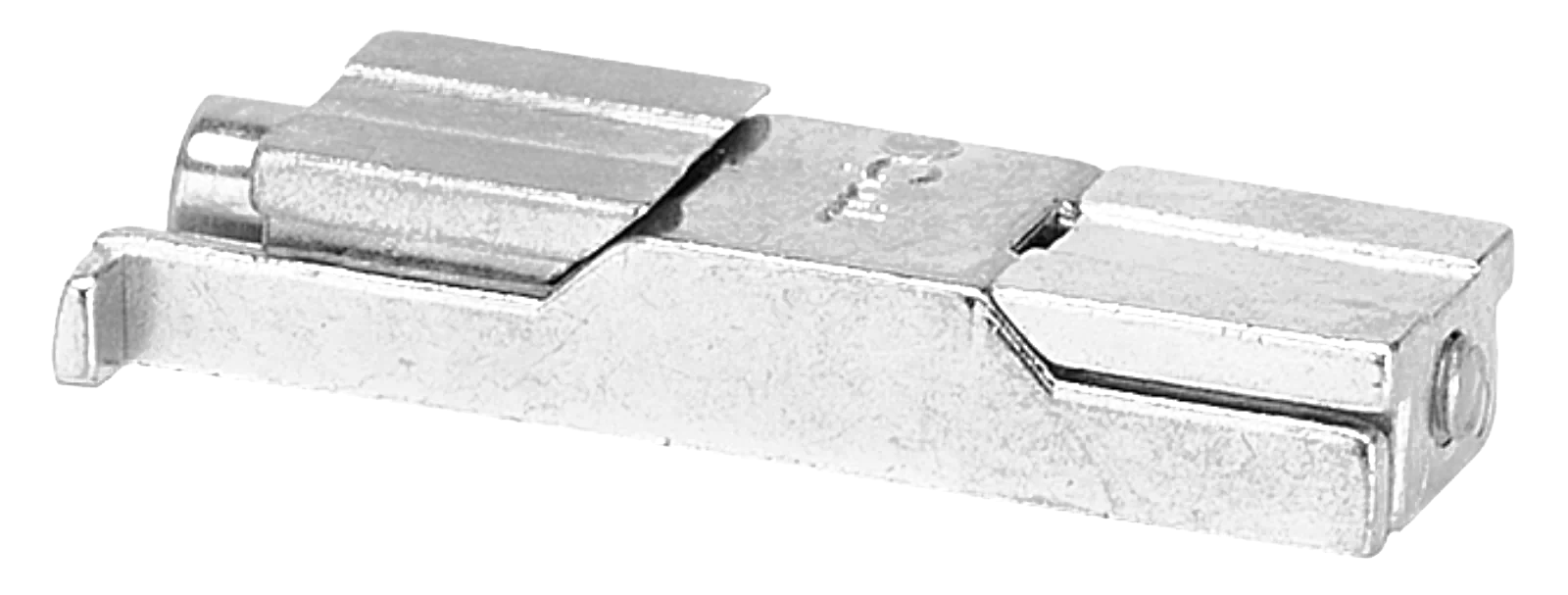

TMU-01
Deck alignment
Slides into the frame rail, aligns decks at the same height and locks with an Allen key.
- Connection
- deck ↔ deck
- Application
- low builds and decks without legs

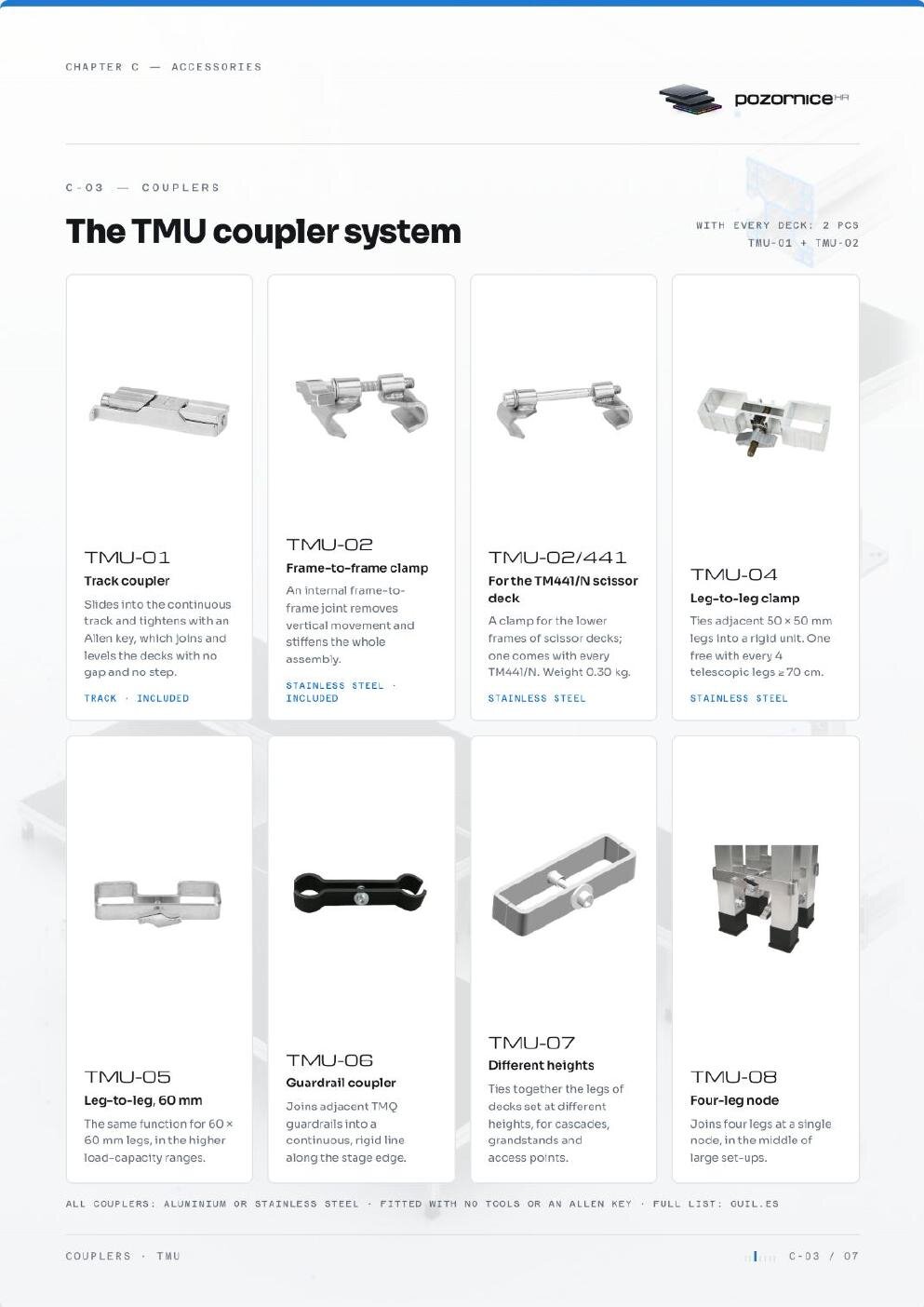

Connectors and accessories
Connectors and accessories
Each connector has one precise role: deck alignment, leg-profile clamping, different-height connection or additional bracing.
Explore the system↓
2deck connections
50 / 60 mmleg profiles
6core connectors
Connection atlas
Start with what needs to connect
The model name matters less than the connection point. Choose deck, frame or legs to see the matching function.

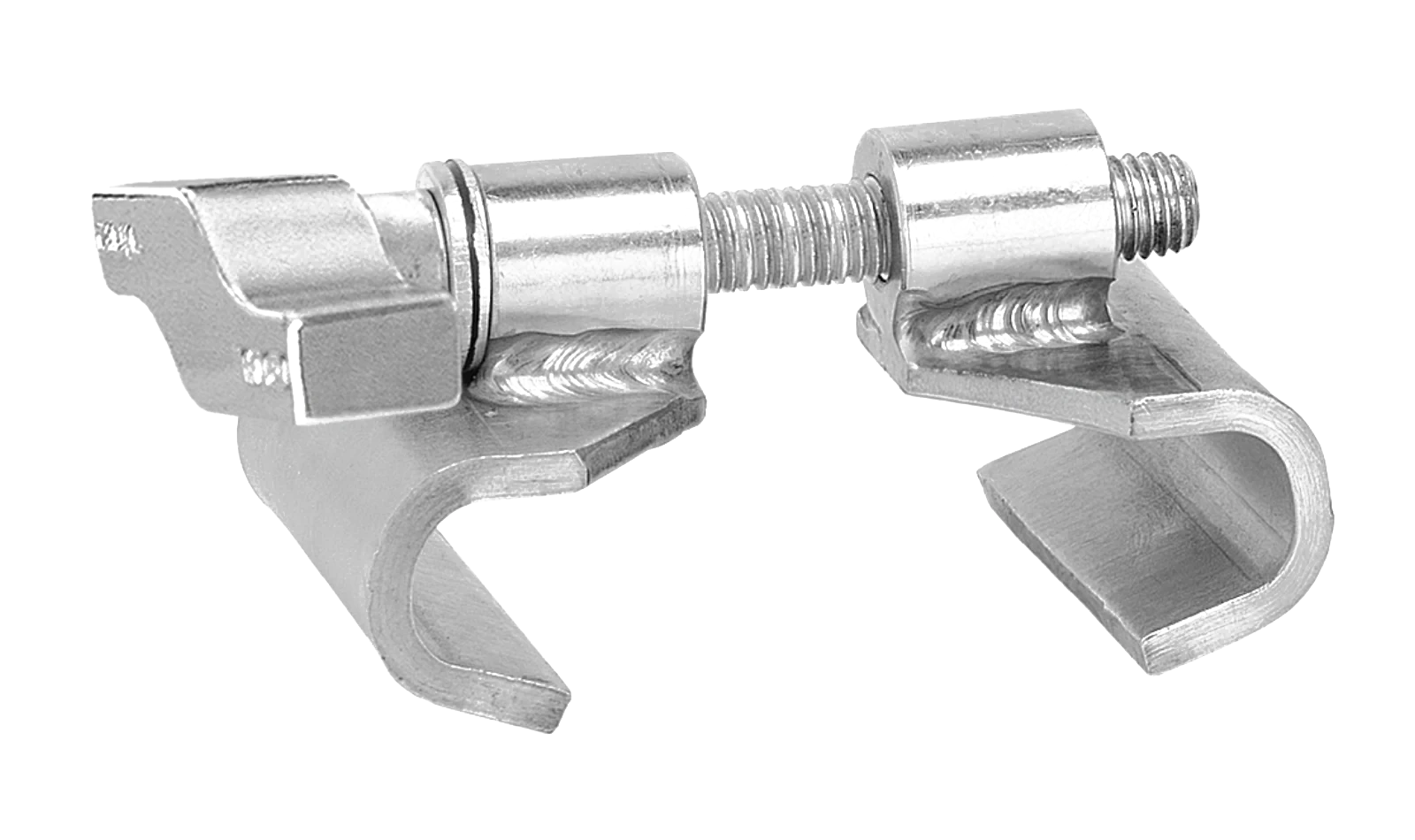

TMU-02
Frame clamping
The internal stainless-steel clamp rigidly joins neighbouring frames and removes vertical movement.
- Connection
- frame ↔ frame
- Application
- standard module connection

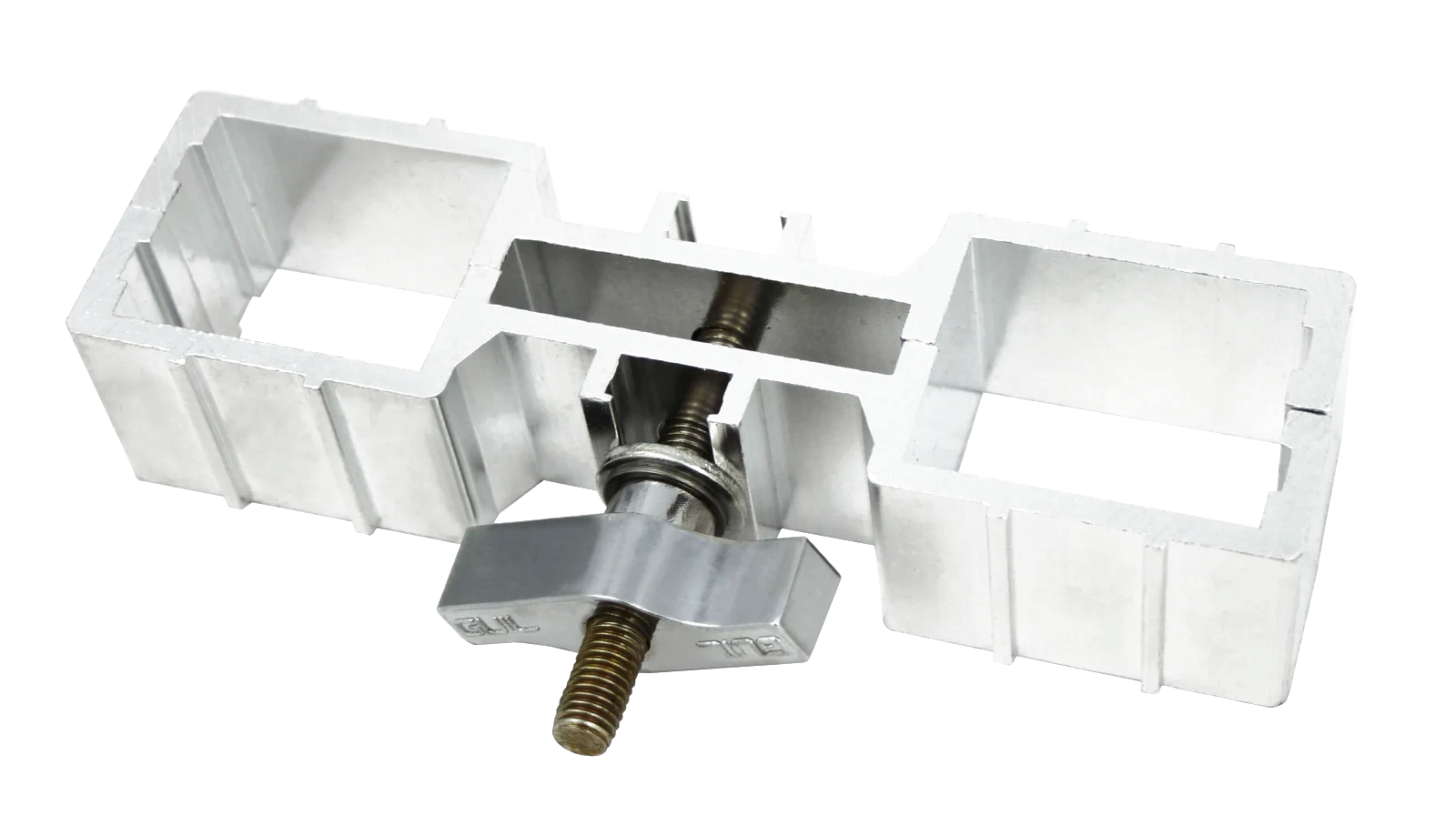

TMU-04
Two 50 × 50 legs
A reinforced aluminium clamp joins two 50 × 50 mm legs.
- Connection
- 50 × 50 mm
- Application
- same or different level

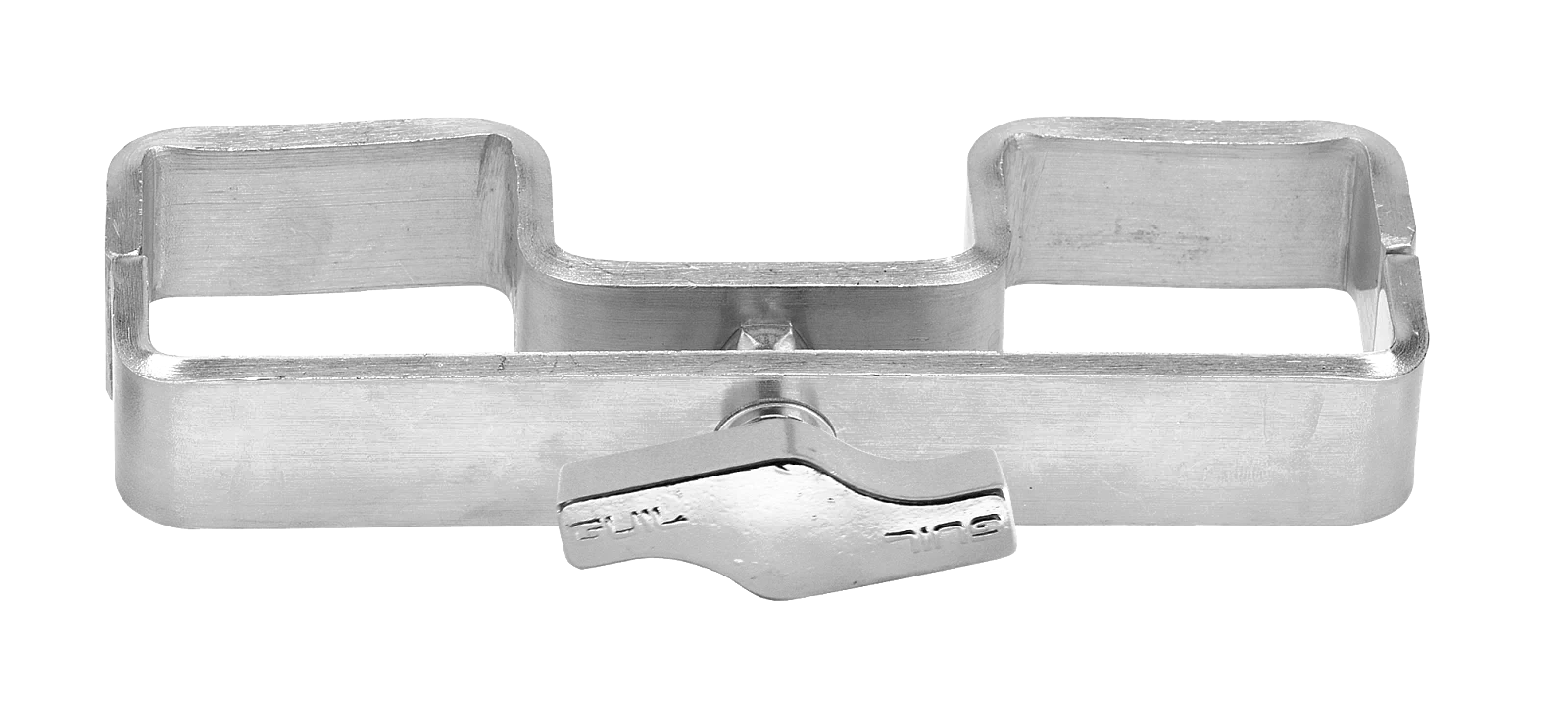

TMU-05
Two 60 × 60 legs
Stainless-steel clamp for fast, secure connection of 60 × 60 mm legs.
- Connection
- 60 × 60 mm
- Application
- manual locking

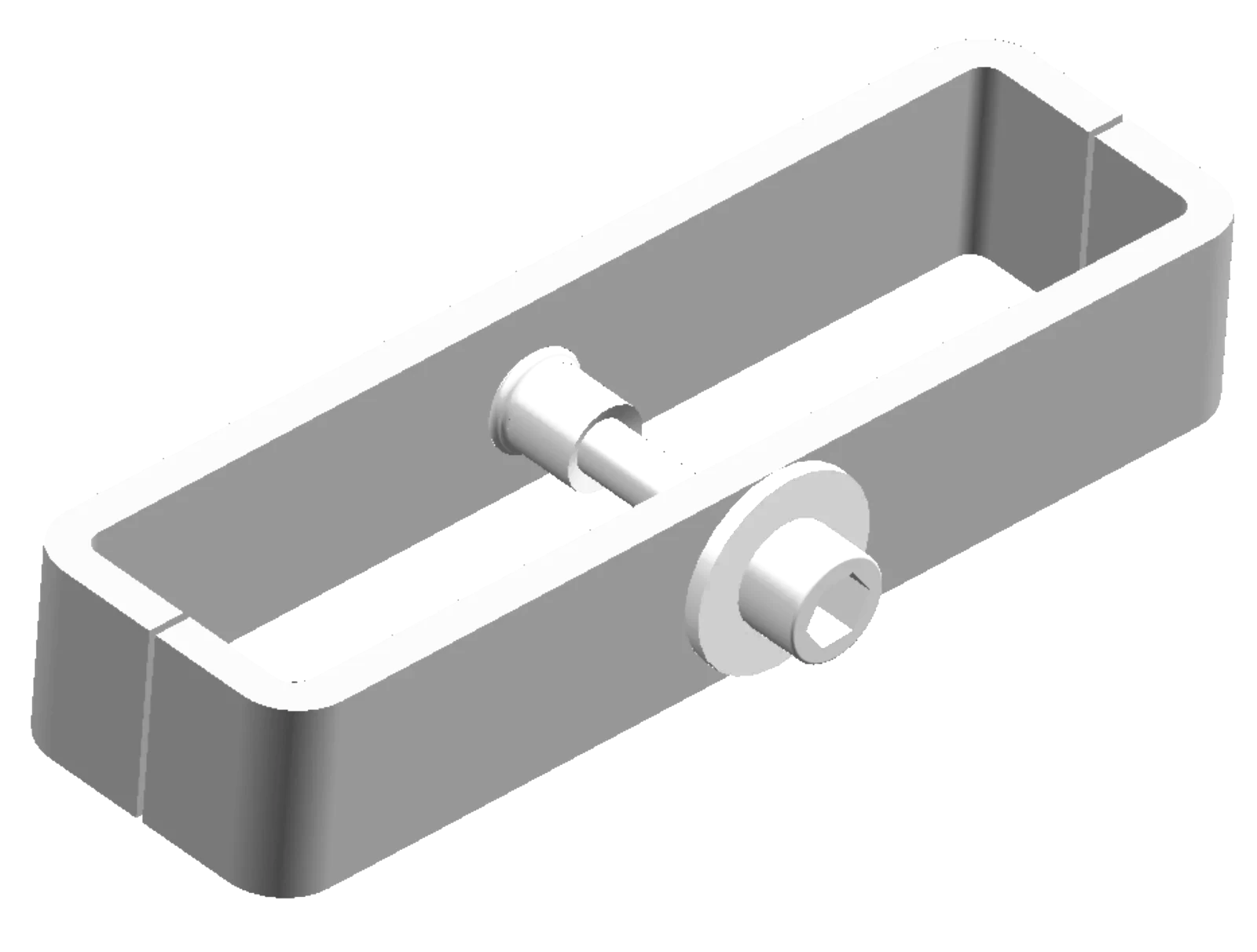

TMU-07
Decks at different heights
A reinforced double clamp joins two 50 × 50 mm legs when decks sit at different heights.
- Connection
- 50 × 50 mm
- Application
- tiered and stepped builds

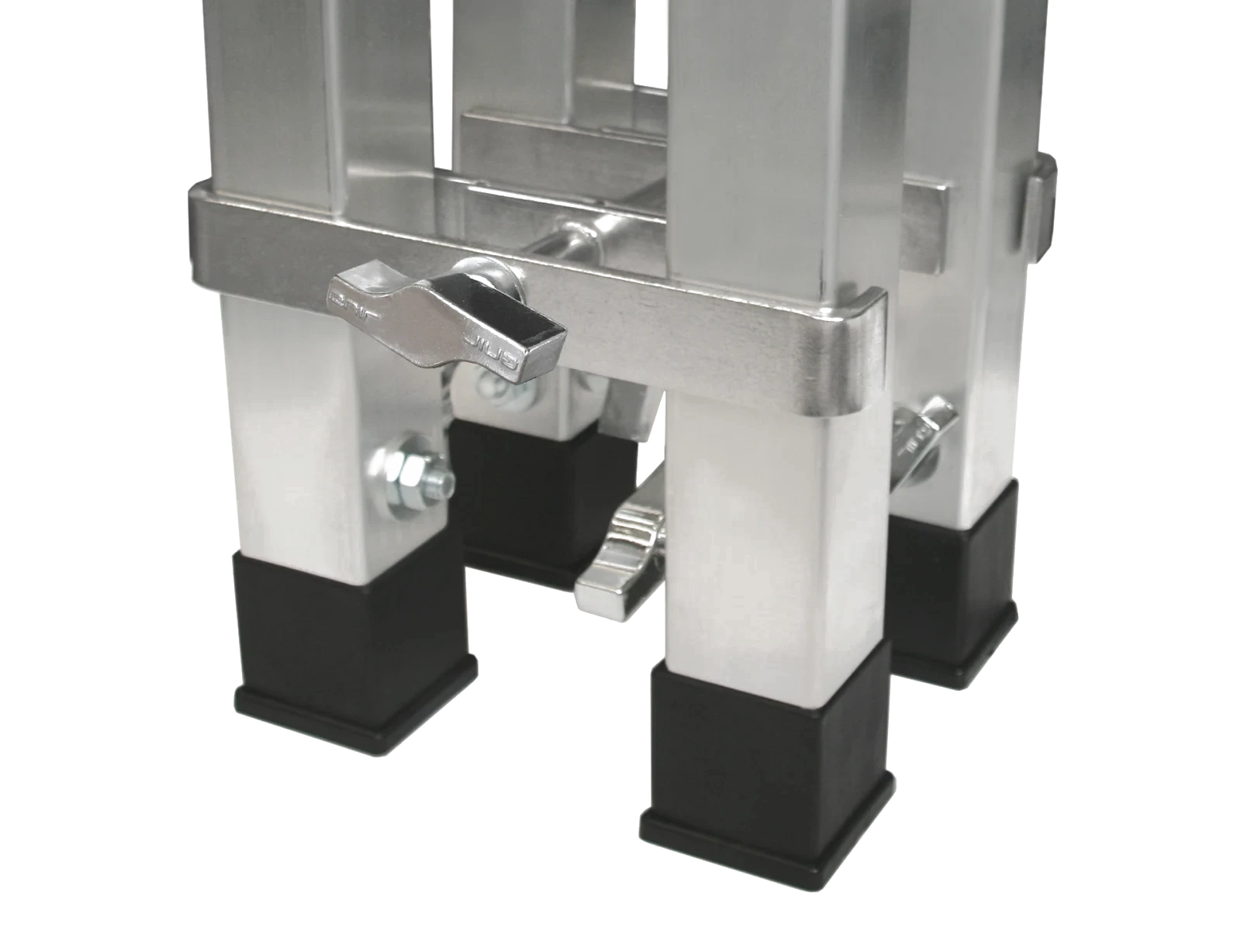

TMU-08
Four-leg intersection
One clamp stabilises four neighbouring legs in either 50 × 50 or 60 × 60 mm profiles.
- Connection
- 50 / 60 mm
- Application
- four-module intersection
By function
Three core connection points
Frame rail
TMU-01 · TMU-02
alignment and clamping of neighbouring decksTwo legs
TMU-04 · TMU-05 · TMU-07
profile, height and position determine the modelFour legs
TMU-08
stabilisation at a four-module intersectionTMU-07
Leg connection between decks at different heights
Two clamps grip separate legs. This lets frames remain at different heights while limiting relative movement between the legs.
50 × 50 mmstainless steelmanual locking
The connector is determined by the parts being joined
Connector selection
ConnectionModelsProfileFunction
01deck + deckTMU-01 / 02 / 12deck framealignment and rigid clamping
02leg + legTMU-04 / 0550 / 60 mmshared bracing
03different heightsTMU-0750 × 50 mmjoining two levels
04module intersectionTMU-08four legsjoint stabilisation

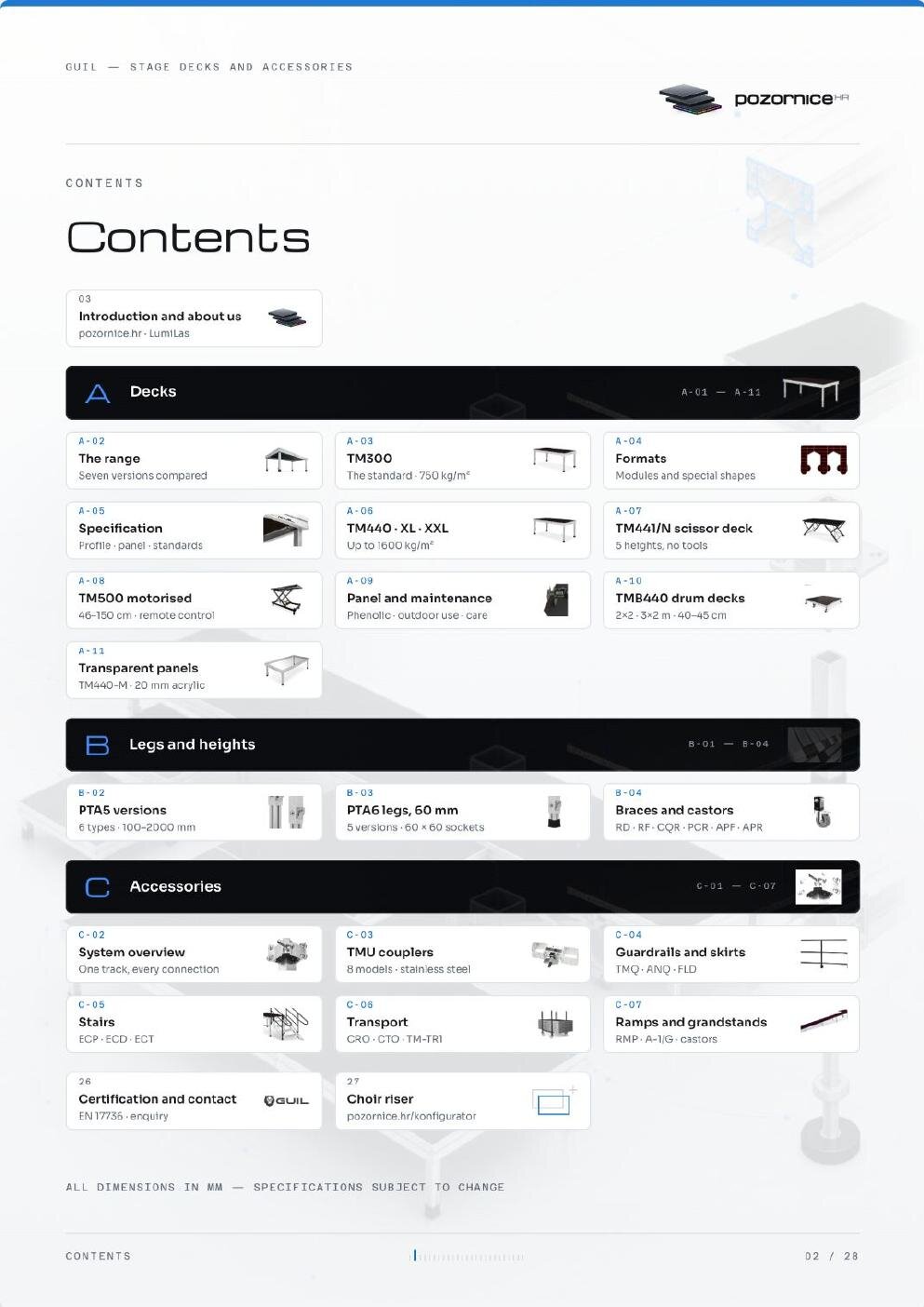

28 pages

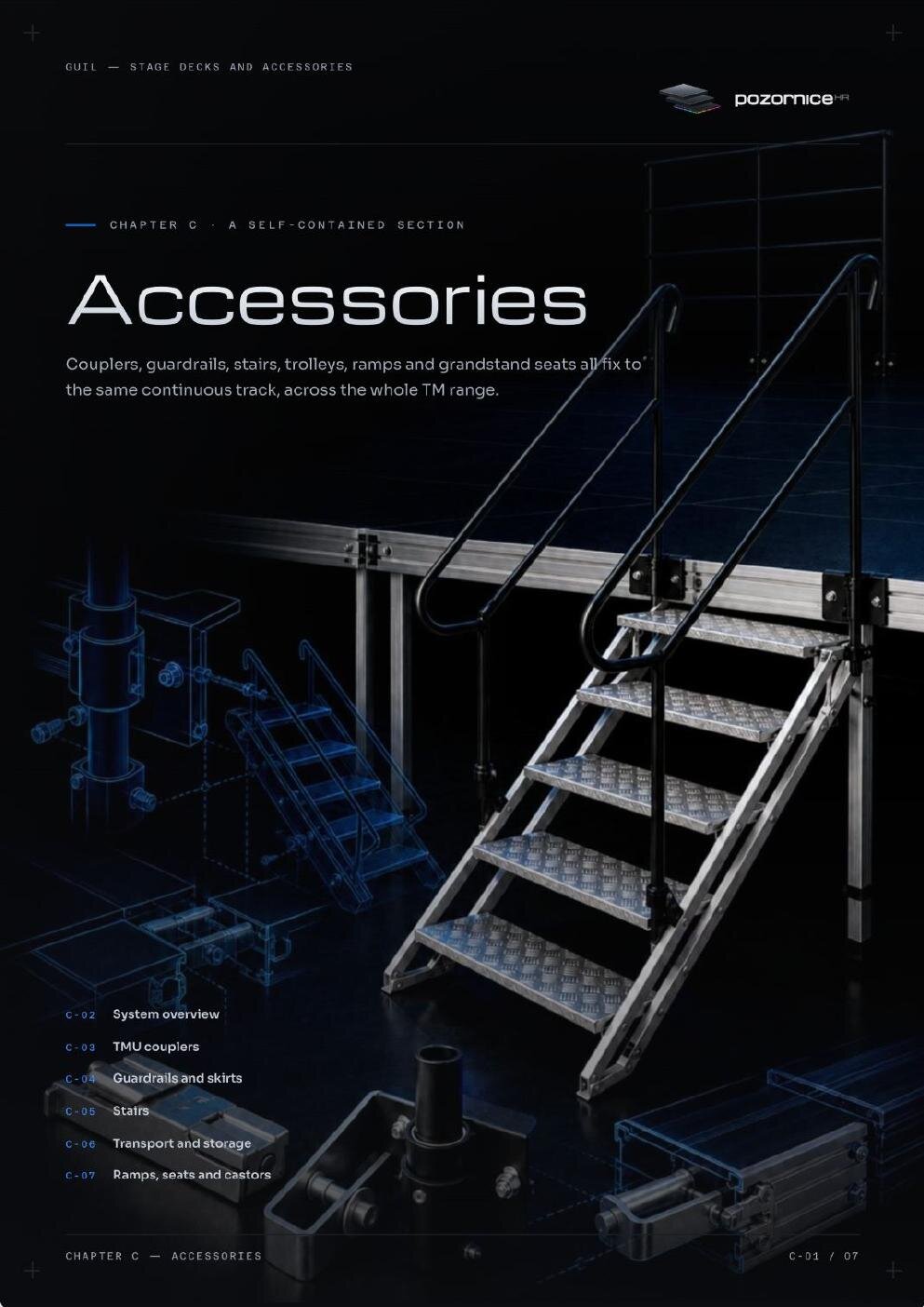

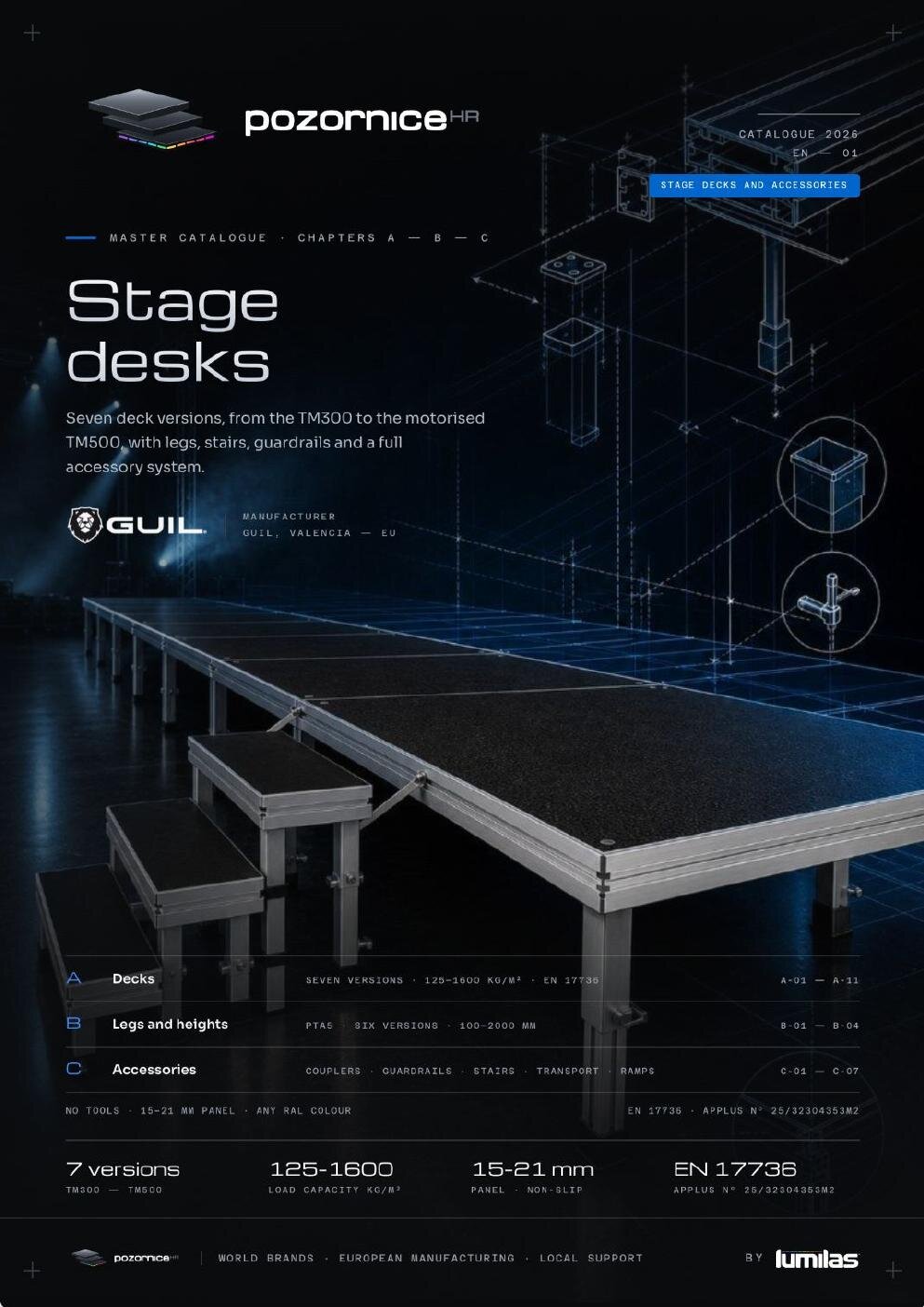

Catalogue
Connectors and accessories in the catalogue
The TMU connector system and components for alignment, clamping and structural bracing.
- Format
- A4 · PDF
- Scope
- 28 pages
- Language
- HR edition
The PDF is delivered by email. Submitted details are used only for catalogue distribution records.
GUILStage decks and accessories
01–02 / 28
PDF catalogue
Want the PDF catalogue?
Enter your basic details. We use them only to record catalogue distribution and deliver the requested file.
GUIL modular system
Complete stage system
Deck, footprint, working height, access and additional components are designed as one compatible system.
=GUILYour stage

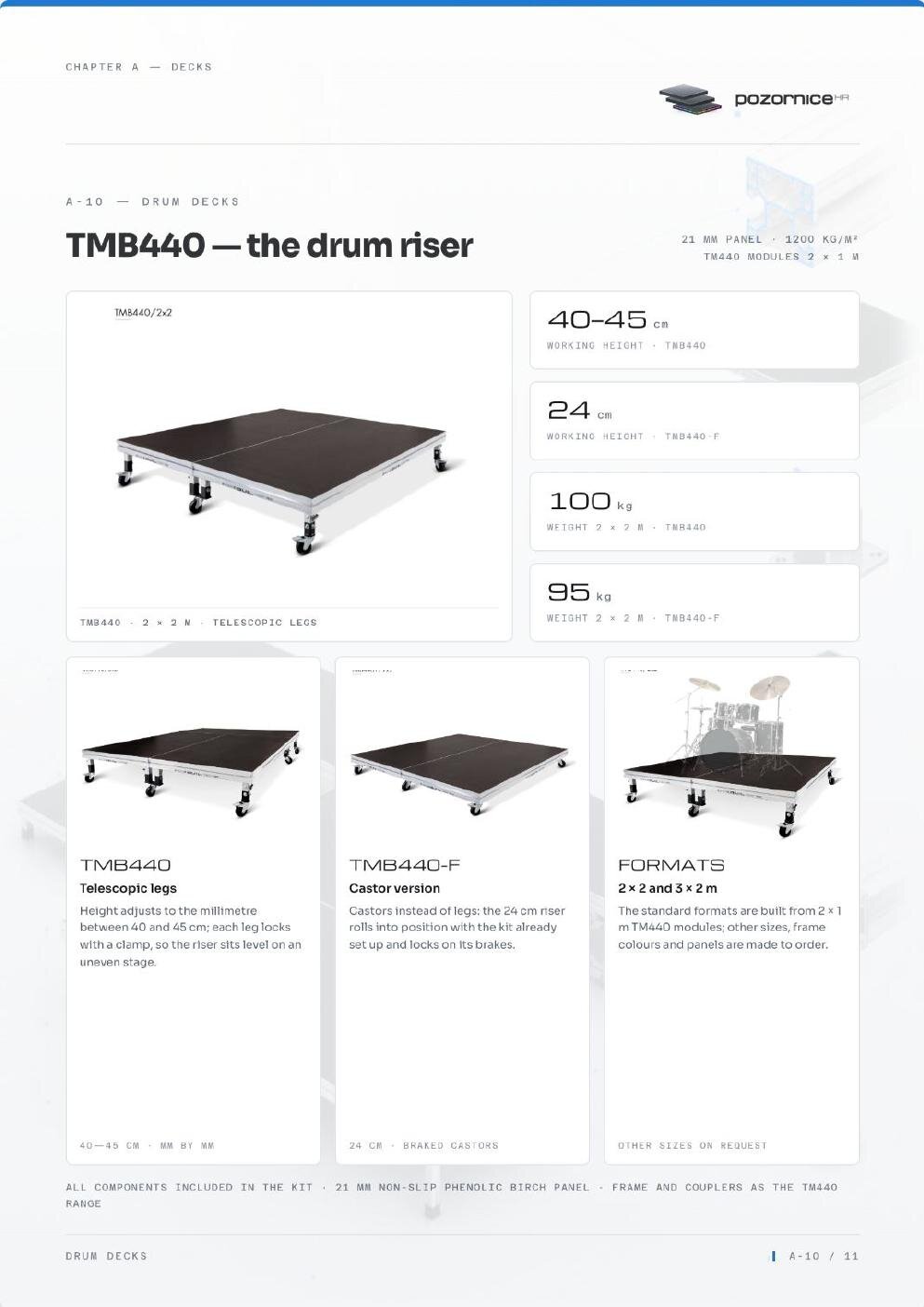

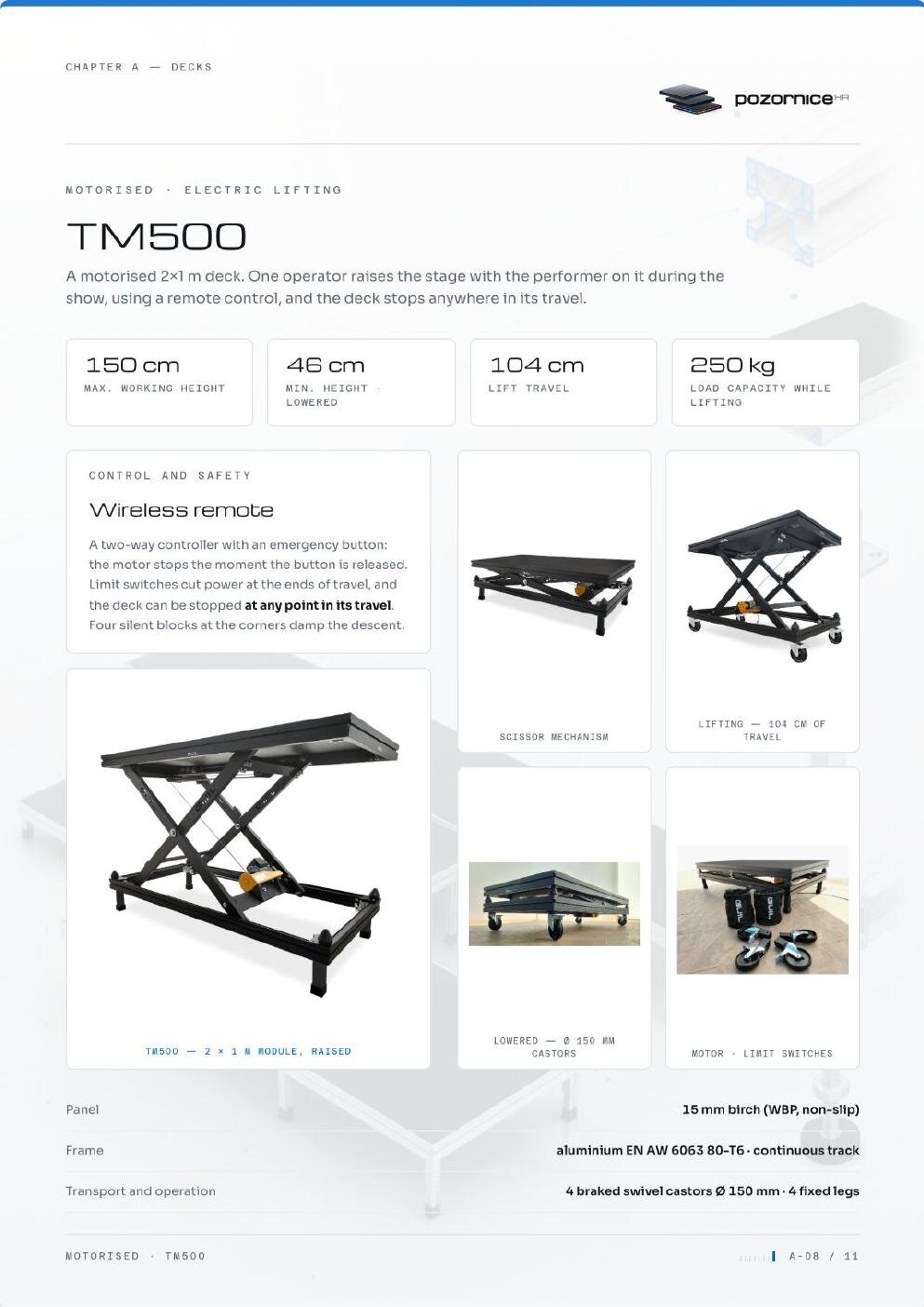

Deck
Capacity and working surface
The deck model determines capacity, module mass and working-surface finish.
View related products→Footprint

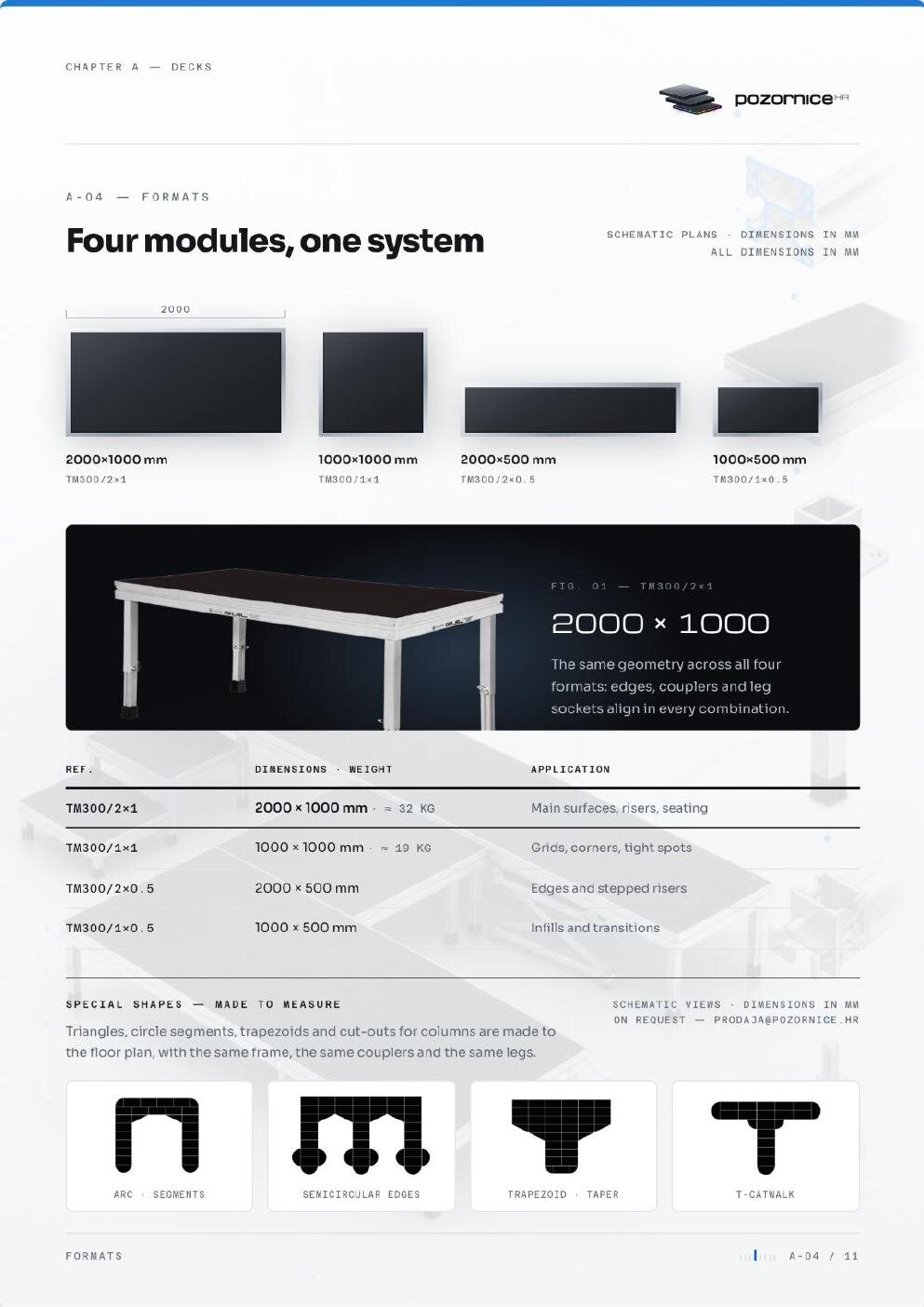

Dimensions and module layout
Two-by-one-metre modules form the required footprint, including aisles and access positions.
View related products→Height

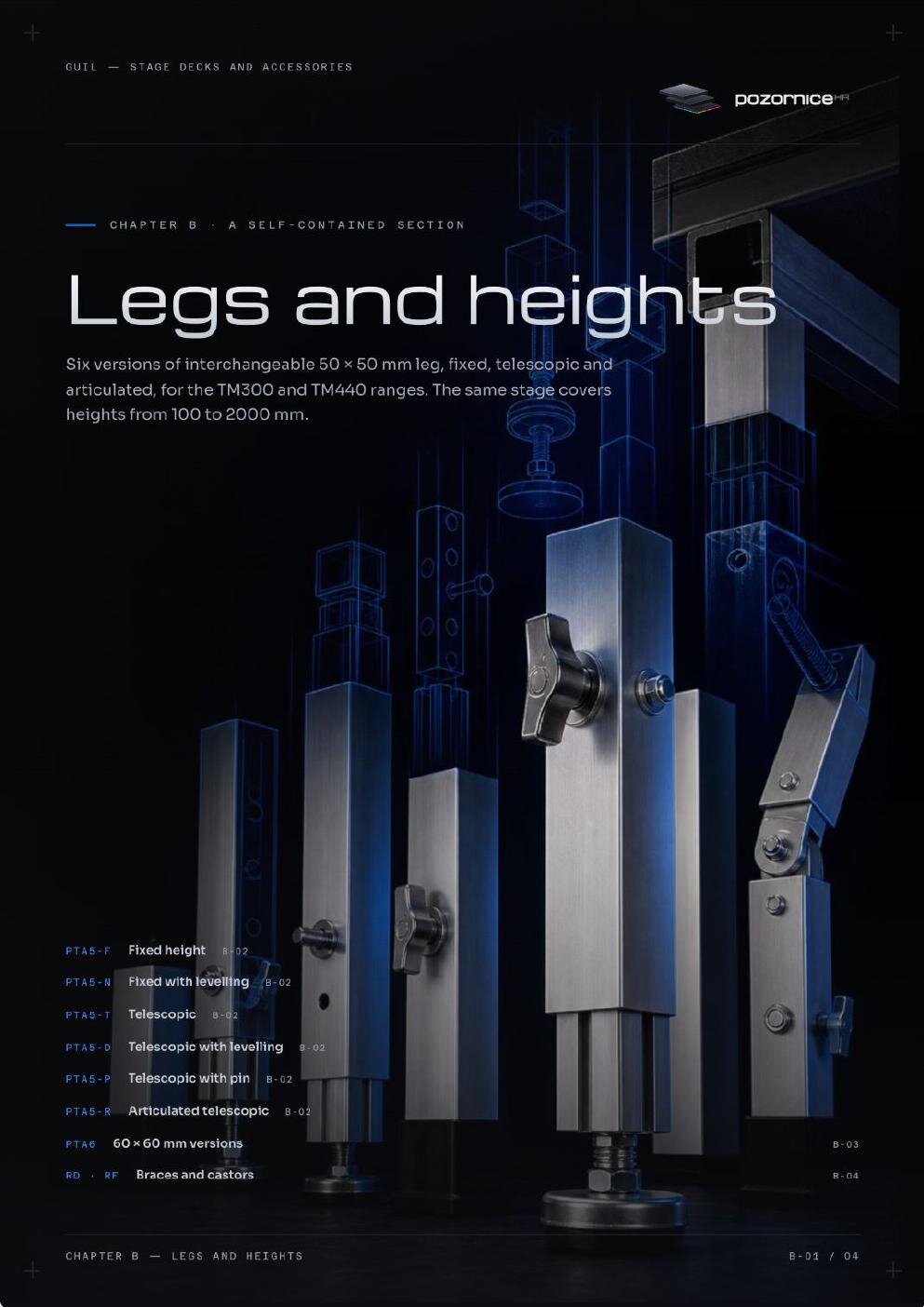

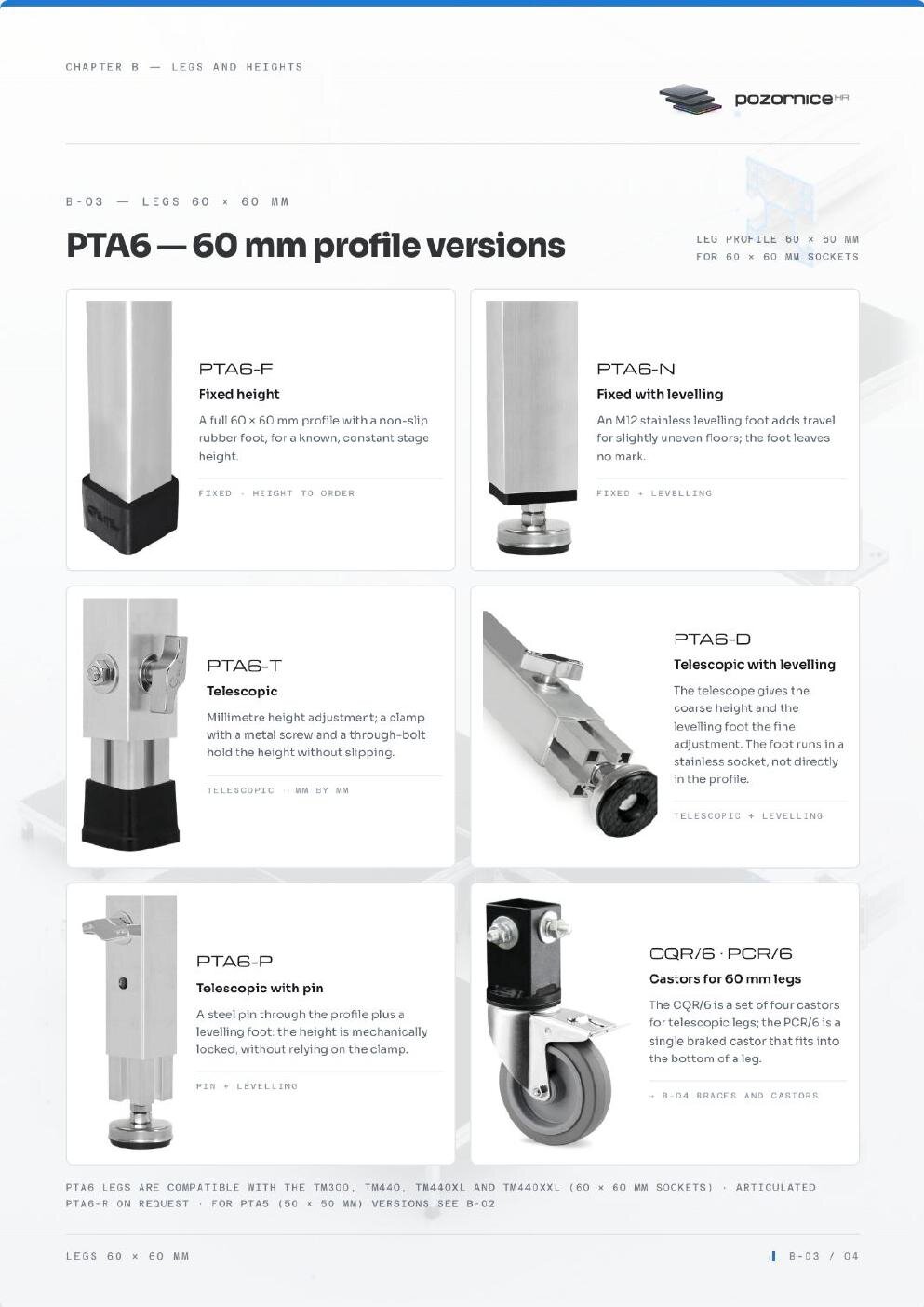

Legs and levelling
Fixed and telescopic legs set the working height and allow precise levelling of the structure.
View related products→Access

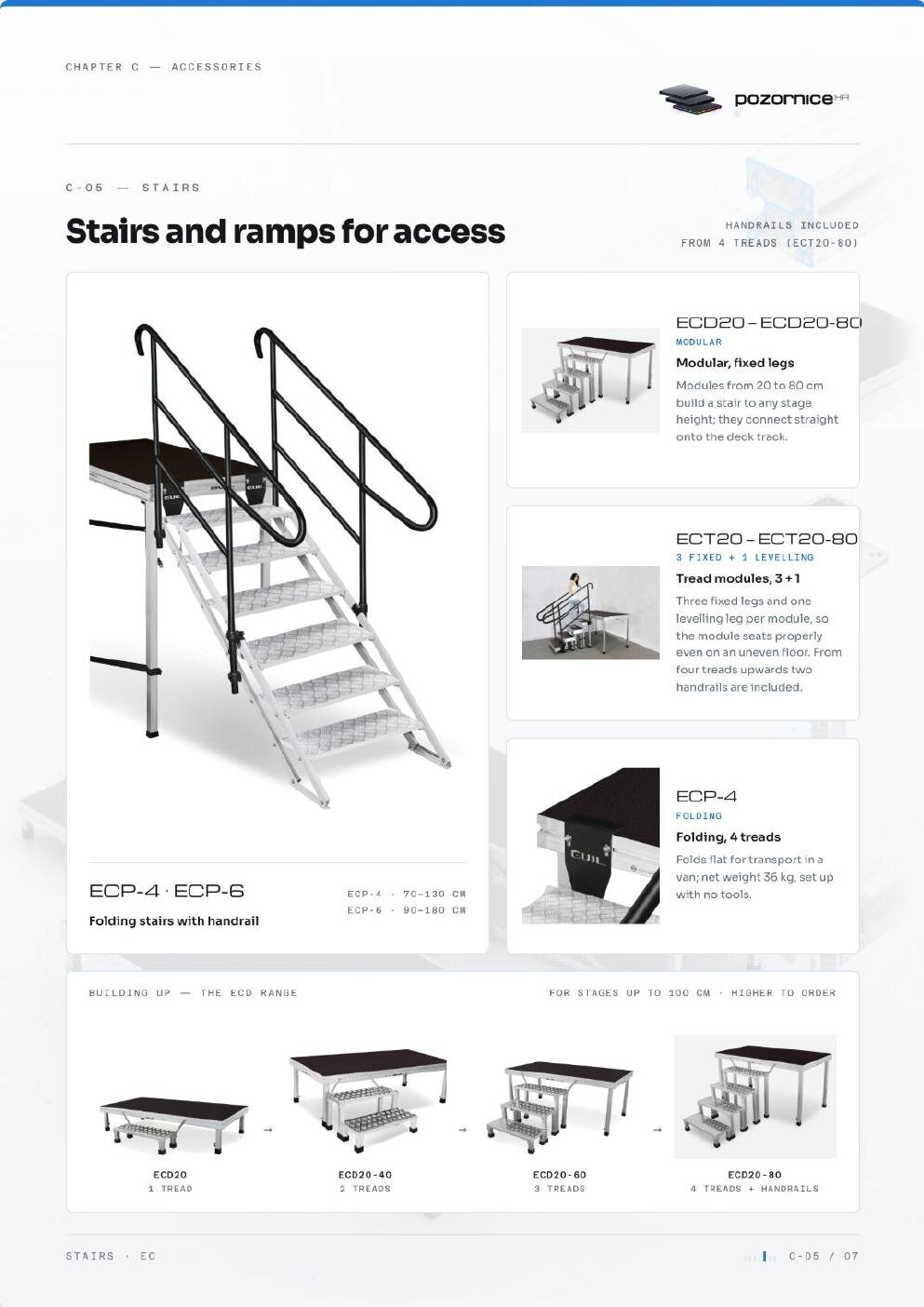

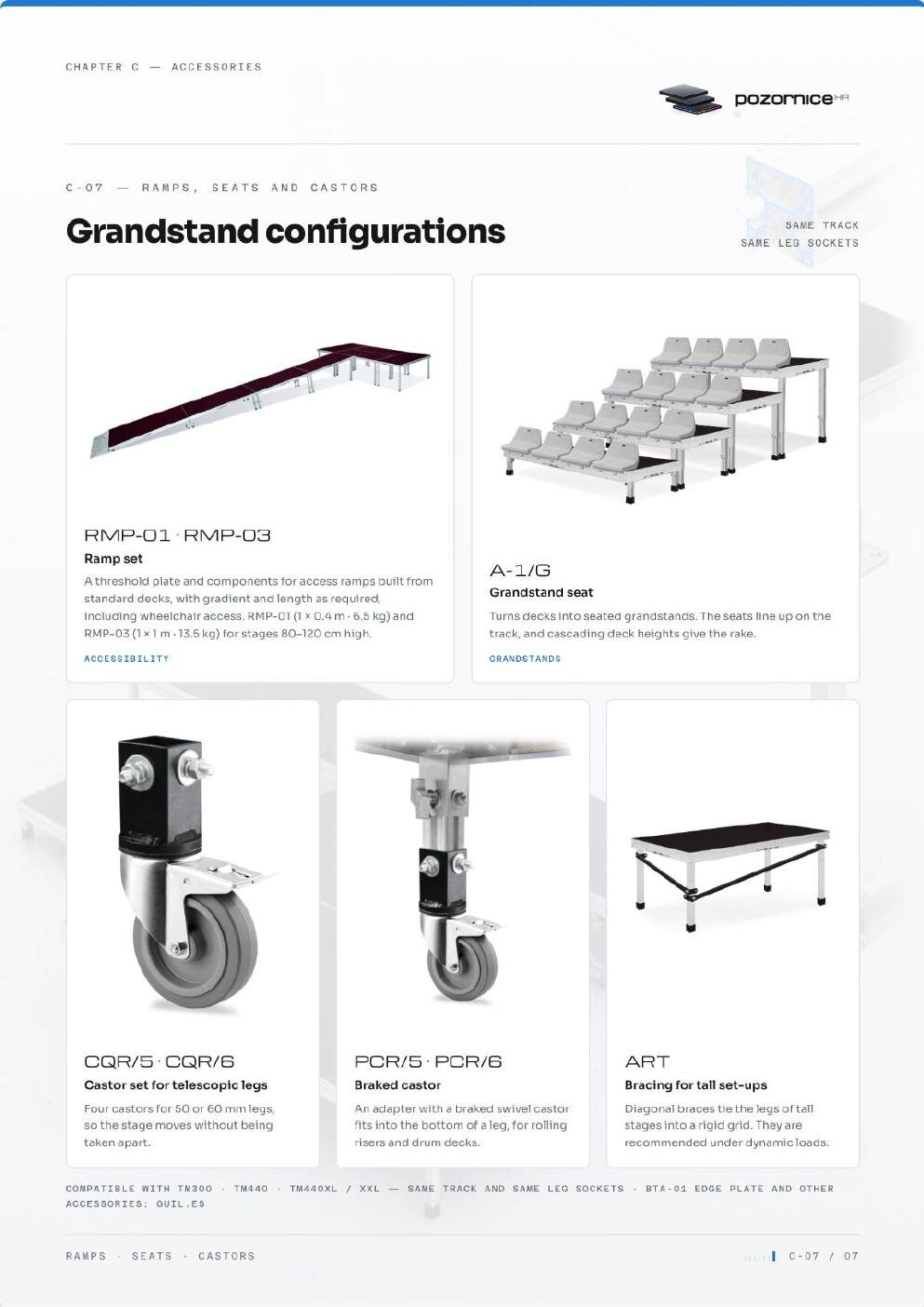

Stairs and ramps
Access is designed around working height, available space and the required use.
View related products→Components
Rails, connectors and transport
Safety rails, connectors and transport equipment complete the compatible GUIL system.
View related products→Stage Configurator · 3D viewGUIL components PDF output

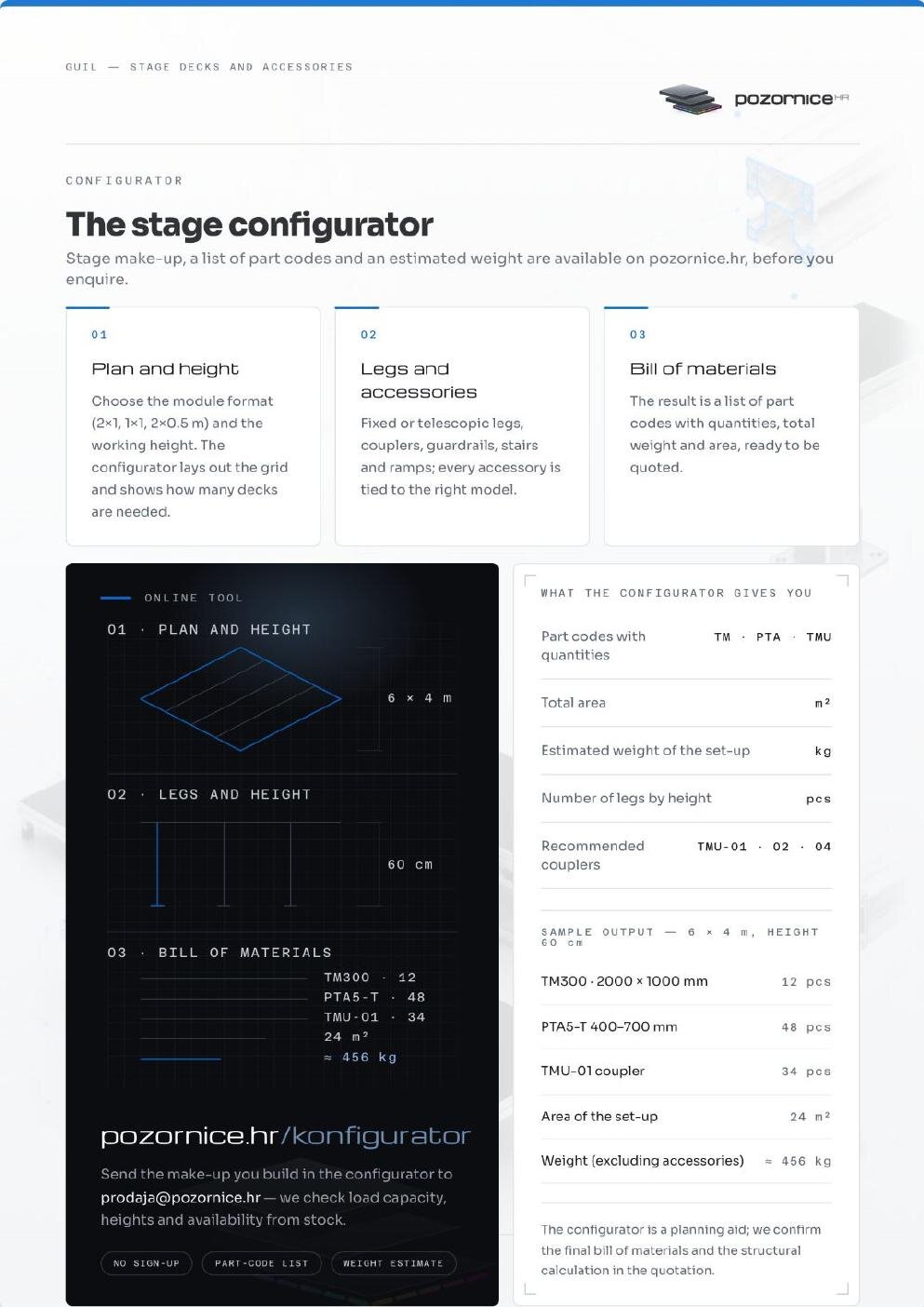

Stage Configurator
Configure stage dimensions and components
Set the footprint and working height, then add stairs and guardrails. The Configurator builds the system from real GUIL components and prepares a clear summary for your inquiry.

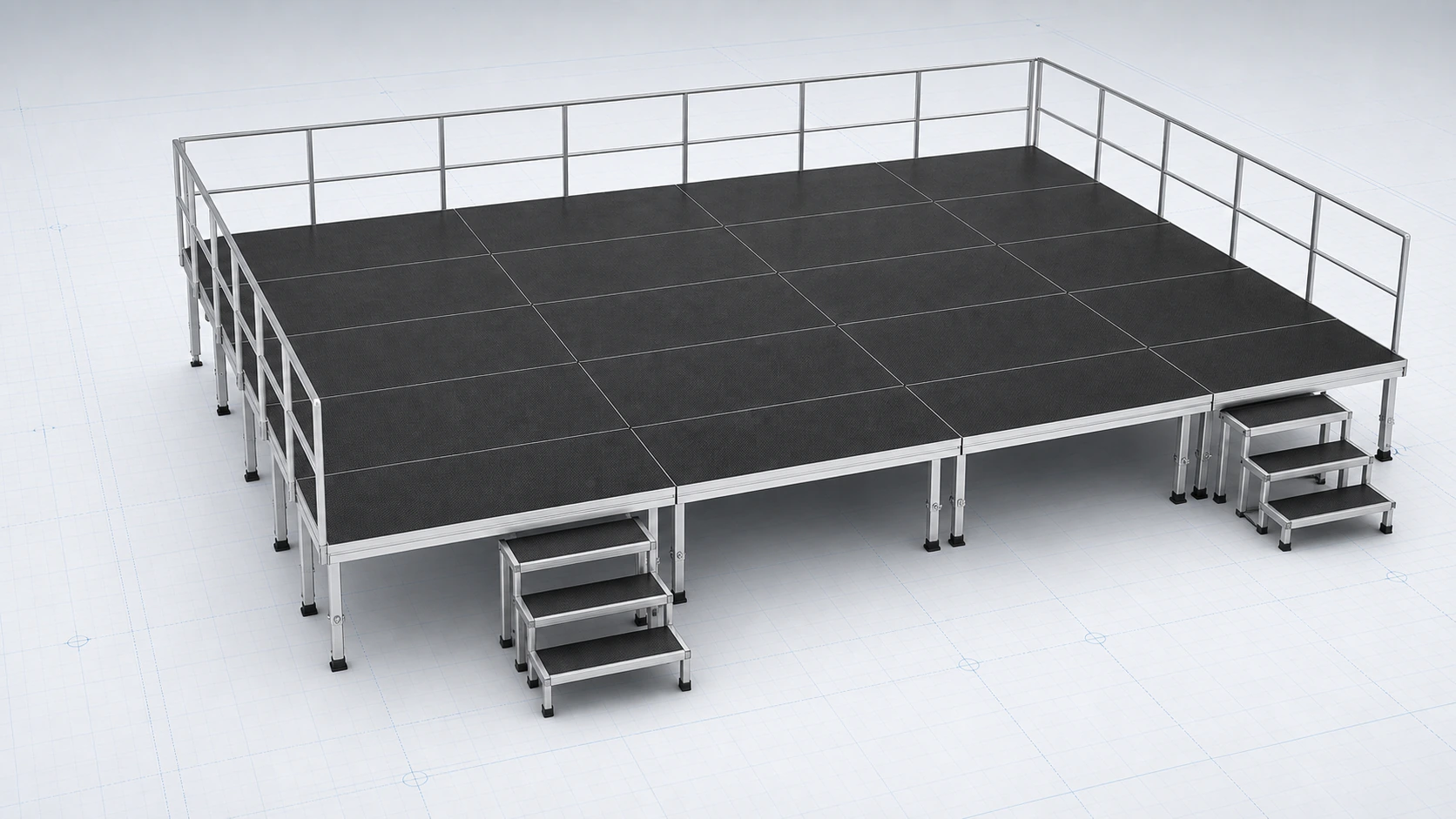

Configuration example · 8 × 6 m
Open Configurator→3D view · component list · no registration

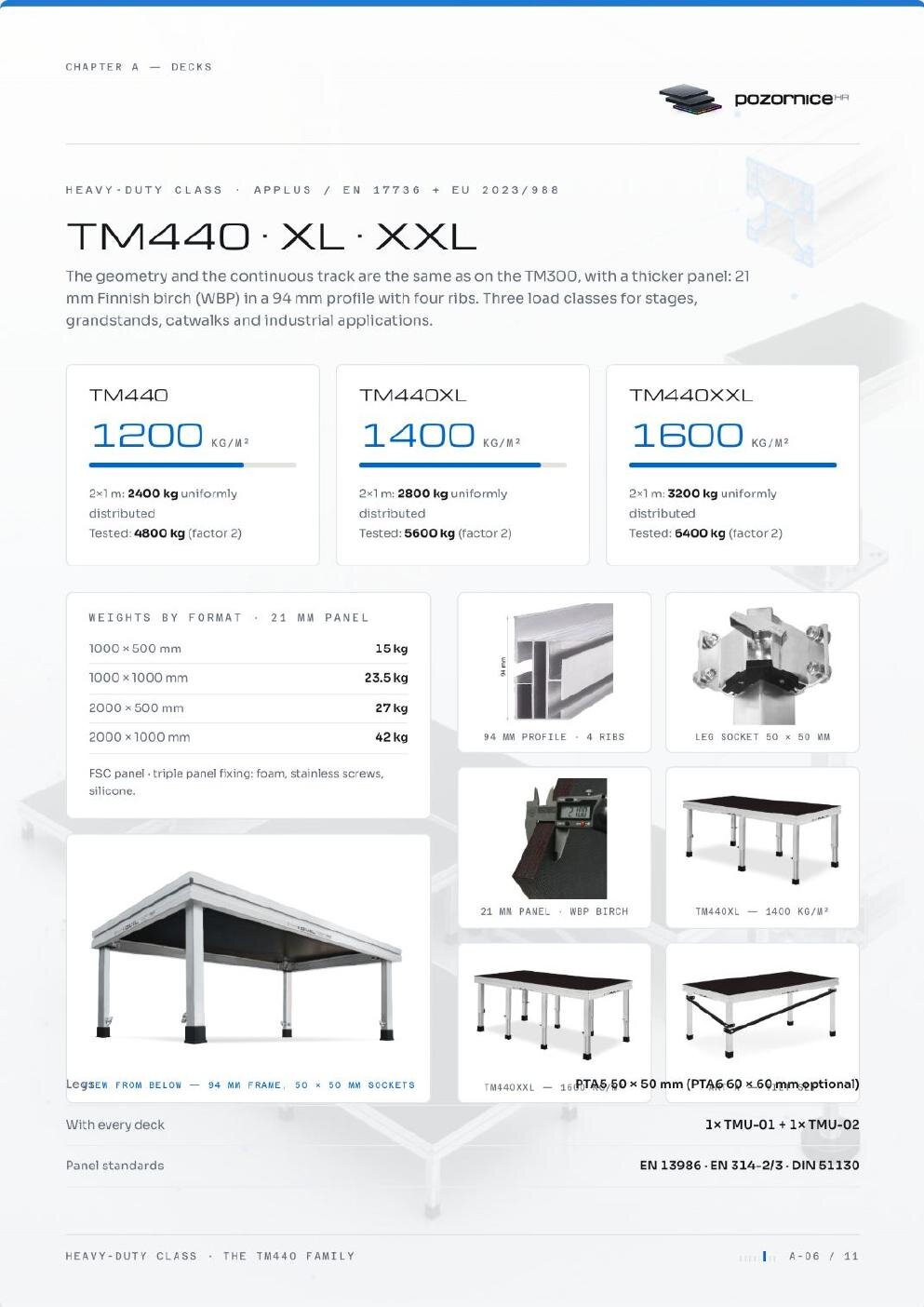

GUIL system geometry24 MODULES
24 × TM440 modules
Telescopic legs
Two access points
Perimeter protection
Footprint8,00 × 6,00 mArea48,0 m²Modules24 × TM440Access2 stair sets

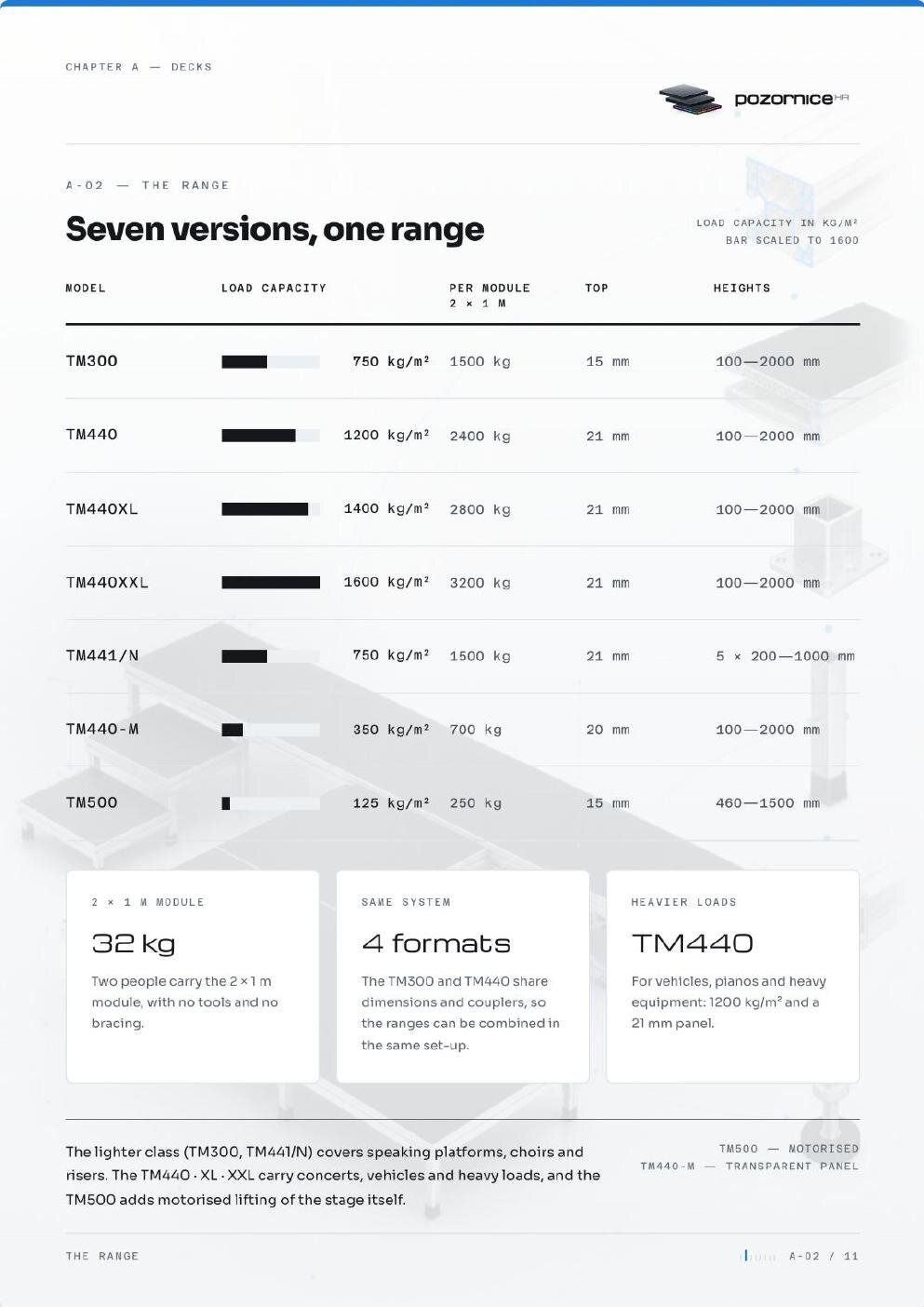

Working height → capacity
20 cm1600
60 cm1400
100 cm1200
200 cm750
Modules2 × 1 m
Legs20–200 cm
ExportPDF · inquiry
