Lifting towers
ELC and ULK lifting towers
Telescopic towers for lifting stage equipment. Explore how they work and the differences between ELC top loading and ULK front loading.
Professional lifting systems
Stands and lifting towers
Lifting systems for lighting, truss, line arrays and LED screens. Compare height, capacity and fittings, then check the operating conditions for your selected model.
- Capacity
- 85–400 kg
- Working height
- 3.30–8.00 m
- Families
- ELC + ULK
- Loading
- Top / front
Regulation
Documentation for your model
Check the instructions and conformity documentation for the selected model before use. Setup conditions and site requirements must be checked separately.
- Operating instructions
- Conformity documentation
- Site conditions
Safety systems
Locked, braked, and levelled
Locks, brakes and supports are part of the safety system. Check their specification and operating conditions in the manual for the selected model.
- ASB
- Safety locking for the telescopic sections.
- Auto-brake
- A self-braking winch holds the load the moment the handle is released.
- Levelling
- Levelling jacks adjust the tower on a suitable load-bearing surface.
- Steel rope
- Non-rotating steel wire rope runs over ball-bearing pulleys.
The lifting process
From folded to working height
A hand winch drives a non-rotating steel rope over ball-bearing pulleys, extending the tower section by section to working height.
- Working height
- 5.22 m
- Capacity
- 300 kg

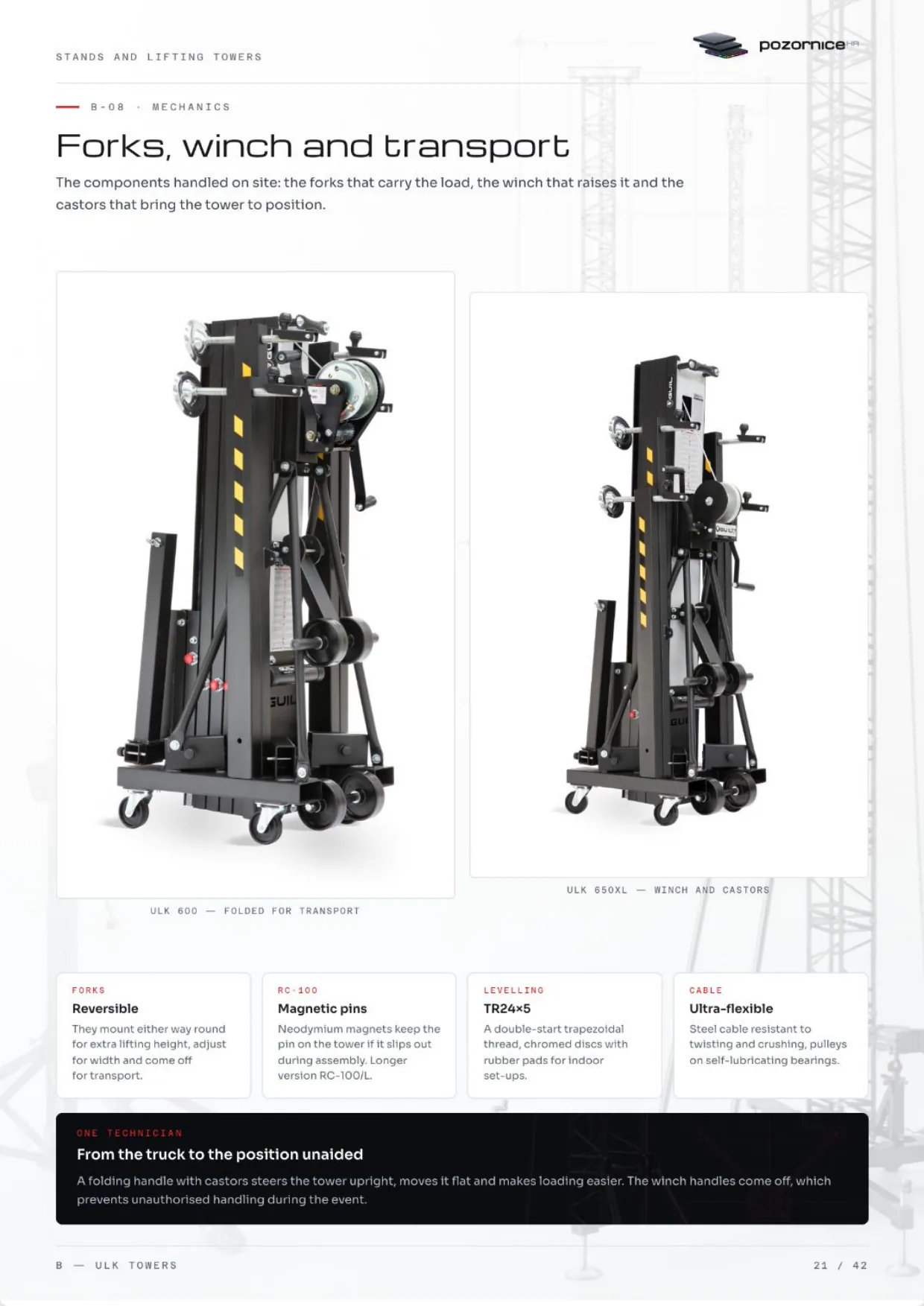

Transport
Preparing for transport
Folded height, folding components and wheels vary by model. Check the dimensions and transport instructions before loading.
- Wheels depend on the model
- Folding outrigger legs
- The tower collapses to transport height
- Outdoor use subject to model instructions
The range
Two families, one system
ELC uses top loading; ULK uses front loading. Compare height and capacity, then check the appropriate fitting and setup conditions.
ELC · top loading
ELC-7003.30 m · 85 kg
ELC-7355.00 m · 125 kg
ELC-7655.22 m · 230 kg
ELC-7855.22 m · 300 kg
ULK · front loading
ULK 4005.15 m · 250 kg
ULK 6506.50 m · 350 kg
ULK 8008.00 m · 300 kg
ULK 800XL8.00 m · 350 kg
Two structural families
Top or front load interface
ELC and ULK differ by fitting position. Then compare working height, capacity and folded format

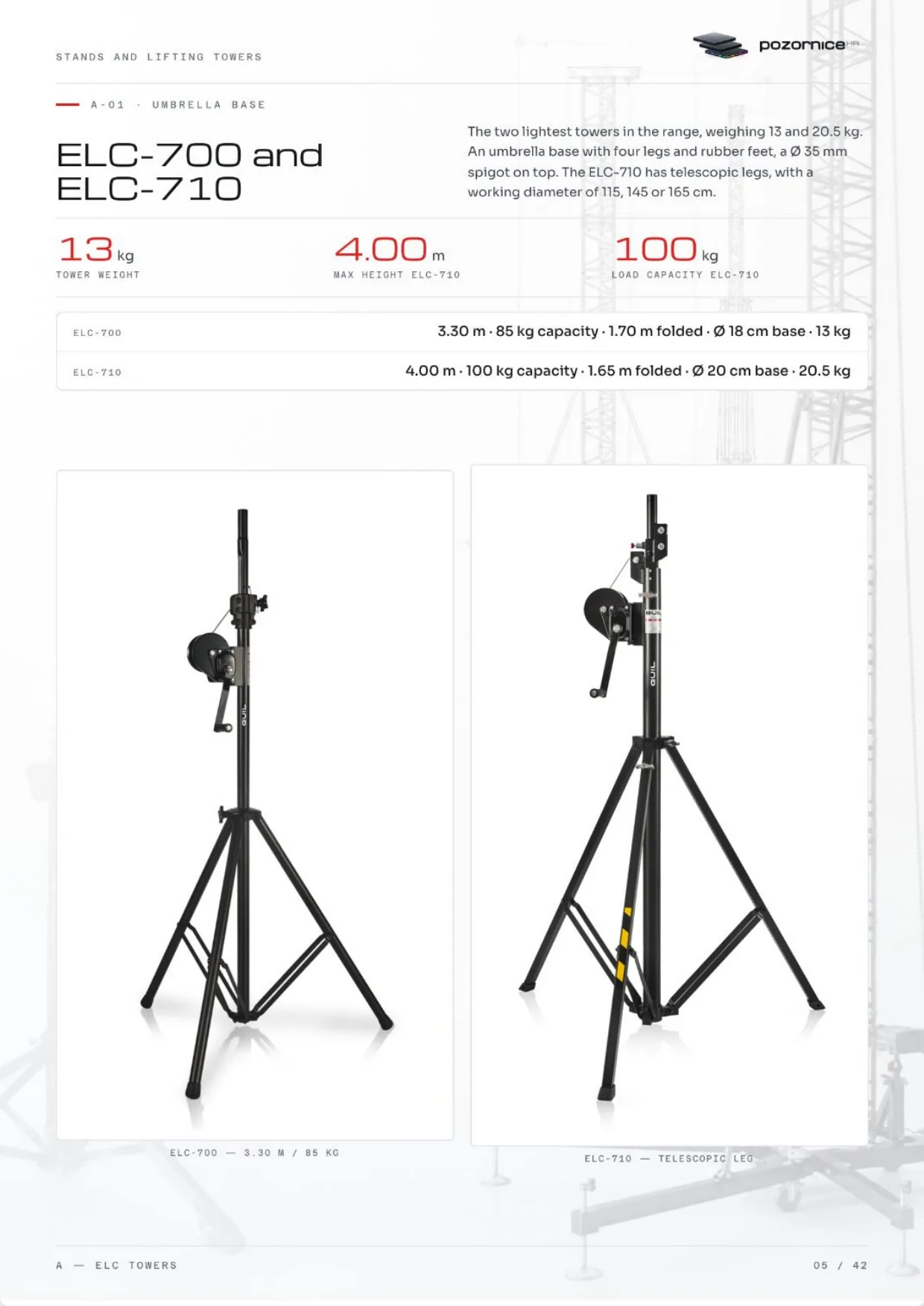

ELC · top loading
Compact format, controlled elevation
3,30 m

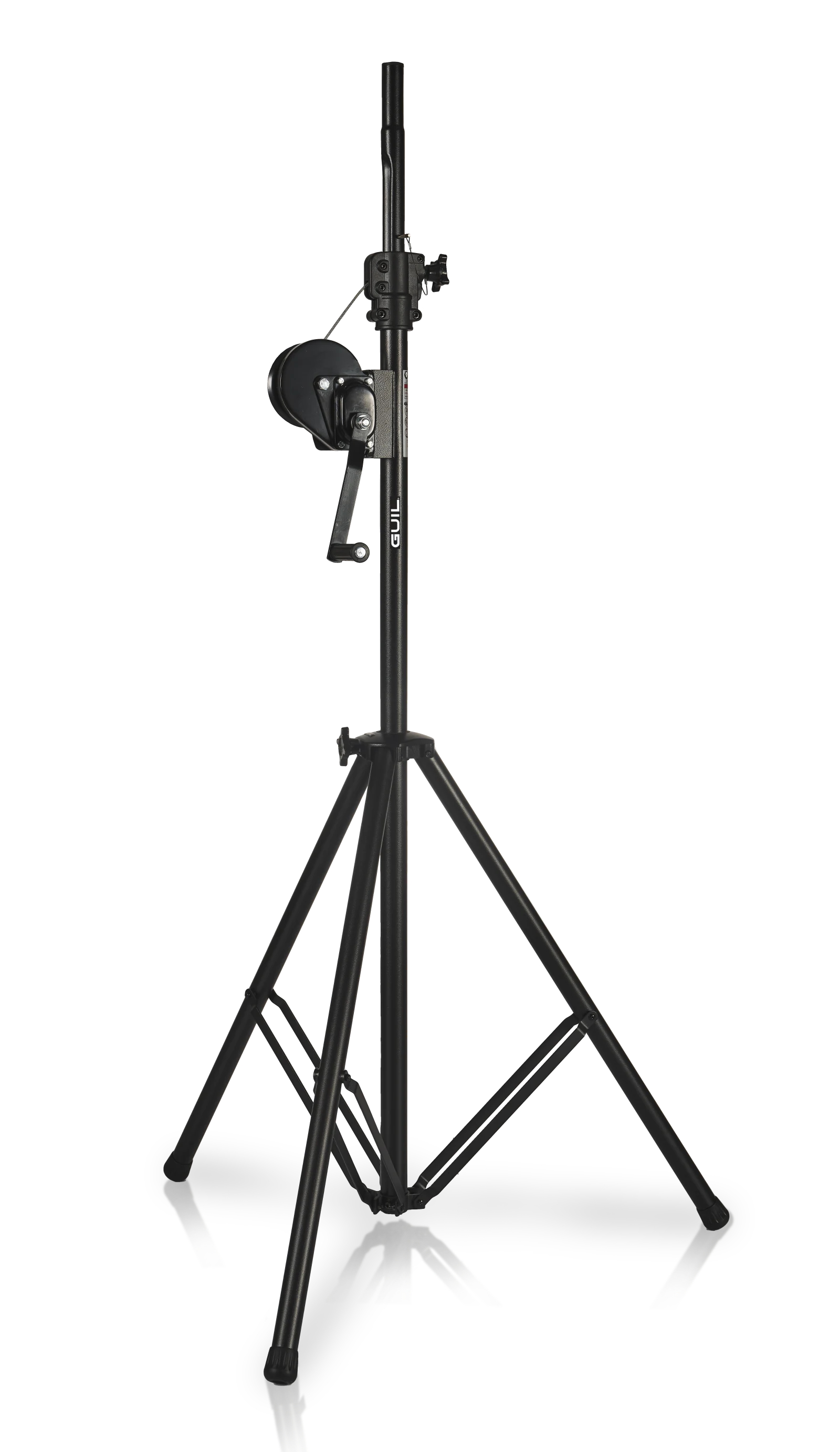

ELC-700
Professional tower for lighting and truss
- Working height
- 3,30 m
- Capacity
- 85 kg
- Folded height
- 1,70 m
ULK · front loading
Front fitting for truss, audio and LED systems
The carriage sits ahead of the telescopic mast and remains accessible while the structure is prepared. Every model is shown in full
ULK 600
Front loading for demanding payloads
- Working height
- 6,00 m
- Capacity
- 320 kg
- Folded height
- 1,60 m
Control at every mast section
Four systems work together
Locking, mast sequence, braking and stabilisation are checked separately before accepting the load
ULK 700380 kg · 5.00 m
Automatic blocking
Locks every raised mast section
Controlled sequence
Controls extension and retraction order
Internal brake
Acts inside the tower profile
Stabilisation
Outriggers and levellers establish the base
Height × capacity
The complete range at a glance
Filter by family and compare working height, capacity and transport format. Every model uses the same view and opens its detail page
ELCELC-7003.30 m · 85 kgfolded 1.70 m↗
ELCELC-7104.00 m · 100 kgfolded 1.65 m↗

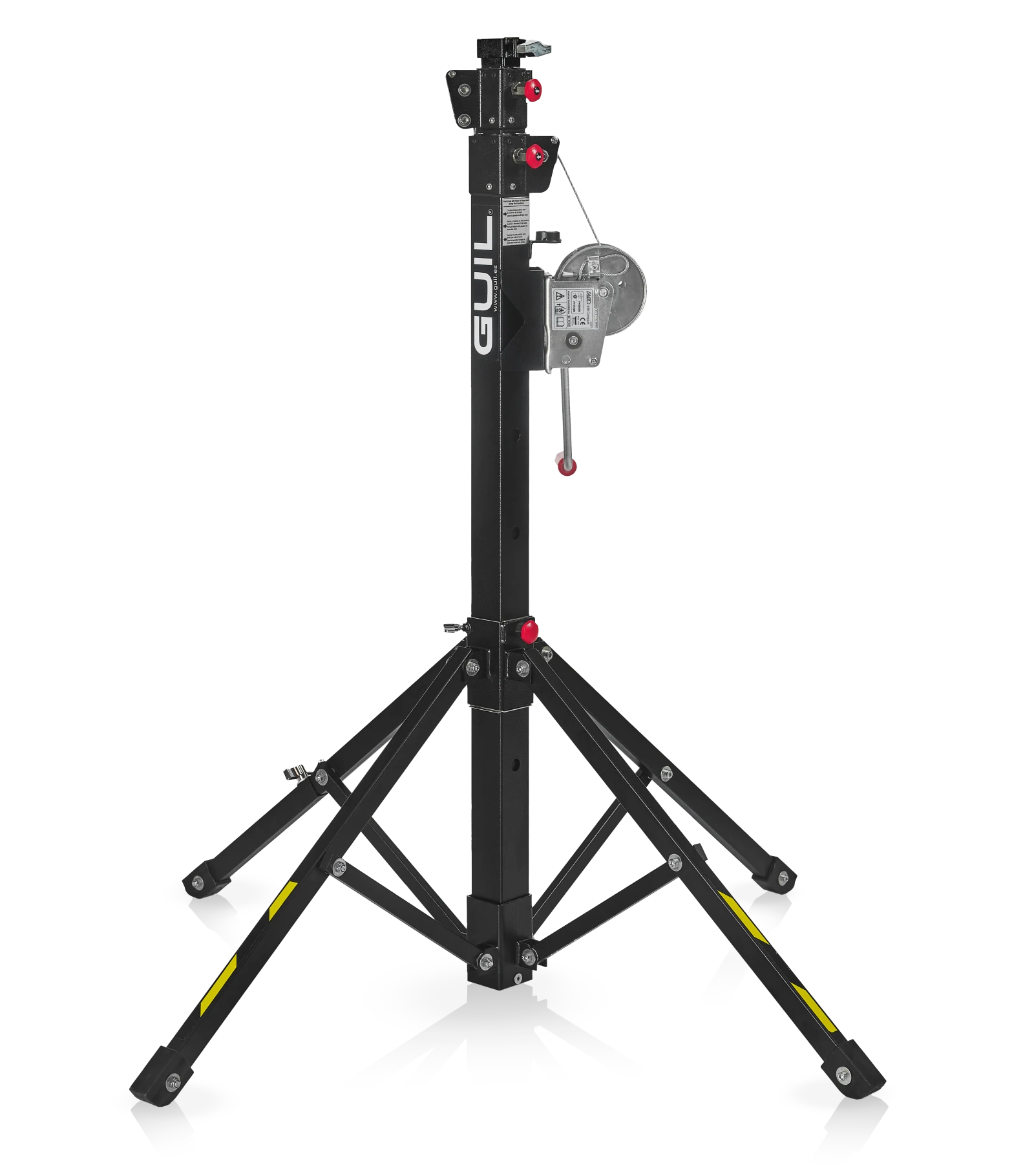

ELCELC-7203.50 m · 125 kgfolded 1.35 m↗

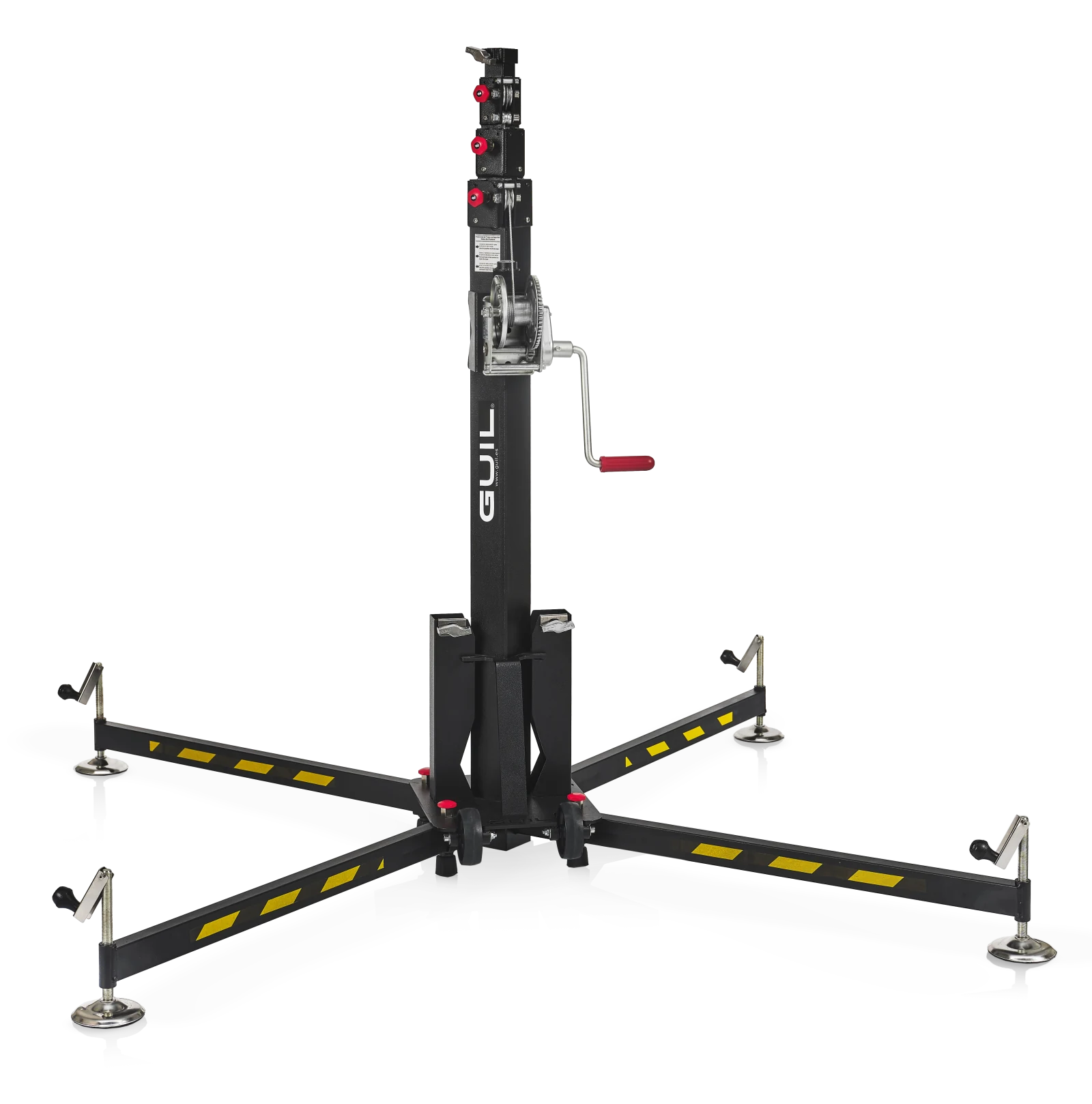

ELCELC-7304.50 m · 125 kgfolded 1.45 m↗

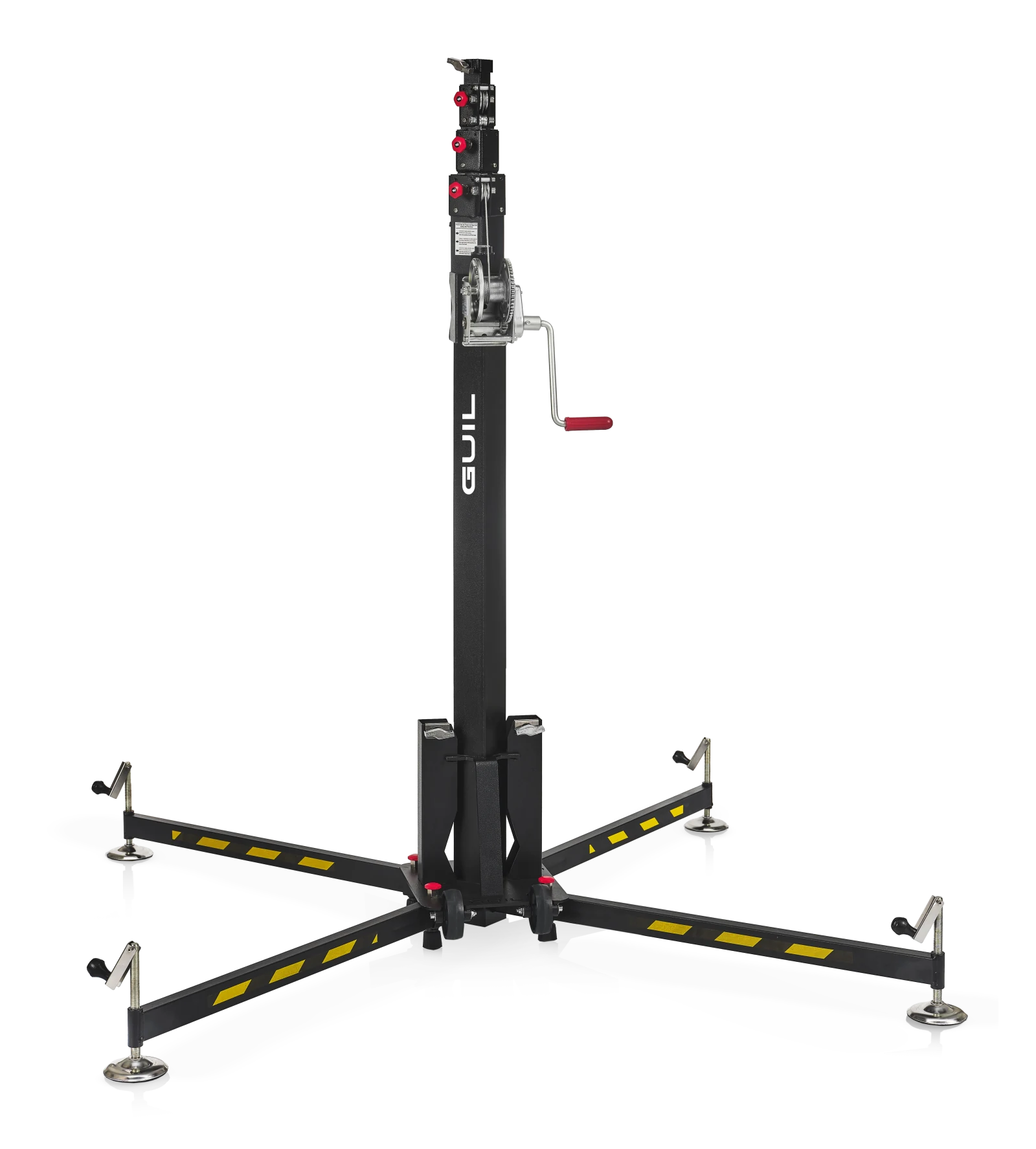

ELCELC-7355.00 m · 125 kgfolded 1.75 m↗
ELCELC-7405.10 m · 150 kgfolded 2.00 m↗

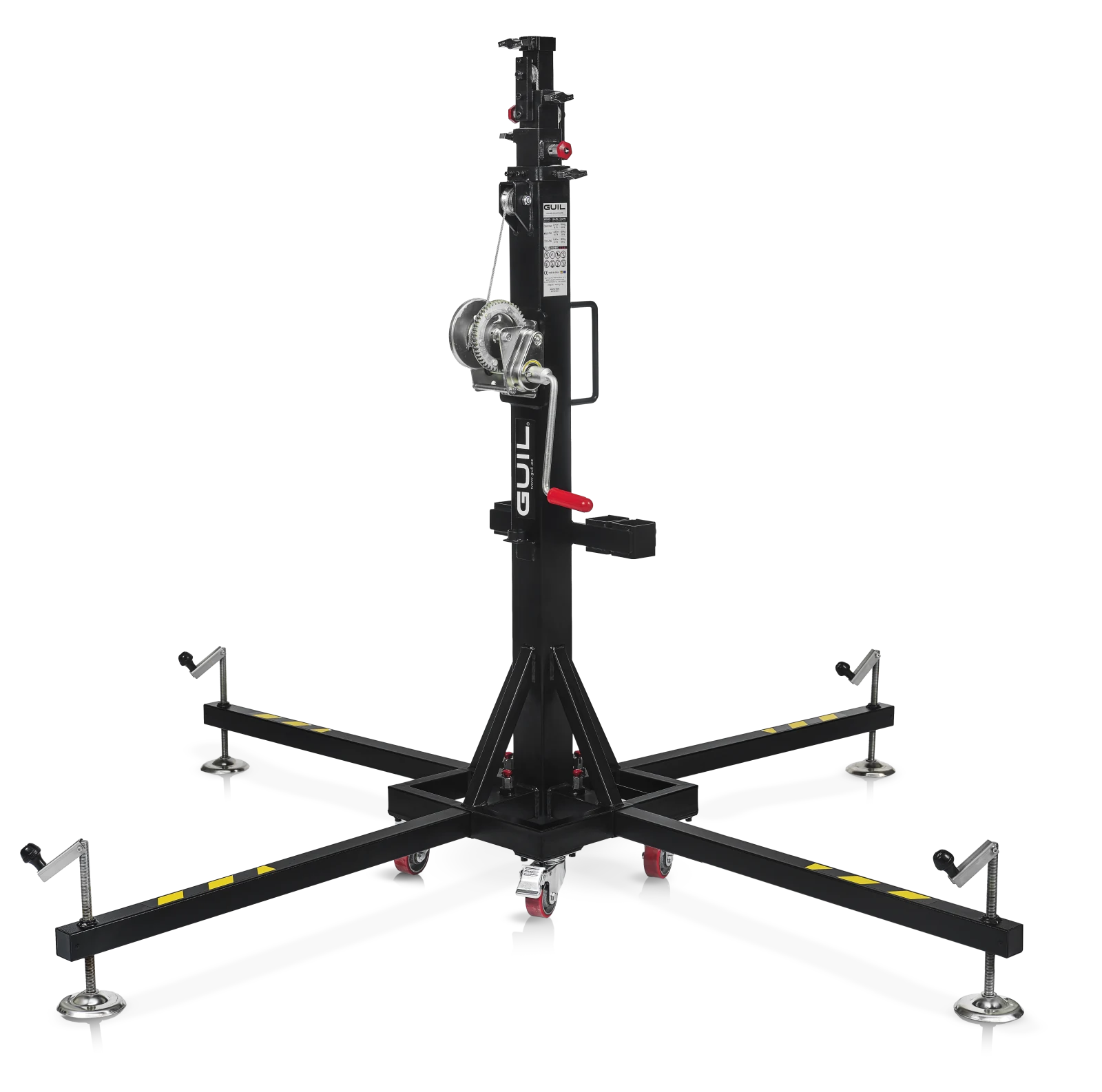

ELCELC-7504.50 m · 150 kgfolded 1.53 m↗

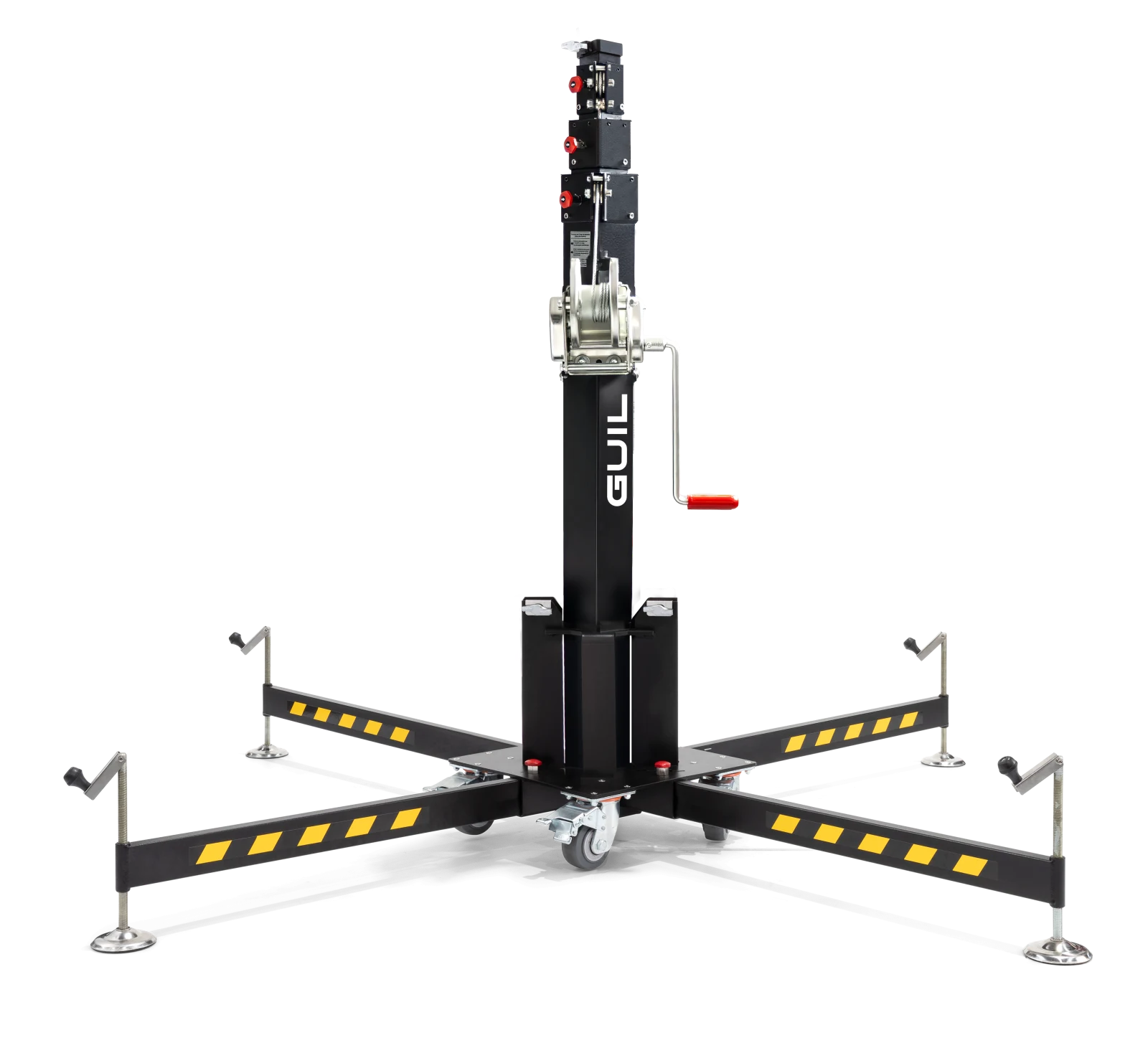

ELCELC-7554.50 m · 180 kgfolded 1.57 m↗

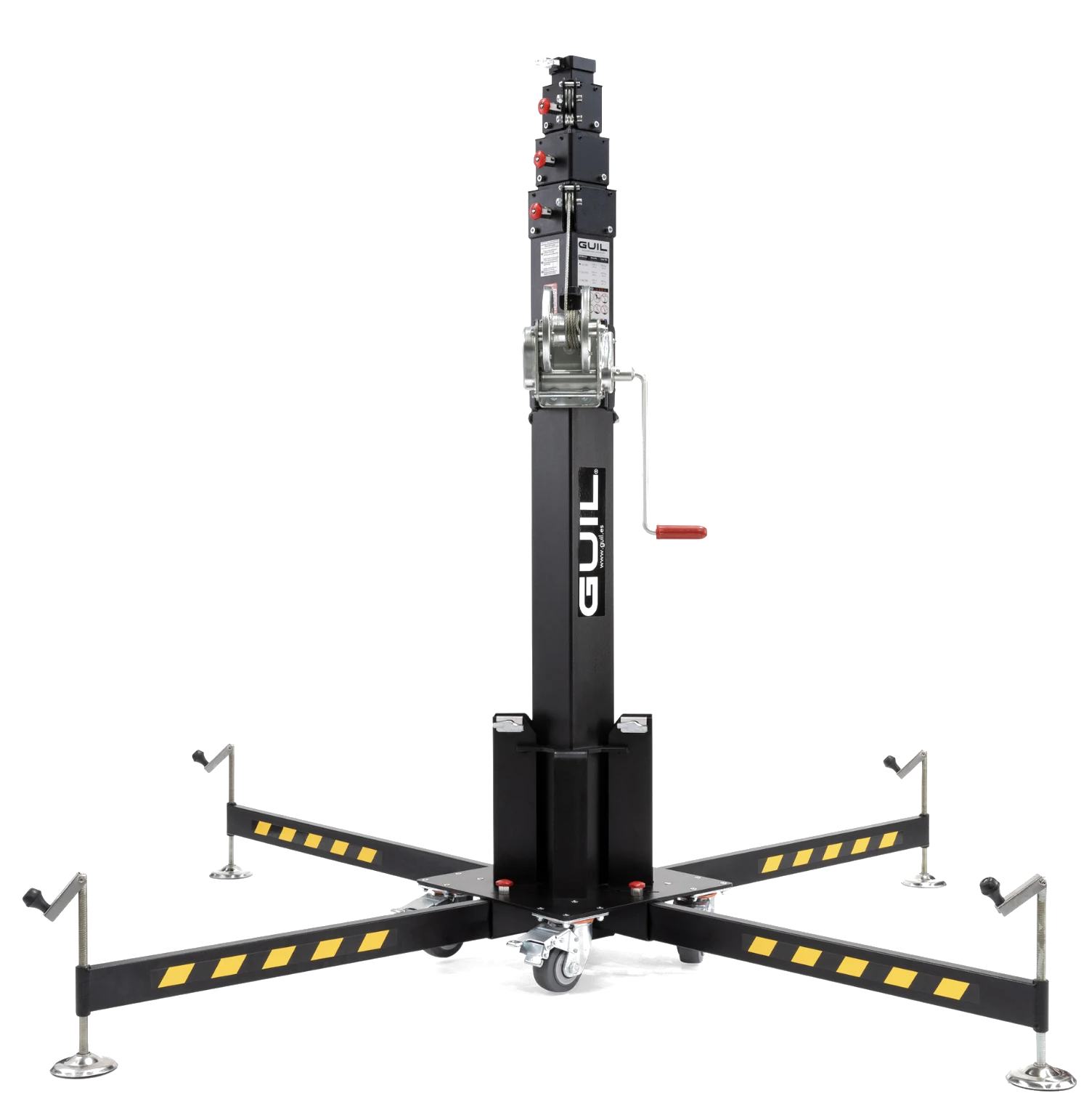

ELCELC-7655.22 m · 230 kgfolded 1.77 m↗

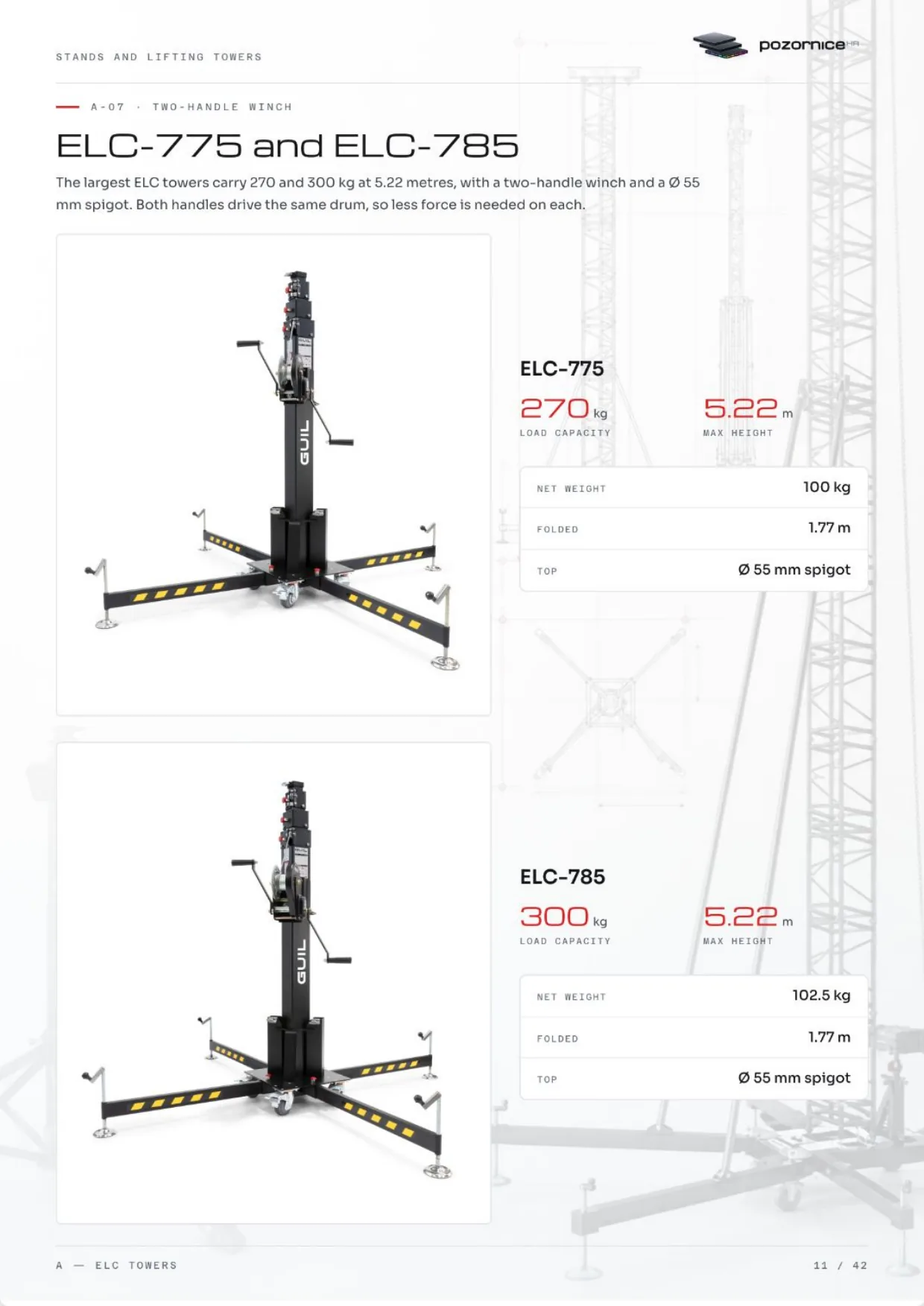

ELCELC-7755.22 m · 270 kgfolded 1.77 m↗
ELCELC-7855.22 m · 300 kgfolded 1.77 m↗

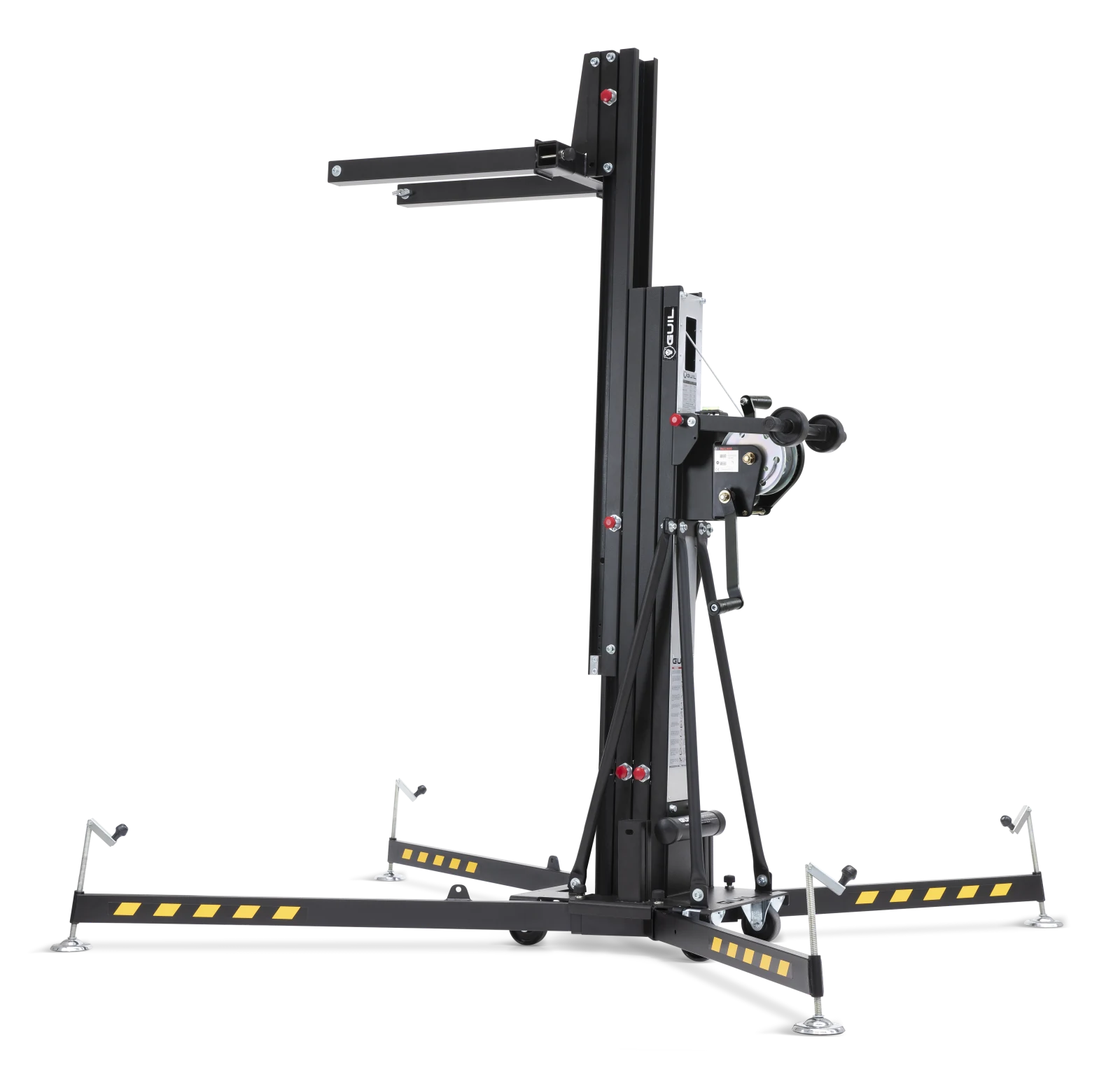

ULKULK 4005.15 m · 250 kgfolded 1.68 m↗

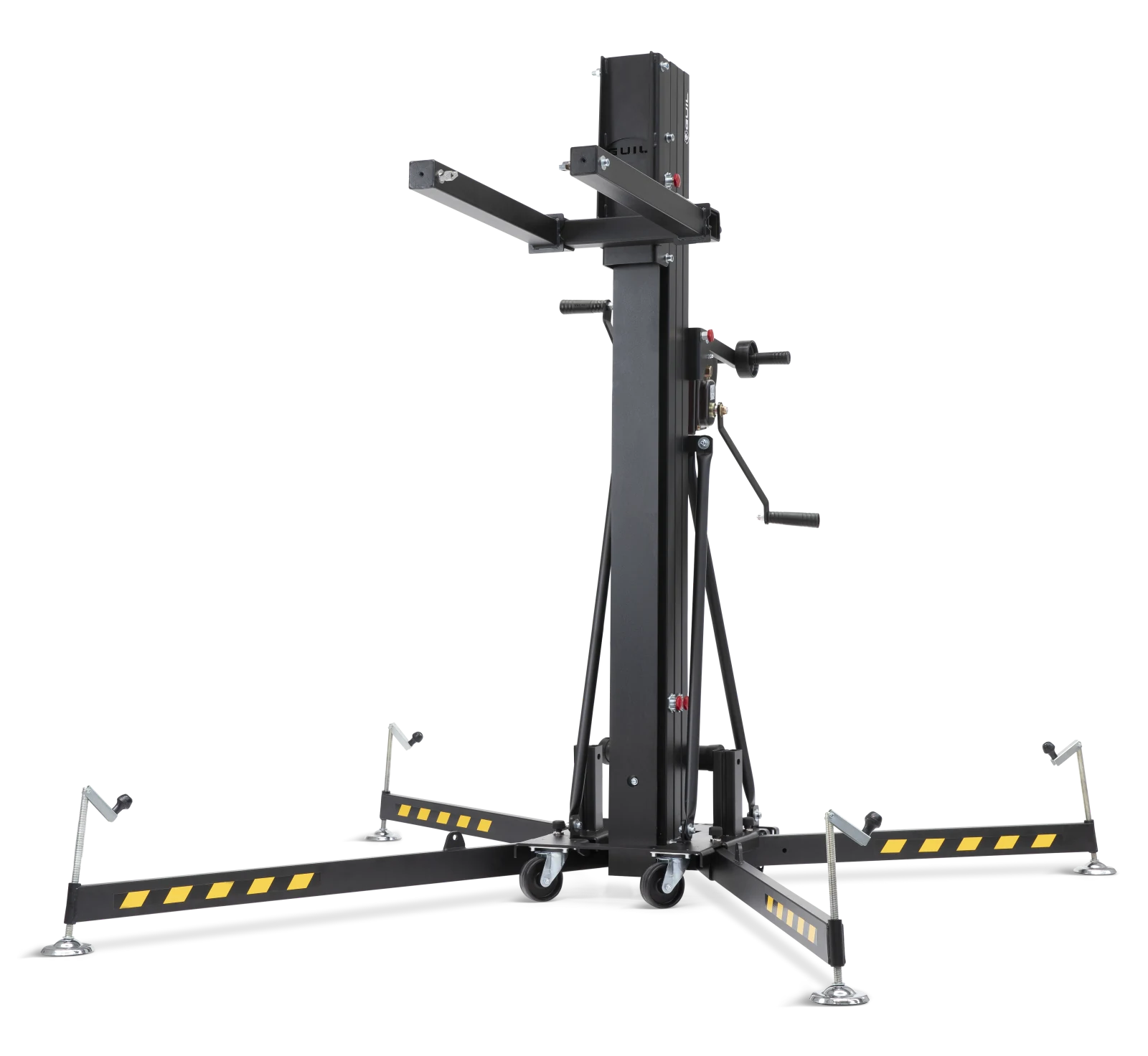

ULKULK 400 PLUS5.00 m · 250 kgfolded 1.98 m↗

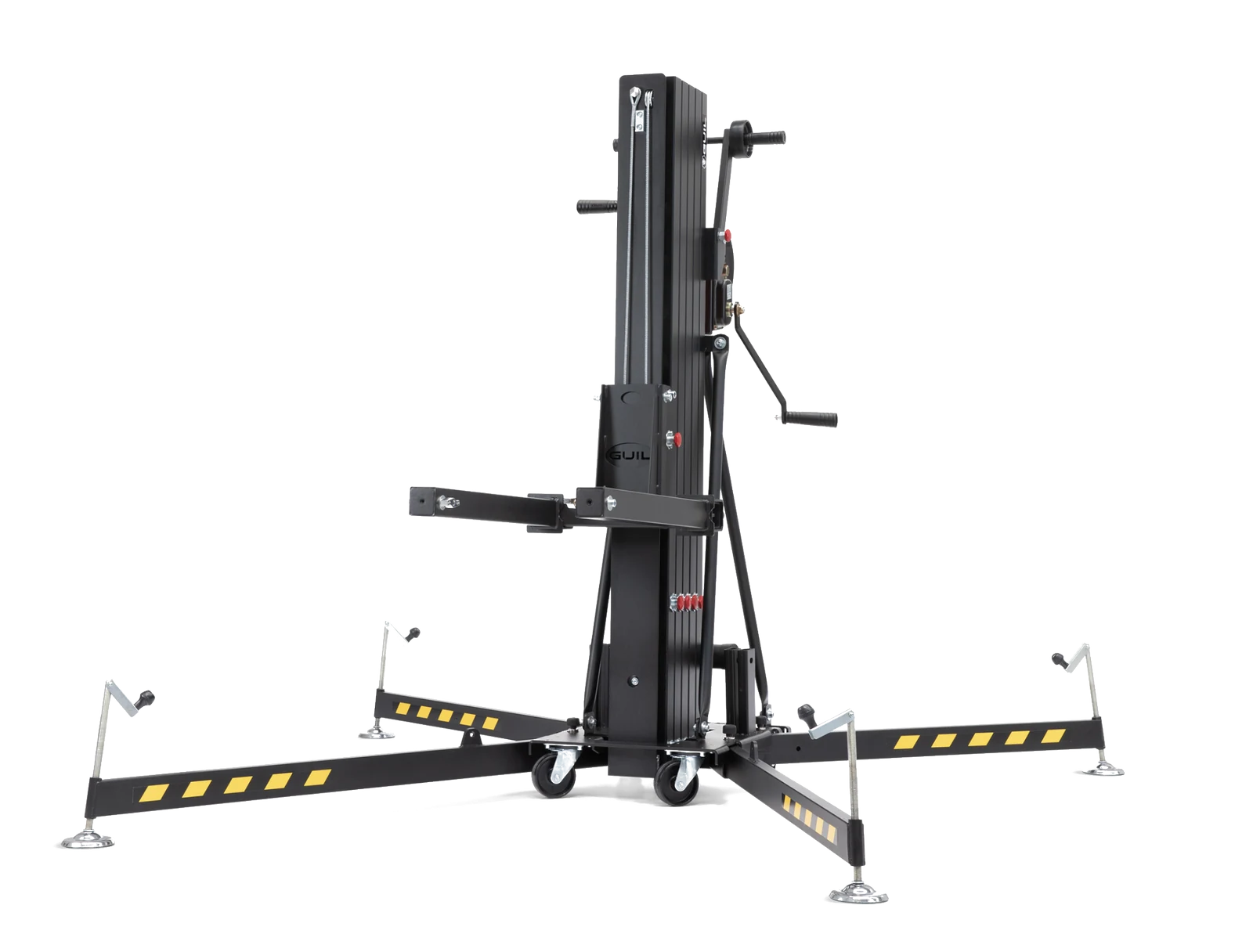

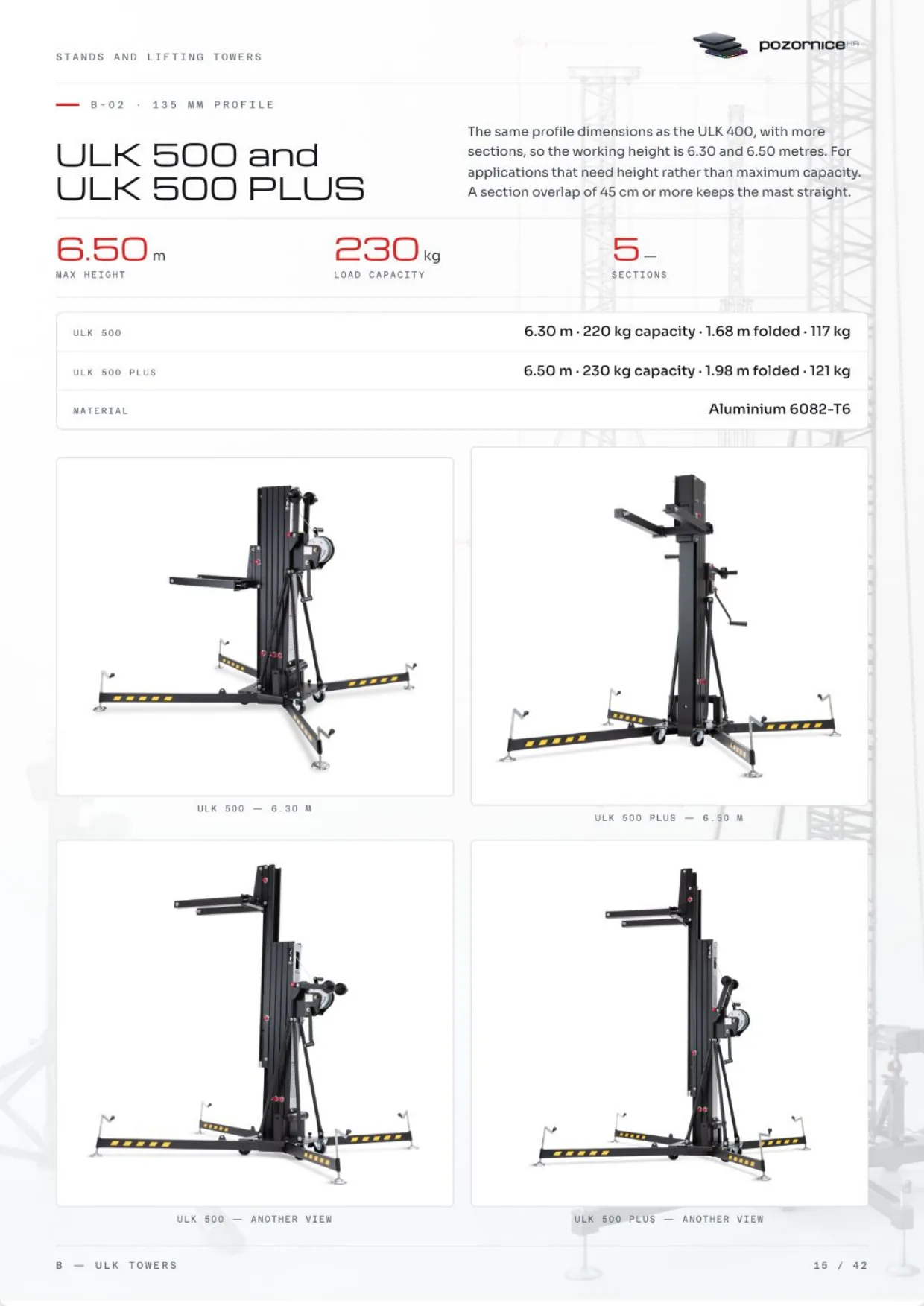

ULKULK 5006.30 m · 220 kgfolded 1.68 m↗

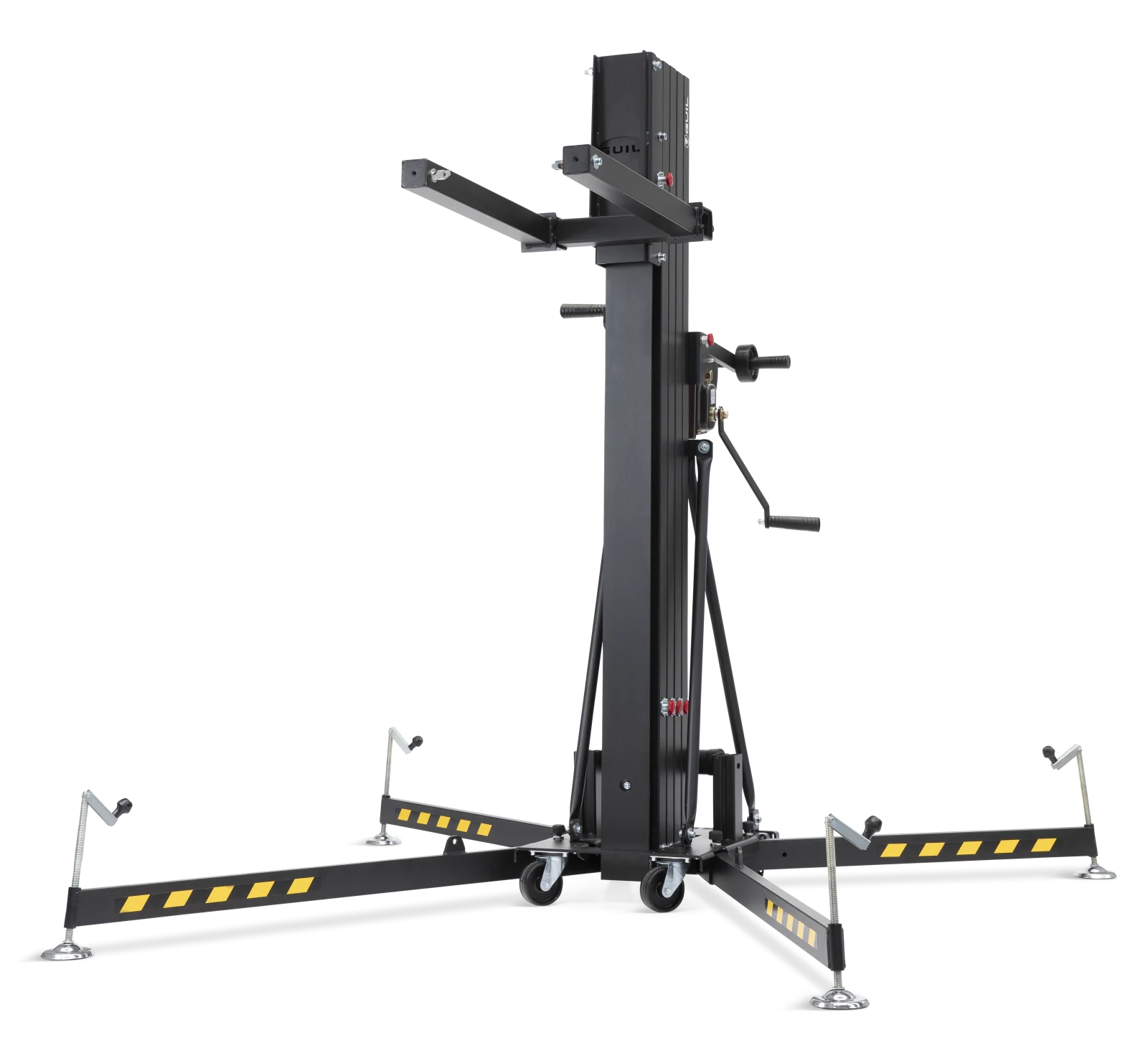

ULKULK 500 PLUS6.50 m · 230 kgfolded 1.98 m↗ULKULK 6006.00 m · 320 kgfolded 1.60 m↗

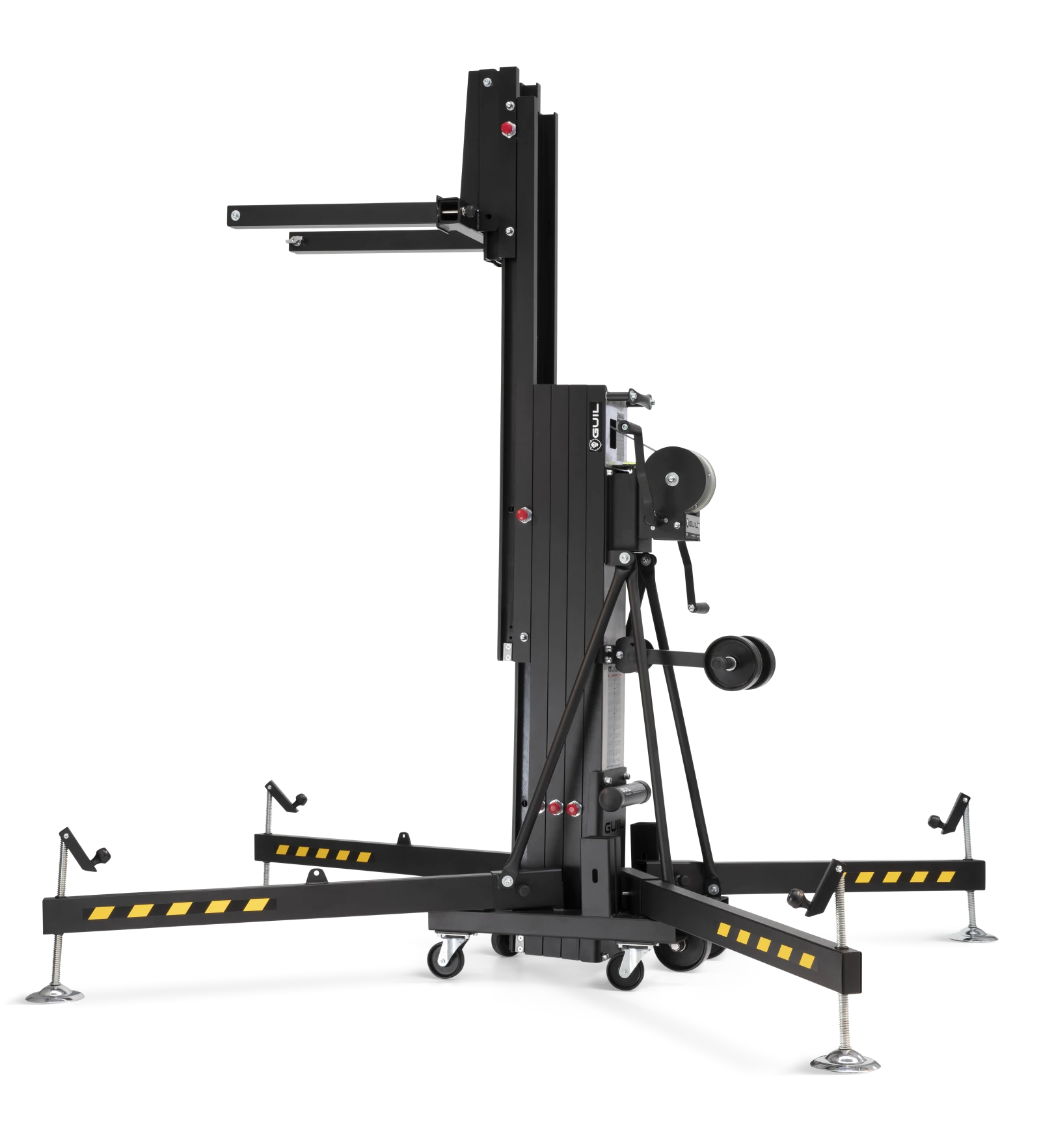

ULKULK 600XL6.00 m · 350 kgfolded 1.60 m↗

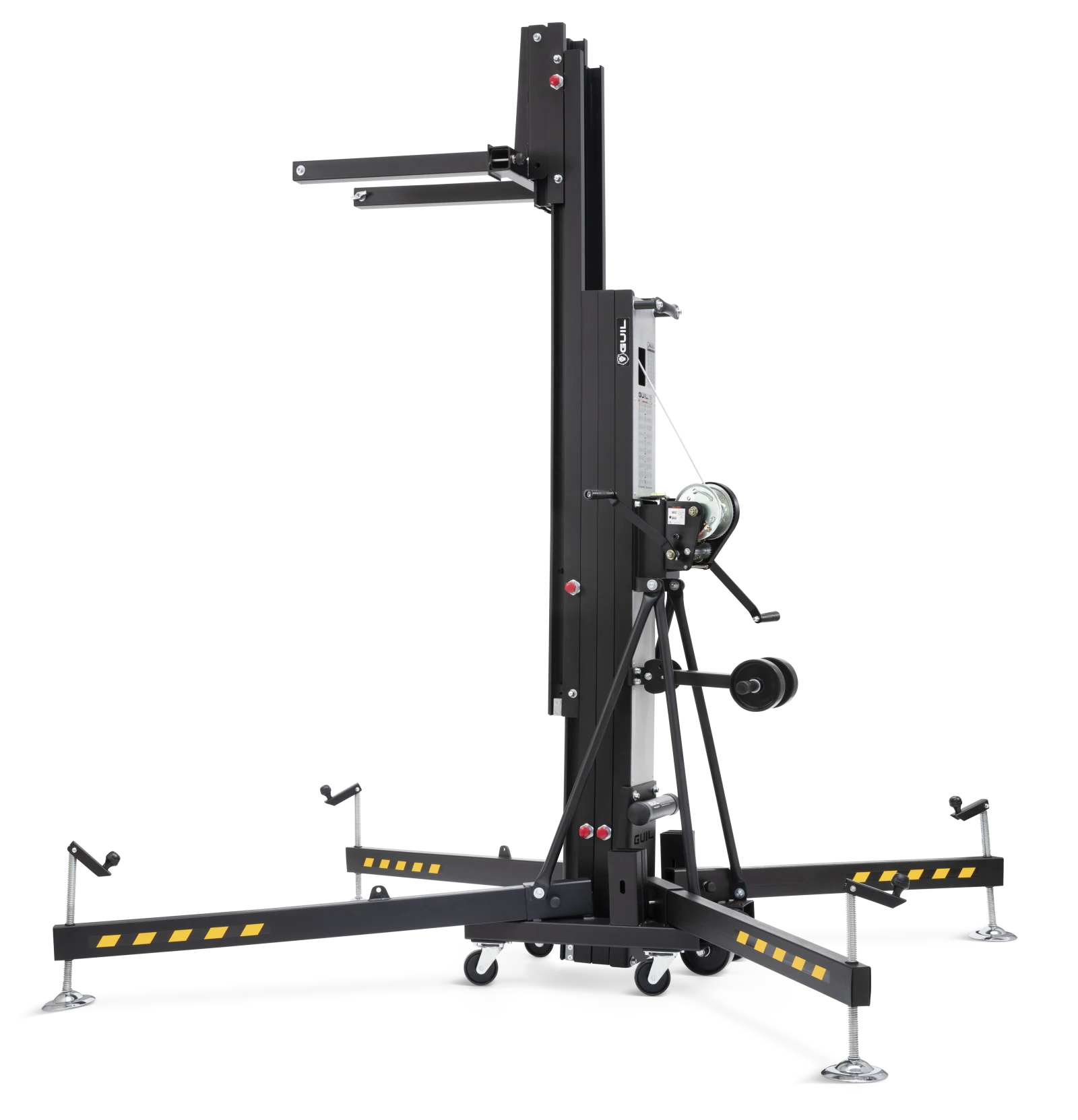

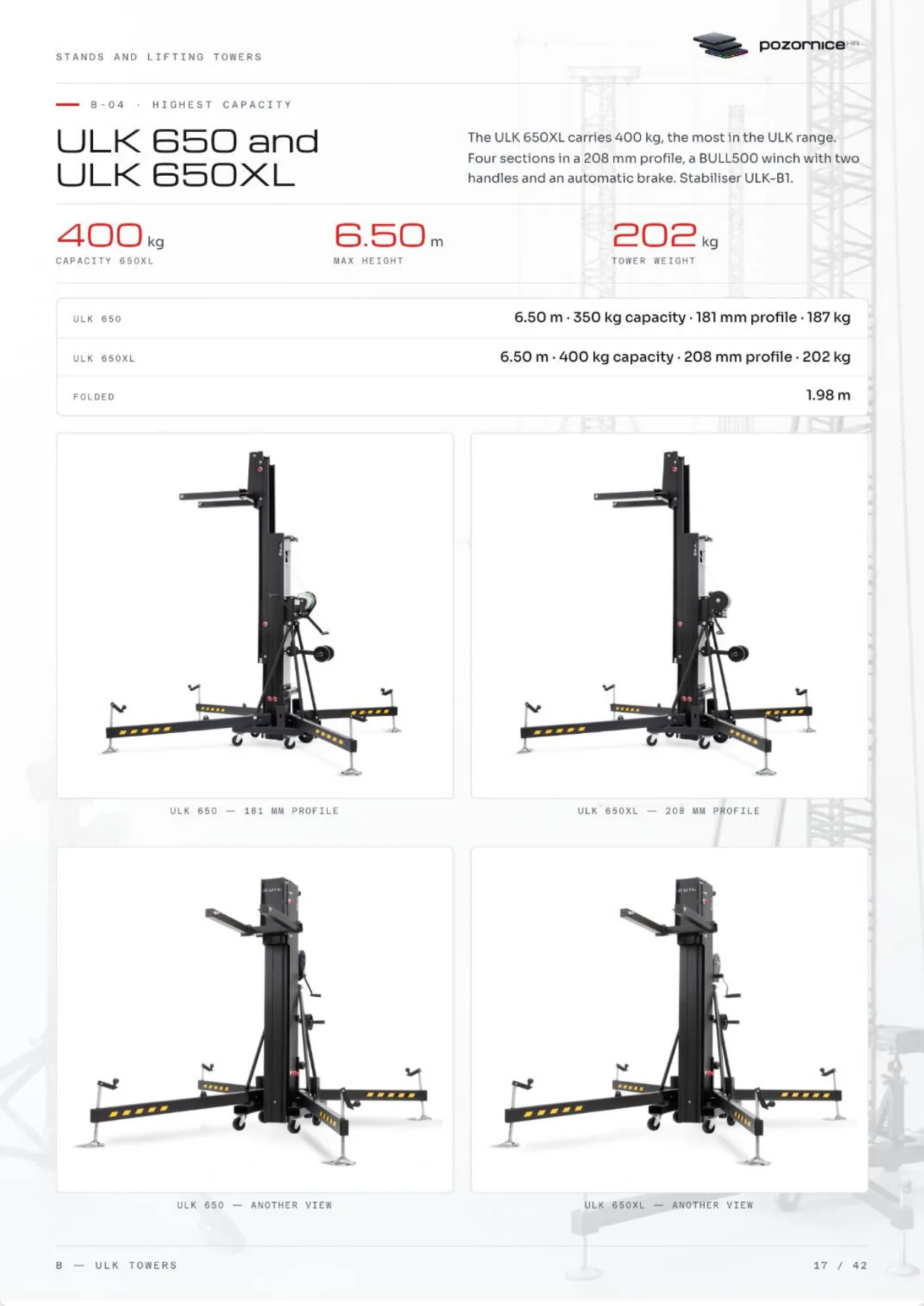

ULKULK 6506.50 m · 350 kgfolded 1.98 m↗

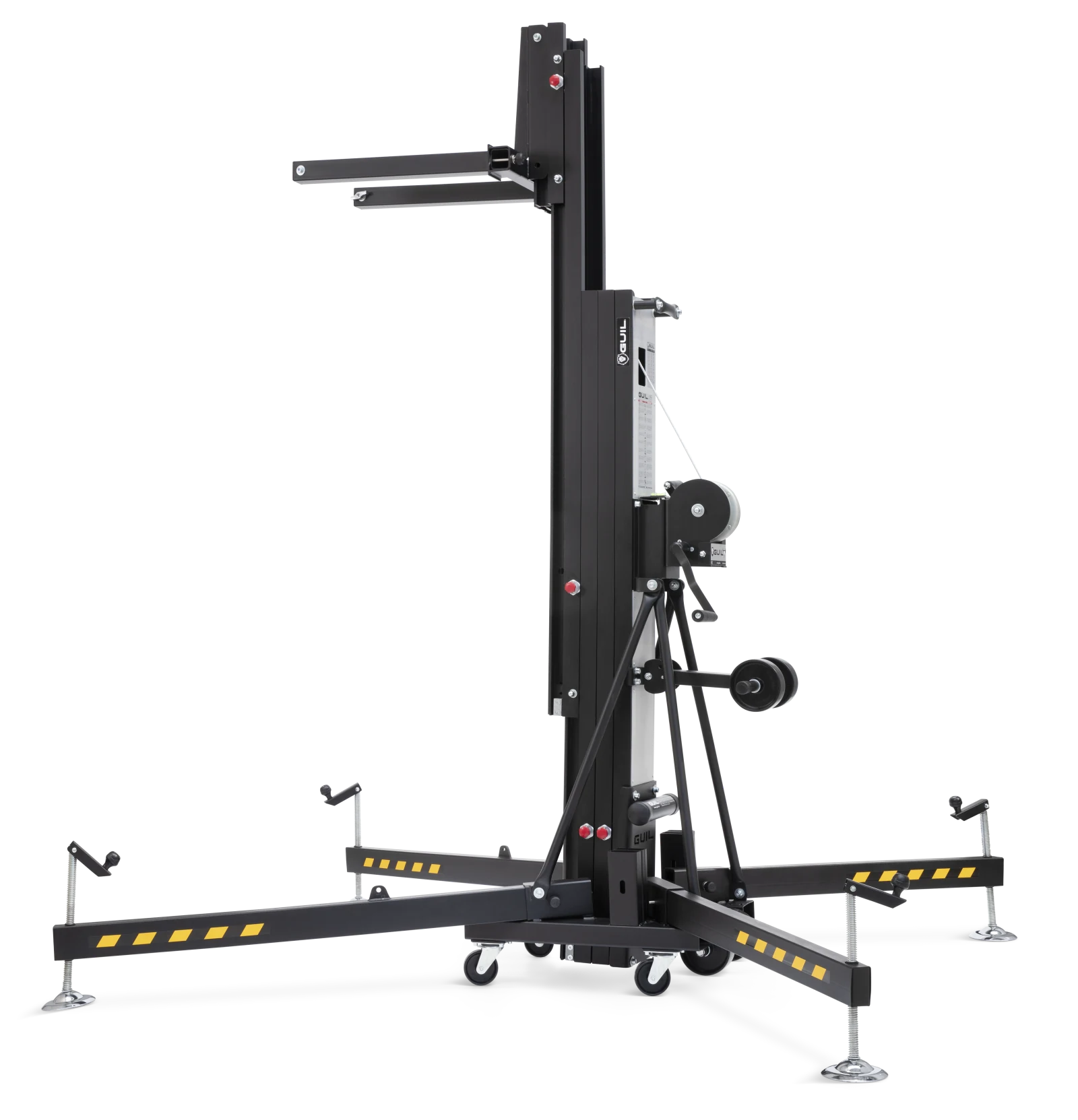

ULKULK 650XL6.50 m · 400 kgfolded 1.98 m↗ULKULK 7005.00 m · 380 kgfolded 1.98 m↗

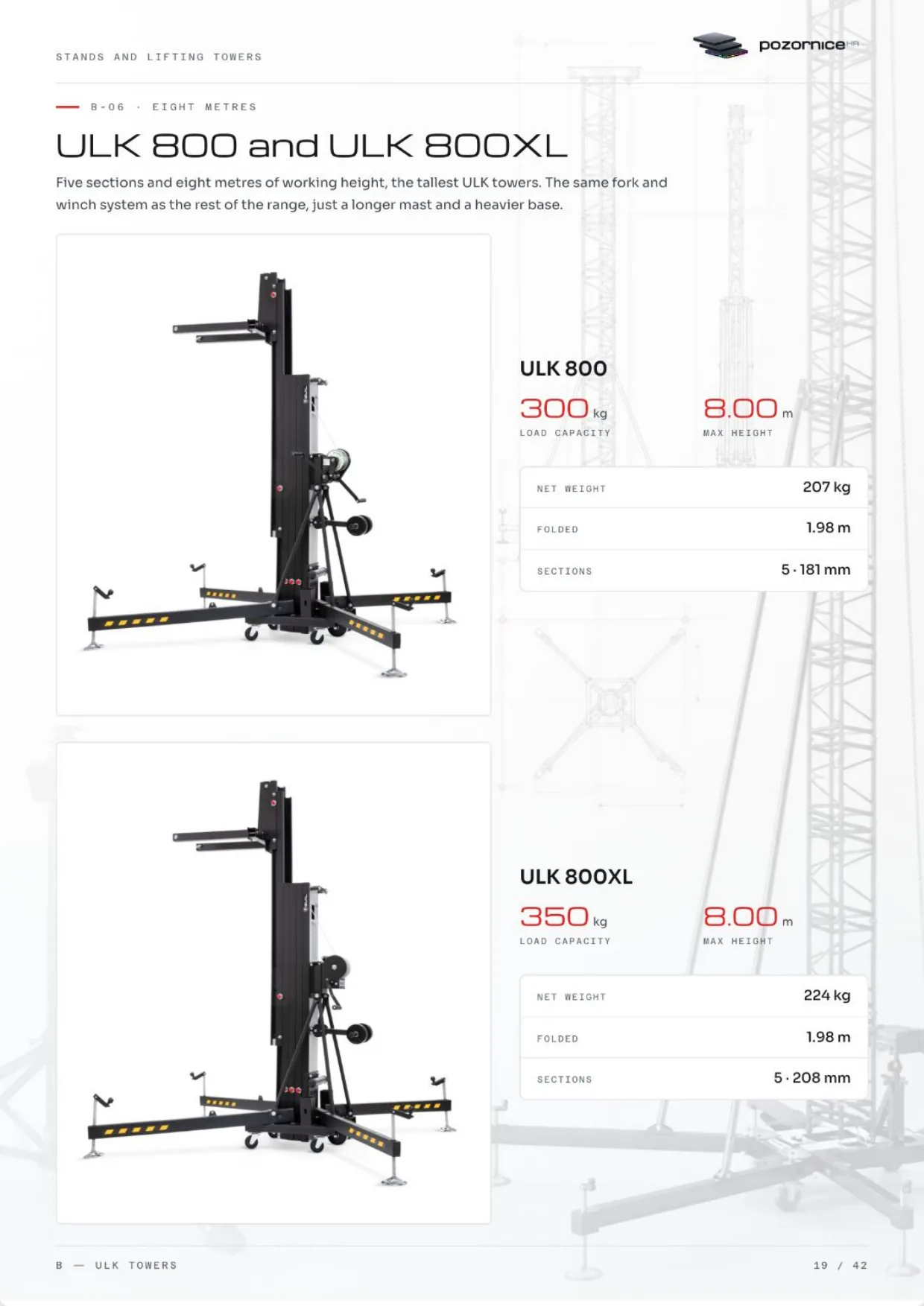

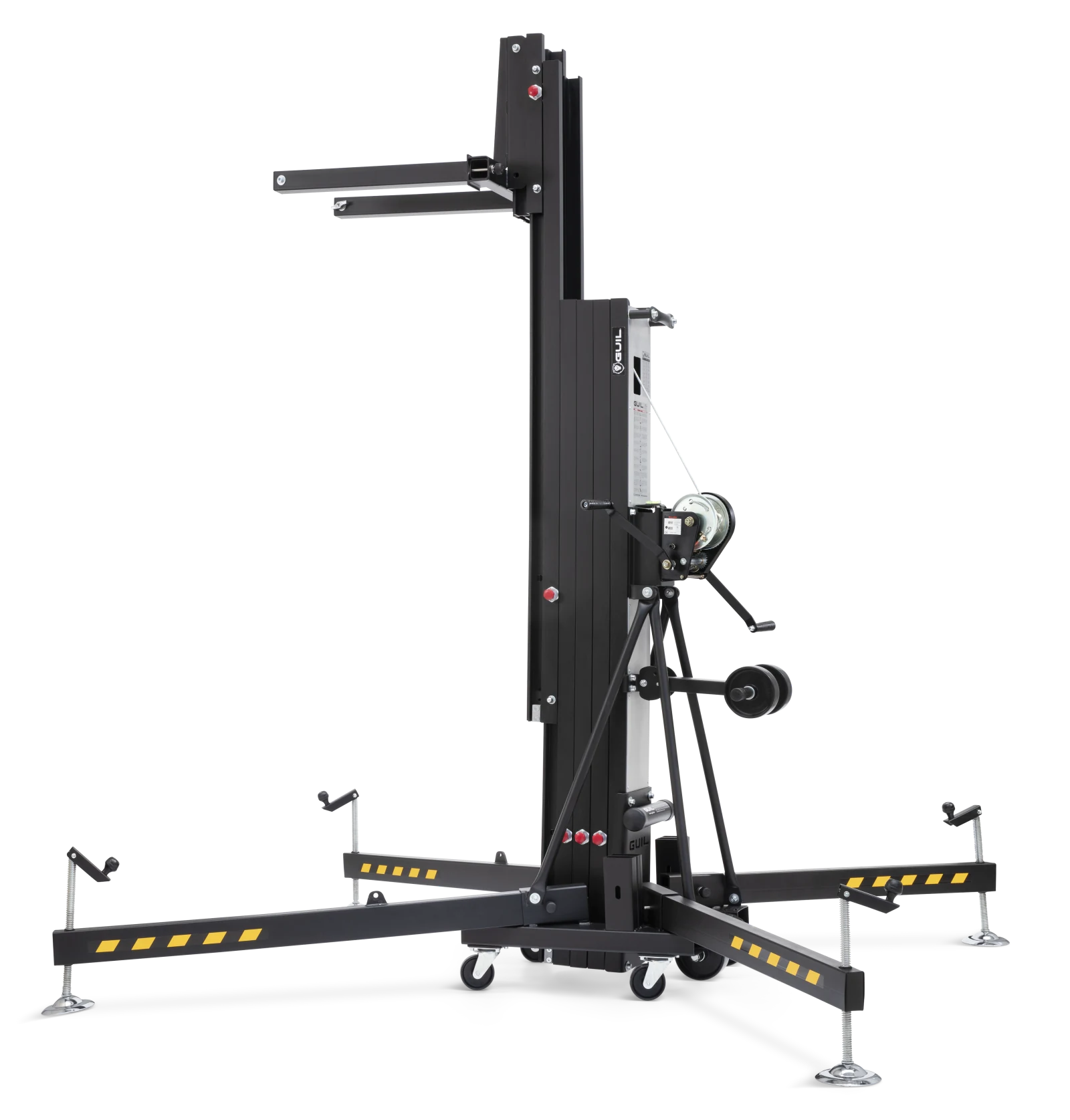

ULKULK 8008.00 m · 300 kgfolded 1.98 m↗
ULKULK 800XL8.00 m · 350 kgfolded 1.98 m↗

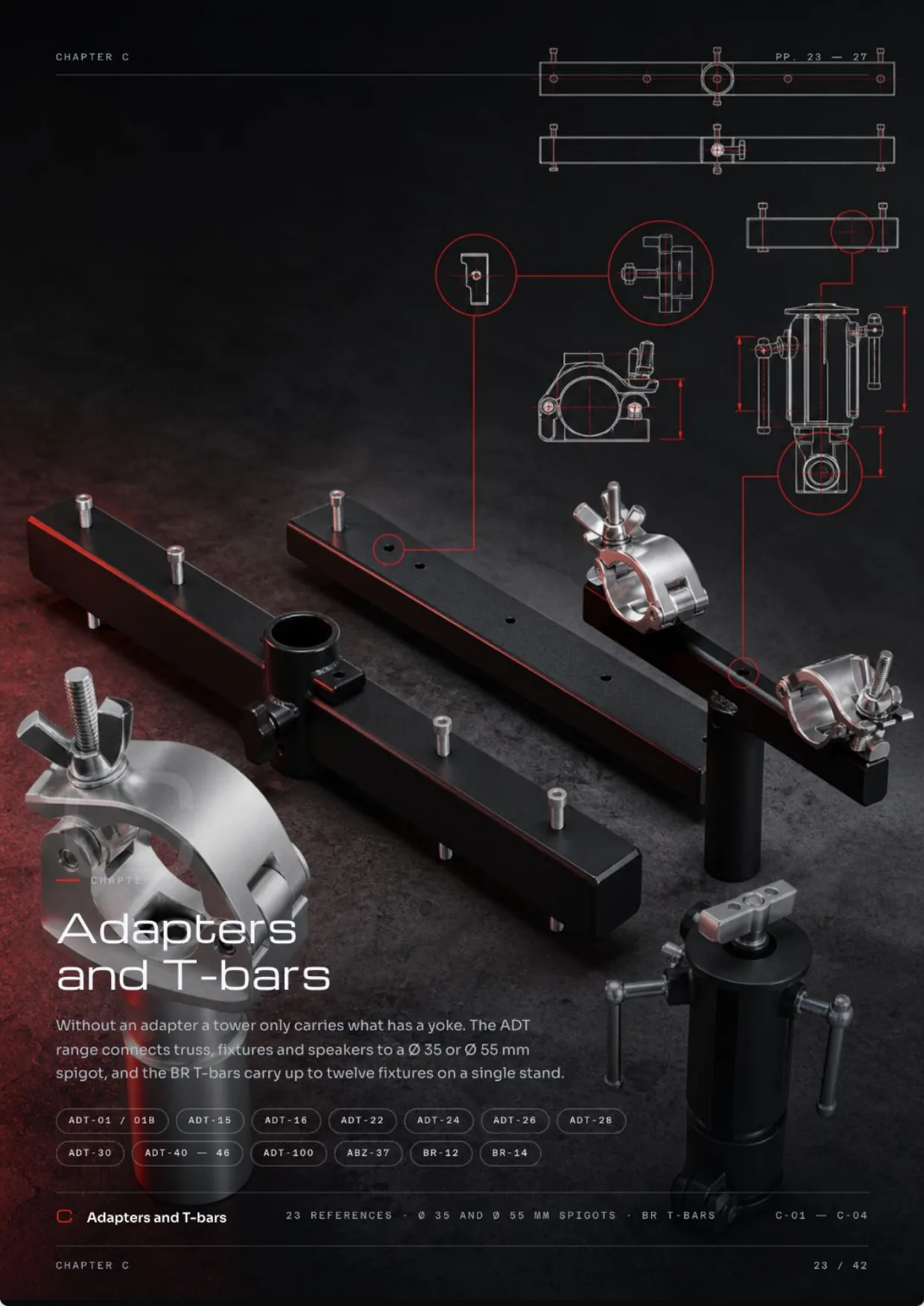

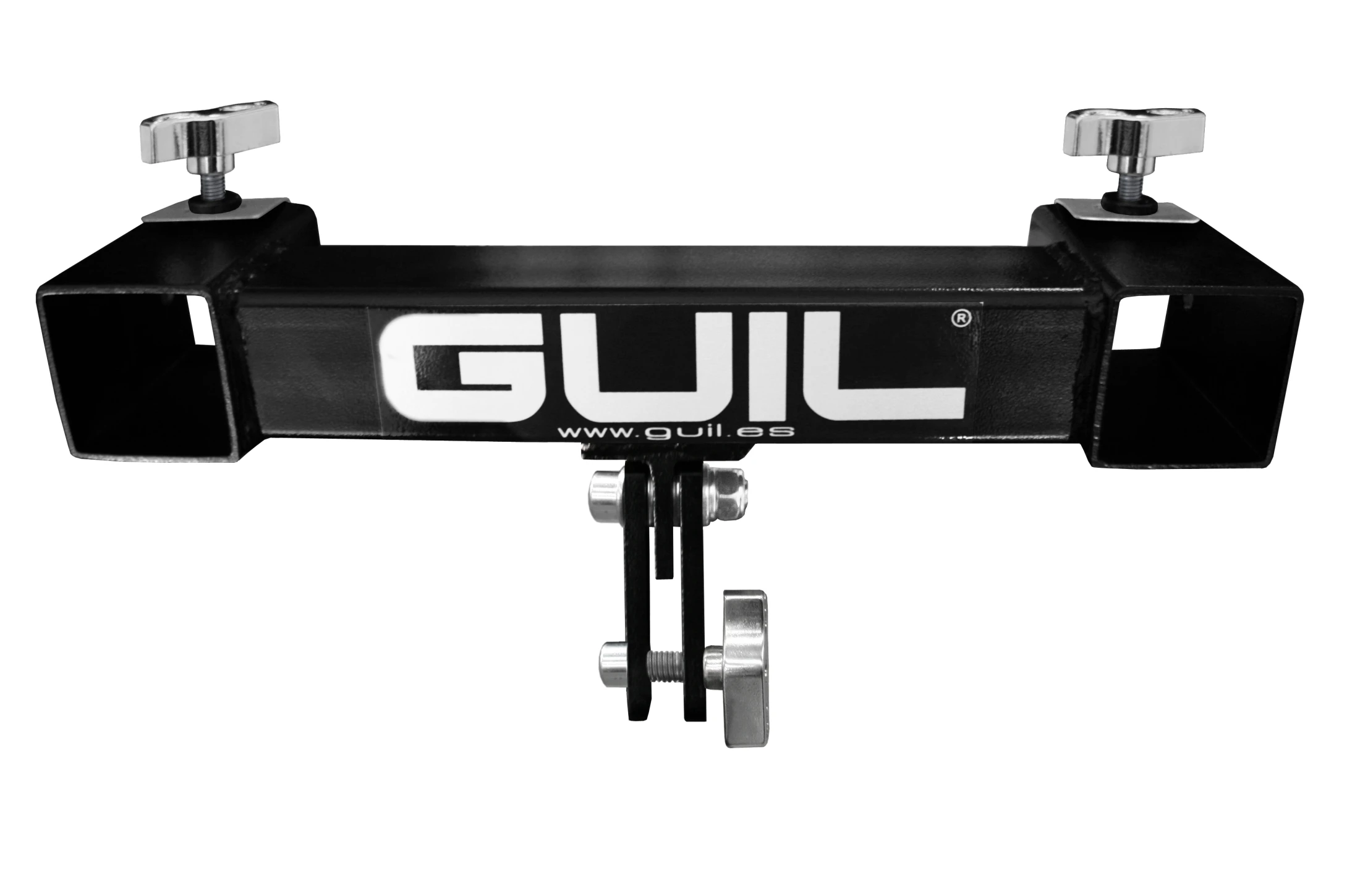

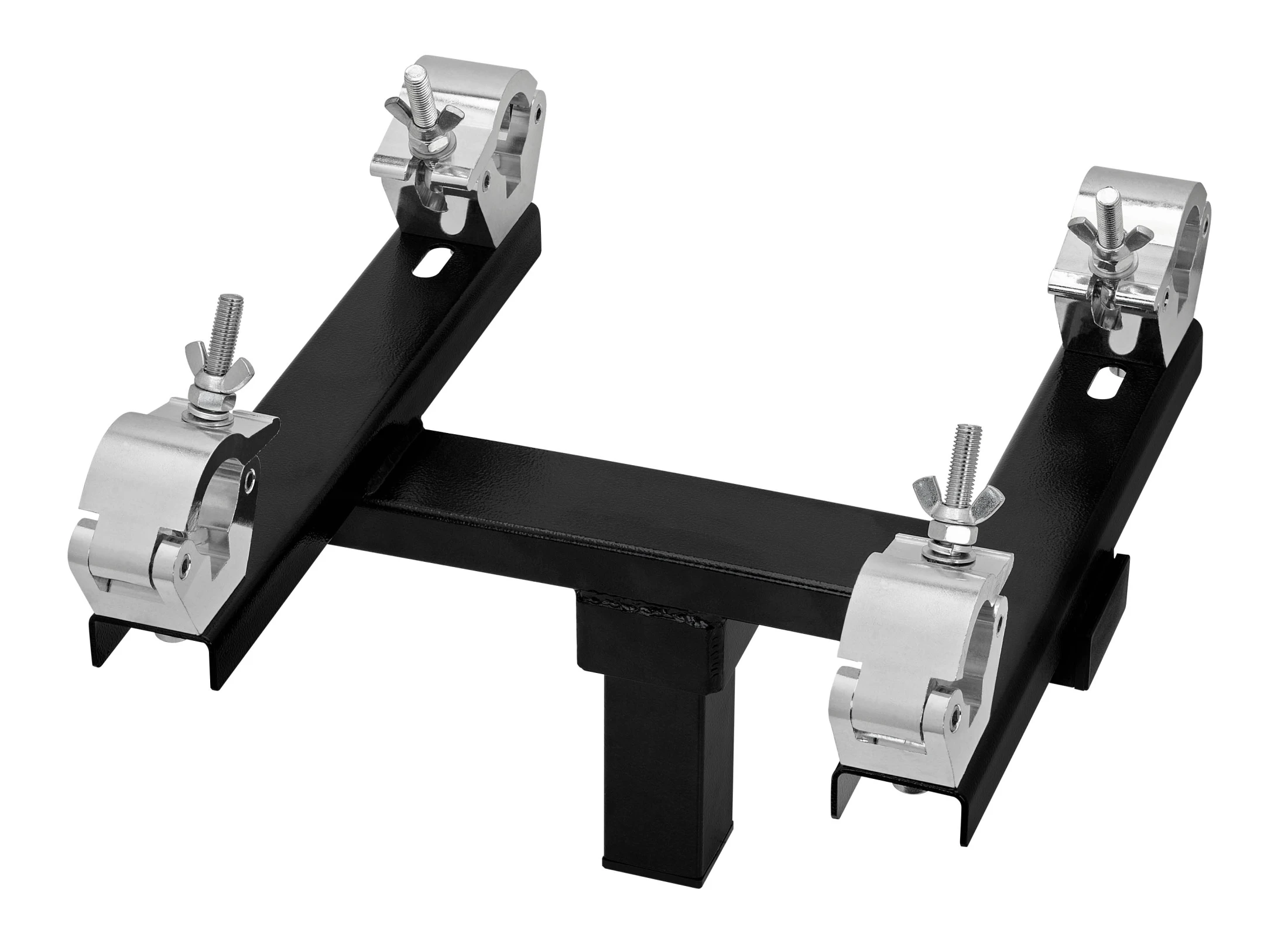

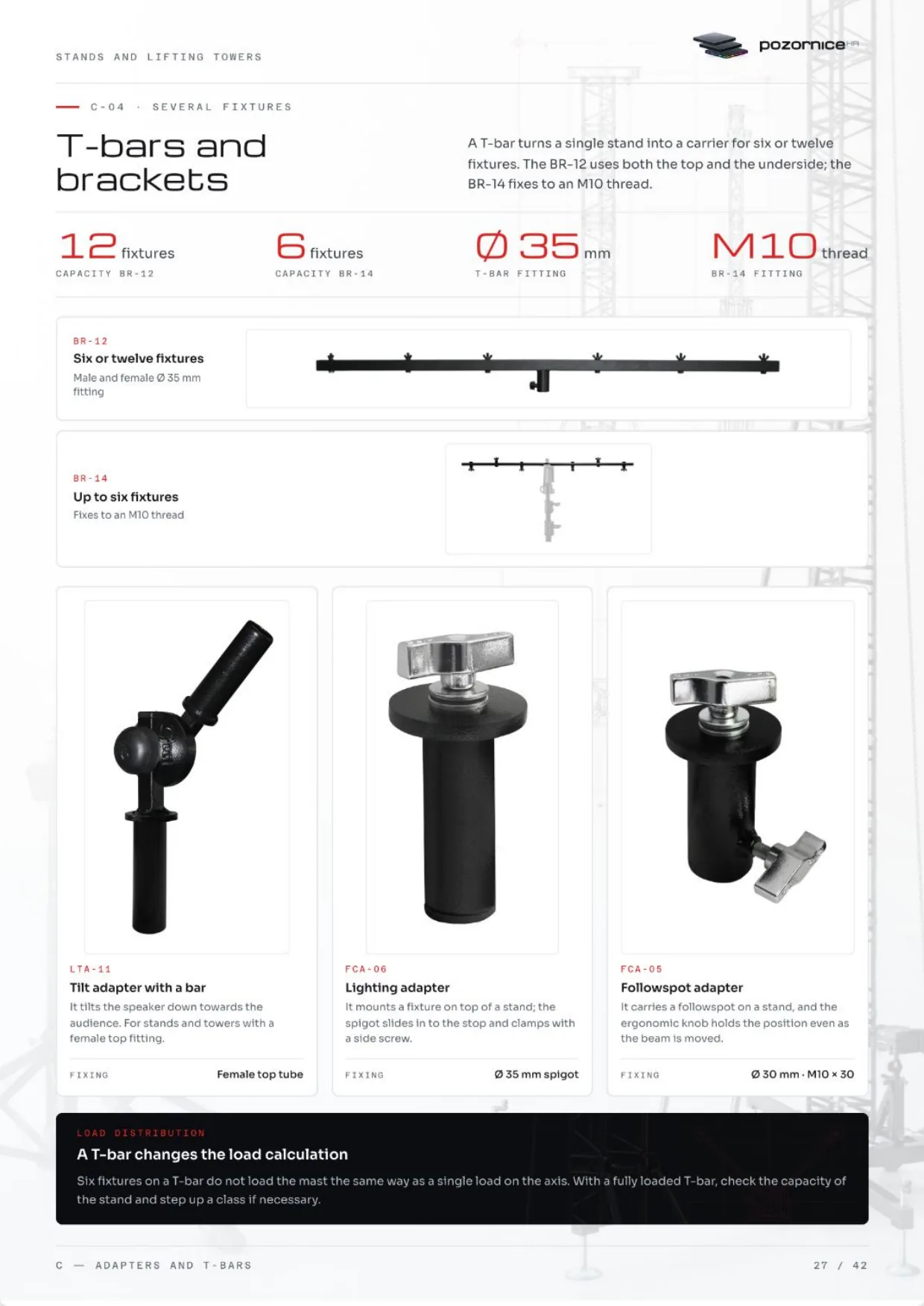

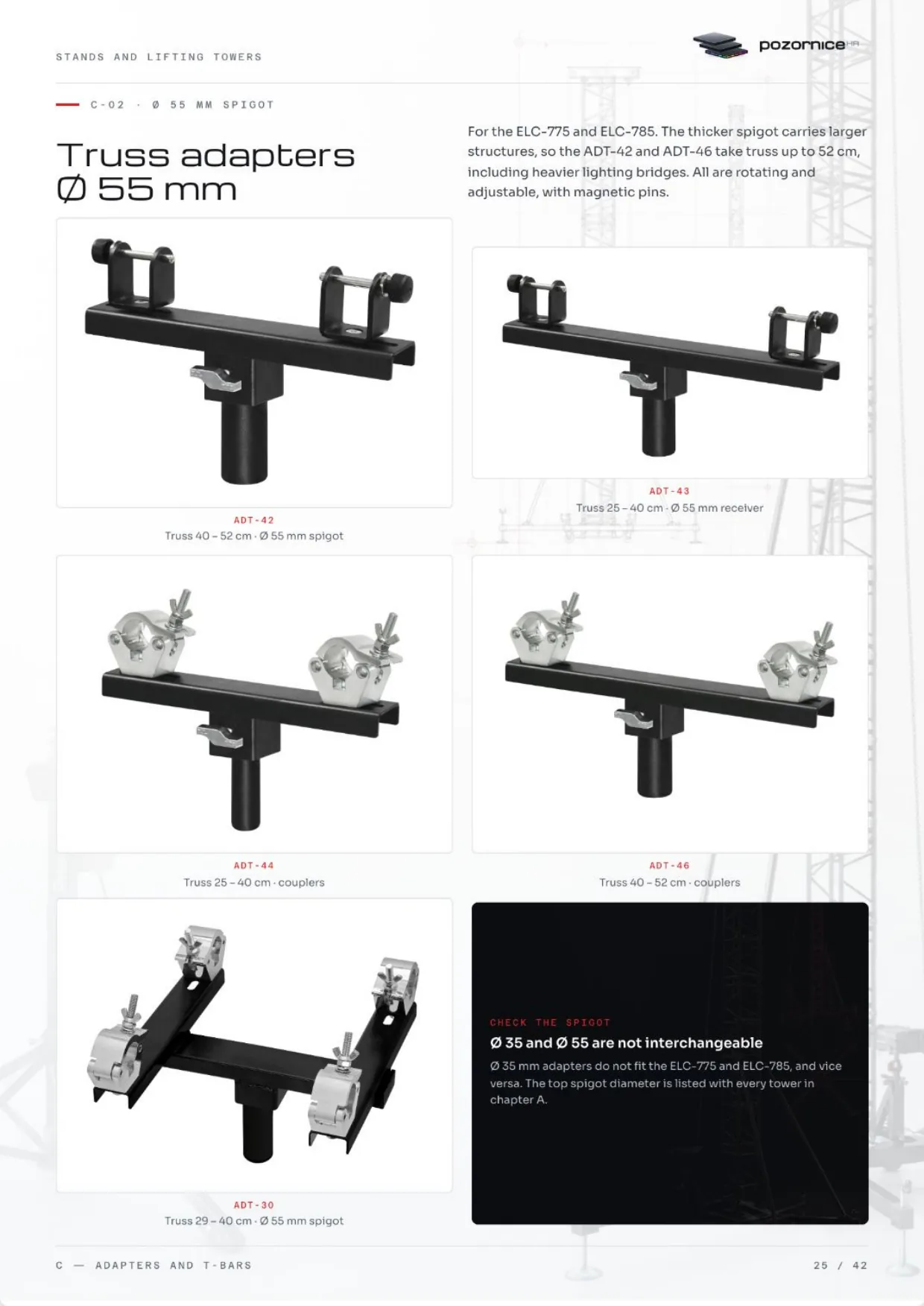

Adapters and fittings
A dedicated fitting connects the payload and tower
ELC crossbars and adapters and ULK front fittings are documented on a dedicated page, grouped by mounting method
Explore adapters and fittings↗

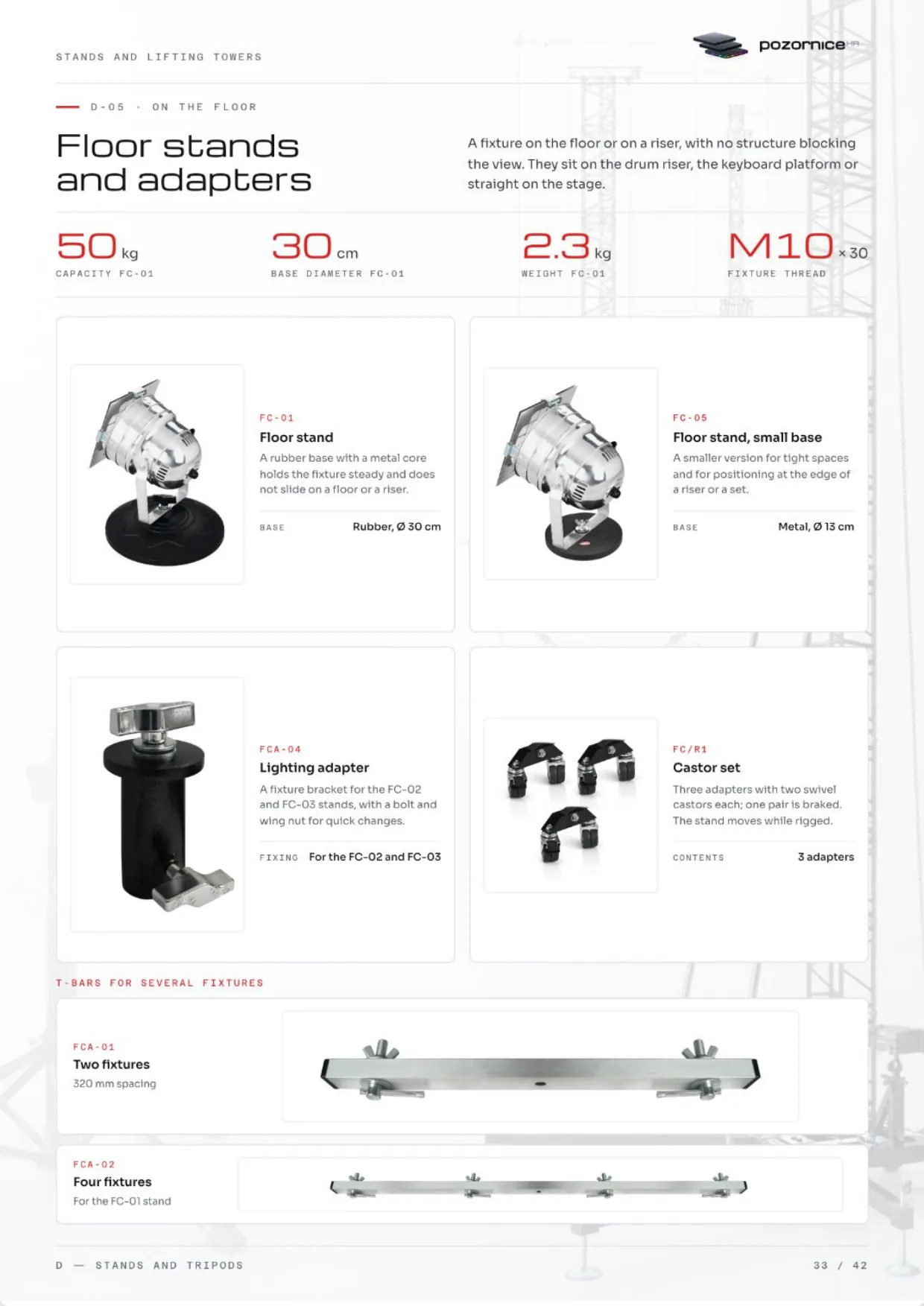

42 pages

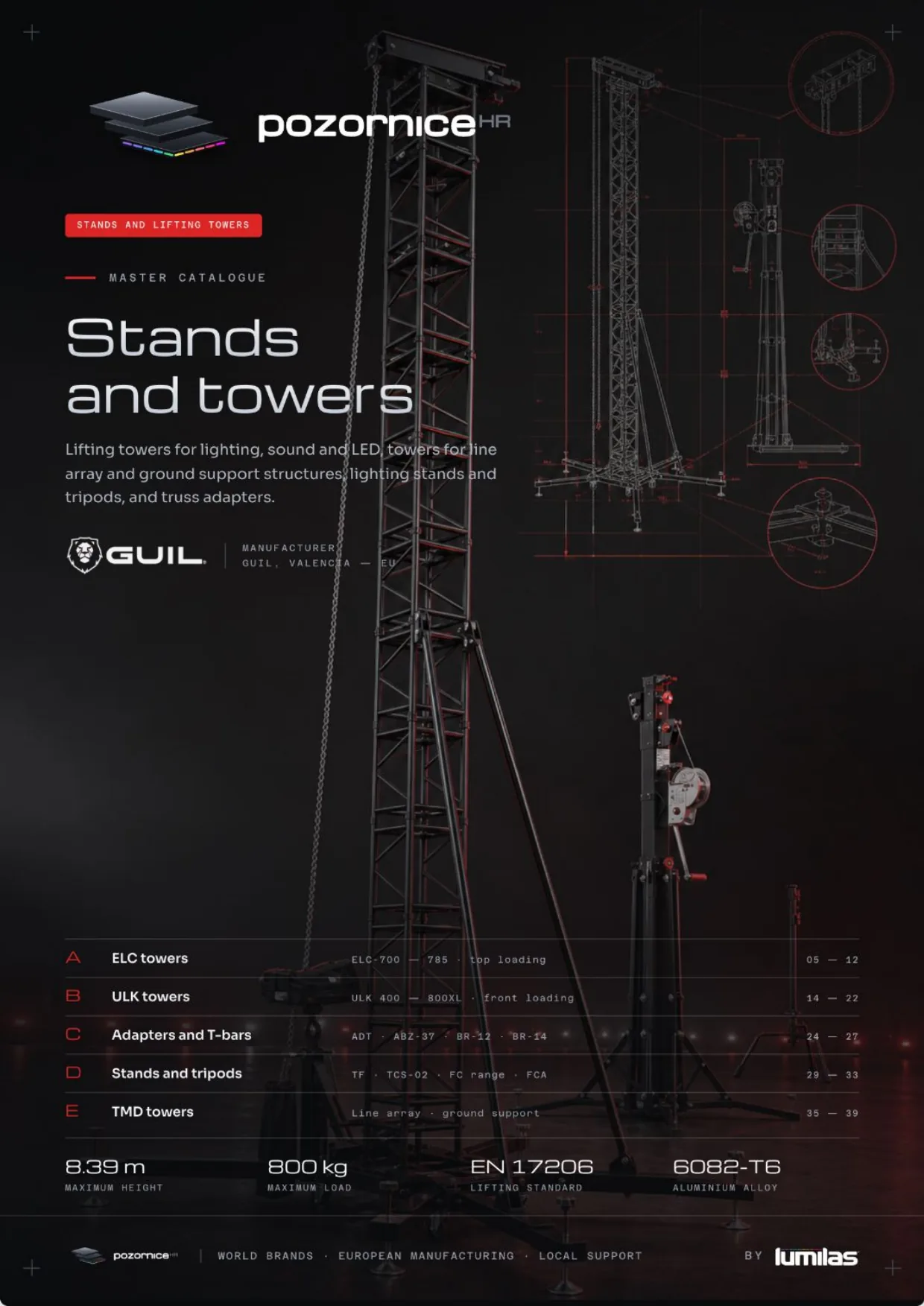

Catalogue
Stands and lifting towers
ELC and ULK towers, stands, tripods, adapters, fittings, working heights, capacities and transport formats.
- Format
- A4 · PDF
- Scope
- 42 pages
- Language
- HR edition
The PDF is delivered by email. Submitted details are used only for catalogue distribution records.
GUILStands and lifting towers
01–02 / 42
PDF catalogue
Want the PDF catalogue?
Enter your basic details. We use them only to record catalogue distribution and deliver the requested file.
Project support
Send the payload, required height and suspension method
We will specify the tower, matching adapter and safety equipment for your setup
Interactive technical tool
Tower configurator
Compare working height, capacity and transport format, then prepare an exact system specification
Open Configurator↗MANUFACTURER · PROFESSIONAL EVENT EQUIPMENT
