Platform transport and storage

Transport and storage

Dedicated trolleys, brackets and containers organise the system between builds, reduce handling and protect components in transit.

Explore the system↓

GUIL Transport and storage — GUIL / TRANSPORT AND STORAGE

1–14decks by system

48 mrails on CRO-12

300–600 kgmaximum load

Equipment matched to what you move

From a single deck to a complete set, storage container or safety rails. Each model handles a precise part of the workflow.

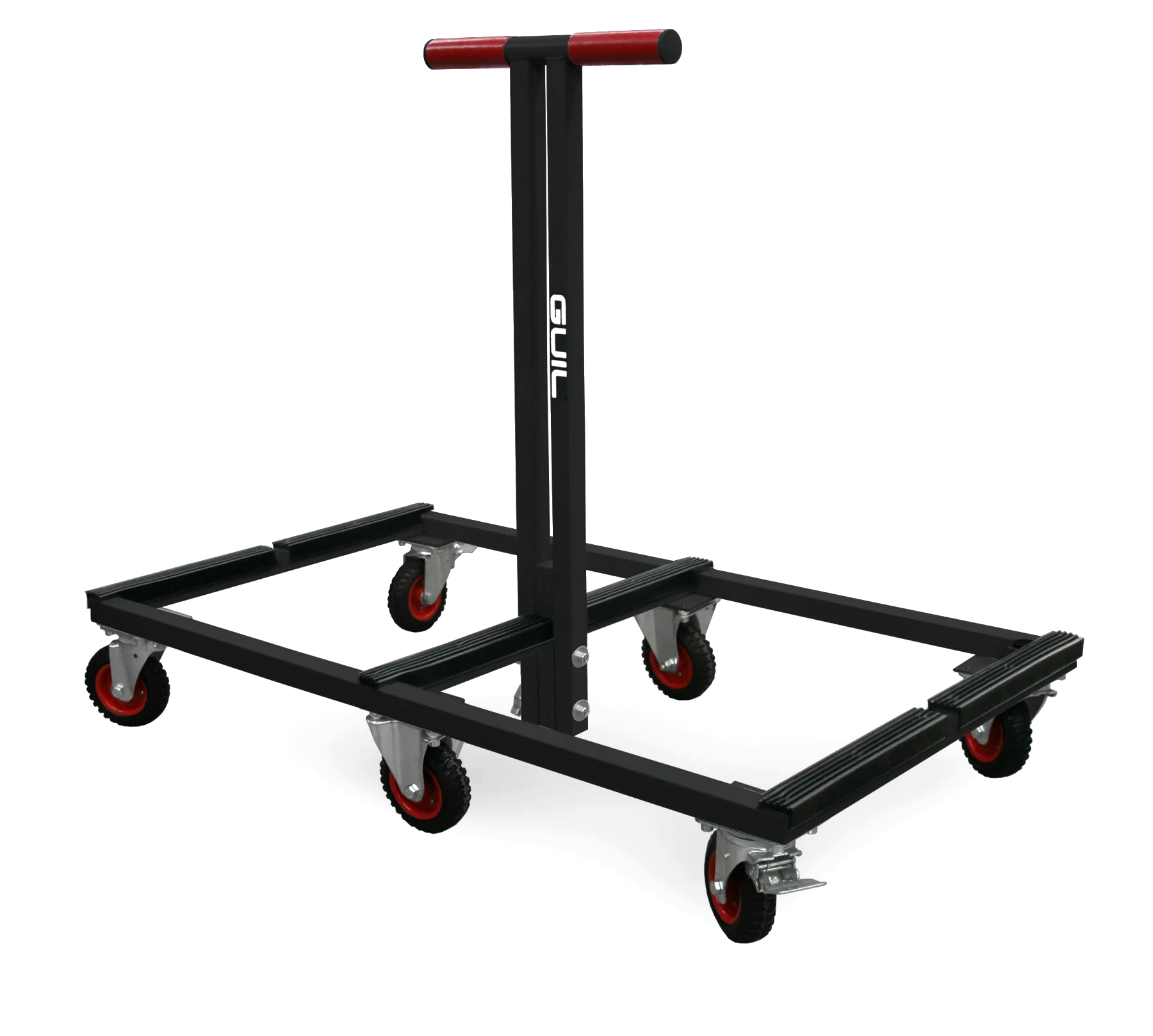

CRO-11

Multiple decks

Six wheels and a central pivot make a deck series easier to manoeuvre in confined spaces.

capacity: 400 kg
weight: 30 kg

Deck transport matched to the scale of the build

For daily movement of one module, CRO-09 is sufficient. A larger set uses CRO-10, while TM-TR1 turns the deck itself into a trolley without a separate transport frame.

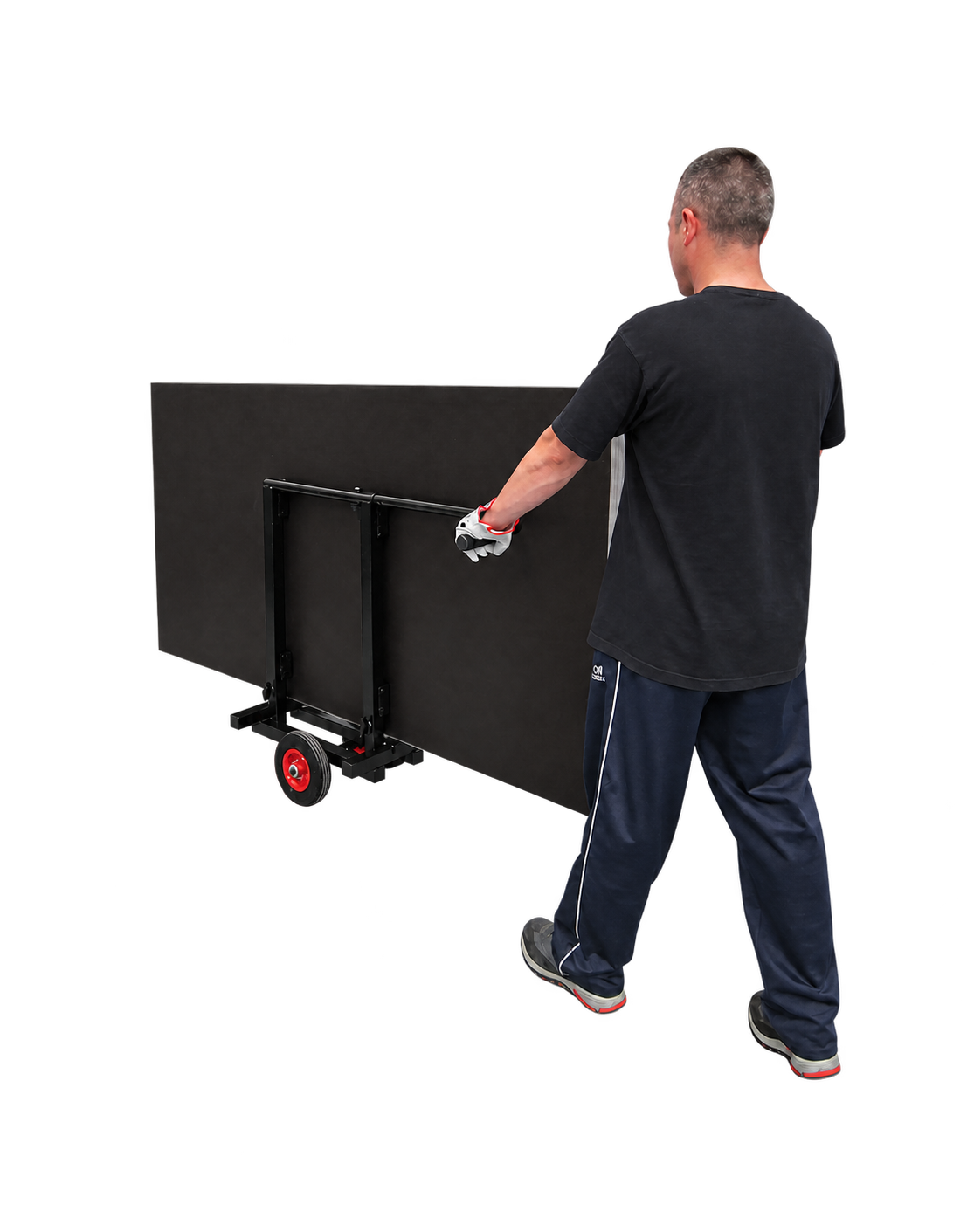

CRO-09

One deck, one operator

Large 200 mm wheels lift the deck from the floor and ease movement across thresholds.

14 kg

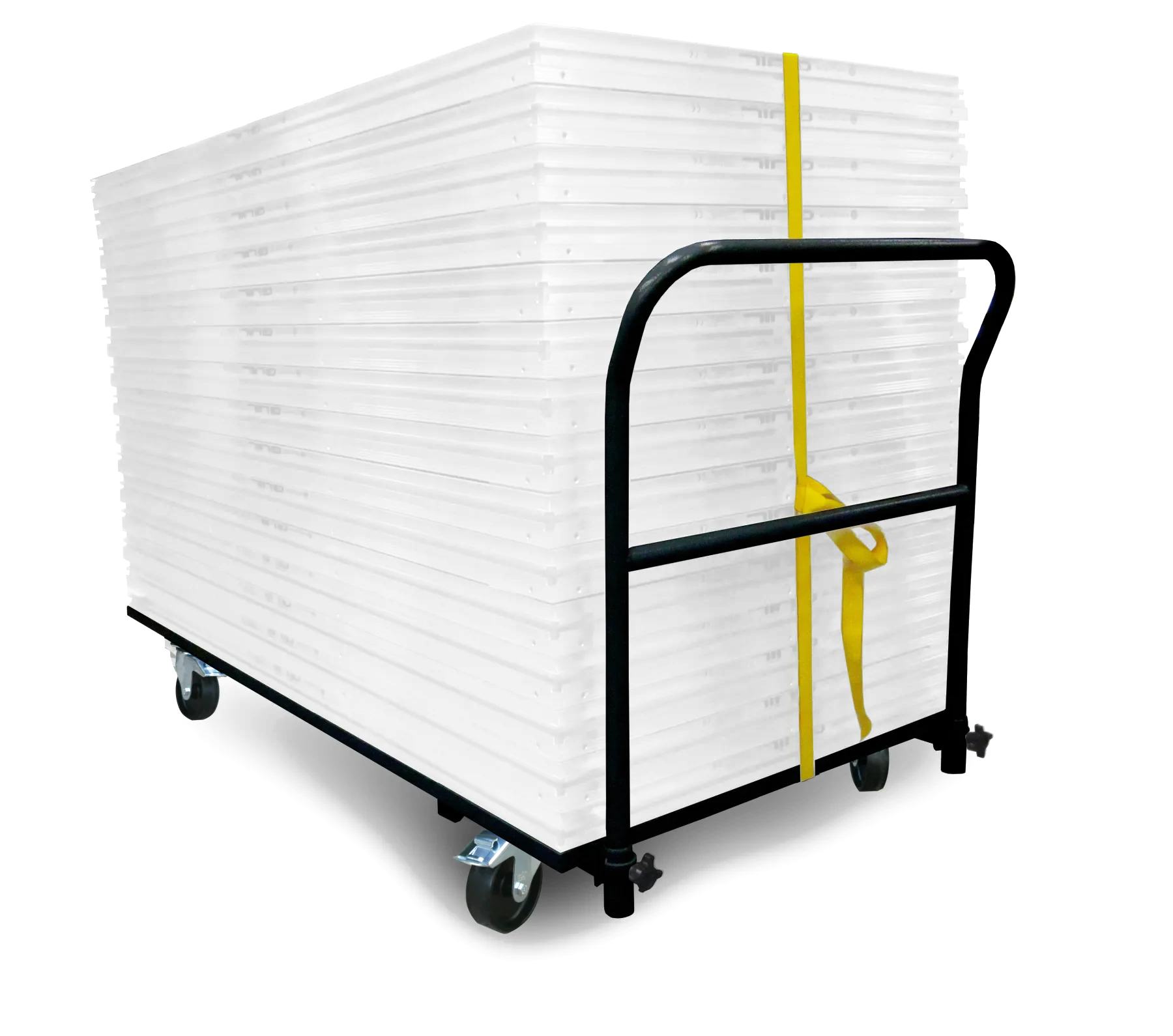

CRO-10

A complete set on one trolley

The detachable handle clears access for loading, while the sling secures the stacked decks in transit.

14 × · 600 kg

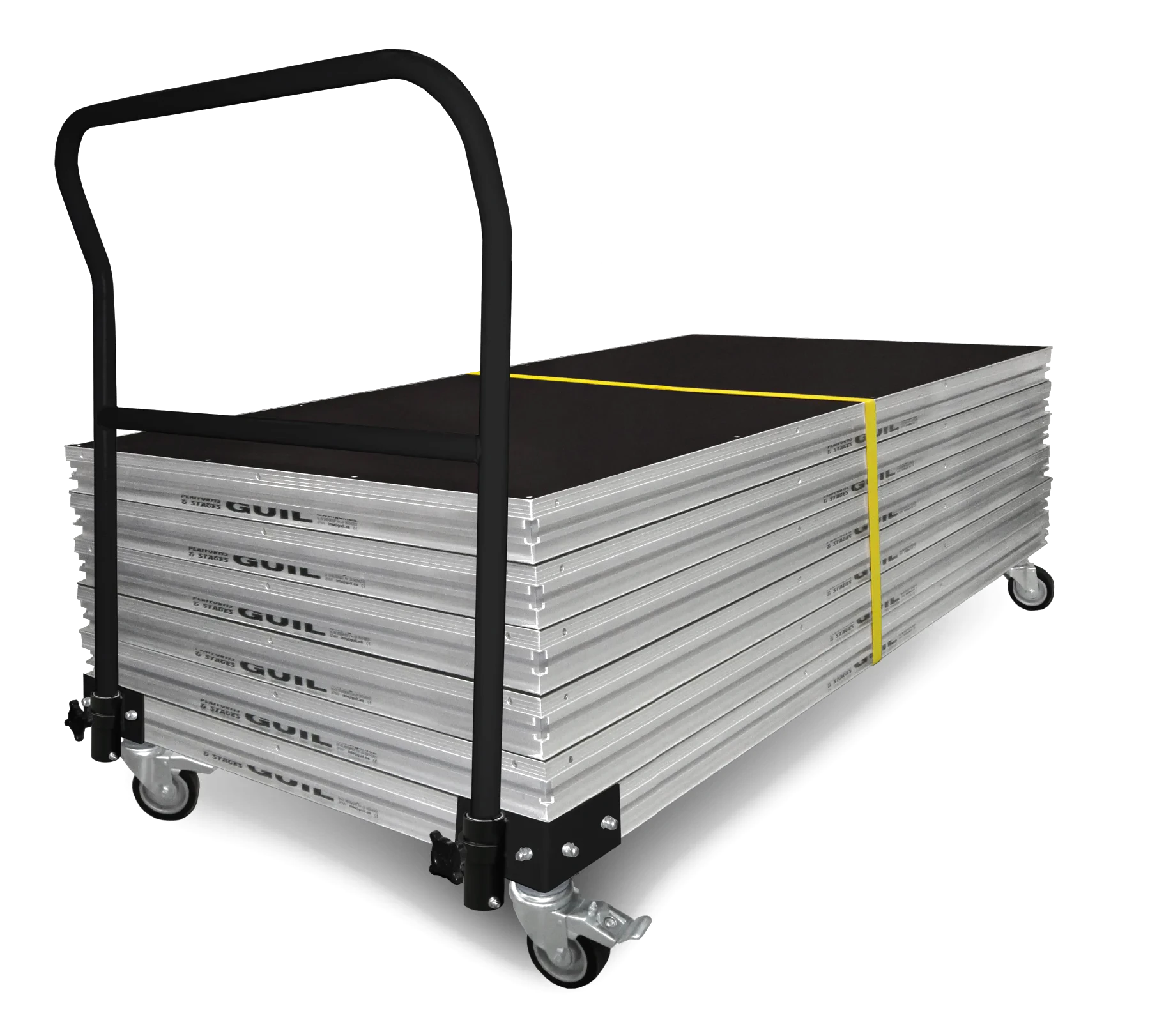

TM-TR1

The deck becomes the transport unit

Two braked and two fixed castors mount to the deck frame together with a handle and securing sling.

300 kg

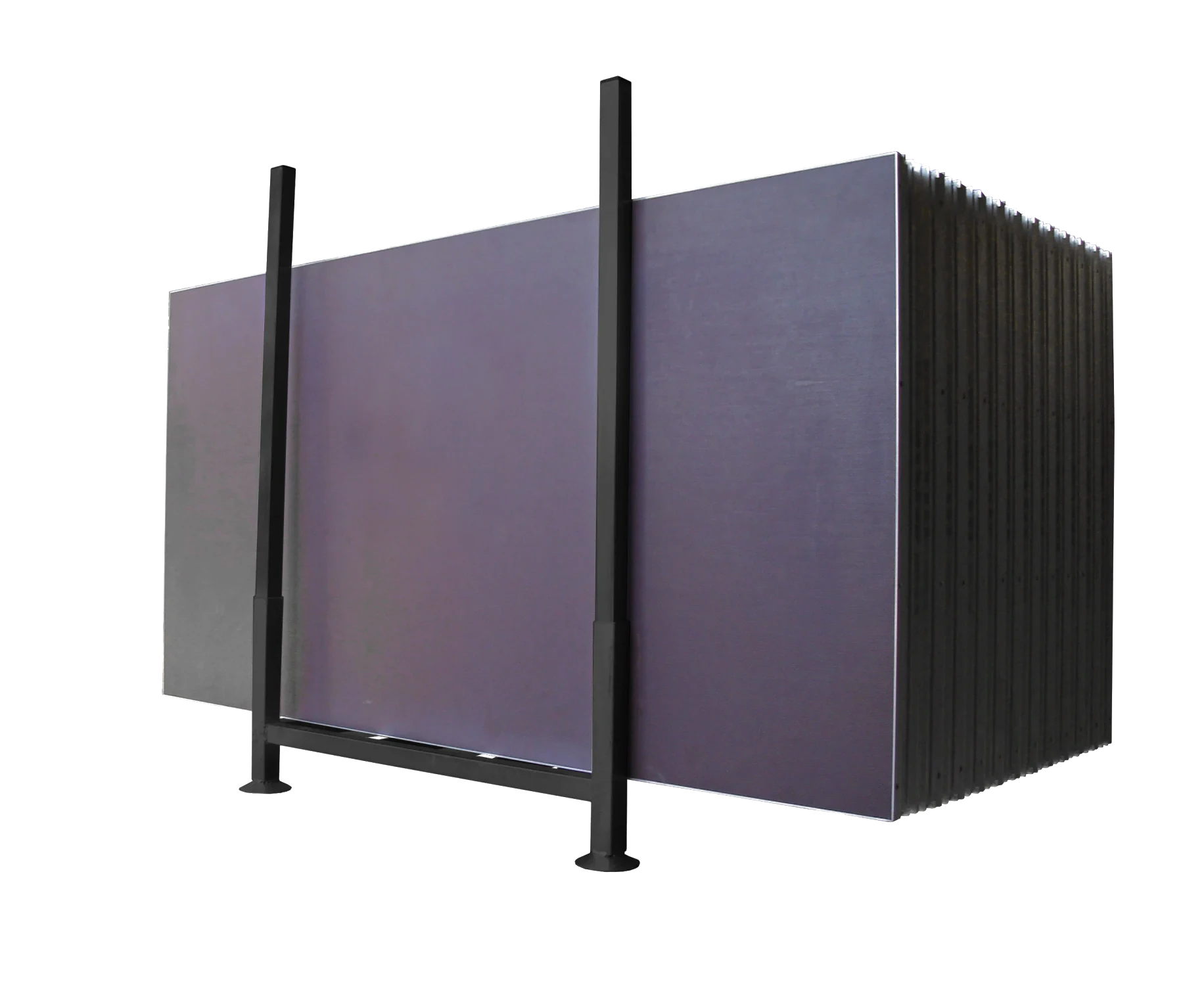

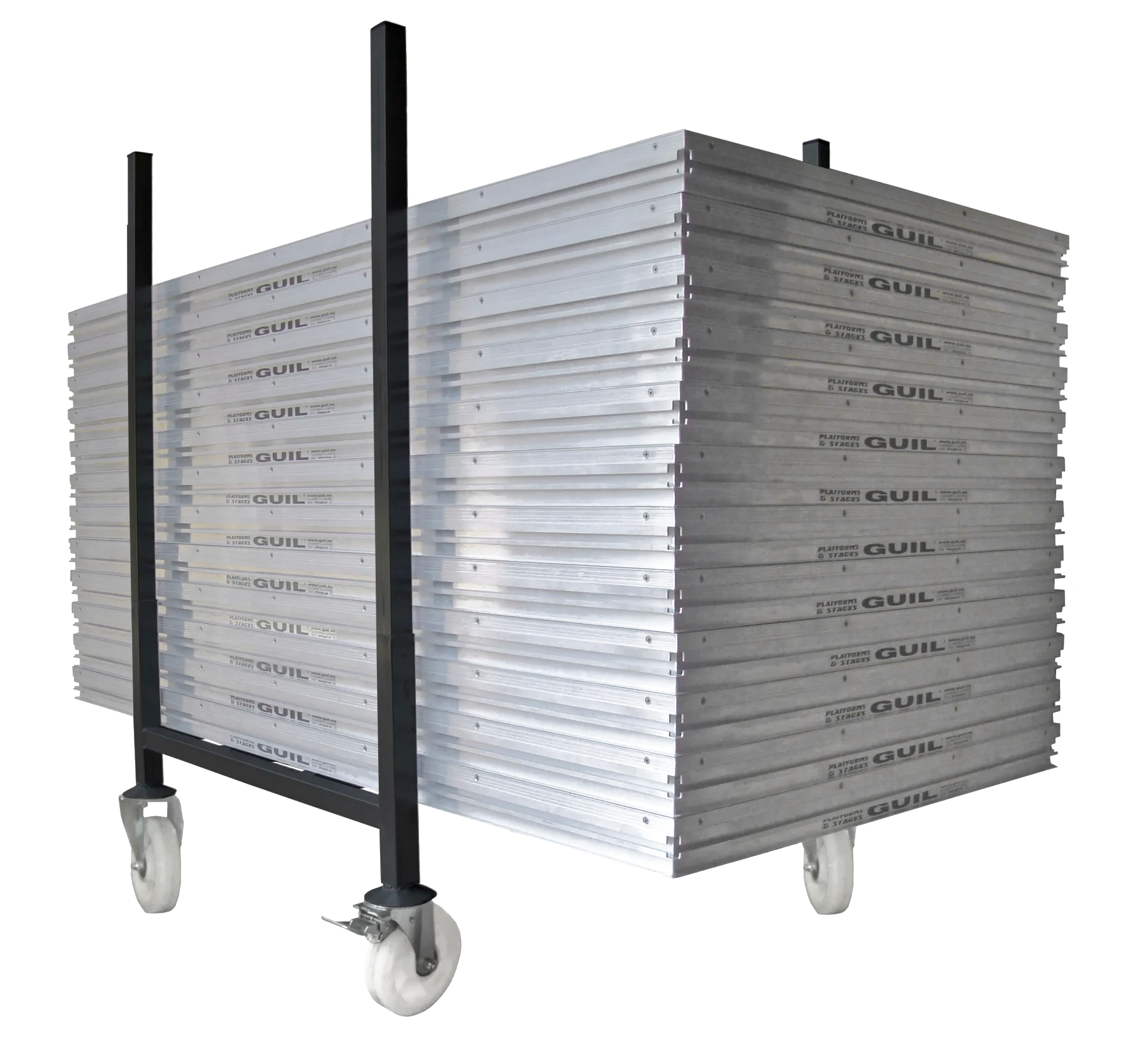

CTO-05 + CTR-03

Deck transport and organised storage

Four removable posts provide access to the load. Move the container by forklift or add four braked CTR-03 castors for mobile handling.

TM300 / TM440 / XL / XXL: 10 ×
TM441: 5 ×
Dimensions: 1055 × 1165 × 1275 mm
Maximum load: 600 kg

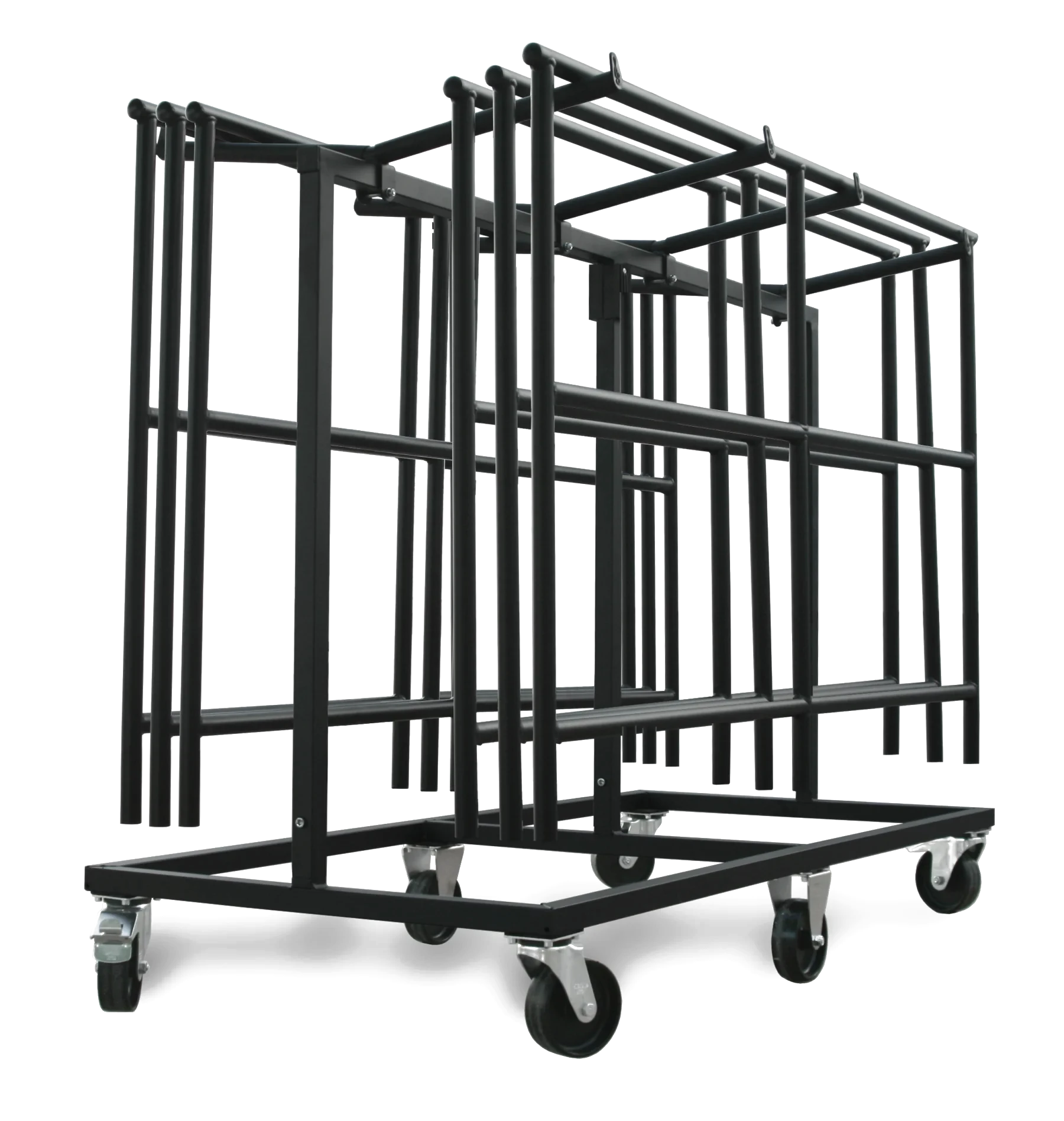

CRO-12

Dedicated transport for safety rails

The trolley carries all three TMQ rail lengths in one load. Components stay sorted and accessible in installation order.

Compatible rails: TMQ 0,5 / 1 / 2 m
Total length: up to 48 m
Trolley weight: 37 kg

GUIL CRO-12 kolica za sigurnosne ograde — TMQ · 0,5 / 1 / 2 m

Transport equipment selection

By equipment type, quantity and handling method

ModelUsed forTransport methodKey data

CRO-09one decktwo-wheel trolleyØ 200 mm · 14 kg

CRO-10up to 14 deckstrolley with handle and sling600 kg

CTO-05decks and storagecontainer / forklift / castors10 × / 5 × · 600 kg

CRO-12TMQ safety railsdedicated trolleyup to 48 m

28 pages

Stage decks and accessories physical catalogue

Catalogue

Transport and storage in the catalogue

Trolleys, storage systems, capacities and technical configurations for organised equipment handling.

Format: A4 · PDF
Scope: 28 pages
Language: HR edition

The PDF is delivered by email. Submitted details are used only for catalogue distribution records.

GUIL modular system

Complete stage system

Deck, footprint, working height, access and additional components are designed as one compatible system.

GUILYour stage

Deck

Capacity and working surface

The deck model determines capacity, module mass and working-surface finish.

View related products→

Footprint

Dimensions and module layout

Two-by-one-metre modules form the required footprint, including aisles and access positions.

View related products→

Height

Legs and levelling

Fixed and telescopic legs set the working height and allow precise levelling of the structure.

View related products→

Access

Stairs and ramps

Access is designed around working height, available space and the required use.

View related products→

Components

Rails, connectors and transport

Safety rails, connectors and transport equipment complete the compatible GUIL system.

View related products→

Stage Configurator · 3D viewGUIL components PDF output

Stage Configurator

Configure stage dimensions and components

Set the footprint and working height, then add stairs and guardrails. The Configurator builds the system from real GUIL components and prepares a clear summary for your inquiry.

Configuration example · 8 × 6 m
