Cables & connectors

Ready-made audio, DMX, network, video, loudspeaker, hybrid and power cables, plus connectors, adapters, bulk cable, reels and accessories.

View the range↓

Main families08

Series3 · 4 · 5 STAR

SupplyREADY · BULK

UseLIVE · STUDIO · FIX

Complete category

From our range

Eight groups cover ready-made connections, custom assembly, distribution and cable-equipment organisation.

Ready-made cables

AUDIO · DMX · DATA · VIDEO · POWER

Factory-terminated cables in multiple lengths and configurations.

Connectors

XLR · JACK · SPEAKER · POWER · DATA

Individual connectors for assembly, installation and service.

Adapters

XLR · JACK · RCA · DATA · POWER

Adapters and short adapter leads for compatible transitions.

Bulk cable

AUDIO · DMX · CAT · SPEAKER · POWER

Cable constructions for installation and custom assembly.

Cable reels

EMPTY · SIGNAL · MULTICORE · POWER

Empty and pre-assembled reels for field use.

Power distribution

STANDARD · 19\" · PROPORT

Standard, rack and ProPort distribution units.

FlipJack

5 STAR · 6.3 MM JACK

Instrument cable with a rotating straight and angled connector.

Management & accessories

TIES · HOLDERS · MOUNTS · BAGS

Ties, holders, mounting components and bags for cable equipment.

Which cable do you need?

Choose the signal type, connectors and length. The cable configurator narrows the range to match your selection.

Open configurator

Ready-made cables

Cables by signal type

These are the main product types. Length, series and exact configuration are selected for the equipment and operating conditions.

AUDIODMX / AESDATA / VIDEOPOWERMULTICORE

5 STAR MMF X

Microphone & balanced

XLR–XLR · XLR–JACK · PATCH

For microphones, balanced line connections, patching and studio use.

5 STAR IRP VINTAGE

Instrument

JACK · SILENTPLUG · PEDALBOARD

Straight and angled jack connectors, patch lengths and vintage textile jackets.

4 STAR 2.5 SPEAKER

Loudspeaker

2 / 4 POLE · 1.5 / 2.5 MM²

Cables for passive loudspeakers in multiple cross-sections and pole configurations.

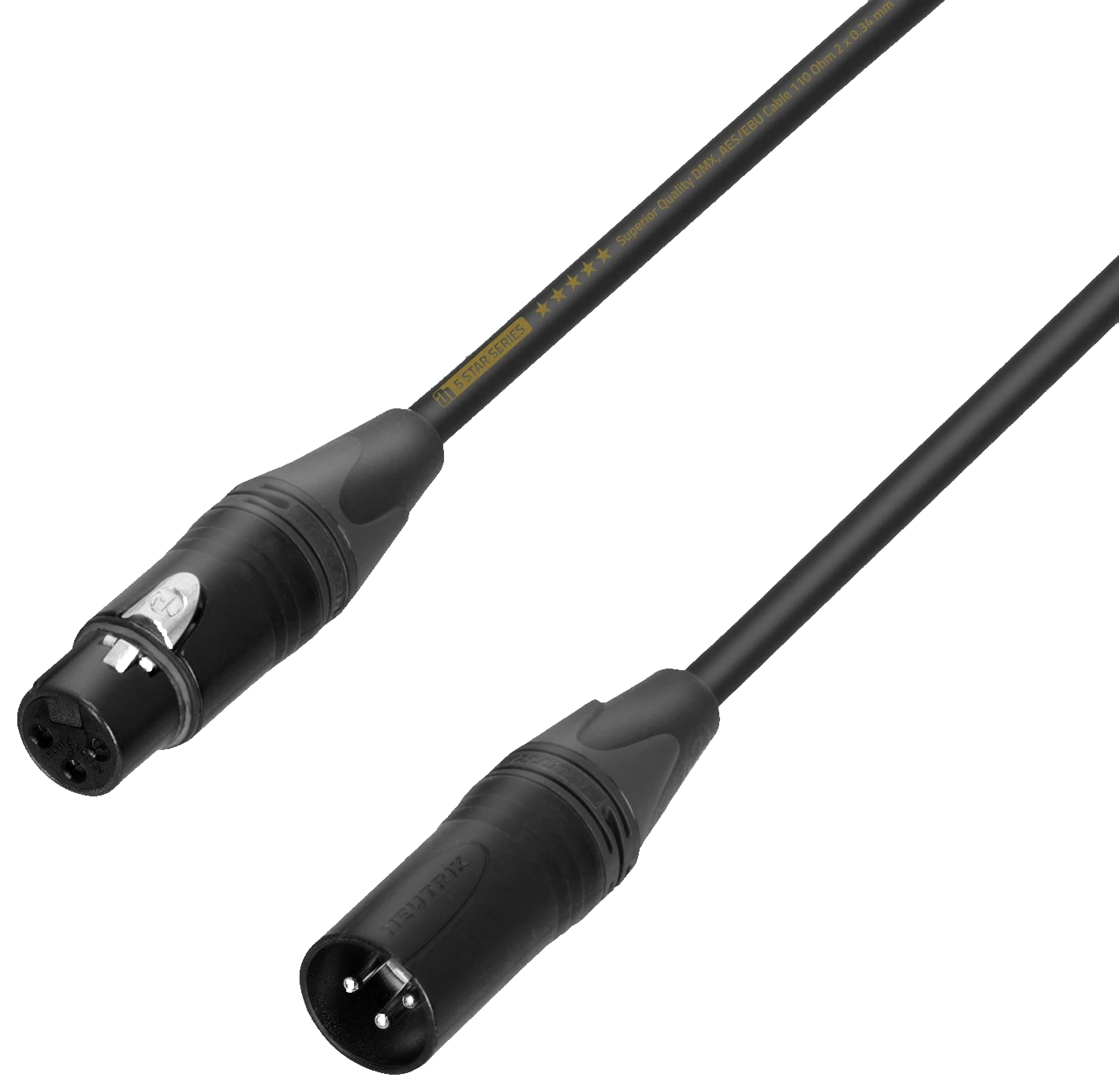

5 STAR DMF

DMX i AES/EBU

3 / 5 POLE · 110 Ω · OUTDOOR

Purpose-built digital cables for lighting control and AES/EBU signals.

5 STAR CAT6 RR

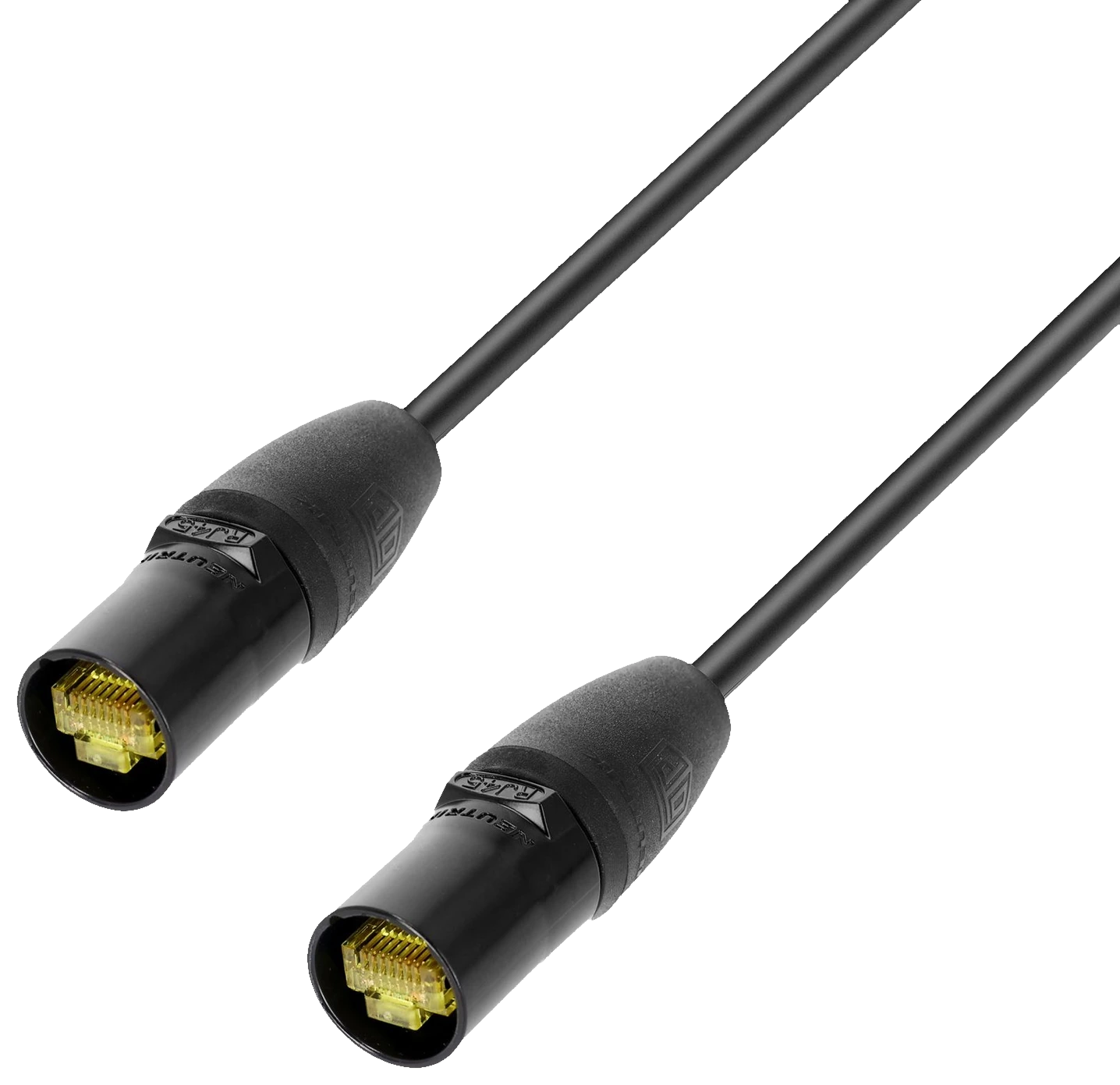

Network

CAT.5E · CAT.6A · RJ-45 · ETHERCON

Network cables for stage, AV, control and audio-over-IP systems.

4 STAR HDMI 0300

Video

HDMI 2.1 · 48 GBIT/S · 8K

HDMI cables for displays, projectors, video mixers and digital sources.

3 STAR MIDI

MIDI, USB-C and optical

MIDI · USB-C · TOSLINK

Digital connections for music, computer and AV equipment.

4 STAR CATBOX XM5

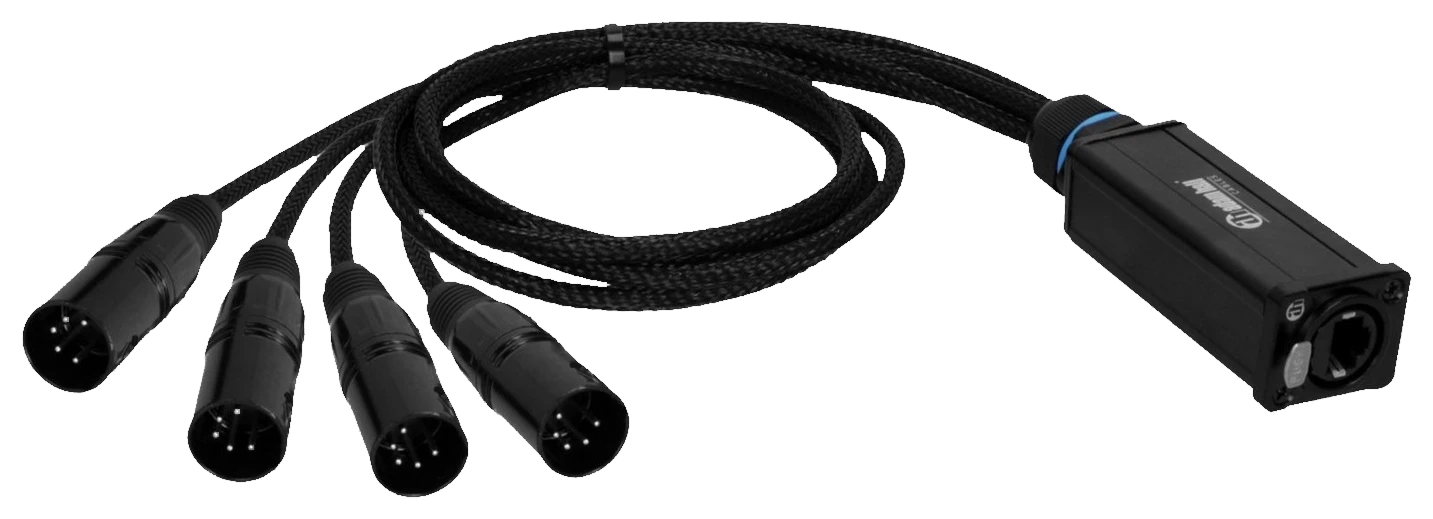

Multicore & stagebox

8–40 CH · AES72 · STUDIO LOOM

Multichannel links, stagebox systems, studio looms and audio/DMX over Cat cable.

POWER CABLES

Power & extension

SCHUKO · IEC · POWERCON · TRUE1

Power cables selected by connector type, cross-section, length and operating conditions.

4 STAR H TCON 5D

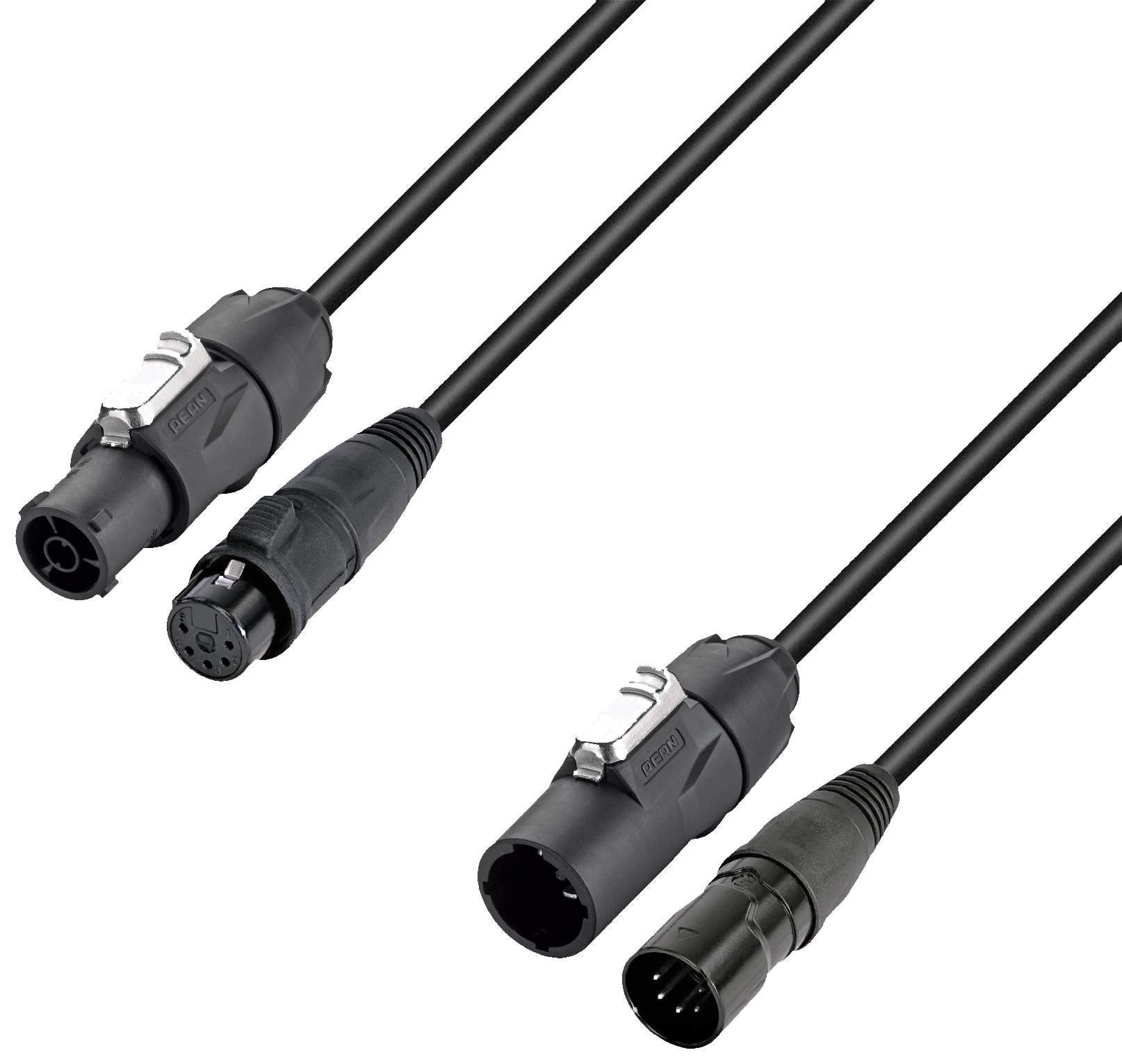

Hybrid

DMX + POWER · DATA + POWER · AUDIO

Factory-defined signal and power combinations in a shared run.

Assembly & service

Connectors & adapters

Connector format alone does not determine signal compatibility. Adapters are selected by standard, pinout and application.

XLR

3 and 5 poles · plugs and sockets

Jack

6.3 mm · mini jack · TS and TRS

Loudspeaker

2 / 4 / 8 POLE · speakON®

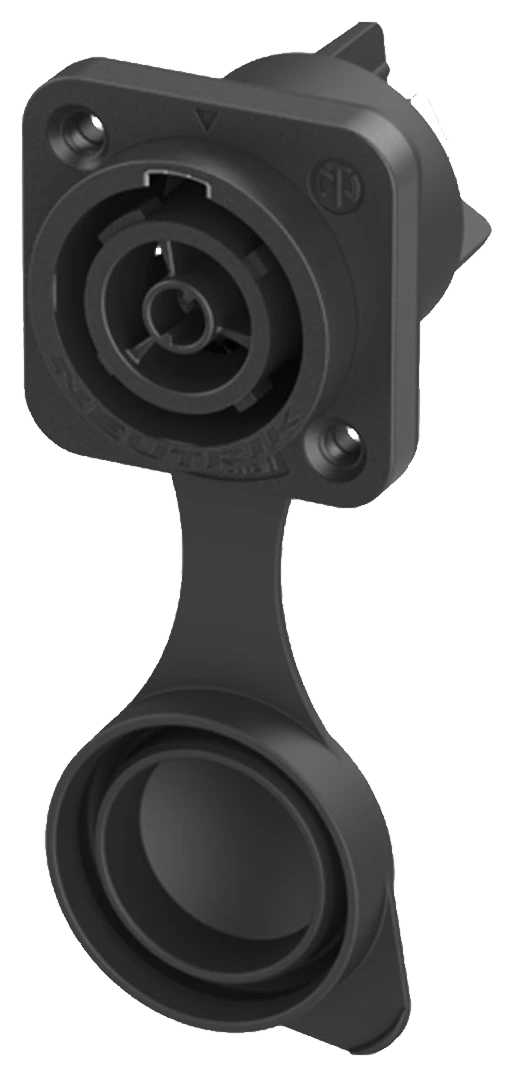

Power

powerCON® · TRUE1® · IP65

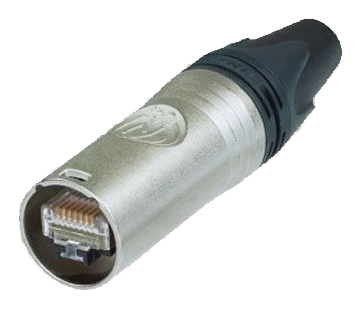

Network

etherCON® · RJ-45 · CAT.6A

AV feed-through

HDMI · USB · BNC

03Adapters & adapter leads

4 STAR A JF3 XM3

XLR, jack & RCA adapters

Individual adapters for clearly defined analogue and mechanical transitions.

4 STAR GROUNDLIFTER

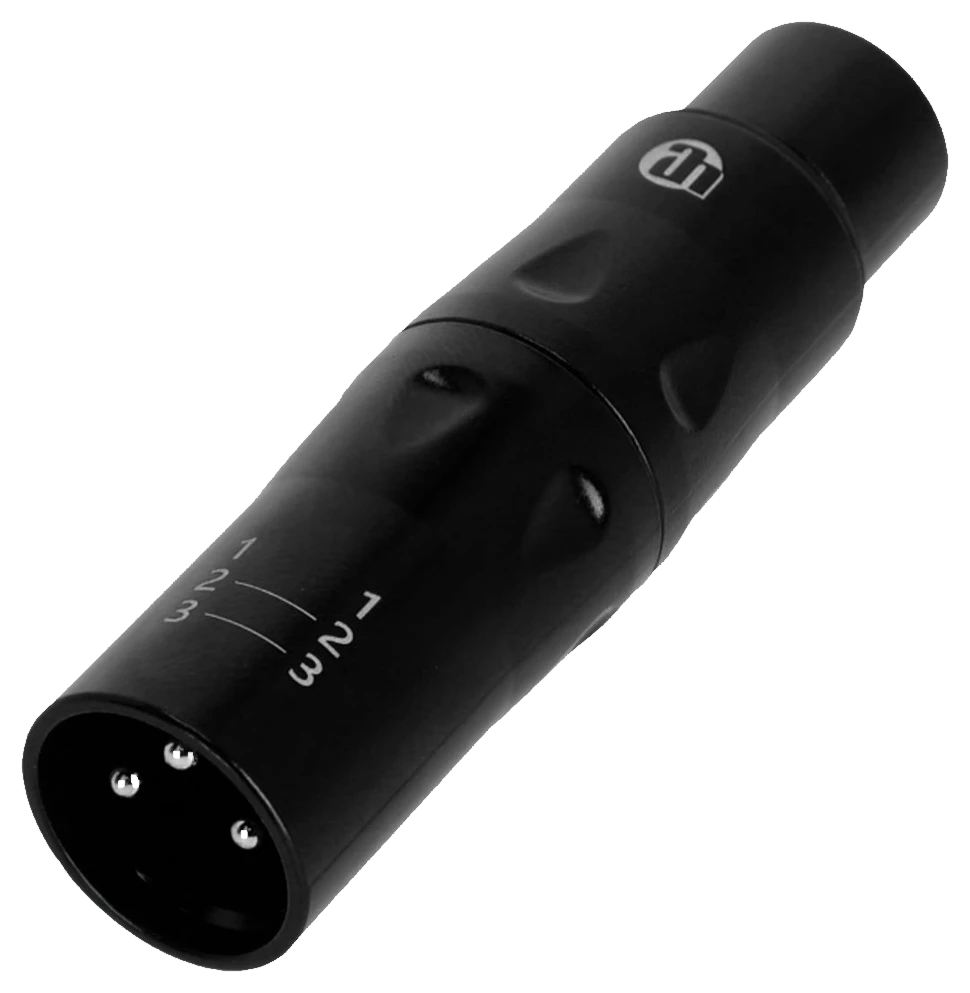

Audio service adapters

Ground-lift, phase and pin adapters for audio-system diagnostics and service.

4 STAR D HM IP65

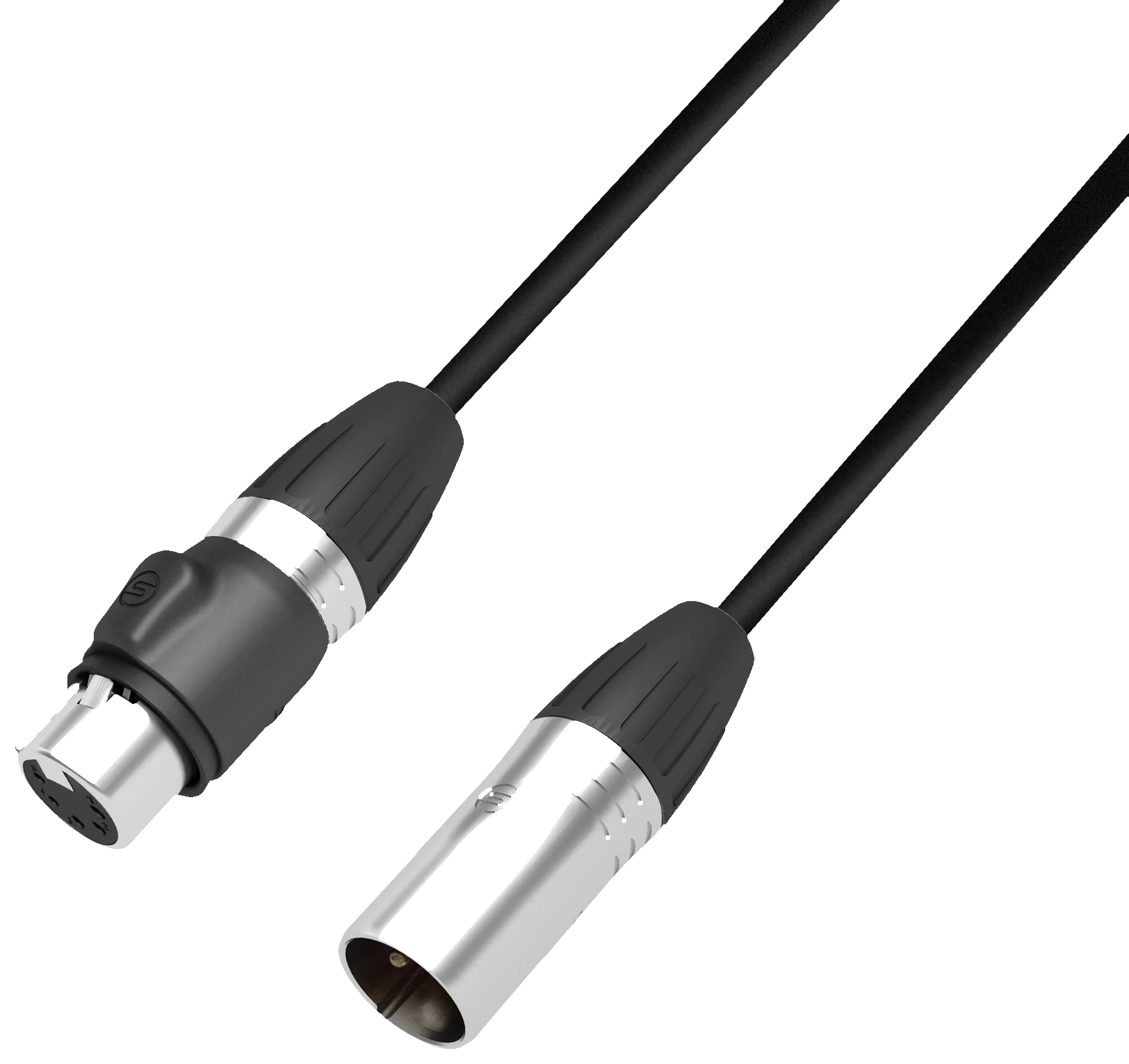

IP65 XLR adapter leads

Short 3-pole XLR configurations with protection for outdoor DMX connections.

Bulk cable

Construction by application

Installation and custom assembly require checks for cross-section, core count, impedance, shielding, jacket and installation conditions.

5 STAR M 250

Microphone & balanced

OFC conductors · capacitance · braid

5 STAR L 225

Loudspeaker

Conductor cross-section · core count

5 STAR D 234

DMX / AES-EBU

110 Ω · 2 / 4 CORE · SHIELD

5 STAR N CAT7

Network

CAT.5E · CAT.6 · CAT.7

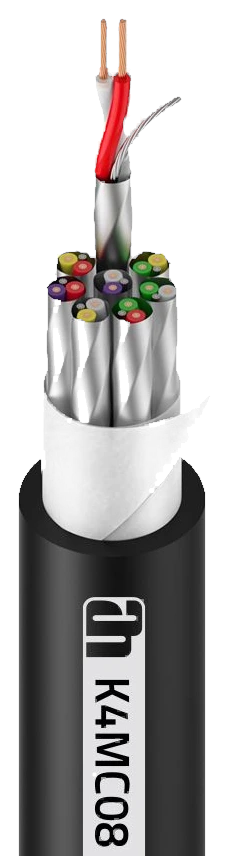

4 STAR MC 08

Multicore & twin

Channel count · individual shielding

4 STAR HP A 325

Power & hybrid

Cross-section · load · jacket

Field distribution

Cable reels & power

Empty and wired reels, extension cables and compact distribution for stage, studio and installation use.

4 STAR CD 30 MULTICORE 80

Multicore reel with integrated stagebox

Factory-wired audio multicore with eight XLR channels, individually shielded pairs and a 30 m cable.

Length: 30 m
Channels: 8
Weight: 6,4 kg

4 STAR CD 042

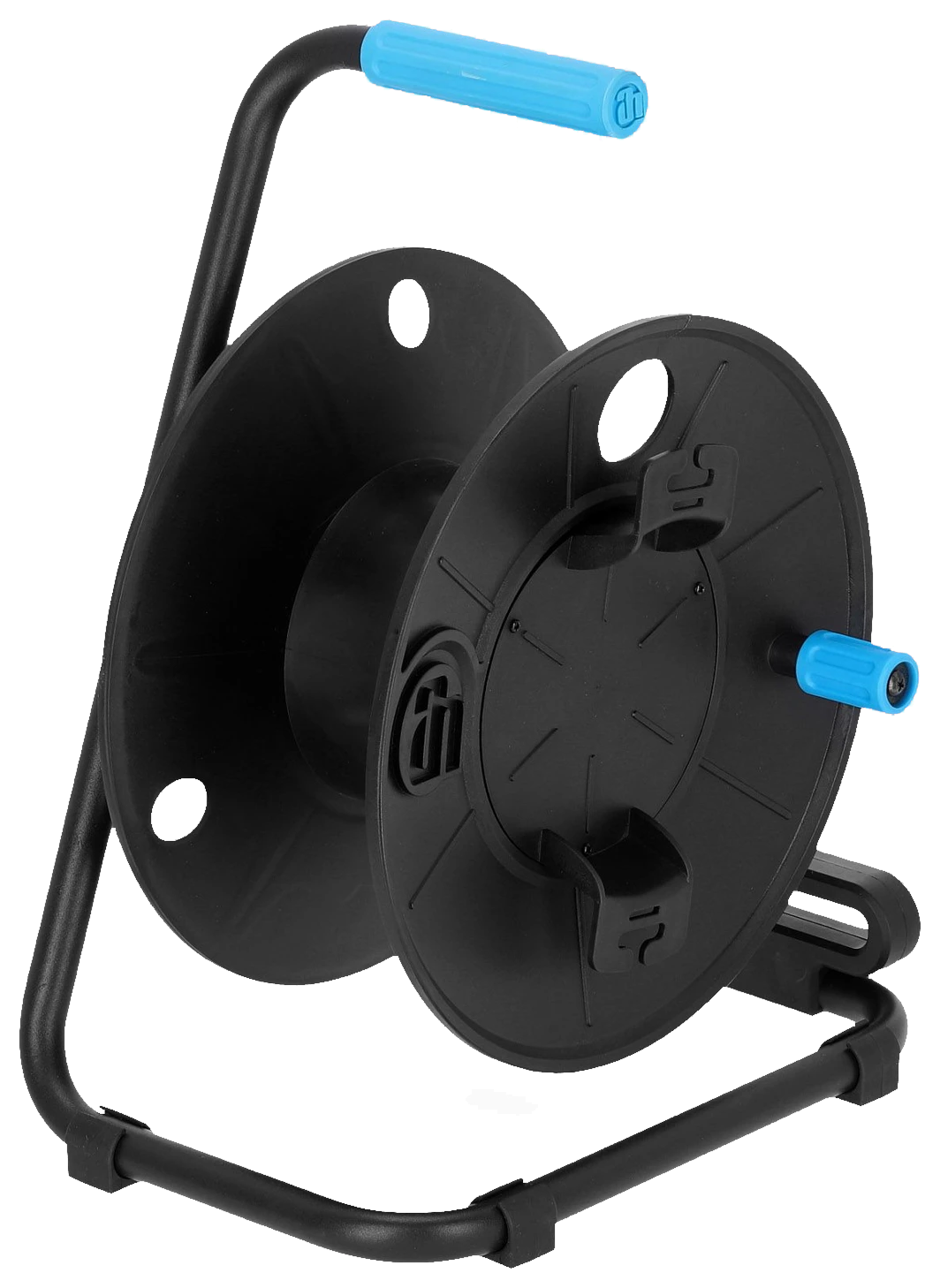

Empty reels

Reel housings, connection plates, castors and spare parts.

POWER REELS

Power reels

Factory-terminated extension cables on reels in multiple lengths.

Power distribution

Standard, rack & ProPort units

STANDARDPower strips

Standard formats, switches and USB variants.

19\" RACKRack distribution

19-inch units for organised equipment power.

ADAM HALL PROPORTProPort

Compact distribution boxes with multiple input and output configurations.

Musician connecting an Adam Hall FlipJack cable to an electric guitar

5 STAR · FLIPJACK

Straight & angled jack in one connector

The rotating 6.3 mm connector changes between straight and angled positions without an additional adapter.

Straight positionAngled position

Organisation & transport

Cable equipment accessories

Accessories for identification, routing, preparation, storage and transport of cables.

VR SERIES

Cable ties

Reusable hook-and-loop ties in multiple lengths and colours.

SCS SERIES

Holders & routing

Components for separated, clear and strain-relieved cable routing.

KMT 01 · 420 × 120 × 120 MM

Cable management tray

Steel under-desk tray for cables and power strips in studios and workspaces.

CABLE BAG PRO

Cable equipment bags

Padded bags with compartments for sorting and transport.

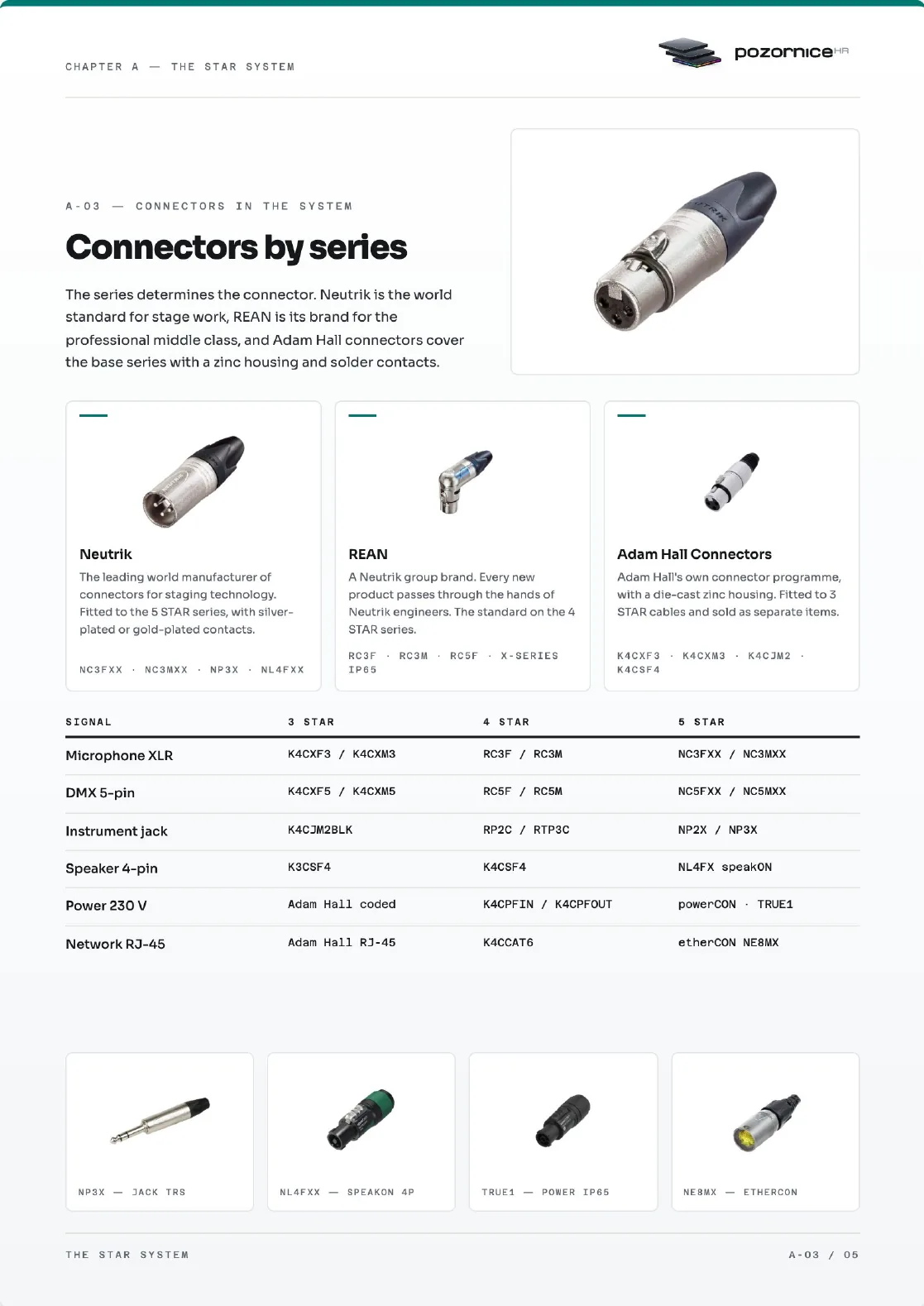

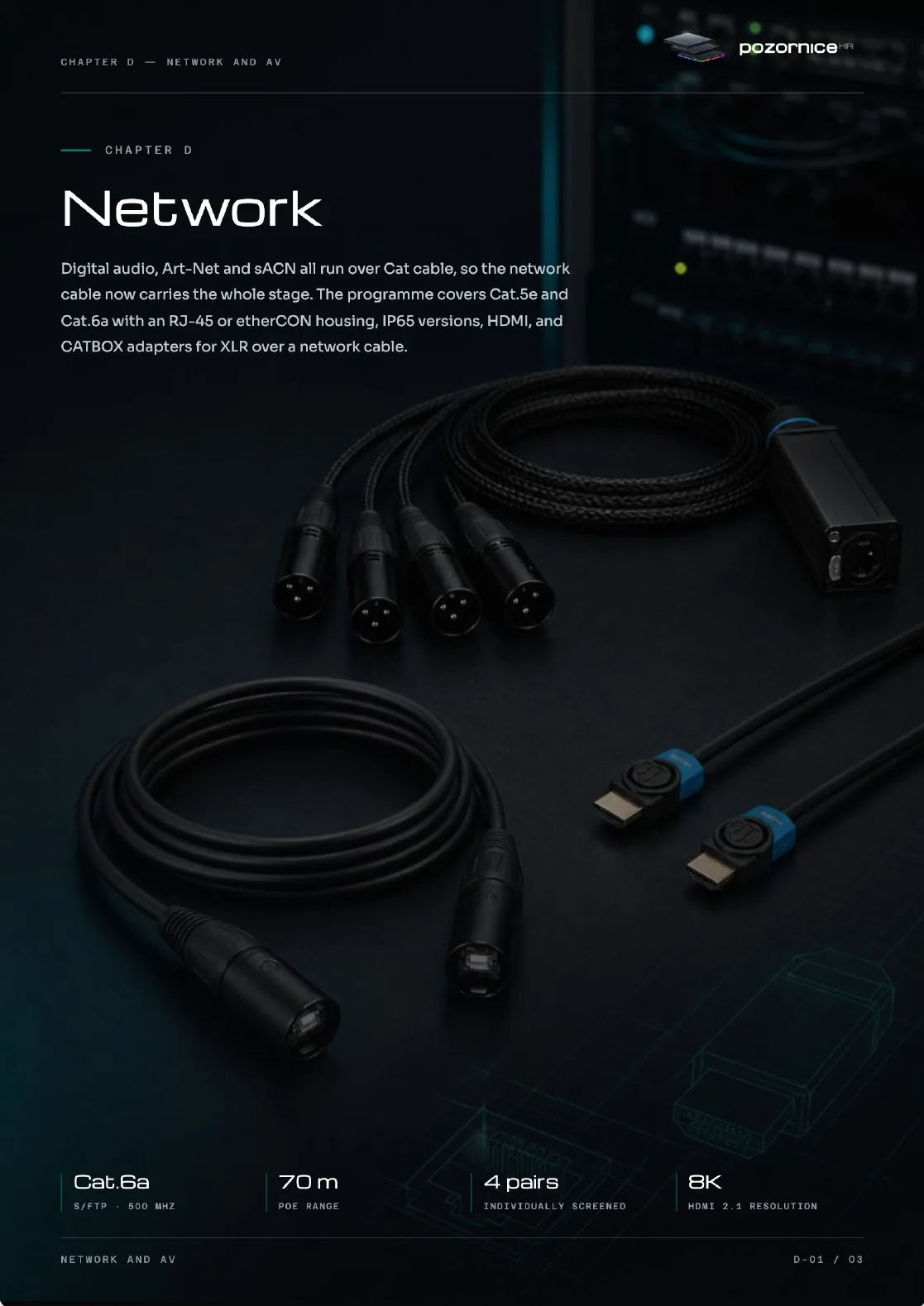

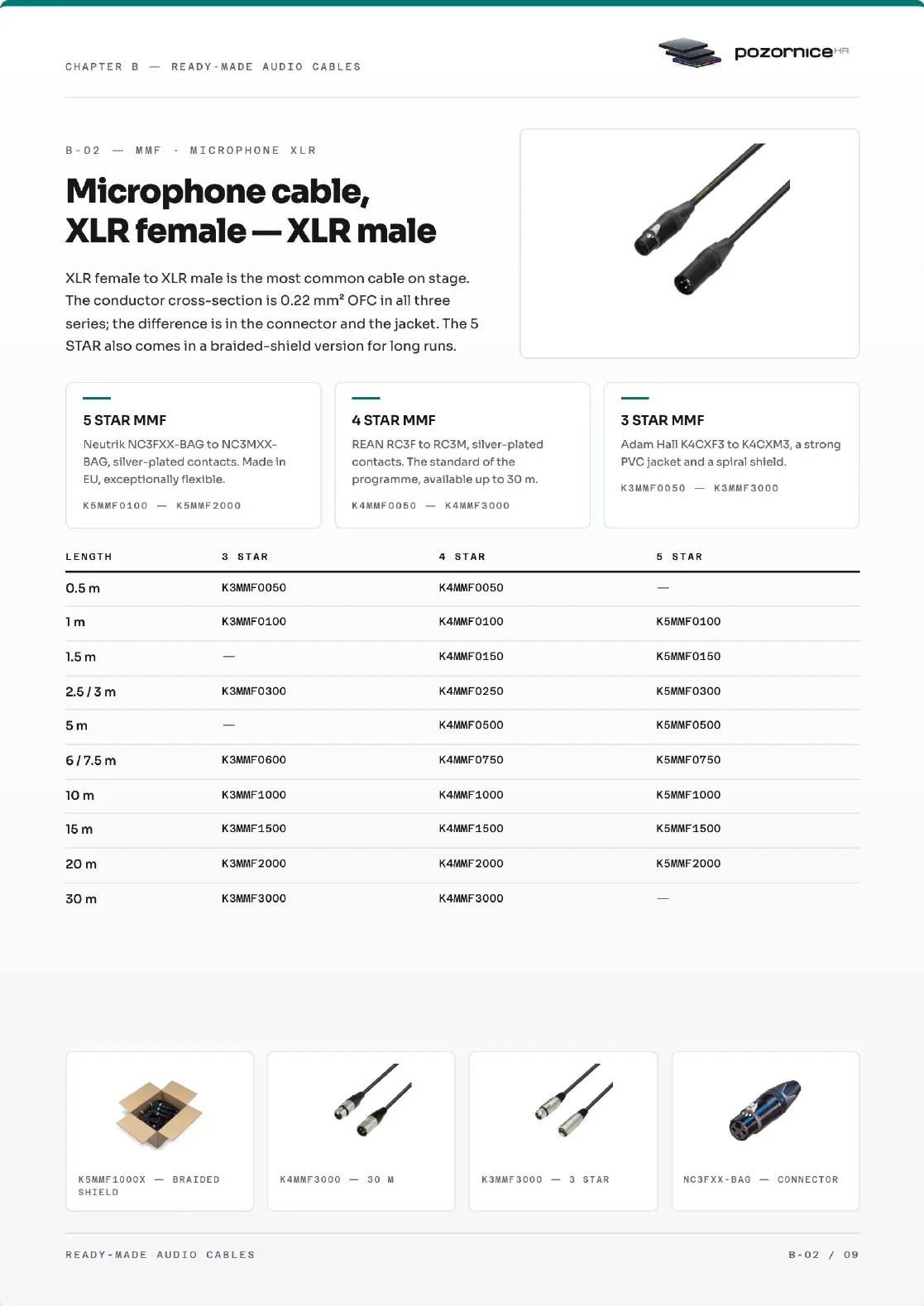

48 pages

Cables and connectors physical catalogue

Catalogue

Cables and connectors

3 STAR, 4 STAR and 5 STAR ranges, ready-made cables, bulk cable, connectors, adapters, reels and accessories.

Format: A4 · PDF
Scope: 48 pages
Language: HR edition

The PDF is delivered by email. Submitted details are used only for catalogue distribution records.

An Adam Hall Group brand

Official brand website

MANUFACTURER · ADAM HALL GROUP

Adam Hall Cables

Adam Hall Group began in the United Kingdom in 1975 and today operates from Neu-Anspach near Frankfurt. Adam Hall Cables supplies ready-made cables, bulk cable, connectors, adapters, cable drums and accessories for live, studio and installation work.

Operating since: 1975.
Headquarters: NEU-ANSPACH · DE
Company: ADAM HALL GROUP

Adam Hall Cables range

Ready-made cablesBulk cableConnectorsAdaptersCable drumsAccessories
