Protective barriers

A modular crowd barrier line,
controlled access and cable routing.

Compare ATV models

ATV-07Animated 3D product view

3compatible ATV modules

Tool-freeconnection with safety pins

AluminiumATV barrier construction

Three modules.
Different roles.

Choose a barrier, gate or cable opening. Each model has its own construction and exact dimensions.

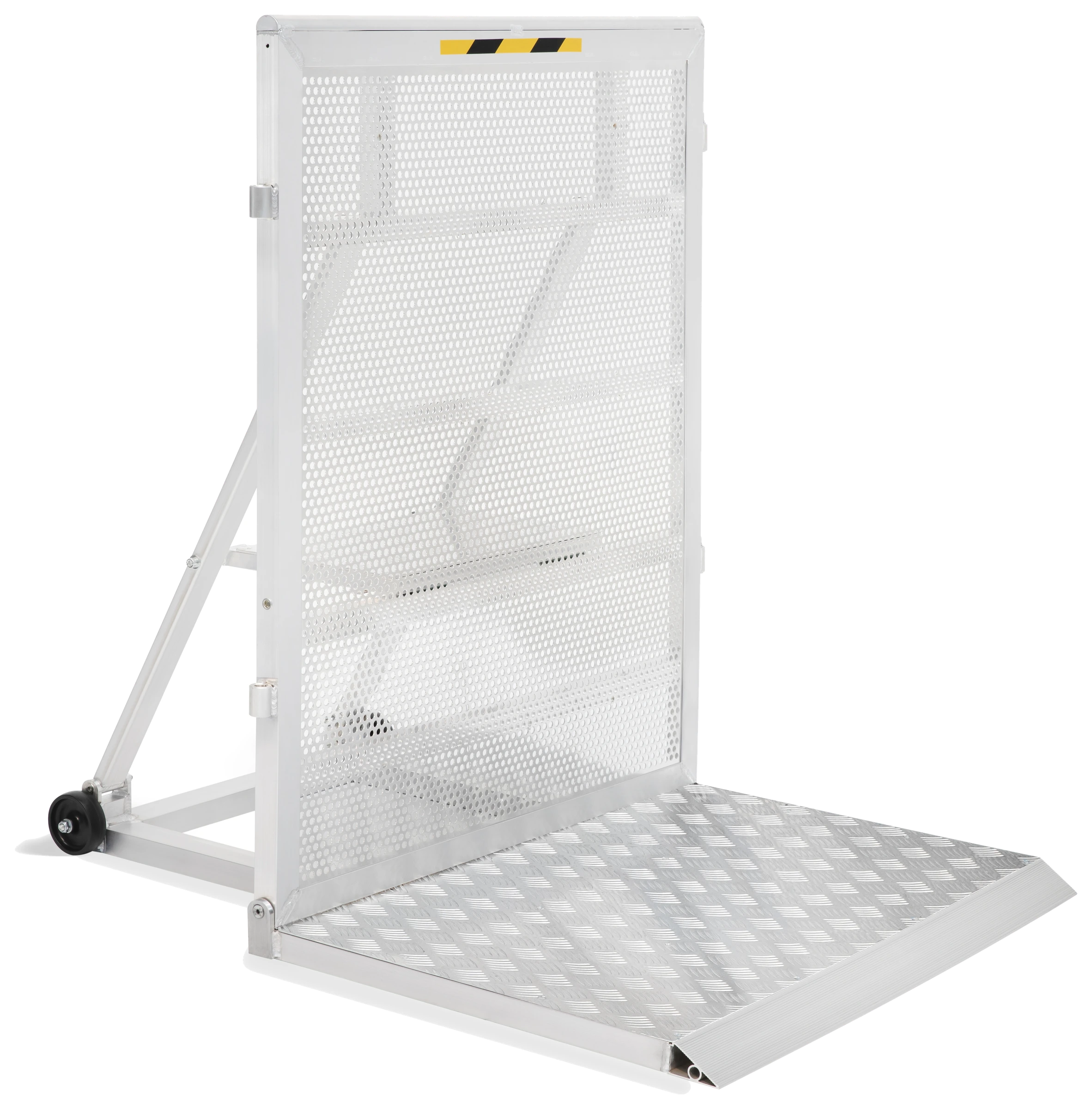

ATV-07

Barrier line

Standard module with a safety step for staff. A ribbed base with an access ramp and a folding frame make event work easier.

Width × depth × height: 100 × 131 × 128.5 cm
Module weight: 37 kg
Wheels for moving: Ø 100 mm

Full specifications

Dimensions follow current GUIL tables, checked on 15 October 2026. Older dimensioned photographs and the catalogue show different measurements.

A connection that joins
the whole line.

Male and female connections with safety pins join the modules. No additional tools are needed for connection.

ATV-07

Support for the audience.
A step for staff.

The ribbed base ends in an access ramp. On the other side of the barrier, staff have a non-slip step.

EN-AW 6082 T6reinforced aluminium

Perforated surfacevisibility and sound transmission

Rounded edgesno sharp edges

ATV-08

A gate within
the barrier line.

Staff access stays part of the same system. The gate opens inwards and has two padlock points.

Explore ATV-08

Animated 3D view of ATV-08

After the event,
less space.

ATV-07 and ATV-08 fold for transport. Built-in wheels make it easier to move individual modules.

ATV-08

Folding frame

The photograph shows the folded gate. Folded dimensions in the current GUIL table: 112 × 12 × 136 cm.

ATV-07

Two built-in wheels

Ø 100 mm for moving an individual module.

Up to eight modules.
One container.

CTO-ATV holds up to eight ATV-07 barriers or ATV-08 gates. Its four posts are removable, and containers can be stacked up to three high.

Barriers and wheels are shown as equipment examples and are ordered separately.

CTO-ATV

600 kg

Container load capacity

Container weight without wheels: 25 kg
Container dimensions: 115 × 105 × 122 cm
Construction: Steel

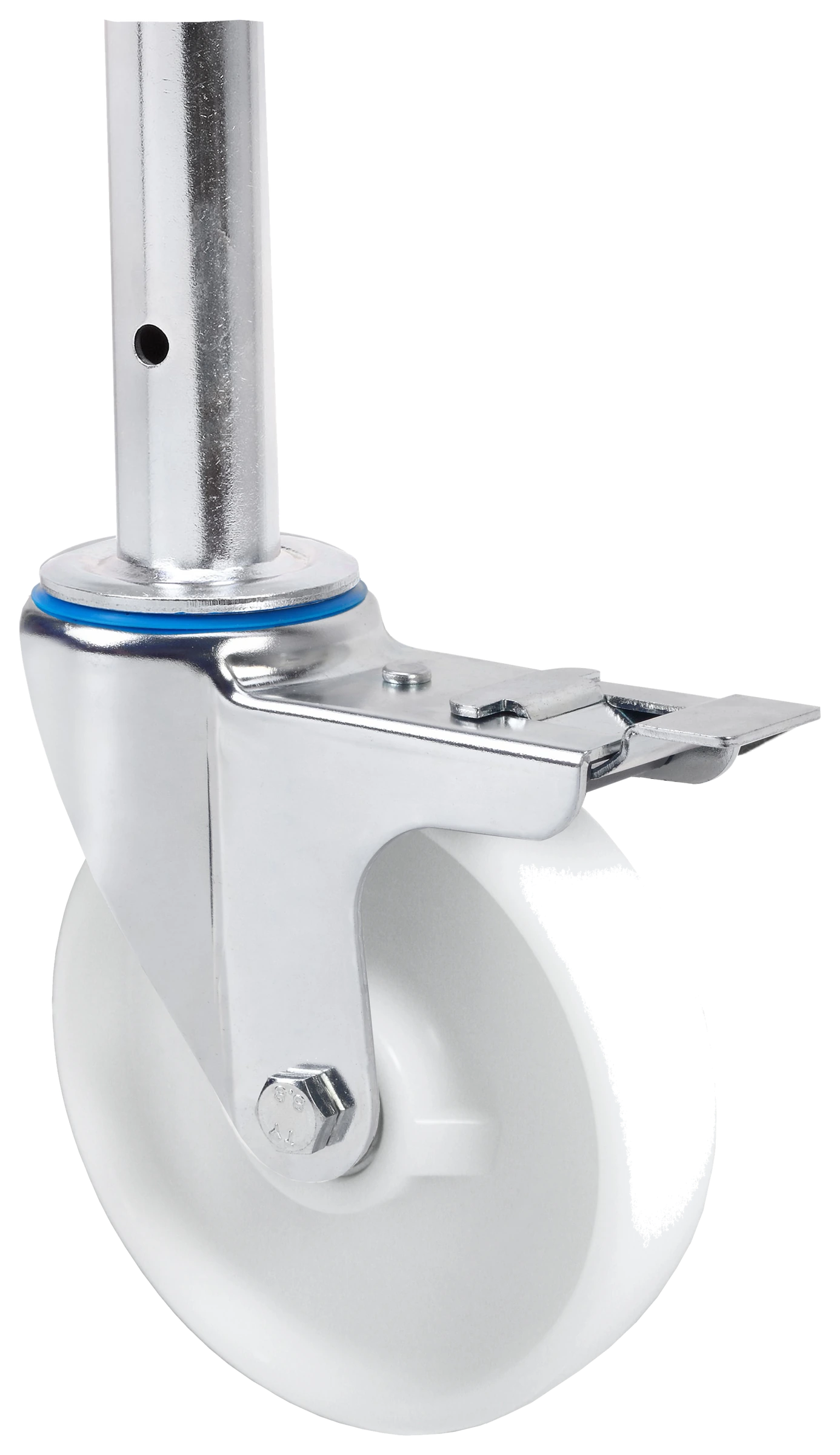

CTR-03

Four swivel castors with brakes

Ø 200 mm · 10 kg per set.
The set is ordered separately.

GUIL specifications

Exact specifications.
For every model.

The data follows the manufacturer's current tables. The version and final layout are checked against your project before ordering.

ATV-0737 kg

Width × depth × height: 100 × 131 × 128.5 cm
Weight: 37 kg
Folded: 106 × 12 × 136 cm
Material: EN-AW 6082 T6 aluminium

Manufacturer specification

ATV-0843 kg

Width × depth × height: 112 × 131.5 × 128.5 cm
Weight: 43 kg
Folded: 112 × 12 × 136 cm
Material: EN-AW 6082 T6 aluminium

Manufacturer specification

ATV-098.5 kg

Width × depth × height: 70 × 4 × 128 cm
Weight: 8.5 kg
Folded: Non-folding module
Material: EN-AW 6082 T6 aluminium

Manufacturer specification

CTO-ATVContainer

Load capacity / weight: 600 kg / 25 kg
Container dimensions: 115 × 105 × 122 cm
Container with 8 upright modules: 115 × 105 × 155 cm
Container with 8 modules on their sides: 115 × 140 × 122 cm

Manufacturer specification

CTR-03Wheel set

Included in the set: 4 swivel castors with brakes
Wheel diameter / width: 200 mm / 50 mm
Set weight / single wheel weight: 10 kg / 2.5 kg
Compatible containers: CTO-ATV and CTO-05

Manufacturer specification

GUIL states that the ATV system has been tested to EN 13200-3. The layout, access routes and conditions of use must be determined for each event.
